Ferrari F50 - CRANKCASE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
169538 COMPLETE CRANKCASE $33,850.50 To Order
Photo Part No Description Price (each) Stock
159144 COOPERS SEAL RING $428.76 To Order
Photo Part No Description Price (each) Stock
154035 R.H. GASKET $10.65 To Order
Photo Part No Description Price (each) Stock
154030 L.H. GASKET $10.93 To Order
Photo Part No Description Price (each) Stock
150110 GASKET $1.75 To Order
Photo Part No Description Price (each) Stock
158073 WATER DUCT COVER $587.19 To Order
Photo Part No Description Price (each) Stock
158079 GASKET $22.57 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
13516824 STUD BOLT $0.44 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
12604474 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
154072 STUD $18.90 To Order
Photo Part No Description Price (each) Stock
154073 STUD $11.88 To Order
Photo Part No Description Price (each) Stock
149995 DOWEL $103.39 To Order
Photo Part No Description Price (each) Stock
148093 NUT $21.02 To Order
Photo Part No Description Price (each) Stock
151117 WASHER $1.05 IN STOCK
Photo Part No Description Price (each) Stock
169538 COMPLETE CRANKCASE $33,850.50 To Order
Photo Part No Description Price (each) Stock
169538 COMPLETE CRANKCASE $33,850.50 To Order
Photo Part No Description Price (each) Stock
159196 DOWEL $16.76 To Order
Photo Part No Description Price (each) Stock
159198 STUD $50.43 To Order
Photo Part No Description Price (each) Stock
6103841 NUT $9.25 To Order
Photo Part No Description Price (each) Stock
159197 WASHER $4.58 To Order
Photo Part No Description Price (each) Stock
149454 NOZZLE $90.32 IN STOCK
Photo Part No Description Price (each) Stock
149453 SCREW FOR NOZZLE $13.40 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10297760 GASKET $0.33 IN STOCK
Photo Part No Description Price (each) Stock
154176 R.H. PLUG $72.26 To Order
Photo Part No Description Price (each) Stock
152569 L.H. PLUG $60.21 To Order
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.32 IN STOCK
Photo Part No Description Price (each) Stock
149520 SHUTTER PISTON $22.57 To Order
Photo Part No Description Price (each) Stock
149519 SPRING $6.16 To Order
Photo Part No Description Price (each) Stock
152570 SPACER $5.69 To Order
Photo Part No Description Price (each) Stock
149105 PLUG $24.08 To Order
Photo Part No Description Price (each) Stock
134233 O-RING $0.44 IN STOCK
Photo Part No Description Price (each) Stock
149106 STUD $13.44 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
161439 THREADED PLUG $4.46 To Order
Photo Part No Description Price (each) Stock
14324811 THREADED PLUG $5.48 To Order
Photo Part No Description Price (each) Stock
65928500 THREADED PLUG $21.02 To Order
Photo Part No Description Price (each) Stock
14326050 CAP $1.63 IN STOCK
Photo Part No Description Price (each) Stock
10334520 PIN $2.45 To Order
Photo Part No Description Price (each) Stock
152270 STUD $13.44 To Order
Photo Part No Description Price (each) Stock
123475 GASKET $3.82 IN STOCK
Photo Part No Description Price (each) Stock
134232 O-RING $1.17 To Order
Photo Part No Description Price (each) Stock
134233 O-RING $0.44 IN STOCK
Photo Part No Description Price (each) Stock
159192 REAR COVER $1,532.73 To Order
Photo Part No Description Price (each) Stock
171948 GASKET $11.74 To Order
Photo Part No Description Price (each) Stock
254979 STUD BOLT $2.19 To Order
Photo Part No Description Price (each) Stock
13450234 STUD $13.44 To Order
Photo Part No Description Price (each) Stock
125537 Dowel $4.58 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
231625 SCREW $0.56 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
103044 WASHER $5.72 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
133216 NUT $8.00 IN STOCK
Photo Part No Description Price (each) Stock
12642424 WASHER $0.64 To Order
Photo Part No Description Price (each) Stock
149112 DOWEL $6.14 To Order
Photo Part No Description Price (each) Stock
123475 GASKET $3.82 IN STOCK
Photo Part No Description Price (each) Stock
150557 BALL $0.17 To Order
Photo Part No Description Price (each) Stock
132248 O-RING $0.41 To Order
Photo Part No Description Price (each) Stock
149113 PLUG $21.06 To Order
Photo Part No Description Price (each) Stock
134233 O-RING $0.44 IN STOCK
Photo Part No Description Price (each) Stock
164281 L.H. PLATE $30.10 To Order
Photo Part No Description Price (each) Stock
10269150 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
140071 O-RING 3 X 3 X 1 $0.56 IN STOCK
Photo Part No Description Price (each) Stock
165962 PLUG $20.17 To Order
View All

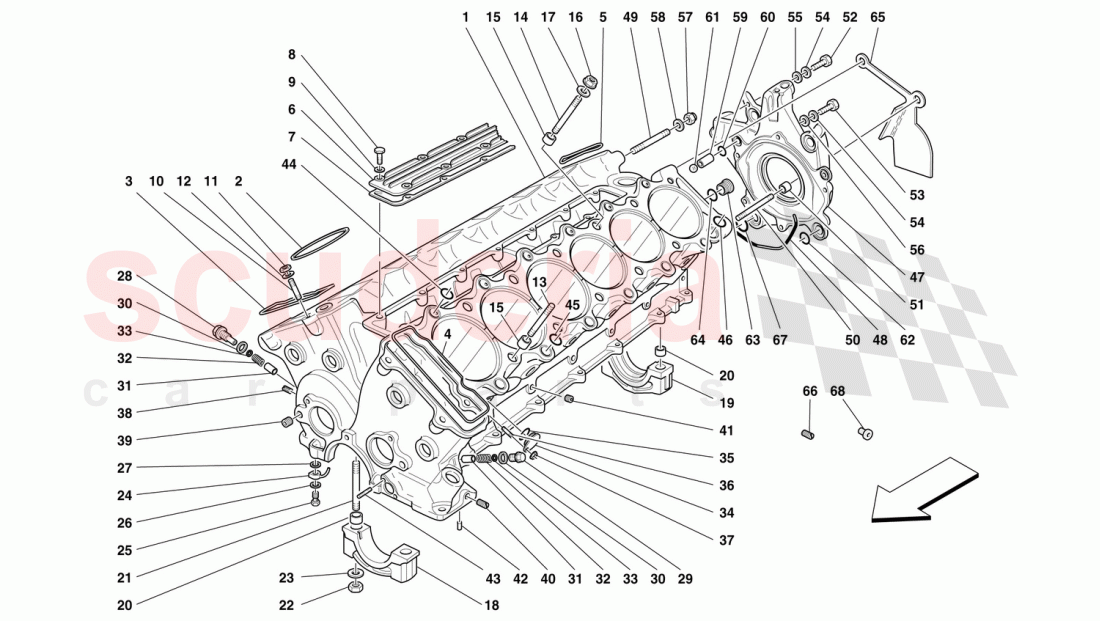

CRANKCASE of Ferrari Ferrari F50 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 164280
R.H. PLATE 		$30.10 1
- 169538
COMPLETE CRANKCASE 		$33,850.50 1
1 169538
COMPLETE CRANKCASE
Not as spare part / With complete crankcase 		$33,850.50 1
2 159144
COOPERS SEAL RING 		$428.76 (31.1% off) 12
3 154035
R.H. GASKET 		$10.65 1
4 154030
L.H. GASKET 		$10.93 1
5 150110
GASKET 		$1.75 2
6 158073
WATER DUCT COVER 		$587.19 1
7 158079
GASKET 		$22.57 1
8 10902424
SCREW
IN STOCK 		$0.14 (80% off) 14
9 11197774
WASHER
IN STOCK 		$0.06 (80% off) 14
10 13516824
STUD BOLT
IN STOCK 		$0.44 (64.8% off) 4
11 14040711
NUT
IN STOCK 		$0.35 4
12 12604474
WASHER
IN STOCK 		$0.06 (40% off) 4
13 154072
STUD
Exhaust side 		$18.90 14
14 154073
STUD
Suction side 		$11.88 14
15 149995
DOWEL 		$103.39 4
16 148093
NUT 		$21.02 (22.4% off) 28
17 151117
WASHER
IN STOCK 		$1.05 (8.7% off) 28
18 169538
COMPLETE CRANKCASE
CAP / Not as spare part / With complete crankcase 		$33,850.50 6
19 169538
COMPLETE CRANKCASE
Not as spare part / With complete crankcase 		$33,850.50 1
20 159196
DOWEL 		$16.76 14
21 159198
STUD 		$50.43 14
22 6103841
NUT 		$9.25 14
23 159197
WASHER 		$4.58 14
24 149454
NOZZLE
IN STOCK 		$90.32 12
25 149453
SCREW FOR NOZZLE 		$13.40 12
26 11197774
WASHER
IN STOCK 		$0.06 (80% off) 12
27 10297760
GASKET
IN STOCK 		$0.33 (67% off) 12
28 154176
R.H. PLUG 		$72.26 1
29 152569
L.H. PLUG 		$60.21 1
30 10261460
COPPER WASHER 16 X 24 X 1.5
IN STOCK 		$0.32 (68% off) 2
31 149520
SHUTTER PISTON 		$22.57 2
32 149519
SPRING 		$6.16 2
33 152570
SPACER 		$5.69 2
34 149105
PLUG 		$24.08 12
35 134233
O-RING
IN STOCK 		$0.44 (70.7% off) 12
36 149106
STUD 		$13.44 12
37 14059290
FLANGED NUT M6
IN STOCK 		$1.31 12
38 161439
THREADED PLUG 		$4.46 2
39 14324811
THREADED PLUG 		$5.48 2
40 65928500
THREADED PLUG 		$21.02 (8% off) 1
41 14326050
CAP
IN STOCK 		$1.63 (34.3% off) 7
42 10334520
PIN 		$2.45 2
43 152270
STUD 		$13.44 2
44 123475
GASKET
IN STOCK 		$3.82 (8.6% off) 12
45 134232
O-RING 		$1.17 (6.4% off) 12
46 134233
O-RING
IN STOCK 		$0.44 (70.7% off) 2
47 159192
REAR COVER 		$1,532.73 1
48 171948
GASKET 		$11.74 1
49 254979
STUD BOLT 		$2.19 2
50 13450234
STUD 		$13.44 1
51 125537
Dowel 		$4.58 2
52 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 1
53 231625
SCREW
IN STOCK 		$0.56 7
54 11197774
WASHER
IN STOCK 		$0.06 (80% off) 8
55 103044
WASHER 		$5.72 1
56 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 7
57 133216
NUT
IN STOCK 		$8.00 (23.2% off) 4
58 12642424
WASHER 		$0.64 4
59 149112
DOWEL 		$6.14 2
60 123475
GASKET
IN STOCK 		$3.82 (8.6% off) 2
61 150557
BALL 		$0.17 2
62 132248
O-RING 		$0.41 (80.5% off) 3
63 149113
PLUG
Not as spare part now 		$21.06 2
64 134233
O-RING
Not as spare part now
IN STOCK 		$0.44 (70.7% off) 2
65 164281
L.H. PLATE 		$30.10 1
66 10269150
THREADED PLUG 		- 1 Enquire
67 140071
O-RING 3 X 3 X 1
IN STOCK 		$0.56 (81% off) 1
68 165962
PLUG 		$20.17 2
