L.h. Cylinder Head

Ferrari F50

Find Your Part

Ferrari F50 - L.H. CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
169541 COMPLETE L.H. CYLINDERS HEAD $13,937.67 To Order
Photo Part No Description Price (each) Stock
169541 COMPLETE L.H. CYLINDERS HEAD $13,937.67 To Order
Photo Part No Description Price (each) Stock
159296 GASKET $244.35 To Order
Photo Part No Description Price (each) Stock
13453724 STUD $13.64 To Order
Photo Part No Description Price (each) Stock
133216 NUT $8.11 IN STOCK
Photo Part No Description Price (each) Stock
12638621 WASHER $0.37 To Order
Photo Part No Description Price (each) Stock
13516924 STUD BOLT $2.13 IN STOCK
Photo Part No Description Price (each) Stock
161439 THREADED PLUG $4.52 To Order
Photo Part No Description Price (each) Stock
65928500 THREADED PLUG $21.32 To Order
Photo Part No Description Price (each) Stock
151476 PLUG $21.37 To Order
Photo Part No Description Price (each) Stock
109478 Sealing ring $4.00 To Order
Photo Part No Description Price (each) Stock
152439 PLUG $58.02 To Order
Photo Part No Description Price (each) Stock
10260060 Gasket $0.51 To Order
Photo Part No Description Price (each) Stock
154215 GASKET $0.86 To Order
Photo Part No Description Price (each) Stock
144860 PLUG $19.27 To Order
Photo Part No Description Price (each) Stock
10298460 GASKET $0.14 IN STOCK
Photo Part No Description Price (each) Stock
13522070 THREADED INSERT $0.76 To Order
Photo Part No Description Price (each) Stock
166684 UNION $4.75 To Order
Photo Part No Description Price (each) Stock
10979414 SCREW $0.19 To Order
Photo Part No Description Price (each) Stock
11181874 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
10977524 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
11199274 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
159864 UNION $351.26 To Order
Photo Part No Description Price (each) Stock
159871 SEAL RING $0.60 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
134704 O-RING $0.14 IN STOCK
Photo Part No Description Price (each) Stock
104984 O-Ring $1.47 IN STOCK
Photo Part No Description Price (each) Stock
14305324 ALLEN SCREW M6 X 20 $0.08 IN STOCK
Photo Part No Description Price (each) Stock
13027024 SCREW M6 X 16MM $0.20 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
149107 DOWEL $3.75 To Order
Photo Part No Description Price (each) Stock
13541524 STUD BOLT $0.59 To Order
Photo Part No Description Price (each) Stock
167917 STUD $14.50 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
12648224 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.02 To Order
Photo Part No Description Price (each) Stock
149216 DOWEL $14.73 To Order
Photo Part No Description Price (each) Stock
169237 WASHER $4.69 To Order
View All

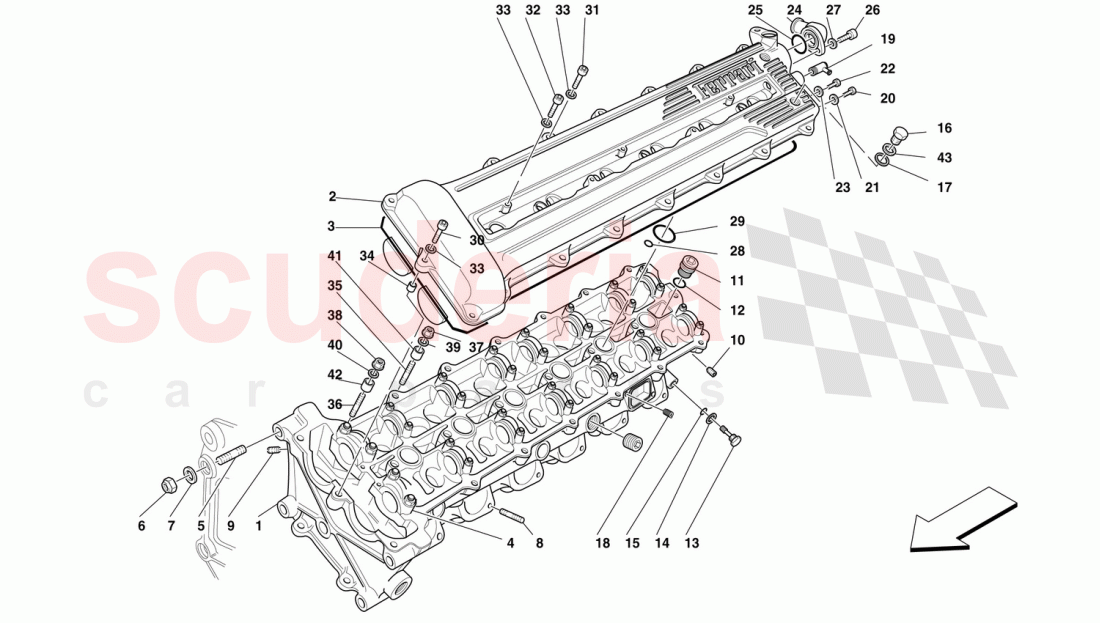

L.H. CYLINDER HEAD of Ferrari Ferrari F50 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 10282660
GASKET 		$0.19 (45.7% off) 2
- 169541
COMPLETE L.H. CYLINDERS HEAD 		$13,937.67 1
1 169541
COMPLETE L.H. CYLINDERS HEAD
Not as spare part / With the complete cylinders head 		$13,937.67 1
2 169541
COMPLETE L.H. CYLINDERS HEAD
Not as spare part / With the complete cylinders head 		$13,937.67 1
3 159296
GASKET 		$244.35 (36.7% off) 1
5 13453724
STUD 		$13.64 4
6 133216
NUT
IN STOCK 		$8.11 (22.2% off) 4
7 12638621
WASHER 		$0.37 4
8 13516924
STUD BOLT
IN STOCK 		$2.13 12
9 161439
THREADED PLUG 		$4.52 6
10 65928500
THREADED PLUG 		$21.32 (6.7% off) 2
11 151476
PLUG 		$21.37 7
12 109478
Sealing ring 		$4.00 (32.4% off) 7
13 152439
PLUG 		$58.02 1
14 10260060
Gasket 		$0.51 (74.5% off) 1
15 154215
GASKET 		$0.86 1
16 144860
PLUG 		$19.27 2
17 10298460
GASKET
Not as spare part now for "F50" / Replaced by 10282660
IN STOCK 		$0.14 (88.8% off) 2
18 13522070
THREADED INSERT 		$0.76 2
19 166684
UNION 		$4.75 1
20 10979414
SCREW 		$0.19 1
21 11181874
WASHER
IN STOCK 		$0.02 1
22 10977524
SCREW
IN STOCK 		$0.14 1
23 11199274
WASHER 		$0.02 1
24 159864
UNION 		$351.26 1
25 159871
SEAL RING
IN STOCK 		$0.60 (57.1% off) 1
26 231619
SCREW
IN STOCK 		$0.29 1
27 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
28 134704
O-RING
IN STOCK 		$0.14 (86% off) 6

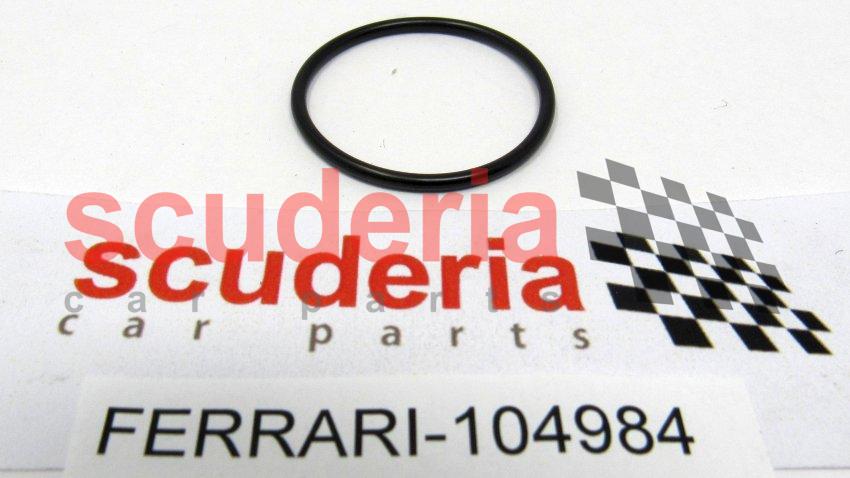

29 104984
O-Ring
IN STOCK 		$1.47 (23% off) 6
30 231620
SCREW
IN STOCK 		$0.31 (11.4% off) 17
31 14305324
ALLEN SCREW M6 X 20
IN STOCK 		$0.08 1
32 13027024
SCREW M6 X 16MM
IN STOCK 		$0.20 (80% off) 6
33 11197774
WASHER
IN STOCK 		$0.06 (80% off) 24
34 149107
DOWEL 		$3.75 2
35 13541524
STUD BOLT 		$0.59 26
36 167917
STUD 		$14.50 4
37 14059290
FLANGED NUT M6
IN STOCK 		$1.33 26
38 14040711
NUT
IN STOCK 		$0.35 4
39 12648224
WASHER 		$0.23 26
40 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 4
41 102725
CENTERING DOWEL 		$1.02 (54.7% off) 26
42 149216
DOWEL 		$14.73 4
43 169237
WASHER 		$4.69 2
