Ferrari F12 Berlinetta - REAR SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
259687 REAR SUSPENSION UPPER ARM $416.85 IN STOCK
Photo Part No Description Price (each) Stock
810463 RH Lower Rear Suspension Arm $1,250.61 IN STOCK
810450 LH Rear Lower Arm $1,250.61 IN STOCK
Photo Part No Description Price (each) Stock
343376 BALL JOINT $20.16 IN STOCK
Photo Part No Description Price (each) Stock
238656 SPECIAL SCREW TCEI M14 X 1.5 X 21 $24.25 IN STOCK
Photo Part No Description Price (each) Stock
238063 NUT $3.91 IN STOCK
Photo Part No Description Price (each) Stock
259688 ANTI-ROTATION LINKAGE $182.37 IN STOCK
Photo Part No Description Price (each) Stock
222956 COMPENSATOR RING $16.37 To Order
Photo Part No Description Price (each) Stock
238258 SCREW $28.66 IN STOCK
Photo Part No Description Price (each) Stock
15541434 SCREW 12.1 X 25 X 80 $1.82 IN STOCK
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.24 IN STOCK
Photo Part No Description Price (each) Stock
203666 NUT $0.81 IN STOCK
Photo Part No Description Price (each) Stock
245161 TIE ROD REAR SUSPENSION $316.07 IN STOCK
Photo Part No Description Price (each) Stock
15541434 SCREW 12.1 X 25 X 80 $1.82 IN STOCK
Photo Part No Description Price (each) Stock
203666 NUT $0.81 IN STOCK
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.24 IN STOCK
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.81 IN STOCK
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.66 IN STOCK
Photo Part No Description Price (each) Stock
264528 THREADED ROD $3.39 IN STOCK
Photo Part No Description Price (each) Stock
262541 ADJUSTER SHIM $8.15 IN STOCK
262542 ADJUSTER SHIM $8.15 IN STOCK
262543 ADJUSTER SHIM $8.15 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
12646821 WASHER D.10 20-25 X 2 $0.11 IN STOCK
Photo Part No Description Price (each) Stock
294851 RH HUB CARRIER $1,973.25 IN STOCK
294850 LH HUB CARRIER $1,973.25 IN STOCK
Photo Part No Description Price (each) Stock
269415 ABS SENSOR $364.75 IN STOCK
Photo Part No Description Price (each) Stock
251744 TRIPLE CLIP $1.26 IN STOCK
View All

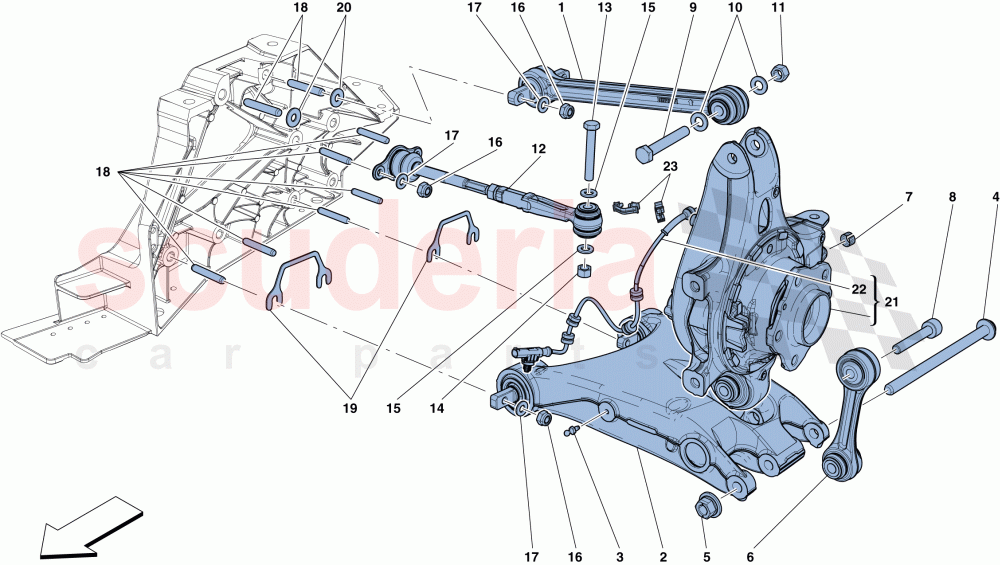

REAR SUSPENSION - ARMS of Ferrari Ferrari F12 Berlinetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 259687
REAR SUSPENSION UPPER ARM
IN STOCK 		$416.85 (32.7% off) 2
2 810463
RH Lower Rear Suspension Arm
IN STOCK 		$1,250.61 1
2 810450
LH Rear Lower Arm
IN STOCK 		$1,250.61 1
3 343376
BALL JOINT
IN STOCK 		$20.16 2
4 238656
SPECIAL SCREW TCEI M14 X 1.5 X 21
IN STOCK 		$24.25 (11.4% off) 2
5 238063
NUT
IN STOCK 		$3.91 (28.9% off) 2
6 259688
ANTI-ROTATION LINKAGE
IN STOCK 		$182.37 2
7 222956
COMPENSATOR RING 		$16.37 2
8 238258
SCREW
M12 X 1.25 X 75
IN STOCK 		$28.66 2
9 15541434
SCREW 12.1 X 25 X 80
M12 X 1.25 X 80
IN STOCK 		$1.82 (38.9% off) 2
10 12643778
BLACK WASHER D.6.45-18X1.5
IN STOCK 		$0.24 (52% off) 4
11 203666
NUT
IN STOCK 		$0.81 (59.5% off) 2
12 245161
TIE ROD REAR SUSPENSION
IN STOCK 		$316.07 (29.7% off) 2
13 15541434
SCREW 12.1 X 25 X 80
M12 X 1.25 X 80
IN STOCK 		$1.82 (38.9% off) 2
14 203666
NUT
IN STOCK 		$0.81 (59.5% off) 2
15 12643778
BLACK WASHER D.6.45-18X1.5
IN STOCK 		$0.24 (52% off) 4
16 12574521
Nyloc Nut
IN STOCK 		$0.81 (59.5% off) 16
17 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.66 (5.1% off) 16
18 264528
THREADED ROD
IN STOCK 		$3.39 (14.2% off) 16
19 262541
ADJUSTER SHIM
Th. 3 mm
IN STOCK 		$8.15 (6.8% off) 4
19 262542
ADJUSTER SHIM
Th. 3.5 mm
IN STOCK 		$8.15 (6.8% off) 4
19 262543
ADJUSTER SHIM
Th. 4 mm 		$8.15 4
19 262545
ADJUSTER SHIM
Th. 1 mm 		$8.15 (6.8% off) 4
19 262546
ADJUSTER SHIM
Th. 1.5 mm
IN STOCK 		$8.15 4
19 262539
ADJUSTER SHIM
Th. 2 mm 		$8.15 (6.8% off) 4
19 262540
ADJUSTER SHIM
Th. 2.5 mm
IN STOCK 		$8.15 (6.8% off) 4
19 262544
ADJUSTER SHIM
Th. 0.5 mm 		$8.15 (6.8% off) 4
20 12646821
WASHER D.10 20-25 X 2
IN STOCK 		$0.11 (78% off) 4
21 294851
RH HUB CARRIER
IN STOCK 		$1,973.25 1
21 294850
LH HUB CARRIER
IN STOCK 		$1,973.25 (42.8% off) 1
22 269415
ABS SENSOR
IN STOCK 		$364.75 2
23 251744
TRIPLE CLIP
IN STOCK 		$1.26 (33.7% off) 4
