Hydraulic Power Steering Box

Ferrari F12 Berlinetta

Find Your Part

Ferrari F12 Berlinetta - HYDRAULIC POWER STEERING BOX

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
271009 STEERING BOX $4,210.33 To Order
273044 STEERING BOX $6,667.41 To Order
Photo Part No Description Price (each) Stock
277720 SCREW $3.45 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.66 IN STOCK
Photo Part No Description Price (each) Stock
14058621 NUT $0.41 IN STOCK
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm $0.43 IN STOCK
Photo Part No Description Price (each) Stock
12626224 WASHER $0.20 IN STOCK
Photo Part No Description Price (each) Stock
288792 PIPE FROM PUMP TO STEERING BOX $491.90 To Order
Photo Part No Description Price (each) Stock
184727 Banjo bolt For Union M16 x 1.5 $5.66 IN STOCK
276087 FUEL FILLER NECK PIPE $15.97 To Order
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.32 IN STOCK
Photo Part No Description Price (each) Stock
288884 COMPL. BRACKET $45.39 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.81 IN STOCK
Photo Part No Description Price (each) Stock
14040614 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
250196 ROD END FOR STEERING BOX $417.06 IN STOCK
Photo Part No Description Price (each) Stock
229521 STEERING BOX GAITER REPLACEMENT KIT $443.13 IN STOCK
Photo Part No Description Price (each) Stock
291261 PIPE FROM STEERING BOX TO RADIATOR $214.42 To Order
268011 PIPE FROM STEERING BOX TO RADIATOR $147.56 To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
277407 HOSE CONNECTOR $10.21 IN STOCK
Photo Part No Description Price (each) Stock
13127070 COLLAR $1.83 IN STOCK
Photo Part No Description Price (each) Stock
259508 CLIP $0.53 IN STOCK
Photo Part No Description Price (each) Stock
278086 PIPE FROM DISCONNECTOR UNION TO RADIATOR $271.05 To Order
296314 PIPE FROM DISCONNECTER UNION TO RADIATOR $79.45 To Order
Photo Part No Description Price (each) Stock
299160 BRACKET $108.46 To Order
292839 BRACKET $94.58 To Order
Photo Part No Description Price (each) Stock
292771 HIGH PRESSURE PIPE BRACKET $32.78 To Order
Photo Part No Description Price (each) Stock
11566227 SCREW $1.13 IN STOCK
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
252018 PLUG $8.06 To Order
Photo Part No Description Price (each) Stock
14040614 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
11566224 SCREW $0.33 IN STOCK
View All

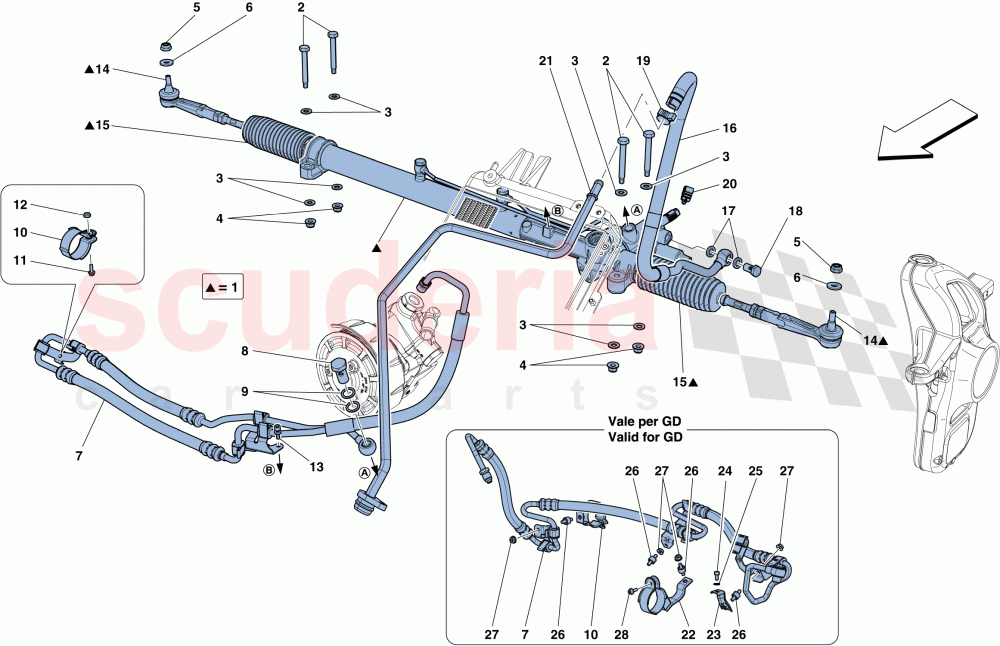

HYDRAULIC POWER STEERING BOX of Ferrari Ferrari F12 Berlinetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 271009
STEERING BOX
Not for GD 		$4,210.33 (32.1% off) 1
1 273044
STEERING BOX
Applicable for GD 		$6,667.41 1
2 277720
SCREW
M10 X 1.25 X 80 		$3.45 4
3 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.66 (5.1% off) 8
4 14058621
NUT
IN STOCK 		$0.41 4
5 102742
Nyloc Nut M10 x 1.25 x 10mm
IN STOCK 		$0.43 (86.8% off) 2
6 12626224
WASHER
IN STOCK 		$0.20 2
7 288792
PIPE FROM PUMP TO STEERING BOX
Not for GD 		$491.90 1
8 184727
Banjo bolt For Union M16 x 1.5
Not for GD
IN STOCK 		$5.66 1
8 276087
FUEL FILLER NECK PIPE
Applicable for GD 		$15.97 1
9 10261460
COPPER WASHER 16 X 24 X 1.5
IN STOCK 		$0.32 (68% off) 2
10 288884
COMPL. BRACKET 		$45.39 1
11 11568124
SCREW
M5 X 16
IN STOCK 		$0.81 1
12 14040614
NUT
IN STOCK 		$0.14 1
13 248334
SCREW
M6 X 12
IN STOCK 		$0.58 1
14 250196
ROD END FOR STEERING BOX
IN STOCK 		$417.06 (32.1% off) 2
15 229521
STEERING BOX GAITER REPLACEMENT KIT
IN STOCK 		$443.13 (24.5% off) 1
16 291261
PIPE FROM STEERING BOX TO RADIATOR
Applicable for GD 		$214.42 1
16 268011
PIPE FROM STEERING BOX TO RADIATOR
Not for GD 		$147.56 1
17 10280060
WASHER COPPER D14. 20 X 1.5
IN STOCK 		$0.20 (80% off) 2
18 277407
HOSE CONNECTOR
IN STOCK 		$10.21 1
19 13127070
COLLAR
IN STOCK 		$1.83 1
20 259508
CLIP
IN STOCK 		$0.53 1
21 278086
PIPE FROM DISCONNECTOR UNION TO RADIATOR
Applicable up to Ass. No. 111369 		$271.05 1
21 296314
PIPE FROM DISCONNECTER UNION TO RADIATOR
Applicable from Ass. No. 111370 		$79.45 1
22 299160
BRACKET
Applicable for GD; Applicable from Ass. No. 110573 		$108.46 1
22 292839
BRACKET
Applicable for GD; Applicable up to Ass. No. 110572 		$94.58 1
23 292771
HIGH PRESSURE PIPE BRACKET
Applicable for GD 		$32.78 1
24 11566227
SCREW
Applicable for GD
IN STOCK 		$1.13 1
25 11181574
WASHER
Applicable for GD
IN STOCK 		$0.02 1
26 252018
PLUG
Applicable for GD 		$8.06 4
27 14040614
NUT
Applicable for GD
IN STOCK 		$0.14 4
28 11566224
SCREW
M5 X 16; Applicable for GD
IN STOCK 		$0.33 1
