Ferrari F12 Berlinetta - COOLING - HEADER TANK AND PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
329418 COMPL. EXPANSION TANK $991.33 To Order
Photo Part No Description Price (each) Stock
329417 CAP WITH BREATHER $303.46 IN STOCK
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.53 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 To Order
Photo Part No Description Price (each) Stock
288386 RUBBER PIPE $16.51 To Order
Photo Part No Description Price (each) Stock
280418 RUBBER PIPE $39.38 To Order
Photo Part No Description Price (each) Stock
288321 METAL BREATHER PIPE $177.92 To Order
Photo Part No Description Price (each) Stock
288387 RUBBER PIPE $45.74 To Order
Photo Part No Description Price (each) Stock
288385 RUBBER PIPE $21.60 To Order
Photo Part No Description Price (each) Stock
281899 3-WAY CONNECTOR $2.79 To Order
Photo Part No Description Price (each) Stock
288474 RUBBER PIPE $24.12 To Order
Photo Part No Description Price (each) Stock
282575 PIPE FROM RESERVOIR TO DISCONNECTOR UNION $44.46 To Order
Photo Part No Description Price (each) Stock
289021 RESERVOIR OUTLET RIGID PIPE $139.78 To Order
Photo Part No Description Price (each) Stock
289020 PIPE FROM DISCONNECTOR TO PUMP $71.16 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
279924 VAPOUR PIPE FROM HEADS $165.21 To Order
284024 VAPOUR PIPE FROM HEADS $190.62 To Order
Photo Part No Description Price (each) Stock
284023 BLOW-BY PIPE FROM TANK $393.98 To Order
276718 BLOW-BY PIPE FROM TANK $190.62 To Order
Photo Part No Description Price (each) Stock
13126970 COLLAR $1.35 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
177553 CLAMP $0.43 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
13127070 COLLAR $1.84 IN STOCK
View All

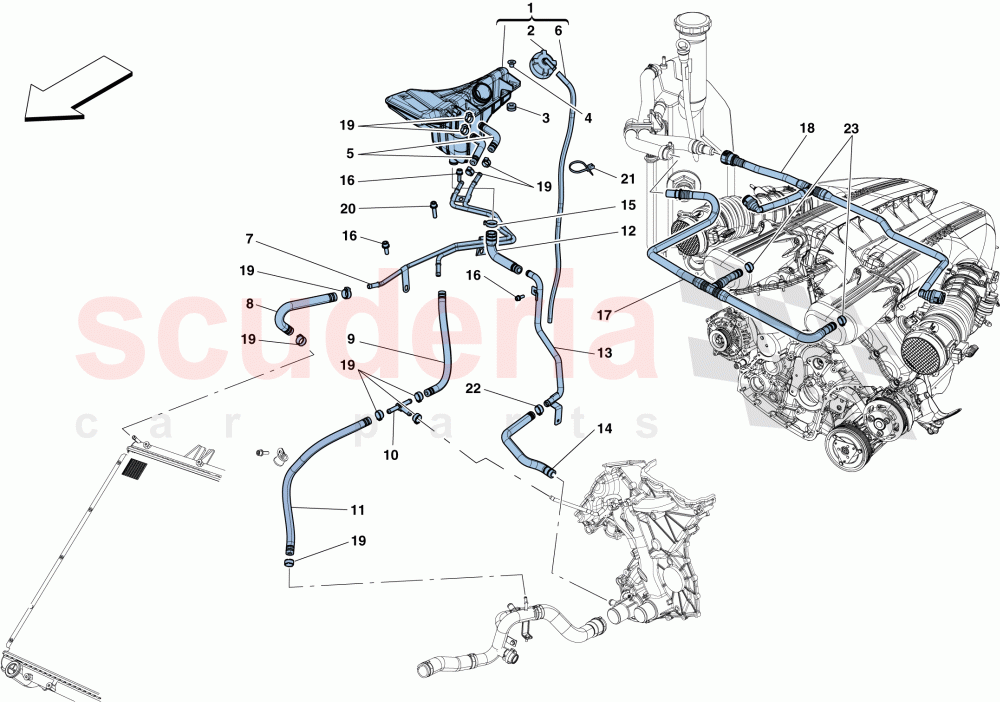

COOLING - HEADER TANK AND PIPES of Ferrari Ferrari F12 Berlinetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 329418
COMPL. EXPANSION TANK 		$991.33 1
2 329417
CAP WITH BREATHER
IN STOCK 		$303.46 1
3 812273
CABLE GROMMET 		$1.53 1
4 149707
SPACER 		$1.10 (37.1% off) 1
5 288386
RUBBER PIPE
D. 7-14 X 107 		$16.51 2
6 280418
RUBBER PIPE
D. 7 X 1.5 X 825 		$39.38 1
7 288321
METAL BREATHER PIPE 		$177.92 1
8 288387
RUBBER PIPE 		$45.74 1
9 288385
RUBBER PIPE
D. 7-14 X 235 		$21.60 1
10 281899
3-WAY CONNECTOR 		$2.79 (13.4% off) 1
11 288474
RUBBER PIPE
D. 7-14 X 360 		$24.12 1
12 282575
PIPE FROM RESERVOIR TO DISCONNECTOR UNION 		$44.46 1
13 289021
RESERVOIR OUTLET RIGID PIPE 		$139.78 1
14 289020
PIPE FROM DISCONNECTOR TO PUMP 		$71.16 1
15 262111
SCREW CLAMP 		$1.39 1
16 231619
SCREW
M6 X 18
IN STOCK 		$0.29 5
17 279924
VAPOUR PIPE FROM HEADS
Not for USA, CDN, USA LIGHT 		$165.21 1
17 284024
VAPOUR PIPE FROM HEADS
Applicable for USA, CDN, USA LIGHT 		$190.62 1
18 284023
BLOW-BY PIPE FROM TANK
Applicable for USA, CDN, USA LIGHT 		$393.98 1
18 276718
BLOW-BY PIPE FROM TANK
Not for USA, CDN, USA LIGHT 		$190.62 1
19 13126970
COLLAR 		$1.35 11
20 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 1
21 177553
CLAMP 		$0.43 (65.6% off) 1
22 262111
SCREW CLAMP 		$1.39 1
23 13127070
COLLAR
IN STOCK 		$1.84 2
