Front Suspension - Shock Absorber And Brake Disc

Ferrari F12 Berlinetta

Find Your Part

Ferrari F12 Berlinetta - FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
280588 FRONT SHOCK ABSORBER $1,891.94 To Order
Photo Part No Description Price (each) Stock
271805 SPRING $98.89 To Order
276928 SPRING $162.11 IN STOCK
Photo Part No Description Price (each) Stock
250394 STOP CAP SHOCK ABSORBER $257.33 IN STOCK
Photo Part No Description Price (each) Stock
212517 UPPER SPACER SHOCK ABSORBER $11.19 IN STOCK
Photo Part No Description Price (each) Stock
188996 SPRING LOWER SUPPORT RING $14.51 IN STOCK
Photo Part No Description Price (each) Stock
157630 SHOCK ABSORBER BUSH $110.03 ARRIVING SOON
Photo Part No Description Price (each) Stock
288828 END STOP BUSH $69.42 IN STOCK
Photo Part No Description Price (each) Stock
268474 DUST COVER $11.13 IN STOCK
Photo Part No Description Price (each) Stock
300214 ACTUATOR SHOCK ABSORBER LIFT $1,247.32 IN STOCK
262384 ACTUATOR SHOCK ABSORBER $1,448.56 IN STOCK
Photo Part No Description Price (each) Stock
277168 HOSE $148.34 To Order
Photo Part No Description Price (each) Stock
261587 HOSE $30.41 IN STOCK
Photo Part No Description Price (each) Stock
259638 GASKET $13.30 IN STOCK
Photo Part No Description Price (each) Stock
237297 SCREW $26.21 IN STOCK
Photo Part No Description Price (each) Stock
237821 BUSH $4.19 IN STOCK
Photo Part No Description Price (each) Stock
255271 NUT $1.22 IN STOCK
Photo Part No Description Price (each) Stock
12646921 WASHER $0.50 IN STOCK
Photo Part No Description Price (each) Stock
260259 FRONT RH DISC SHIELD $38.03 To Order
260258 FRONT LH DISC SHIELD $38.03 To Order
260676 RH FRONT BRAKE DISC SHIELD $40.55 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
282082 COMPL. LH BRAKE AIR DUCT $836.83 To Order
282083 COMPL. RH BRAKE AIR DUCT $836.83 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.41 IN STOCK
Photo Part No Description Price (each) Stock
280481 BRACKET FASTENING DEFLECTOR TO LH LOWER ARM $98.89 To Order
280482 BRACKET FASTENING DEFLECTOR TO RH LOWER ARM $98.89 To Order
Photo Part No Description Price (each) Stock
10903624 SCREW $1.18 To Order
Photo Part No Description Price (each) Stock
12646604 WASHER $0.21 IN STOCK
Photo Part No Description Price (each) Stock
291951 COMPL. LH AIR DEFLECTOR $316.97 To Order
291952 COMPL. RH AIR DEFLECTOR $316.97 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
12646604 WASHER $0.21 IN STOCK
Photo Part No Description Price (each) Stock
261214 CLIP $1.18 To Order
Photo Part No Description Price (each) Stock
277262 STABILISER BAR $887.55 To Order
Photo Part No Description Price (each) Stock
10791014 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 IN STOCK
Photo Part No Description Price (each) Stock
264117 SCREW $2.45 IN STOCK
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 IN STOCK
Photo Part No Description Price (each) Stock
247950 LH SPHERICAL TIE-ROD $102.17 IN STOCK
247952 RH SPHERICAL TIE-ROD $102.17 IN STOCK
Photo Part No Description Price (each) Stock
236241 ROLL BAR RUBBER BUSH 20 X 36 $28.75 IN STOCK
Photo Part No Description Price (each) Stock
245822 BUSHING RETAINER PLATE $22.80 IN STOCK
Photo Part No Description Price (each) Stock
286144 BUSHING MOUNT $24.07 To Order
Photo Part No Description Price (each) Stock
248790 SCREW $3.49 IN STOCK
Photo Part No Description Price (each) Stock
250657 SCREW $7.08 IN STOCK
250657 SCREW $7.08 IN STOCK
Photo Part No Description Price (each) Stock
104370 SCREW $8.73 IN STOCK
Photo Part No Description Price (each) Stock
228131 SCREW $0.72 IN STOCK
Photo Part No Description Price (each) Stock
228132 SPRING WASHER $0.31 IN STOCK
Photo Part No Description Price (each) Stock
203780 HUB NUT HEX M28 $23.23 IN STOCK
Photo Part No Description Price (each) Stock
288829 STOP CAP $93.02 IN STOCK
Photo Part No Description Price (each) Stock
291864 ABS CABLE MOUNTING BRACKET $19.01 To Order
View All

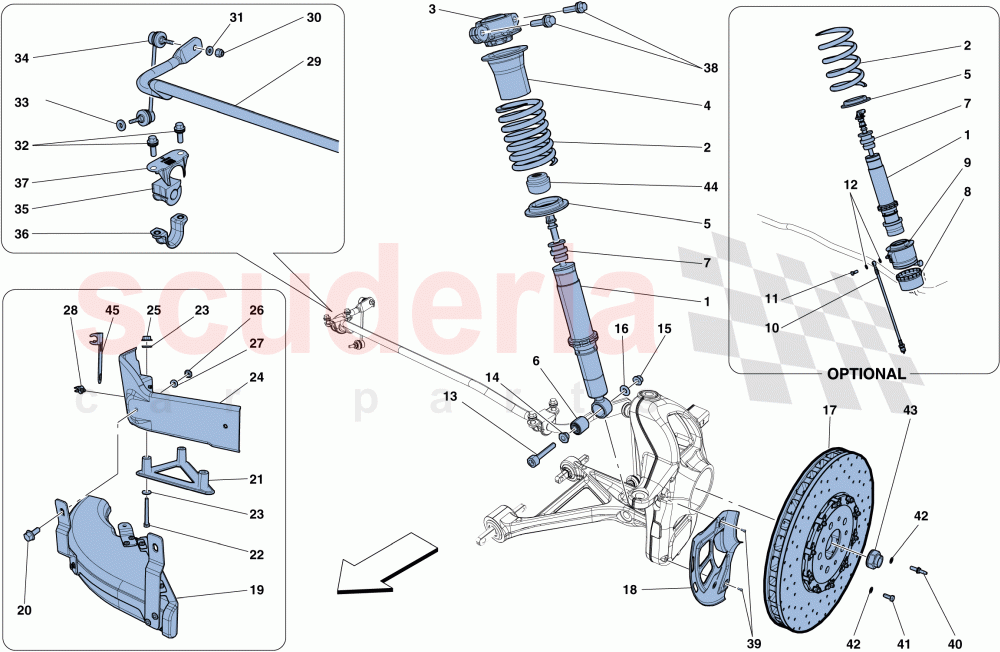

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari F12 Berlinetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 280588
FRONT SHOCK ABSORBER 		$1,891.94 2
2 271805
SPRING 		$98.89 2
2 276928
SPRING
Version with lifter
IN STOCK 		$162.11 2
3 250394
STOP CAP SHOCK ABSORBER
IN STOCK 		$257.33 2
4 212517
UPPER SPACER SHOCK ABSORBER
IN STOCK 		$11.19 2
5 188996
SPRING LOWER SUPPORT RING
IN STOCK 		$14.51 2
6 157630
SHOCK ABSORBER BUSH
ARRIVING SOON 		$110.03 (27.7% off) 2
7 288828
END STOP BUSH
IN STOCK 		$69.42 2
8 268474
DUST COVER
Version with lifter; Applicable for shock absorber 280585 and actuator 262384; Applicable up to Ass. No. 124777
IN STOCK 		$11.13 2
9 300214
ACTUATOR SHOCK ABSORBER LIFT
Version with lifter; Applicable for shock absorber 301449; Applicable from Ass. No. 124778
IN STOCK 		$1,247.32 1
9 262384
ACTUATOR SHOCK ABSORBER
Version with lifter; Applicable for shock absorber 280585; Applicable up to Ass. No. 124777
IN STOCK 		$1,448.56 1
10 277168
HOSE
Version with lifter 		$148.34 2
11 261587
HOSE
Version with lifter
IN STOCK 		$30.41 (64.1% off) 2
12 259638
GASKET
Version with lifter
IN STOCK 		$13.30 (19.6% off) 4
13 237297
SCREW
M12 X 1.25 X 80
IN STOCK 		$26.21 2
14 237821
BUSH
IN STOCK 		$4.19 (23.8% off) 2
15 255271
NUT
IN STOCK 		$1.22 (15.9% off) 2
16 12646921
WASHER
IN STOCK 		$0.50 2
18 260259
FRONT RH DISC SHIELD
Applicable from Ass. No. 107423 		$38.03 1
18 260258
FRONT LH DISC SHIELD
Applicable from Ass. No. 107423 		$38.03 1
18 260676
RH FRONT BRAKE DISC SHIELD
Applicable up to Ass. No. 107422 		$40.55 1
18 260675
LH FRONT BRAKE DISC SHIELD
Applicable up to Ass. No. 107422 		$40.55 1
19 282082
COMPL. LH BRAKE AIR DUCT 		$836.83 1
19 282083
COMPL. RH BRAKE AIR DUCT 		$836.83 1
20 16296934
SCREW 6 X 14MM
M6 X 14
IN STOCK 		$0.41 4
21 280481
BRACKET FASTENING DEFLECTOR TO LH LOWER ARM 		$98.89 1
21 280482
BRACKET FASTENING DEFLECTOR TO RH LOWER ARM 		$98.89 1
22 10903624
SCREW
M6 X 50 		$1.18 6
23 12646604
WASHER
IN STOCK 		$0.21 (30% off) 12
24 291951
COMPL. LH AIR DEFLECTOR 		$316.97 1
24 291952
COMPL. RH AIR DEFLECTOR 		$316.97 1
25 14059290
FLANGED NUT M6
IN STOCK 		$1.32 6
26 14059290
FLANGED NUT M6
IN STOCK 		$1.32 4
27 12646604
WASHER
IN STOCK 		$0.21 (30% off) 4
28 261214
CLIP 		$1.18 2
29 277262
STABILISER BAR 		$887.55 1
30 10791014
NUT 		$0.26 2
31 12601474
WASHER
IN STOCK 		$0.03 2
32 264117
SCREW
M10 X 1.25 X 30
IN STOCK 		$2.45 4
33 12601474
WASHER
IN STOCK 		$0.03 2
34 247950
LH SPHERICAL TIE-ROD
IN STOCK 		$102.17 (8.8% off) 1
34 247952
RH SPHERICAL TIE-ROD
IN STOCK 		$102.17 (8.8% off) 1
35 236241
ROLL BAR RUBBER BUSH 20 X 36
IN STOCK 		$28.75 (27.2% off) 2
36 245822
BUSHING RETAINER PLATE
IN STOCK 		$22.80 2
37 286144
BUSHING MOUNT 		$24.07 2
38 248790
SCREW
IN STOCK 		$3.49 4
39 250657
SCREW
M6 X 14; Applicable from Ass. No. 107423
IN STOCK 		$7.08 4
39 250657
SCREW
M6 X 14; Applicable up to Ass. No. 107422
IN STOCK 		$7.08 4
40 104370
SCREW
IN STOCK 		$8.73 2
41 228131
SCREW
M8 X 20
IN STOCK 		$0.72 2
42 228132
SPRING WASHER
IN STOCK 		$0.31 4
43 203780
HUB NUT HEX M28
IN STOCK 		$23.23 (10% off) 2

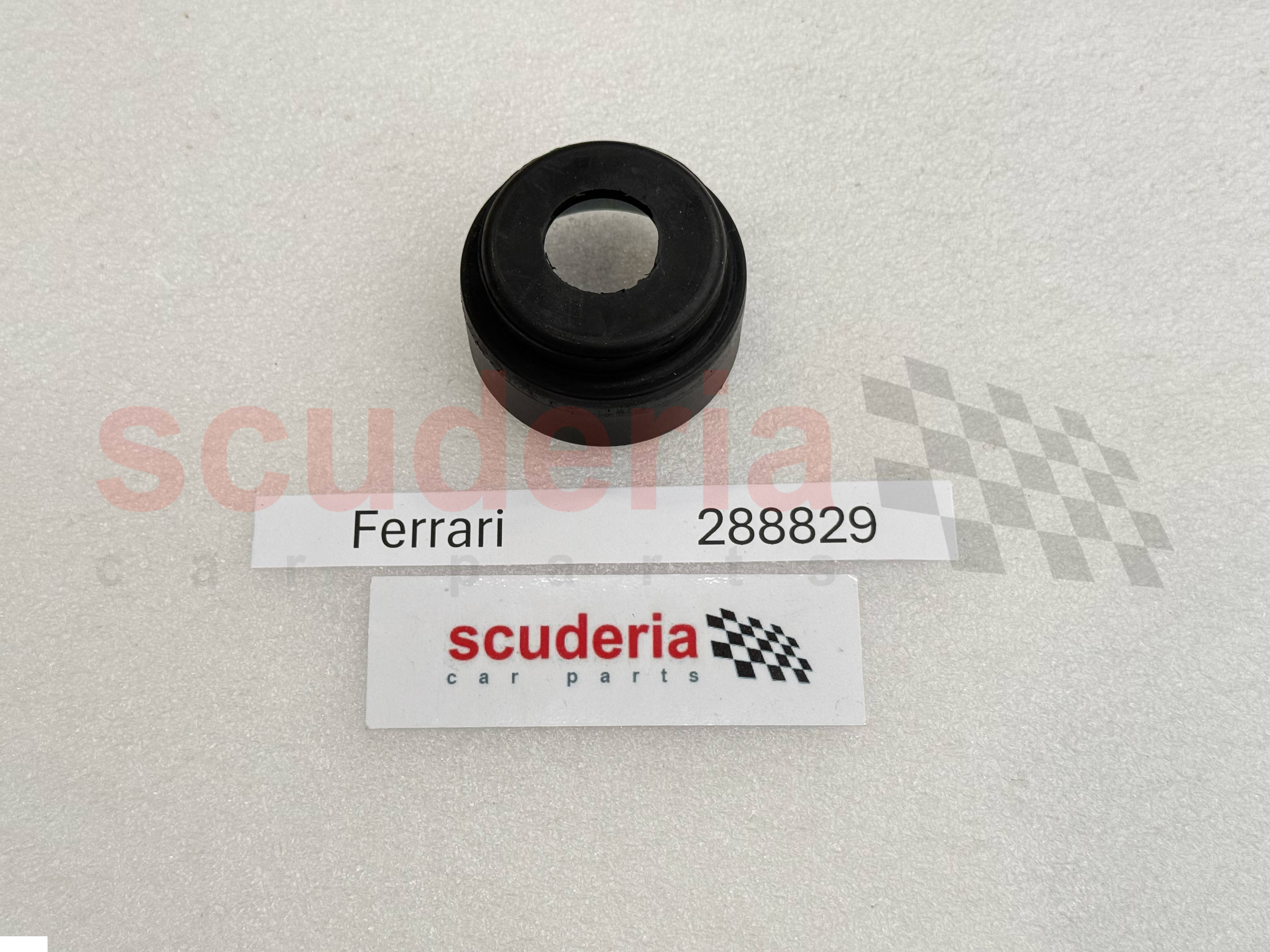

44 288829
STOP CAP
IN STOCK 		$93.02 1
45 291864
ABS CABLE MOUNTING BRACKET 		$19.01 1
