Right Hand Cylinder Head

Ferrari 599 GTB Fiorano

Find Your Part

Ferrari 599 GTB Fiorano - RIGHT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
219789 RH CYLINDER HEAD COVER $499.54 To Order
Photo Part No Description Price (each) Stock

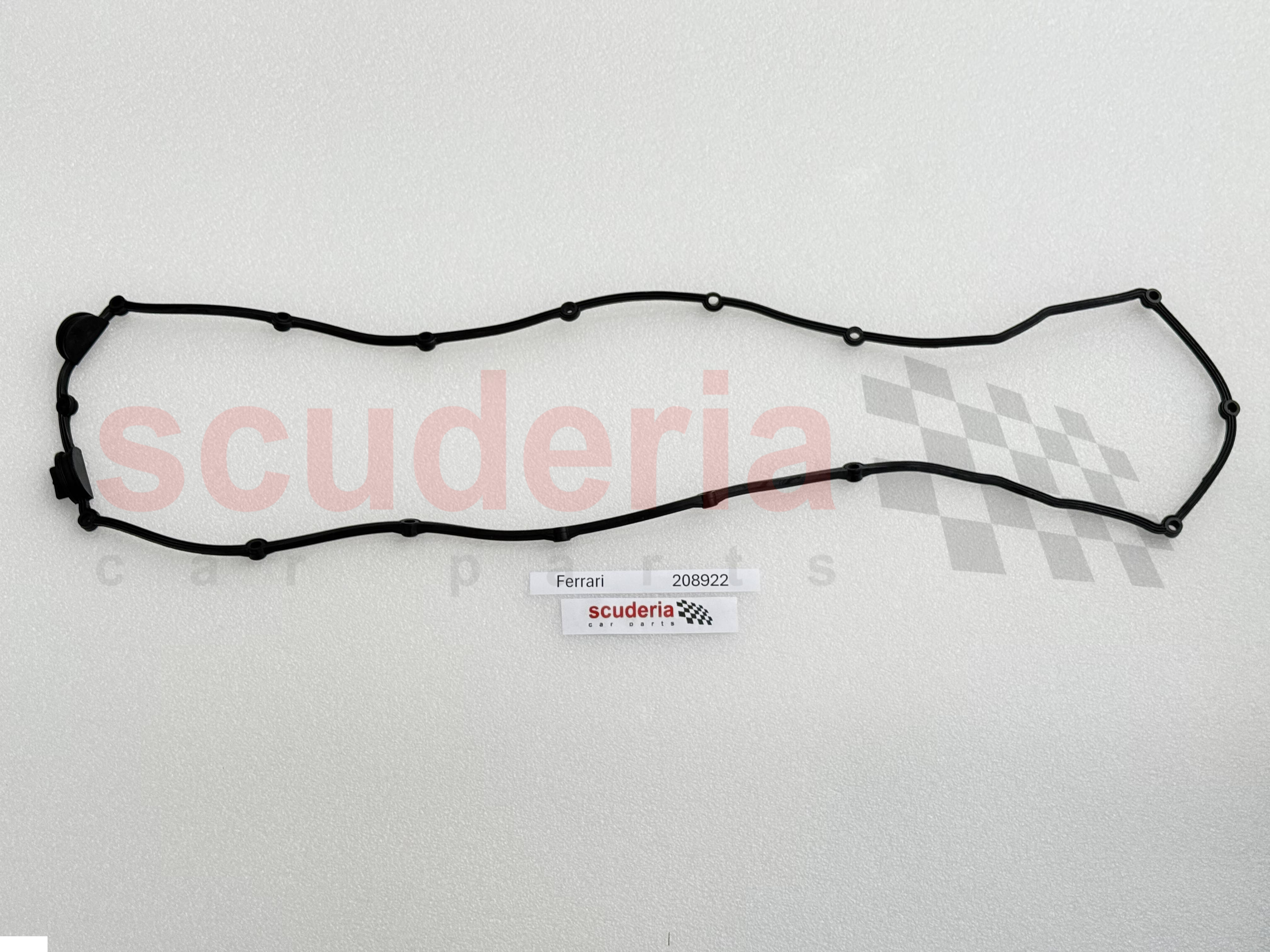

208922 RH Head Cover Gasket $81.73 IN STOCK
Photo Part No Description Price (each) Stock
199760 THREADED PLUG $0.29 IN STOCK
Photo Part No Description Price (each) Stock
127635 THREADED PLUG $2.87 To Order
Photo Part No Description Price (each) Stock
223982 SPARK PLUG TUBE SEAL $2.40 IN STOCK
Photo Part No Description Price (each) Stock
339948 STUD BOLT $19.01 To Order
Photo Part No Description Price (each) Stock
282755 THREADED PLUG $1.87 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
227048 TIMING SENSOR $276.90 To Order
227046 TIMING SENSOR $276.90 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.01 To Order
Photo Part No Description Price (each) Stock
13541224 STUD BOLT $134.50 To Order
211641 STUD BOLT $0.98 IN STOCK
Photo Part No Description Price (each) Stock
14305821 SCREW $0.14 To Order
231624 SCREW $0.41 IN STOCK
Photo Part No Description Price (each) Stock
231622 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
250646 Variable Valve Timing Adjuster Solenoid Valve $923.41 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11087374 SNAP RING $0.55 To Order
Photo Part No Description Price (each) Stock
195510 THREADED CONNECTOR $7.71 To Order
Photo Part No Description Price (each) Stock
339948 STUD BOLT $19.01 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
218192 RH HEAT SHIELD $122.60 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
183010 O-RING D-32.93 $1.61 IN STOCK
Photo Part No Description Price (each) Stock
321187 NUT Enquire To Order
Photo Part No Description Price (each) Stock
151117 WASHER $1.06 IN STOCK
Photo Part No Description Price (each) Stock
243178 CLUTCH PIPE FASTENER BRACKET $253.57 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.52 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
View All

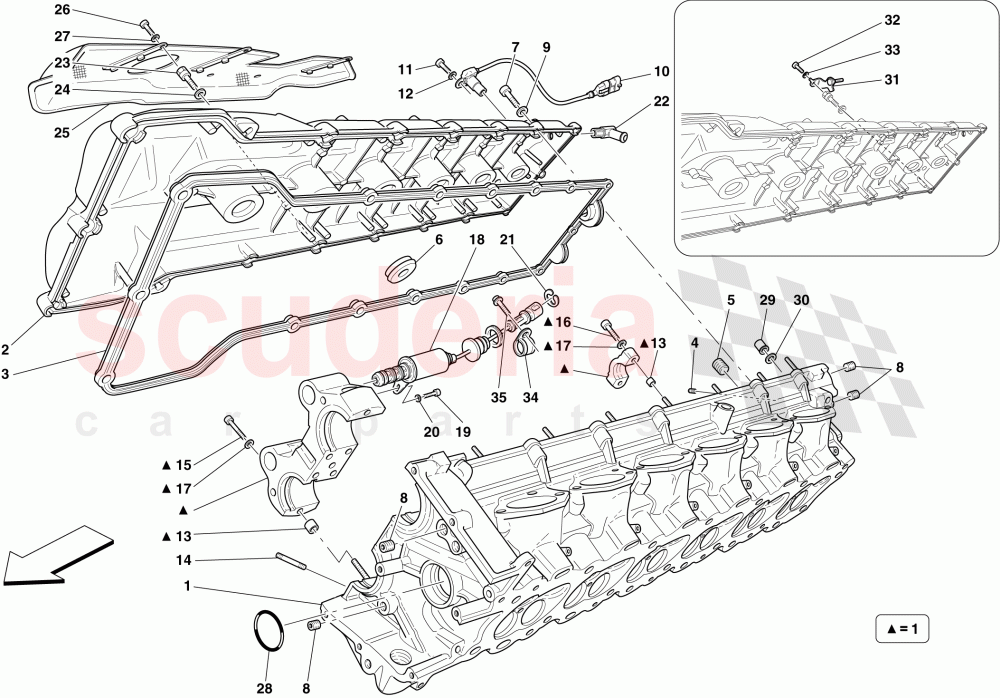

RIGHT HAND CYLINDER HEAD of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 219789
RH CYLINDER HEAD COVER 		$499.54 1
3 208922
RH Head Cover Gasket
IN STOCK 		$81.73 (15.4% off) 1
4 199760
THREADED PLUG
IN STOCK 		$0.29 6
5 127635
THREADED PLUG 		$2.87 (31.2% off) 12
6 223982
SPARK PLUG TUBE SEAL
IN STOCK 		$2.40 (39.5% off) 6
7 339948
STUD BOLT 		$19.01 12
8 282755
THREADED PLUG 		$1.87 5
9 11197774
WASHER
IN STOCK 		$0.06 (80% off) 12
10 227048
TIMING SENSOR
Intake 		$276.90 1
10 227046
TIMING SENSOR
Exhaust 		$276.90 1
11 231619
SCREW
IN STOCK 		$0.29 2
12 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
13 102725
CENTERING DOWEL 		$1.01 (55.1% off) 26
14 13541224
STUD BOLT
M6 X 12; Shank length 22 		$134.50 12
14 211641
STUD BOLT
M6 X 16; Shank length 24
IN STOCK 		$0.98 (2% off) 12
15 14305821
SCREW
M8 X 40 		$0.14 (88.8% off) 2
15 231624
SCREW
M6 X 45
IN STOCK 		$0.41 4
16 231622
SCREW
M6 X 35
IN STOCK 		$0.34 (32% off) 24
17 11197774
WASHER
IN STOCK 		$0.06 (80% off) 30
18 250646
Variable Valve Timing Adjuster Solenoid Valve 		$923.41 (32.7% off) 2
19 231619
SCREW
IN STOCK 		$0.29 2
20 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
21 11087374
SNAP RING 		$0.55 2
22 195510
THREADED CONNECTOR 		$7.71 1
23 339948
STUD BOLT 		$19.01 3
24 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
25 218192
RH HEAT SHIELD 		$122.60 1
26 248334
SCREW
IN STOCK 		$0.58 3
27 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
28 183010
O-RING D-32.93
IN STOCK 		$1.61 (44.3% off) 1
29 321187
NUT 		- 14 Enquire
30 151117
WASHER
IN STOCK 		$1.06 (7.8% off) 14
31 243178
CLUTCH PIPE FASTENER BRACKET
Applicable for GD; Not for F1 gearbox 		$253.57 1
32 248334
SCREW
Applicable for GD; Not for F1 gearbox
IN STOCK 		$0.58 1
33 11197774
WASHER
Applicable for GD; Not for F1 gearbox
IN STOCK 		$0.06 (80% off) 1
34 10441590
BRACKET WITH SHEATH 		$0.52 2
35 248334
SCREW
IN STOCK 		$0.58 2
