LUBRICATION SYSTEM - TANK of Ferrari Ferrari 599 GTB Fiorano

View All

Ferrari 599 GTB Fiorano - LUBRICATION SYSTEM - TANK

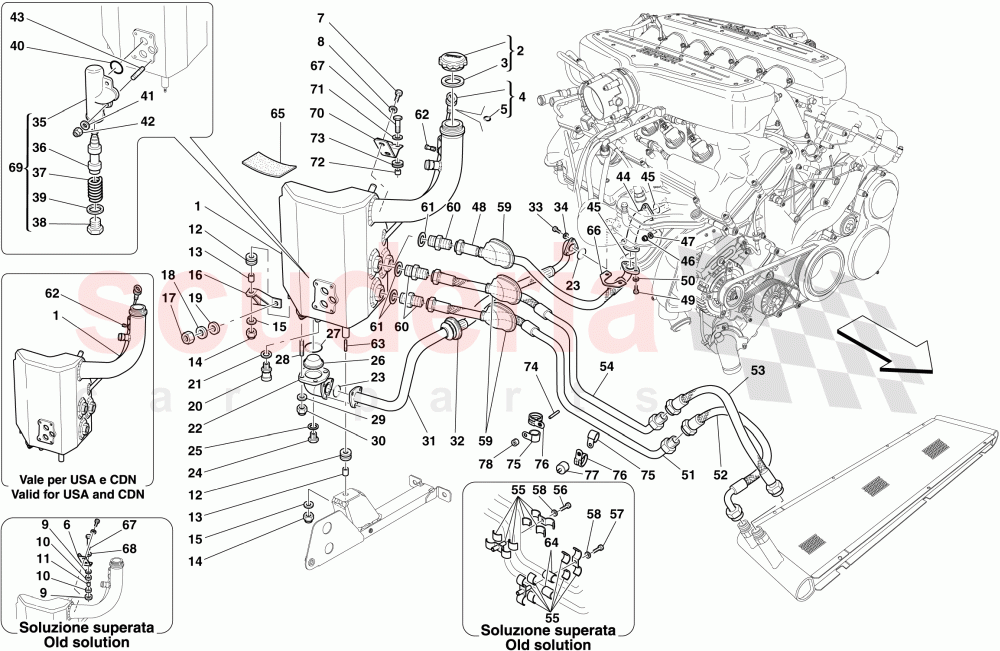

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	224541	OIL TANK	$3,058.68	To Order

Photo	Part No	Description	Price (each)	Stock
	180320	COPMLETE TANK PLUG	$633.70	To Order

Photo	Part No	Description	Price (each)	Stock
	180585	Oil Tank Cap Gasket	$88.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	225788	DIPSTICK	$126.27	To Order

Photo	Part No	Description	Price (each)	Stock
	233118	O-RING D.6 X 2.2	$7.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	218428	UPPER BRACKET	$18.87	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	107979	STOP CAP	$10.10	To Order

Photo	Part No	Description	Price (each)	Stock
	107978	VIBRATION DAMPER	$12.61	To Order

Photo	Part No	Description	Price (each)	Stock
	107980	SHIM	$5.13	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.52	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	194451	INFERIOR BRACKET	$42.20	To Order

Photo	Part No	Description	Price (each)	Stock
	16043434	HEX HEAD SCREW M8 X 20	$0.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$0.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$28.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	153722	GASKET	$6.85	To Order

Photo	Part No	Description	Price (each)	Stock
	210914	OIL TANK PICKUP	$530.39	To Order

Photo	Part No	Description	Price (each)	Stock
	862084	GASKET	$4.90	To Order

Photo	Part No	Description	Price (each)	Stock
	293107	THREADED PLUG	$77.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261460	COPPER WASHER 16 X 24 X 1.5	$0.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	100332	OIL PICKUP FILTER	$17.83	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	125521	O-RING	$10.52	To Order

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	202151	BELLOW	$46.73	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	227443	VALVE BODY	$351.47	To Order

Photo	Part No	Description	Price (each)	Stock
	235648	COMPLETE THERMOSTAT VALVE	$732.45	To Order

Photo	Part No	Description	Price (each)	Stock
	136867	SPRING	$17.67	To Order

Photo	Part No	Description	Price (each)	Stock
	136868	CAP	$58.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10303460	Gasket	$1.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	139934	O-RING	$0.82	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER D.6.4 X 11.95 X 1.6	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13540924	STUD BOLT	$33.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	219688	OIL OUTLET PIPE	$130.60	To Order

Photo	Part No	Description	Price (each)	Stock
	862084	GASKET	$4.90	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12604474	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	246353	OIL PIPE FROM ENGINE TO TANK	$995.10	To Order

Photo	Part No	Description	Price (each)	Stock
	16043524	SCREW	$0.09	To Order

Photo	Part No	Description	Price (each)	Stock
	12604474	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	225623	OIL PIPE FROM TANK TO RADIATOR	$437.23	To Order

Photo	Part No	Description	Price (each)	Stock
	225628	OIL PIPE FROM TANK TO RADIATOR	$1,489.57	To Order

Photo	Part No	Description	Price (each)	Stock
	225630	OIL PIPE FROM RADIATOR TO TANK	$494.41	To Order

Photo	Part No	Description	Price (each)	Stock
	225633	OIL PIPE FROM RADIATOR TO TANK	$1,821.70	To Order

Photo	Part No	Description	Price (each)	Stock
	218425	FASTENING BRACKET	$202.04	To Order

Photo	Part No	Description	Price (each)	Stock
	10903711	SCREW	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	10903424	SCREW	$8.18	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	202152	BELLOW	$78.63	To Order

Photo	Part No	Description	Price (each)	Stock
	138150	CONNECTOR	$54.26	To Order

Photo	Part No	Description	Price (each)	Stock
	907923	DOWTY WASHER	$36.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	291502	CONNECTOR	$64.39	To Order
	14326101	THREADED PLUG	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	228208	SLEEVE	$6.20	To Order
	228209	SLEEVE	$7.22	To Order

Photo	Part No	Description	Price (each)	Stock
	142798	RUBBER SHIM	$1.45	To Order

Photo	Part No	Description	Price (each)	Stock
	231837	SHIELD	$55.77	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	235648	COMPLETE THERMOSTAT VALVE	$732.45	To Order

Photo	Part No	Description	Price (each)	Stock
	252336	UPPER BRACKET	$23.97	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.52	To Order

Photo	Part No	Description	Price (each)	Stock
	11501024	STUD BOLT	$0.93	To Order

Photo	Part No	Description	Price (each)	Stock
	10441790	BRACKET WITH SHEATH	$0.64	To Order

Photo	Part No	Description	Price (each)	Stock
	10442190	BRACKET WITH SHEATH	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102947	VIBRATION DAMPER	$18.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65708600	SPACER BUSHING	$7.07	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	224541	OIL TANK	224541 OIL TANK	$3,058.68	1
2	180320	COPMLETE TANK PLUG	180320 COPMLETE TANK PLUG	$633.70 MSRP: ~~822.01~~ (22.9% off)	1
3	180585	Oil Tank Cap Gasket IN STOCK	180585 Oil Tank Cap Gasket IN STOCK	$88.94 MSRP: ~~113.57~~ (21.7% off)	1
4	225788	DIPSTICK	225788 DIPSTICK	$126.27	1
5	233118	O-RING D.6 X 2.2 IN STOCK	233118 O-RING D.6 X 2.2 IN STOCK	$7.74	1
6	218428	UPPER BRACKET	218428 UPPER BRACKET Obsolete solution	$18.87	1
7	10977524	SCREW IN STOCK	10977524 SCREW IN STOCK	$0.14	2
8	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	2
9	107979	STOP CAP	107979 STOP CAP Obsolete solution	$10.10 MSRP: ~~11.98~~ (15.7% off)	2
10	107978	VIBRATION DAMPER	107978 VIBRATION DAMPER Obsolete solution	$12.61	2
11	107980	SHIM	107980 SHIM Obsolete solution	$5.13 MSRP: ~~6.25~~ (17.9% off)	1
12	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.52	2
13	149707	SPACER	149707 SPACER	$1.10 MSRP: ~~1.75~~ (37.1% off)	2
14	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	2
15	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	2
16	194451	INFERIOR BRACKET	194451 INFERIOR BRACKET	$42.20	1
17	16043434	HEX HEAD SCREW M8 X 20 IN STOCK	16043434 HEX HEAD SCREW M8 X 20 IN STOCK	$0.23 MSRP: ~~0.50~~ (54% off)	2
18	12647021	WASHER IN STOCK	12647021 WASHER IN STOCK	$0.30	2
19	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	2
20	180137	TEMPERATURE SENSOR IN STOCK	180137 TEMPERATURE SENSOR IN STOCK	$28.40 MSRP: ~~32.99~~ (13.9% off)	1
21	153722	GASKET	153722 GASKET	$6.85 MSRP: ~~15.25~~ (55.1% off)	1
22	210914	OIL TANK PICKUP	210914 OIL TANK PICKUP	$530.39 MSRP: ~~1,064.35~~ (50.2% off)	1
23	862084	GASKET	862084 GASKET	$4.90	2
24	293107	THREADED PLUG IN STOCK	293107 THREADED PLUG IN STOCK	$77.43	1
25	10261460	COPPER WASHER 16 X 24 X 1.5 IN STOCK	10261460 COPPER WASHER 16 X 24 X 1.5 IN STOCK	$0.32 MSRP: ~~1.00~~ (68% off)	1
26	100332	OIL PICKUP FILTER ARRIVING SOON	100332 OIL PICKUP FILTER ARRIVING SOON	$17.83	1
27	125521	O-RING	125521 O-RING	$10.52	1
28	11500524	STUD BOLT	11500524 STUD BOLT	$0.34 MSRP: ~~1.00~~ (66% off)	4
29	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
30	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	4
32	202151	BELLOW	202151 BELLOW	$46.73	1
33	231619	SCREW IN STOCK	231619 SCREW IN STOCK	$0.29	3
34	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	3
35	227443	VALVE BODY	227443 VALVE BODY Replaced by 235648 ref. 69; No longer supplied	$351.47	1
36	235648	COMPLETE THERMOSTAT VALVE	235648 COMPLETE THERMOSTAT VALVE Replaced by 235648 ref. 69; No longer supplied	$732.45	1
37	136867	SPRING	136867 SPRING Replaced by 235648 ref. 69; No longer supplied	$17.67	1
38	136868	CAP IN STOCK	136868 CAP Replaced by 235648 ref. 69; No longer supplied IN STOCK	$58.22	1
39	10303460	Gasket IN STOCK	10303460 Gasket Replaced by 235648 ref. 69; No longer supplied IN STOCK	$1.48 MSRP: ~~2.10~~ (29.5% off)	1
40	139934	O-RING IN STOCK	139934 O-RING IN STOCK	$0.82 MSRP: ~~2.25~~ (63.6% off)	3
41	10519424	WASHER D.6.4 X 11.95 X 1.6 IN STOCK	10519424 WASHER D.6.4 X 11.95 X 1.6 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	4
42	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	4
43	13540924	STUD BOLT IN STOCK	13540924 STUD BOLT IN STOCK	$33.67	4
44	219688	OIL OUTLET PIPE	219688 OIL OUTLET PIPE	$130.60	1
45	862084	GASKET	862084 GASKET	$4.90	2
46	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.35	3
47	12604474	WASHER IN STOCK	12604474 WASHER IN STOCK	$0.06 MSRP: ~~0.10~~ (40% off)	3
48	246353	OIL PIPE FROM ENGINE TO TANK	246353 OIL PIPE FROM ENGINE TO TANK	$995.10	1
49	16043524	SCREW	16043524 SCREW	$0.09 MSRP: ~~0.40~~ (77.5% off)	2
50	12604474	WASHER IN STOCK	12604474 WASHER IN STOCK	$0.06 MSRP: ~~0.10~~ (40% off)	2
51	225623	OIL PIPE FROM TANK TO RADIATOR	225623 OIL PIPE FROM TANK TO RADIATOR	$437.23	1
52	225628	OIL PIPE FROM TANK TO RADIATOR	225628 OIL PIPE FROM TANK TO RADIATOR	$1,489.57	1
53	225630	OIL PIPE FROM RADIATOR TO TANK	225630 OIL PIPE FROM RADIATOR TO TANK	$494.41	1
54	225633	OIL PIPE FROM RADIATOR TO TANK	225633 OIL PIPE FROM RADIATOR TO TANK	$1,821.70	1
55	218425	FASTENING BRACKET	218425 FASTENING BRACKET	$202.04	2
56	10903711	SCREW	10903711 SCREW	$0.37	1
57	10903424	SCREW	10903424 SCREW	$8.18 MSRP: ~~9.22~~ (11.3% off)	1
58	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
59	202152	BELLOW	202152 BELLOW	$78.63	3
60	138150	CONNECTOR	138150 CONNECTOR	$54.26	3
61	907923	DOWTY WASHER IN STOCK	907923 DOWTY WASHER IN STOCK	$36.00	3
62	291502	CONNECTOR	291502 CONNECTOR Not for USA, CDN	$64.39	1
62	14326101	THREADED PLUG	14326101 THREADED PLUG Applicable for USA, CDN	$1.10 MSRP: ~~1.65~~ (33.3% off)	1
63	11500524	STUD BOLT	11500524 STUD BOLT	$0.34 MSRP: ~~1.00~~ (66% off)	2
64	228208	SLEEVE	228208 SLEEVE D. 22 X 3 X 35	$6.20	2
64	228209	SLEEVE	228209 SLEEVE D. 28 X 3 X 35	$7.22	2
65	142798	RUBBER SHIM	142798 RUBBER SHIM	$1.45	2
66	231837	SHIELD	231837 SHIELD	$55.77	1
67	231620	SCREW IN STOCK	231620 SCREW IN STOCK	$0.30 MSRP: ~~0.35~~ (14.3% off)	1
68	12643724	WASHER IN STOCK	12643724 WASHER Obsolete solution IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	1
69	235648	COMPLETE THERMOSTAT VALVE	235648 COMPLETE THERMOSTAT VALVE	$732.45	1
70	252336	UPPER BRACKET	252336 UPPER BRACKET	$23.97	1
71	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	1
72	149707	SPACER	149707 SPACER	$1.10 MSRP: ~~1.75~~ (37.1% off)	1
73	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.52	1
74	11501024	STUD BOLT	11501024 STUD BOLT	$0.93 MSRP: ~~5.67~~ (83.6% off)	1
75	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH	$0.64 MSRP: ~~3.45~~ (81.4% off)	2
76	10442190	BRACKET WITH SHEATH IN STOCK	10442190 BRACKET WITH SHEATH IN STOCK	$0.67 MSRP: ~~2.25~~ (70.2% off)	2
77	102947	VIBRATION DAMPER IN STOCK	102947 VIBRATION DAMPER IN STOCK	$18.25 MSRP: ~~19.52~~ (6.5% off)	1
78	65708600	SPACER BUSHING	65708600 SPACER BUSHING	$7.07 MSRP: ~~9.85~~ (28.2% off)	1
