CRANKCASE of Ferrari Ferrari 599 GTB Fiorano

View All

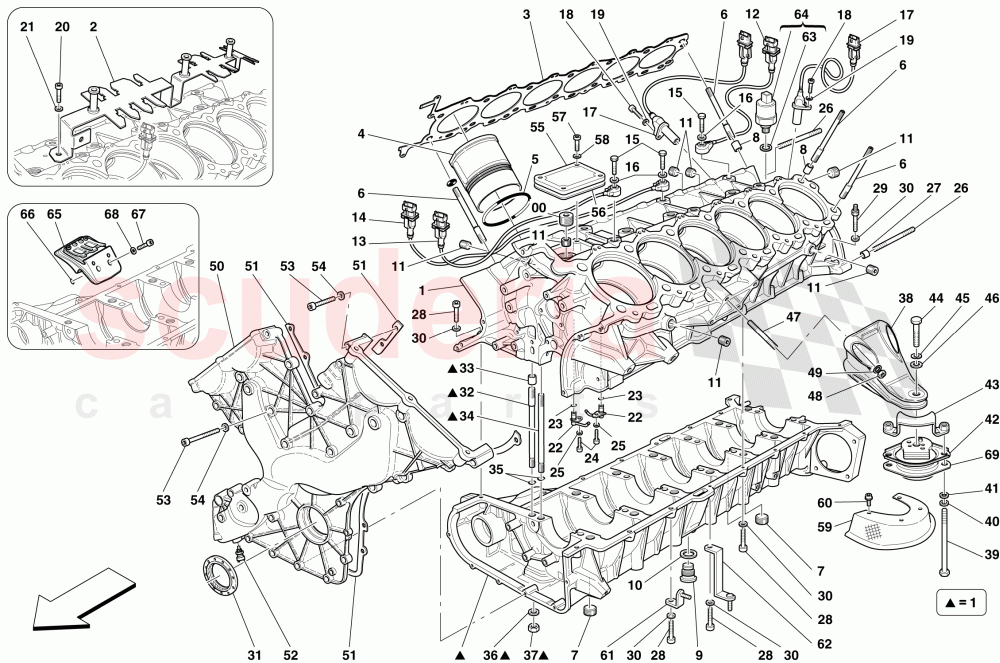

Ferrari 599 GTB Fiorano - CRANKCASE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	213370	COMPLETE CRANKCASE	$6,868.47	To Order
	213370	COMPLETE CRANKCASE	$6,868.47	To Order
	236302	COMPLETE CRANKCASE	$7,141.98	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	223787	CONNECTOR MOUNT	$75.16	To Order

Photo	Part No	Description	Price (each)	Stock
	885963	RH HEAD-CRANKCASE GASKET	$2,210.19	To Order
	213514	LH GASKET	$270.63	To Order

Photo	Part No	Description	Price (each)	Stock
	278427	CYLINDER SLEEVE	$848.77	To Order
	278427	CYLINDER SLEEVE	$848.77	To Order
	278427	CYLINDER SLEEVE	$848.77	To Order

Photo	Part No	Description	Price (each)	Stock
	186251	O-RING	$2.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	802590	STUD BOLT CRANKCASE	$13.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	$5.71	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	$2.78	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5	$5.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261860	GASKET	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	$3.28	IN STOCK
	282753	THREADED PLUG	$5.71	To Order

Photo	Part No	Description	Price (each)	Stock
	227016	KNOCK SENSOR	$60.34	To Order
	227017	KNOCK SENSOR	$64.52	To Order

Photo	Part No	Description	Price (each)	Stock
	227015	KNOCK SENSOR	$64.52	To Order
	227019	KNOCK SENSOR	$64.52	To Order

Photo	Part No	Description	Price (each)	Stock
	227014	KNOCK SENSOR	$60.34	To Order
	227020	KNOCK SENSOR	$64.52	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SCREW	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	986847	CONICAL WASHER	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	227045	ROTATION SPEED SENSOR	$126.92	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	264087	PISTON COOLING NOZZLE	$28.55	To Order
	264087	PISTON COOLING NOZZLE	$28.55	To Order
	264087	PISTON COOLING NOZZLE	$28.55	To Order

Photo	Part No	Description	Price (each)	Stock
	164877	O-RING	$0.27	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	13546934	STUD BOLT	$1.67	IN STOCK
	254979	STUD BOLT	$2.19	To Order
	254982	STUD BOLT	$2.26	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	$2.22	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.30	IN STOCK
	14305324	ALLEN SCREW M6 X 20	$0.08	IN STOCK
	231625	SCREW	$0.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	219283	STUD BOLT	$16.36	To Order
	339948	STUD BOLT	$18.88	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	188717	Front Crankshaft Seal	$28.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	217796	STUD BOLT	$10.07	To Order

Photo	Part No	Description	Price (each)	Stock
	176421	CENTERING DOWEL	$4.02	To Order

Photo	Part No	Description	Price (each)	Stock
	231823	STUD BOLT	$6.59	To Order

Photo	Part No	Description	Price (each)	Stock
	134704	O-RING	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER D.10.2-20 X 2	$0.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	209827	RH ENGINE MOUNTING STRUT	$211.52	IN STOCK
	210375	LH ENGINE MOUNTING STRUT	$207.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15971834	SCREW	$1.32	To Order
	122418	SCREW	$13.76	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.66	IN STOCK
	13578324	WASHER	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127497	SPRING WASHER M10	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	235532	Engine Mount	$1,339.09	IN STOCK
	235532	Engine Mount	$1,339.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	215704	BUSH TRAVEL LIMITER BRACKET	$57.12	To Order

Photo	Part No	Description	Price (each)	Stock
	16039734	SCREW	$3.86	To Order

Photo	Part No	Description	Price (each)	Stock
	10738021	WASHER	$1.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	$0.14	To Order

Photo	Part No	Description	Price (each)	Stock
	13449934	STUD BOLT	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	211282	FRONT COVER	$1,540.20	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$28.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK
	231620	SCREW	$0.30	IN STOCK
	231622	SCREW	$0.33	IN STOCK

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	208451	INSPECTION HATCH COVER	$32.73	To Order

Photo	Part No	Description	Price (each)	Stock
	317312	GASKET	$3.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14305324	ALLEN SCREW M6 X 20	$0.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	212879	SHIELD	$165.38	To Order

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	224128	PIPE FASTENER BRACKET	$8.32	To Order

Photo	Part No	Description	Price (each)	Stock
	149694	PIPE FASTENER BRACKET	$6.01	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	$0.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154691	GASKET	$1.52	IN STOCK
	154691	GASKET	$1.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	$0.29	To Order
	13026924	SCREW	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	249915	ENGINE BUSHING MOUNTING PLATE	$13.88	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	213370	COMPLETE CRANKCASE	213370 COMPLETE CRANKCASE Not for USA, CDN; Applicable up to engine No. 122778	$6,868.47	1
1	213370	COMPLETE CRANKCASE	213370 COMPLETE CRANKCASE Applicable for USA, CDN; Applicable up to engine No. 124965	$6,868.47	1
1	236302	COMPLETE CRANKCASE	236302 COMPLETE CRANKCASE Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779 up to engine No. 145426	$7,141.98	1
1	236302	COMPLETE CRANKCASE	236302 COMPLETE CRANKCASE Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 up to engine No. 145426	$7,141.98	1
1	278401	COMPLETE CRANKCASE	278401 COMPLETE CRANKCASE Reduced consumption; Applicable for EU GS, UK; Applicable from engine No. 145427 up to engine No. 175088	$5,657.53	1
2	223787	CONNECTOR MOUNT	223787 CONNECTOR MOUNT	$75.16	1
3	885963	RH HEAD-CRANKCASE GASKET	885963 RH HEAD-CRANKCASE GASKET	$2,210.19	1
3	213514	LH GASKET	213514 LH GASKET	$270.63 MSRP: ~~325.00~~ (16.7% off)	1
4	278427	CYLINDER SLEEVE	278427 CYLINDER SLEEVE Not for EU GS, UK	$848.77	12
4	278427	CYLINDER SLEEVE	278427 CYLINDER SLEEVE Applicable for EU GS, UK; Applicable up to engine No. 175088	$848.77	12
4	278427	CYLINDER SLEEVE	278427 CYLINDER SLEEVE Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	$848.77	12
5	186251	O-RING IN STOCK	186251 O-RING IN STOCK	$2.41 MSRP: ~~3.20~~ (24.7% off)	36
6	802590	STUD BOLT CRANKCASE IN STOCK	802590 STUD BOLT CRANKCASE IN STOCK	$13.02	28
7	282753	THREADED PLUG	282753 THREADED PLUG	$5.71	3
8	185360	CENTERING DOWEL IN STOCK	185360 CENTERING DOWEL IN STOCK	$2.78	4
9	104280	MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 IN STOCK	104280 MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 IN STOCK	$5.38 MSRP: ~~6.90~~ (22% off)	1
10	10261860	GASKET IN STOCK	10261860 GASKET IN STOCK	$0.43 MSRP: ~~1.00~~ (57% off)	1
11	164400	THREADED PLUG IN STOCK	164400 THREADED PLUG IN STOCK	$3.28	7
11	282753	THREADED PLUG	282753 THREADED PLUG	$5.71	3
12	227016	KNOCK SENSOR	227016 KNOCK SENSOR L. 300 mm; For cylinders 5/6	$60.34	1
12	227017	KNOCK SENSOR	227017 KNOCK SENSOR L. 300 mm; For cylinders 7/8	$64.52	1
13	227015	KNOCK SENSOR	227015 KNOCK SENSOR L. 400 mm; For cylinders 1/2	$64.52	1
13	227019	KNOCK SENSOR	227019 KNOCK SENSOR L. 400 mm; For cylinders 9/10	$64.52	1
14	227014	KNOCK SENSOR	227014 KNOCK SENSOR L. 650 mm; For cylinders 3/4	$60.34	1
14	227020	KNOCK SENSOR	227020 KNOCK SENSOR L. 650 mm; For cylinders 11/12	$64.52	1
15	231629	SCREW IN STOCK	231629 SCREW IN STOCK	$0.61 MSRP: ~~0.95~~ (35.8% off)	6
16	986847	CONICAL WASHER	986847 CONICAL WASHER	$0.59	6
17	227045	ROTATION SPEED SENSOR	227045 ROTATION SPEED SENSOR	$126.92	2
18	248334	SCREW IN STOCK	248334 SCREW IN STOCK	$0.58	2
19	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
20	248334	SCREW IN STOCK	248334 SCREW IN STOCK	$0.58	3
21	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	3
22	264087	PISTON COOLING NOZZLE	264087 PISTON COOLING NOZZLE Not for EU GS, UK	$28.55	12
22	264087	PISTON COOLING NOZZLE	264087 PISTON COOLING NOZZLE Applicable for EU GS, UK; Applicable up to engine No. 175088	$28.55	12
22	264087	PISTON COOLING NOZZLE	264087 PISTON COOLING NOZZLE Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	$28.55	12
23	164877	O-RING	164877 O-RING	$0.27	12
24	14302921	SCREW	14302921 SCREW	$0.06	12
25	11181474	WASHER	11181474 WASHER	$0.06	12
26	13546934	STUD BOLT IN STOCK	13546934 STUD BOLT M10 X 1.25 X 20; Shank length 50 IN STOCK	$1.67	2
26	254979	STUD BOLT	254979 STUD BOLT M10 X 1.25 X 20; Shank length 55	$2.19	2
26	254982	STUD BOLT	254982 STUD BOLT M10 X 1.25 X 20; Shank length 60	$2.26	2
26	13547434	STUD BOLT	13547434 STUD BOLT M10 X 1.25 X 20; Shank length 75	$5.62	1
27	100052	CENTERING DOWEL	100052 CENTERING DOWEL	$2.22	2
28	231620	SCREW IN STOCK	231620 SCREW L. 25 mm IN STOCK	$0.30 MSRP: ~~0.35~~ (14.3% off)	11
28	14305324	ALLEN SCREW M6 X 20 IN STOCK	14305324 ALLEN SCREW M6 X 20 M6 X 20; L. 20 mm IN STOCK	$0.08	1
28	231625	SCREW IN STOCK	231625 SCREW M6 X 40; L. 40 mm IN STOCK	$0.56	4
29	219283	STUD BOLT	219283 STUD BOLT	$16.36	1
29	339948	STUD BOLT	339948 STUD BOLT	$18.88	2
30	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	16
31	188717	Front Crankshaft Seal IN STOCK	188717 Front Crankshaft Seal IN STOCK	$28.55 MSRP: ~~39.38~~ (27.5% off)	1
32	217796	STUD BOLT	217796 STUD BOLT	$10.07	14
33	176421	CENTERING DOWEL	176421 CENTERING DOWEL	$4.02	14
34	231823	STUD BOLT	231823 STUD BOLT	$6.59	14
35	134704	O-RING IN STOCK	134704 O-RING IN STOCK	$0.14 MSRP: ~~1.00~~ (86% off)	28
36	178348	WASHER D.10.2-20 X 2 IN STOCK	178348 WASHER D.10.2-20 X 2 IN STOCK	$0.73	28
37	133988	HEX NUT M10 X 1.25 X 8 IN STOCK	133988 HEX NUT M10 X 1.25 X 8 IN STOCK	$0.20 MSRP: ~~0.35~~ (42.9% off)	28
38	209827	RH ENGINE MOUNTING STRUT IN STOCK	209827 RH ENGINE MOUNTING STRUT IN STOCK	$211.52	1
38	210375	LH ENGINE MOUNTING STRUT IN STOCK	210375 LH ENGINE MOUNTING STRUT IN STOCK	$207.49	1
39	15971834	SCREW	15971834 SCREW L. 100 mm	$1.32	2
39	122418	SCREW	122418 SCREW L. 165 mm	$13.76	2
40	126648	WASHER D.10.5-21 X 2 IN STOCK	126648 WASHER D.10.5-21 X 2 No longer supplied; Replaced by 12642524 IN STOCK	$1.66 MSRP: ~~1.75~~ (5.1% off)	4
40	13578324	WASHER IN STOCK	13578324 WASHER IN STOCK	$0.21	4
41	127497	SPRING WASHER M10 IN STOCK	127497 SPRING WASHER M10 IN STOCK	$0.06 MSRP: ~~0.75~~ (92% off)	4
42	235532	Engine Mount IN STOCK	235532 Engine Mount Applicable for F1 gearbox IN STOCK	$1,339.09	2
42	235532	Engine Mount IN STOCK	235532 Engine Mount Not for F1 gearbox IN STOCK	$1,339.09	2
43	215704	BUSH TRAVEL LIMITER BRACKET	215704 BUSH TRAVEL LIMITER BRACKET	$57.12	2
44	16039734	SCREW	16039734 SCREW	$3.86	2
45	10738021	WASHER IN STOCK	10738021 WASHER IN STOCK	$1.09	2
46	127498	WASHER	127498 WASHER	$0.14 MSRP: ~~0.60~~ (76.7% off)	2
47	13449934	STUD BOLT	13449934 STUD BOLT	$1.00	8
48	133988	HEX NUT M10 X 1.25 X 8 IN STOCK	133988 HEX NUT M10 X 1.25 X 8 IN STOCK	$0.20 MSRP: ~~0.35~~ (42.9% off)	8
49	11190574	WASHER IN STOCK	11190574 WASHER IN STOCK	$0.06	8
50	211282	FRONT COVER	211282 FRONT COVER	$1,540.20	1
52	180137	TEMPERATURE SENSOR IN STOCK	180137 TEMPERATURE SENSOR IN STOCK	$28.32 MSRP: ~~32.99~~ (14.2% off)	1
53	231619	SCREW IN STOCK	231619 SCREW L. 22 mm IN STOCK	$0.29	13
53	231620	SCREW IN STOCK	231620 SCREW L. 30 mm IN STOCK	$0.30 MSRP: ~~0.35~~ (14.3% off)	4
53	231622	SCREW IN STOCK	231622 SCREW L. 35 mm IN STOCK	$0.33 MSRP: ~~0.50~~ (34% off)	1
53	231625	SCREW IN STOCK	231625 SCREW L. 40 mm IN STOCK	$0.56	4
53	231624	SCREW IN STOCK	231624 SCREW L. 45 mm IN STOCK	$0.41	1
53	14304824	SCREW	14304824 SCREW L. 55 mm	$0.26	2
54	11197774	WASHER IN STOCK	11197774 WASHER x4, with screws with fixed washers IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	27
55	208451	INSPECTION HATCH COVER	208451 INSPECTION HATCH COVER	$32.73	1
56	317312	GASKET IN STOCK	317312 GASKET IN STOCK	$3.25	1
57	14305324	ALLEN SCREW M6 X 20 IN STOCK	14305324 ALLEN SCREW M6 X 20 M6 X 20; L. 20 mm IN STOCK	$0.08	4
58	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
59	212879	SHIELD	212879 SHIELD	$165.38	2
60	13026924	SCREW	13026924 SCREW	$0.29	4
61	224128	PIPE FASTENER BRACKET	224128 PIPE FASTENER BRACKET	$8.32	2
62	149694	PIPE FASTENER BRACKET	149694 PIPE FASTENER BRACKET	$6.01	1
63	10259960	Copper Washer 18 - 24 x 1.5 IN STOCK	10259960 Copper Washer 18 - 24 x 1.5 IN STOCK	$0.30 MSRP: ~~1.25~~ (76% off)	1
66	154691	GASKET IN STOCK	154691 GASKET Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779 IN STOCK	$1.52 MSRP: ~~2.40~~ (36.7% off)	6
66	154691	GASKET IN STOCK	154691 GASKET Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 IN STOCK	$1.52 MSRP: ~~2.40~~ (36.7% off)	6
67	13026924	SCREW	13026924 SCREW Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779	$0.29	12
67	13026924	SCREW	13026924 SCREW Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966	$0.29	12
68	11197774	WASHER IN STOCK	11197774 WASHER Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779 IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	12
68	11197774	WASHER IN STOCK	11197774 WASHER Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	12
69	249915	ENGINE BUSHING MOUNTING PLATE	249915 ENGINE BUSHING MOUNTING PLATE	$13.88	2
