Intake Manifold

Ferrari 599 GTB Fiorano

Find Your Part

Ferrari 599 GTB Fiorano - INTAKE MANIFOLD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
222850 INTAKE MANIFOLD $745.24 To Order
Photo Part No Description Price (each) Stock
236243 RH INTAKE PLENUM $2,268.09 To Order
236243 RH INTAKE PLENUM $2,268.09 To Order
Photo Part No Description Price (each) Stock
236244 LH INTAKE PLENUM $1,762.06 To Order
236244 LH INTAKE PLENUM $1,762.06 To Order
Photo Part No Description Price (each) Stock
223872 PLATE $150.65 To Order
223872 PLATE $150.65 To Order
237409 PLATE $214.72 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
223312 COSMETIC COVER $1,599.08 To Order
223312 COSMETIC COVER $1,599.08 To Order
236245 COSMETIC COVER $588.12 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
227185 SCREW $7.59 To Order
227185 SCREW $7.59 To Order
256181 SCREW $13.01 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11500624 STUD BOLT $0.50 To Order
11500624 STUD BOLT $0.50 To Order
11500524 STUD BOLT $0.34 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
331005 THROTTLE BODY $717.86 IN STOCK
Photo Part No Description Price (each) Stock
240262 SPACER FOR THROTTLE BODY $104.04 To Order
Photo Part No Description Price (each) Stock

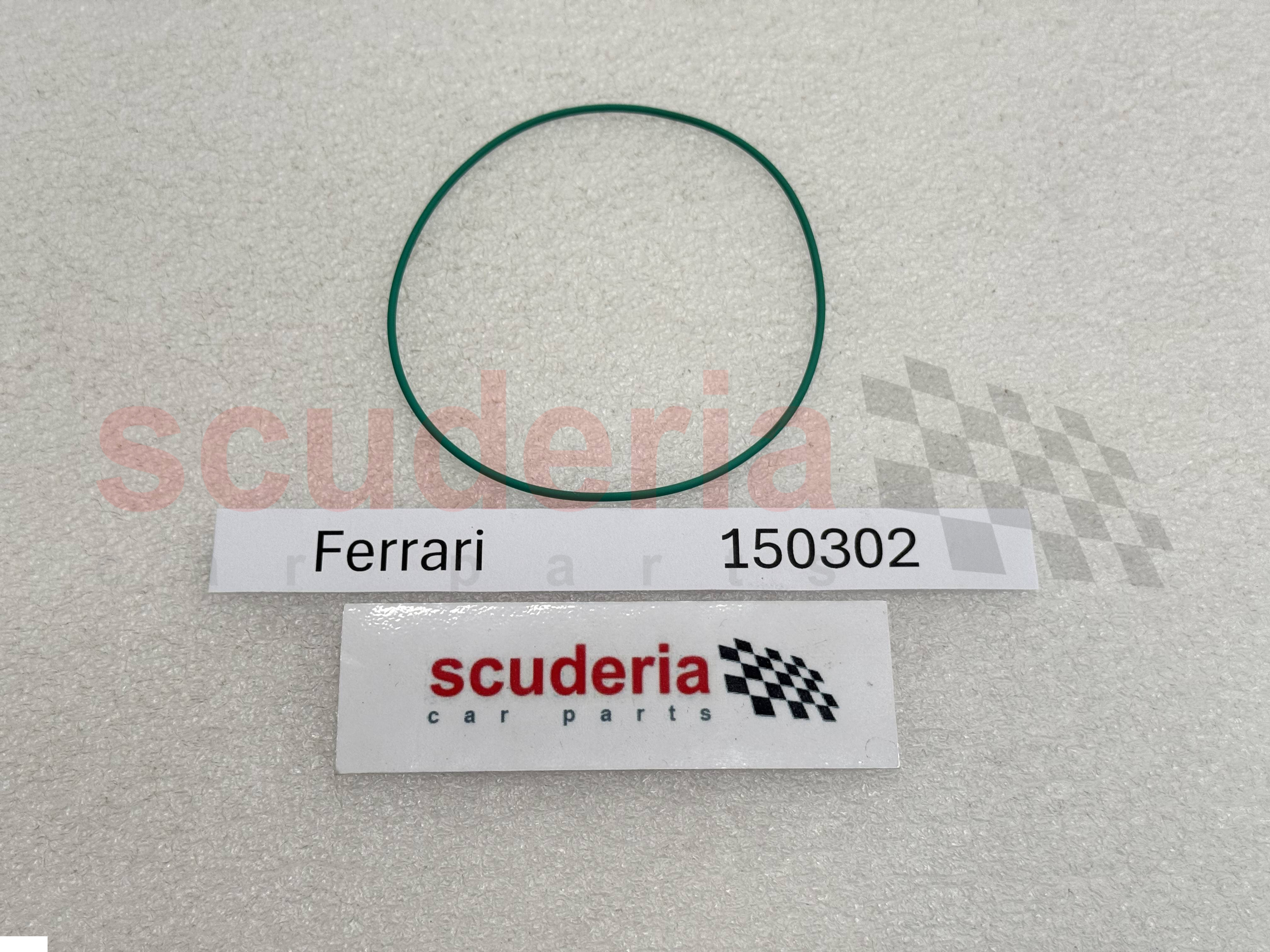

150302 Oil Pump O-Ring $2.42 IN STOCK
Photo Part No Description Price (each) Stock

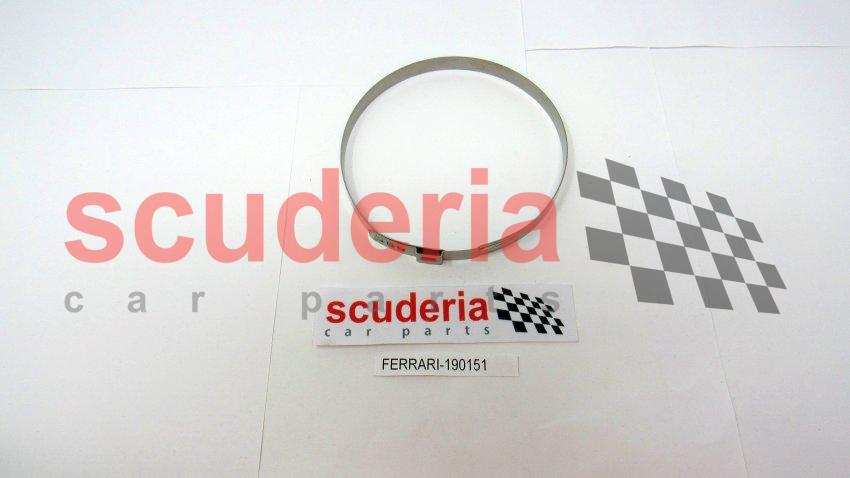

190151 Clamp $3.31 ARRIVING SOON
Photo Part No Description Price (each) Stock
231624 SCREW $0.41 IN STOCK
Photo Part No Description Price (each) Stock
219946 BRACKET $4.02 To Order
Photo Part No Description Price (each) Stock
209434 RH SLEEVE $75.39 IN STOCK
224509 RH SLEEVE $69.42 To Order
Photo Part No Description Price (each) Stock
209435 LH CONNECTOR PIPE $75.39 IN STOCK
224510 LH CONNECTOR PIPE $69.42 To Order
Photo Part No Description Price (each) Stock
189710 CLIP $0.29 IN STOCK
Photo Part No Description Price (each) Stock
209132 CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock

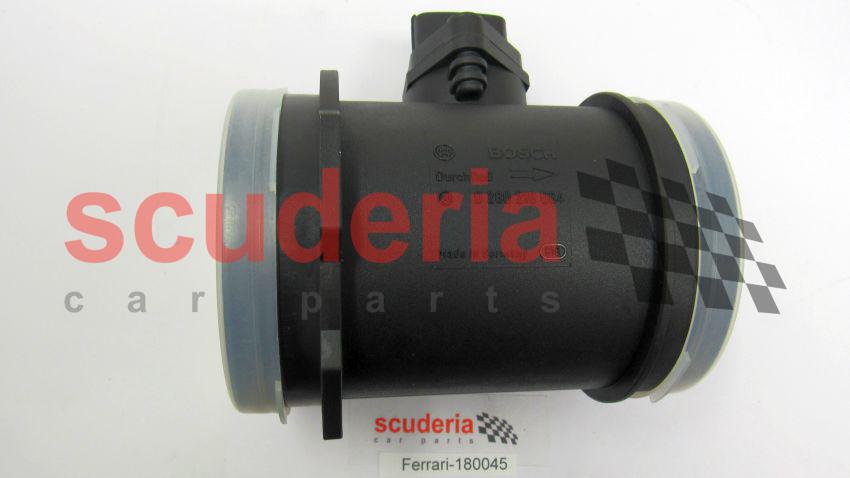

180045 AIR FLOW METER $757.86 To Order
Photo Part No Description Price (each) Stock
14461180 GASKET $0.27 To Order
Photo Part No Description Price (each) Stock
188614 CABLE RETAINER BRACKET $6.37 To Order
Photo Part No Description Price (each) Stock
178430 FASTENER CLIP $0.37 IN STOCK
Photo Part No Description Price (each) Stock
160888 CLIP $3.12 IN STOCK
Photo Part No Description Price (each) Stock
229965 LINER $146.27 To Order
229965 LINER $146.27 To Order
237901 LINER $328.40 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
149773 CLIP $0.38 IN STOCK
Photo Part No Description Price (each) Stock
149773 CLIP $0.38 IN STOCK
Photo Part No Description Price (each) Stock
70001788 RH-LH INTAKE PLENUM KIT $2,674.60 To Order
View All

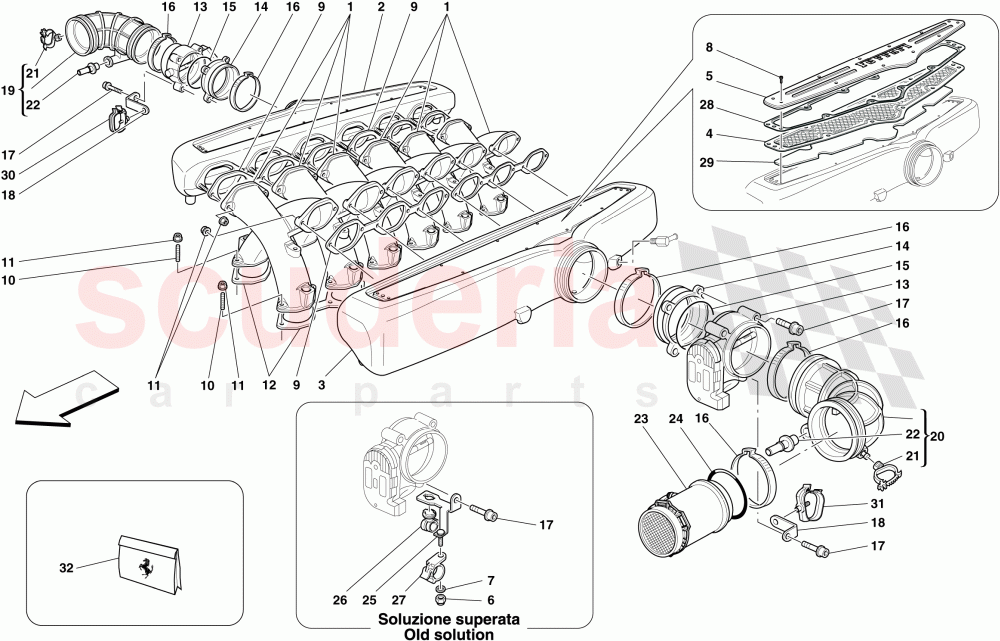

INTAKE MANIFOLD of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 222850
INTAKE MANIFOLD 		$745.24 6
2 236243
RH INTAKE PLENUM
Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779 		$2,268.09 1
2 236243
RH INTAKE PLENUM
Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 		$2,268.09 1
3 236244
LH INTAKE PLENUM
Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779 		$1,762.06 1
3 236244
LH INTAKE PLENUM
Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 		$1,762.06 1
4 223872
PLATE
Not for USA, CDN; Applicable up to engine No. 122778 		$150.65 2
4 223872
PLATE
Applicable for USA, CDN; Applicable up to engine No. 124965 		$150.65 2
4 237409
PLATE
Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779 		$214.72 2
4 237409
PLATE
Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 		$214.72 2
5 223312
COSMETIC COVER
Not for USA, CDN; Applicable up to engine No. 122778 		$1,599.08 2
5 223312
COSMETIC COVER
Applicable for USA, CDN; Applicable up to engine No. 124965 		$1,599.08 2
5 236245
COSMETIC COVER
Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779 		$588.12 2
5 236245
COSMETIC COVER
Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 		$588.12 2
6 14059290
FLANGED NUT M6
Obsolete solution
IN STOCK 		$1.31 2
7 12643724
WASHER
Obsolete solution
IN STOCK 		$0.06 (88% off) 2
8 227185
SCREW
Not for USA, CDN; Applicable up to engine No. 122778 		$7.59 24
8 227185
SCREW
Applicable for USA, CDN; Applicable up to engine No. 124965 		$7.59 24
8 256181
SCREW
Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779 		$13.01 24
8 256181
SCREW
Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 		$13.01 24
10 11500624
STUD BOLT
Not for USA, CDN; Applicable up to engine No. 122778 		$0.50 (50% off) 2
10 11500624
STUD BOLT
Applicable for USA, CDN; Applicable up to engine No. 124965 		$0.50 (50% off) 2
10 11500524
STUD BOLT
Not for USA, CDN; Applicable up to engine No. 122778 		$0.34 (66% off) 22
10 11500524
STUD BOLT
Applicable for USA, CDN; Applicable up to engine No. 124965 		$0.34 (66% off) 22
10 11500524
STUD BOLT
Not for USA, CDN; Applicable from engine No. 122779 		$0.34 (66% off) 24
10 11500524
STUD BOLT
Applicable for USA, CDN; Applicable from engine No. 124966 		$0.34 (66% off) 24
11 14059290
FLANGED NUT M6
IN STOCK 		$1.31 48
13 331005
THROTTLE BODY
IN STOCK 		$717.86 2
14 240262
SPACER FOR THROTTLE BODY 		$104.04 (41.8% off) 2
15 150302
Oil Pump O-Ring
Applicable for shim 195206 ref. 14
IN STOCK 		$2.42 (59.5% off) 2
16 190151
Clamp
ARRIVING SOON 		$3.31 (21.2% off) 6
17 231624
SCREW
L. 45 mm
IN STOCK 		$0.41 8
18 219946
BRACKET 		$4.02 (38.2% off) 2
19 209434
RH SLEEVE
Not for USA, CDN
IN STOCK 		$75.39 1
19 224509
RH SLEEVE
Applicable for USA, CDN 		$69.42 1
20 209435
LH CONNECTOR PIPE
Not for USA, CDN
IN STOCK 		$75.39 1
20 224510
LH CONNECTOR PIPE
Applicable for USA, CDN 		$69.42 1
21 189710
CLIP
IN STOCK 		$0.29 4
22 209132
CONNECTOR 		- 2 Enquire
23 180045
AIR FLOW METER 		$757.86 (23.7% off) 2
24 14461180
GASKET 		$0.27 2
25 188614
CABLE RETAINER BRACKET
Obsolete solution 		$6.37 2
26 178430
FASTENER CLIP
Obsolete solution
IN STOCK 		$0.37 (50.7% off) 2
27 160888
CLIP
Obsolete solution
IN STOCK 		$3.12 2
29 229965
LINER
Not for USA, CDN; Applicable up to engine No. 122778 		$146.27 2
29 229965
LINER
Applicable for USA, CDN; Applicable up to engine No. 124965 		$146.27 2
29 237901
LINER
Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779 		$328.40 2
29 237901
LINER
Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 		$328.40 2
30 149773
CLIP
IN STOCK 		$0.38 1
31 149773
CLIP
IN STOCK 		$0.38 1
32 70001788
RH-LH INTAKE PLENUM KIT 		$2,674.60 1
