Alternator - Starting Motor - Air Conditioning Compressor

Ferrari 550 Barchetta

Find Your Part

Ferrari 550 Barchetta - ALTERNATOR - STARTING MOTOR - AIR CONDITIONING COMPRESSOR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11500124 STUD BOLT $0.32 To Order
Photo Part No Description Price (each) Stock
13540824 STUD BOLT $0.20 To Order
Photo Part No Description Price (each) Stock
13540824 STUD BOLT $0.20 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 ARRIVING SOON
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
175033 PIN $29.00 To Order
Photo Part No Description Price (each) Stock
164397 STARTER MOTOR $604.26 IN STOCK
Photo Part No Description Price (each) Stock
16044921 SCREW $0.97 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $5.06 IN STOCK
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
176333 STARTER MOTOR SHIELD $335.16 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 ARRIVING SOON
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
124683 PROTECTIVE CAP $0.46 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
204539 AC SYSTEM COMPRESSOR $5,448.47 To Order
Photo Part No Description Price (each) Stock
170595 MOUNTING $366.53 To Order
Photo Part No Description Price (each) Stock
14307834 SCREW $5.85 To Order
Photo Part No Description Price (each) Stock
11190574 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10569474 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11343821 SCREW $1.03 IN STOCK
Photo Part No Description Price (each) Stock
179241 CABLES FOR MOTOR DEVICES CONNECTION $1,154.72 To Order
Photo Part No Description Price (each) Stock
176334 COMPRESSOR SHIELD $45.80 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
897538 SCREW $1.54 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 ARRIVING SOON
Photo Part No Description Price (each) Stock
165490 BRACKET $21.37 To Order
Photo Part No Description Price (each) Stock
101632 SCREW $46.40 To Order
Photo Part No Description Price (each) Stock
14307934 SCREW $2.84 To Order
Photo Part No Description Price (each) Stock
11190574 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
156858 Alternator 140 Amp $849.48 IN STOCK
Photo Part No Description Price (each) Stock
175035 ALTERNATOR MOUNT $307.54 To Order
Photo Part No Description Price (each) Stock
137920 SCREW $9.38 To Order
Photo Part No Description Price (each) Stock
123172 BUSHING $2.14 To Order
Photo Part No Description Price (each) Stock
11190574 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
128944 WASHER $2.79 To Order
Photo Part No Description Price (each) Stock
16102314 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
154803 PROTECTIVE CAP $4.80 IN STOCK
Photo Part No Description Price (each) Stock
148020 NUT M12 X 1.25 $3.90 IN STOCK
Photo Part No Description Price (each) Stock
13507401 WASHER $5.58 To Order
Photo Part No Description Price (each) Stock
164533 BELT TENSIONER BRACKET $131.33 To Order
Photo Part No Description Price (each) Stock
14307834 SCREW $5.85 To Order
Photo Part No Description Price (each) Stock
11190574 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
148629 PIN $36.64 To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm $0.43 IN STOCK
Photo Part No Description Price (each) Stock
128944 WASHER $2.79 To Order
Photo Part No Description Price (each) Stock
125668 SCREW $0.94 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER $0.11 IN STOCK
Photo Part No Description Price (each) Stock
172537 Belt Tightening Pulley $115.89 IN STOCK
Photo Part No Description Price (each) Stock
11190574 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
145476 L.H. BRACKET $1.47 To Order
Photo Part No Description Price (each) Stock
148020 NUT M12 X 1.25 $3.90 IN STOCK
Photo Part No Description Price (each) Stock
101016 WASHER $17.00 To Order
Photo Part No Description Price (each) Stock
14307834 SCREW $5.85 To Order
Photo Part No Description Price (each) Stock
164538 BUSHING $73.46 To Order
View All

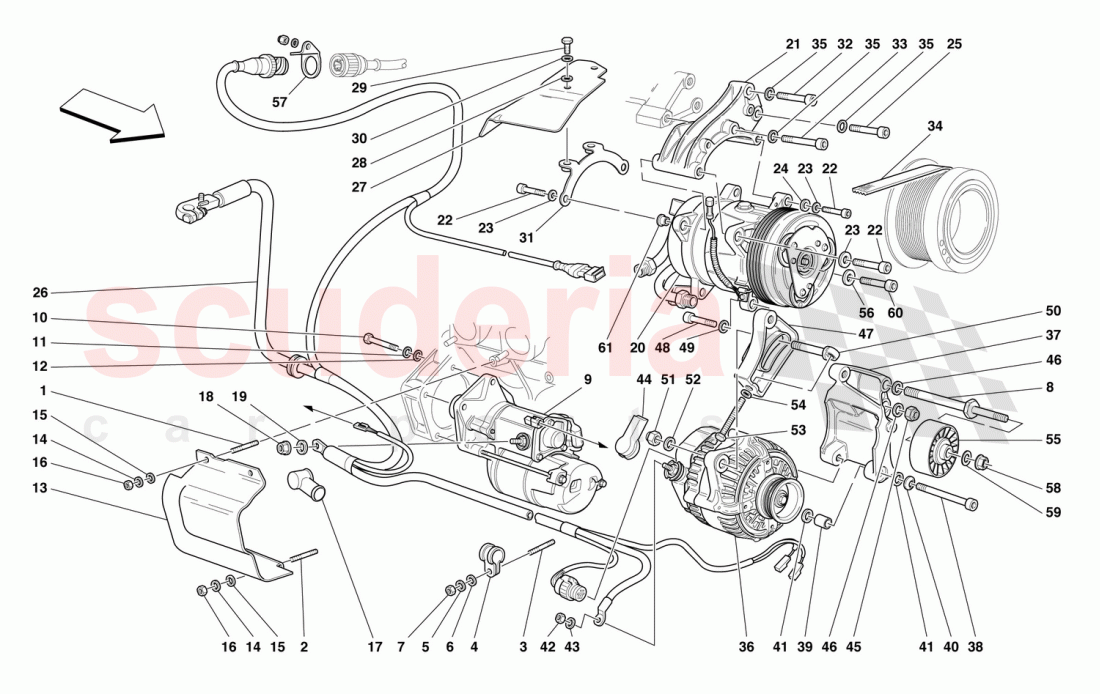

ALTERNATOR - STARTING MOTOR - AIR CONDITIONING COMPRESSOR of Ferrari Ferrari 550 Barchetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 179273
CABLES FOR MOTOR DEVICES CONNECTION
MOTOR DEVICES / Valid for GD 		$381.80 1
- 16044821
SCREW
L. 80 		$0.42 1
1 11500124
STUD BOLT 		$0.32 (36% off) 2
2 13540824
STUD BOLT 		$0.20 1
3 13540824
STUD BOLT 		$0.20 2
4 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.54 (67.9% off) 2
5 12639724
WASHER
IN STOCK 		$0.05 (90% off) 2
6 127494
WASHER
ARRIVING SOON 		$0.08 (88.2% off) 2
7 14059290
FLANGED NUT M6
ARRIVING SOON 		$1.33 2
8 175033
PIN 		$29.00 1
9 164397
STARTER MOTOR
IN STOCK 		$604.26 1
10 16044921
SCREW
L. 85
IN STOCK 		$0.97 2
11 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$5.06 3
12 11193874
WASHER
IN STOCK 		$0.06 3
13 176333
STARTER MOTOR SHIELD
PROTECTION 		$335.16 1
14 12644424
WASHER
IN STOCK 		$0.06 (85% off) 3
15 127494
WASHER
ARRIVING SOON 		$0.08 (88.2% off) 3
16 14059290
FLANGED NUT M6
ARRIVING SOON 		$1.33 3
17 124683
PROTECTIVE CAP 		$0.46 (54% off) 1
18 147985
NUT
IN STOCK 		$0.14 (72% off) 1
19 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 1
20 204539
AC SYSTEM COMPRESSOR
COMPRESSOR 		$5,448.47 (36.8% off) 1
21 170595
MOUNTING 		$366.53 1
22 14307834
SCREW 		$5.85 4
23 11190574
WASHER
IN STOCK 		$0.06 6
24 10569474
WASHER
IN STOCK 		$0.06 1
25 11343821
SCREW
IN STOCK 		$1.03 1
26 179241
CABLES FOR MOTOR DEVICES CONNECTION
MOTOR DEVICES / Not for GD 		$1,154.72 1
27 176334
COMPRESSOR SHIELD
PROTECTION 		$45.80 (24% off) 1
28 12644424
WASHER
IN STOCK 		$0.06 (85% off) 2
29 897538
SCREW 		$1.54 2
30 127494
WASHER
ARRIVING SOON 		$0.08 (88.2% off) 2
31 165490
BRACKET 		$21.37 1
32 101632
SCREW 		$46.40 (2% off) 1
33 14307934
SCREW 		$2.84 1
34 201444
Belt For Alternator And Compressor
COMPRESSOR
IN STOCK 		$34.08 (14.8% off) 1
35 11190574
WASHER
IN STOCK 		$0.06 3
36 156858
Alternator 140 Amp
IN STOCK 		$849.48 (6.9% off) 1
37 175035
ALTERNATOR MOUNT 		$307.54 1
38 137920
SCREW 		$9.38 1
39 123172
BUSHING 		$2.14 1
40 11190574
WASHER
IN STOCK 		$0.06 1
41 128944
WASHER 		$2.79 2
42 16102314
NUT 		$0.06 (95.3% off) 1
43 12601374
WASHER
IN STOCK 		$0.02 (92% off) 1
44 154803
PROTECTIVE CAP
IN STOCK 		$4.80 1
45 148020
NUT M12 X 1.25
IN STOCK 		$3.90 1
46 13507401
WASHER 		$5.58 2
47 164533
BELT TENSIONER BRACKET 		$131.33 1
48 14307834
SCREW 		$5.85 1
49 11190574
WASHER
IN STOCK 		$0.06 1
50 148629
PIN 		$36.64 (27.9% off) 1
51 102742
Nyloc Nut M10 x 1.25 x 10mm
IN STOCK 		$0.43 (86.8% off) 1
52 128944
WASHER 		$2.79 1
53 125668
SCREW 		$0.94 (59.3% off) 1
54 14496524
WASHER
IN STOCK 		$0.11 (92.7% off) 1
55 172537
Belt Tightening Pulley
IN STOCK 		$115.89 (21.8% off) 1
56 11190574
WASHER
IN STOCK 		$0.06 1
57 145476
L.H. BRACKET 		$1.47 1
58 148020
NUT M12 X 1.25
IN STOCK 		$3.90 1
59 101016
WASHER 		$17.00 (18.5% off) 1
60 14307834
SCREW 		$5.85 1
61 164538
BUSHING 		$73.46 2
