Ferrari 550 Barchetta - LUBRICATION - OIL PUMPS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
153197 COMPLETE DELIVERY PUMP BODY $1,495.81 To Order
Photo Part No Description Price (each) Stock
153198 COMPLETE SCAVENGE PUMP BODY $1,863.10 To Order
Photo Part No Description Price (each) Stock
141837 DELIVERY PUMP COVER $256.86 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
134041 NUT $0.81 IN STOCK
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.01 To Order
Photo Part No Description Price (each) Stock
13541124 STUD BOLT $20.25 IN STOCK
Photo Part No Description Price (each) Stock
13540824 STUD BOLT $0.20 To Order
Photo Part No Description Price (each) Stock
11500224 STUD BOLT $0.35 To Order
Photo Part No Description Price (each) Stock
153366 WASHER $0.49 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
102704 ALIGNMENT DOWEL $2.70 IN STOCK
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
231629 SCREW $0.61 IN STOCK
Photo Part No Description Price (each) Stock
154518 DRIVEN GEAR $215.15 To Order
Photo Part No Description Price (each) Stock
154519 DRIVE GEAR $230.17 To Order
Photo Part No Description Price (each) Stock
156950 PISTON $135.98 To Order
Photo Part No Description Price (each) Stock
137614 SPRING $54.38 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
156143 CAP $14.64 To Order
Photo Part No Description Price (each) Stock
10257460 GASKET $0.23 To Order
Photo Part No Description Price (each) Stock
141838 SCAVENGE PUMP COVER $111.80 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
134041 NUT $0.81 IN STOCK
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.01 To Order
Photo Part No Description Price (each) Stock
13541224 STUD BOLT $134.25 To Order
Photo Part No Description Price (each) Stock
13540924 STUD BOLT $33.75 IN STOCK
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.01 To Order
Photo Part No Description Price (each) Stock
13541124 STUD BOLT $20.25 IN STOCK
Photo Part No Description Price (each) Stock
13540824 STUD BOLT $0.20 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14306424 SCREW $0.23 IN STOCK
Photo Part No Description Price (each) Stock
154516 DRIVEN GEAR $215.15 To Order
Photo Part No Description Price (each) Stock
154517 DRIVE GEAR $215.15 To Order
Photo Part No Description Price (each) Stock
109309 JOINT $16.44 To Order
Photo Part No Description Price (each) Stock
121306 BALL $3.16 To Order
Photo Part No Description Price (each) Stock
109980 SPRING FOR BALL $14.52 To Order
Photo Part No Description Price (each) Stock
196077 SPACER $15.69 To Order
Photo Part No Description Price (each) Stock
11057876 SEEGER RING $0.06 To Order
Photo Part No Description Price (each) Stock
154588 O-RING $0.99 To Order
Photo Part No Description Price (each) Stock
141252 JOINT $18.82 To Order
Photo Part No Description Price (each) Stock
157042 SHAFT $202.48 To Order
Photo Part No Description Price (each) Stock
140915 BEARING $25.29 To Order
Photo Part No Description Price (each) Stock
140071 O-RING 3 X 3 X 1 $0.56 IN STOCK
Photo Part No Description Price (each) Stock
163750 DRIVEN GEAR $104.25 To Order
Photo Part No Description Price (each) Stock
11066576 SEEGER RING $0.09 To Order
Photo Part No Description Price (each) Stock
11058876 SEEGER RING $0.20 To Order
Photo Part No Description Price (each) Stock
141459 DRIVE GEAR $90.71 To Order
Photo Part No Description Price (each) Stock
163753 OIL PUMP DRIVE CHAIN $44.28 To Order
Photo Part No Description Price (each) Stock
141525 CHAIN GUIDE SHOE $108.78 To Order
Photo Part No Description Price (each) Stock
14306424 SCREW $0.23 IN STOCK
Photo Part No Description Price (each) Stock
14499421 WASHER $0.20 IN STOCK
Photo Part No Description Price (each) Stock
152536 FIXED SHOE $107.27 To Order
Photo Part No Description Price (each) Stock
14305521 ALLEN SCREW SOCKET HEAD M6 X 30 $0.09 IN STOCK
Photo Part No Description Price (each) Stock
238108 WASHER D6.1 X 9.9 X 1.6 $0.44 IN STOCK
Photo Part No Description Price (each) Stock
11066376 SEEGER RING $0.41 To Order
Photo Part No Description Price (each) Stock
106744 WASHER $8.10 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
196077 SPACER $15.69 To Order
View All

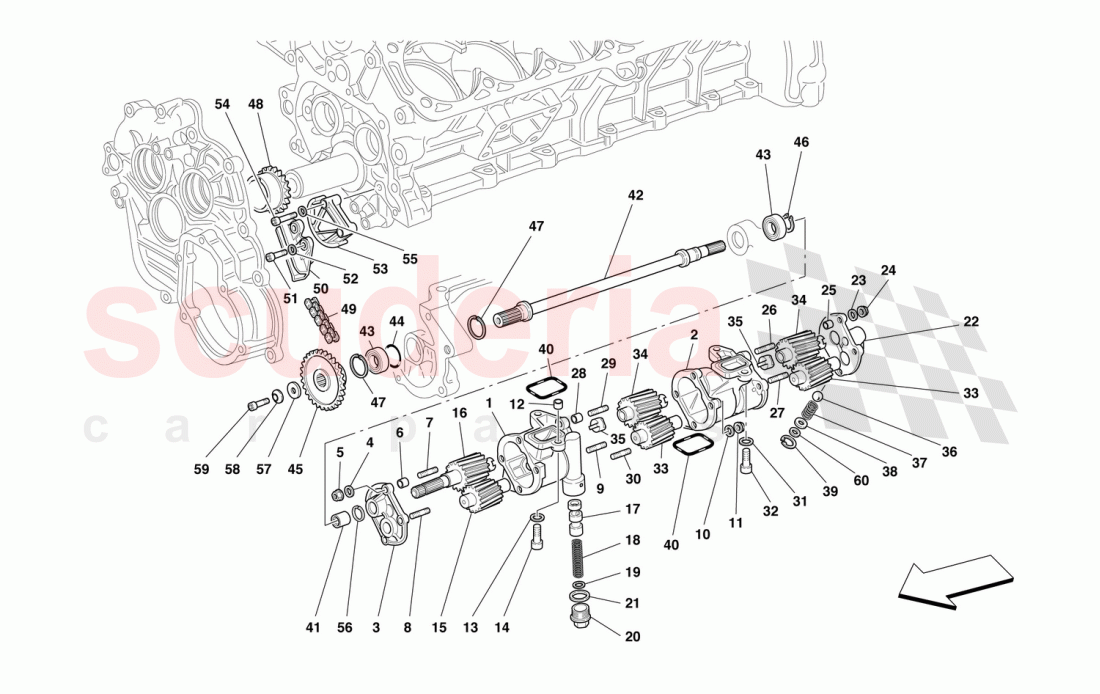

LUBRICATION - OIL PUMPS of Ferrari Ferrari 550 Barchetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 153197
COMPLETE DELIVERY PUMP BODY
BODY 		$1,495.81 1
- 153198
COMPLETE SCAVENGE PUMP BODY
BODY 		$1,863.10 1
1 153197
COMPLETE DELIVERY PUMP BODY
With complete delivery pump / body 		$1,495.81 1
2 153198
COMPLETE SCAVENGE PUMP BODY
With complete recovery pump / body 		$1,863.10 1
3 141837
DELIVERY PUMP COVER 		$256.86 1
4 11197774
WASHER
IN STOCK 		$0.06 (80% off) 4
5 134041
NUT
IN STOCK 		$0.81 4
6 102725
CENTERING DOWEL 		$1.01 (55.1% off) 2
7 13541124
STUD BOLT
IN STOCK 		$20.25 2
8 13540824
STUD BOLT 		$0.20 2
9 11500224
STUD BOLT 		$0.35 1
10 153366
WASHER 		$0.49 4
11 14059290
FLANGED NUT M6
IN STOCK 		$1.31 4
12 102704
ALIGNMENT DOWEL
IN STOCK 		$2.70 2
13 11193874
WASHER
IN STOCK 		$0.06 2
14 231629
SCREW
IN STOCK 		$0.61 (35.8% off) 2
15 154518
DRIVEN GEAR 		$215.15 1
16 154519
DRIVE GEAR 		$230.17 1
17 156950
PISTON 		$135.98 1
18 137614
SPRING 		$54.38 (12.7% off) 1
19 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 5
20 156143
CAP 		$14.64 1
21 10257460
GASKET 		$0.23 (81.6% off) 1
22 141838
SCAVENGE PUMP COVER 		$111.80 (45.5% off) 1
23 11197774
WASHER
IN STOCK 		$0.06 (80% off) 4
24 134041
NUT
IN STOCK 		$0.81 4
25 102725
CENTERING DOWEL 		$1.01 (55.1% off) 2
26 13541224
STUD BOLT 		$134.25 2
27 13540924
STUD BOLT
IN STOCK 		$33.75 1
28 102725
CENTERING DOWEL 		$1.01 (55.1% off) 2
29 13541124
STUD BOLT
IN STOCK 		$20.25 2
30 13540824
STUD BOLT 		$0.20 1
31 11193874
WASHER
IN STOCK 		$0.06 2
32 14306424
SCREW
IN STOCK 		$0.23 (43.9% off) 2
33 154516
DRIVEN GEAR 		$215.15 2
34 154517
DRIVE GEAR 		$215.15 2
35 109309
JOINT 		$16.44 (80.2% off) 2
36 121306
BALL 		$3.16 1
37 109980
SPRING FOR BALL 		$14.52 1
38 196077
SPACER 		$15.69 1
39 11057876
SEEGER RING 		$0.06 (88% off) 1
40 154588
O-RING 		$0.99 (92.1% off) 5
41 141252
JOINT 		$18.82 1
42 157042
SHAFT 		$202.48 1
43 140915
BEARING 		$25.29 2
44 140071
O-RING 3 X 3 X 1
IN STOCK 		$0.56 (81% off) 1
45 163750
DRIVEN GEAR 		$104.25 1
46 11066576
SEEGER RING 		$0.09 (64% off) 1
47 11058876
SEEGER RING 		$0.20 (63.6% off) 2
48 141459
DRIVE GEAR 		$90.71 1
49 163753
OIL PUMP DRIVE CHAIN 		$44.28 1
50 141525
CHAIN GUIDE SHOE 		$108.78 (63.2% off) 1
51 14306424
SCREW
IN STOCK 		$0.23 (43.9% off) 2
52 14499421
WASHER
IN STOCK 		$0.20 2
53 152536
FIXED SHOE 		$107.27 (16.5% off) 1
54 14305521
ALLEN SCREW SOCKET HEAD M6 X 30
IN STOCK 		$0.09 2
55 238108
WASHER D6.1 X 9.9 X 1.6
IN STOCK 		$0.44 (32.3% off) 2
56 11066376
SEEGER RING 		$0.41 (65.8% off) 2
57 106744
WASHER 		$8.10 (8.9% off) 1
58 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
59 231619
SCREW
IN STOCK 		$0.29 1
60 196077
SPACER 		$15.69 1
