Ferrari 550 Barchetta - COOLING SYSTEM - RADIATOR AND NOURICE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
171772 COMPLETE WATER RADIATOR $7,128.50 To Order
Photo Part No Description Price (each) Stock
168213 COMPLETE OIL RADIATOR $2,570.43 To Order
Photo Part No Description Price (each) Stock
307674 RADIATOR MOUNTING BUSH $7.58 IN STOCK
Photo Part No Description Price (each) Stock
157160 UNION (METRIC THREAD) $7.29 To Order
Photo Part No Description Price (each) Stock
165134 HOOD FOR ELECTROFANS $242.19 To Order
Photo Part No Description Price (each) Stock
160910 COMPLETE ELECTROFAN $659.32 To Order
Photo Part No Description Price (each) Stock
10977824 SCREW $1.70 IN STOCK
Photo Part No Description Price (each) Stock
127493 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
157650 FASTENER BUSHING $13.91 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.98 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
133989 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
15201024 SCREW $0.18 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11673111 NUT $0.23 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
12648224 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
179037 DELIVERY WATER RUBBER PIPE $228.22 To Order
Photo Part No Description Price (each) Stock
296781 PIPE CLAMP 30-45MM $7.77 IN STOCK
Photo Part No Description Price (each) Stock
296781 PIPE CLAMP 30-45MM $7.77 IN STOCK
Photo Part No Description Price (each) Stock
171668 VENT PIPE FROM RADIATOR TO EXPANSION TANK $49.88 To Order
Photo Part No Description Price (each) Stock
177995 CLAMP $1.06 IN STOCK
Photo Part No Description Price (each) Stock
65206300 AIR CONVEYOR $912.92 To Order
Photo Part No Description Price (each) Stock
62940900 Allen Head Screw M6 x 15 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
14305234 SCREW $0.21 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
171974 COMPLETE WATER CANISTER $1,195.89 To Order
Photo Part No Description Price (each) Stock
374030103 TANK PLUG Enquire To Order
Photo Part No Description Price (each) Stock
13423171 ELASTIC COLLAR $0.05 To Order
Photo Part No Description Price (each) Stock
156082 RUBBER PIPE $316.97 To Order
Photo Part No Description Price (each) Stock
156083 FIXING CLIP $0.49 To Order
Photo Part No Description Price (each) Stock
231625 SCREW $0.57 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.53 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
102947 VIBRATION DAMPER $18.32 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
60659100 Caged Captive Nut 6mm $0.92 IN STOCK
Photo Part No Description Price (each) Stock
14662995 SCREW WITH CAGE $1.68 To Order
Photo Part No Description Price (each) Stock
194911 RUBBER PIPE FROM EXPANSION TANK TO ENGINE $73.52 To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar $0.72 IN STOCK
Photo Part No Description Price (each) Stock
207763 RUBBER PIPE $103.95 To Order
Photo Part No Description Price (each) Stock
166550 SCREW $8.88 To Order
Photo Part No Description Price (each) Stock
63762800 UPPER GASKET $0.73 To Order
Photo Part No Description Price (each) Stock
63882200 SIDE GASKET $0.54 To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar $0.72 IN STOCK
Photo Part No Description Price (each) Stock
169382 GASKET $0.96 To Order
Photo Part No Description Price (each) Stock
168346 GASKET $0.67 To Order
Photo Part No Description Price (each) Stock
164096 BLOWER $95.34 To Order
Photo Part No Description Price (each) Stock
174538 CAP $10.35 To Order
Photo Part No Description Price (each) Stock
174539 O.R. GASKET $10.99 To Order
Photo Part No Description Price (each) Stock
153174 ELECTRIC FAN MOTOR $191.79 To Order
Photo Part No Description Price (each) Stock
152920 R.H. AIR INLET $32.29 To Order
View All

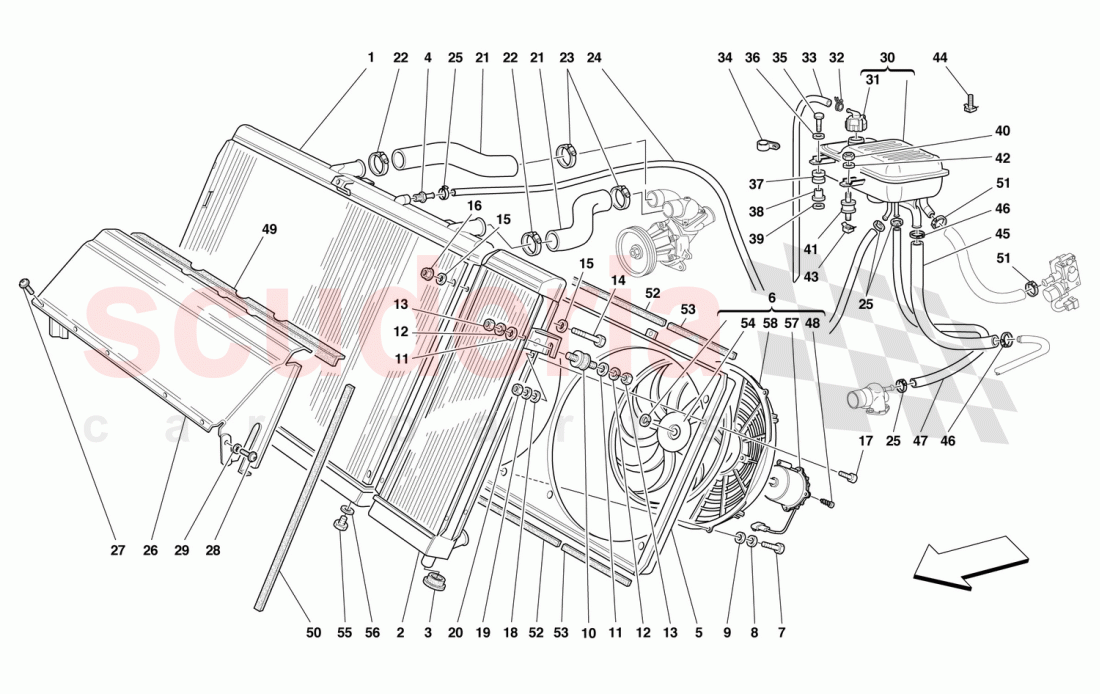

COOLING SYSTEM - RADIATOR AND NOURICE of Ferrari Ferrari 550 Barchetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 157744
RUBBER HOSE FROM TANK TO PUMP
TO EXPANSION TANK / Valid for GD 		$34.80 1
- 171327
COMPLETE WATER CANISTER
Valid for GD 		$326.31 1
- 167465
VENT PIPE FROM RADIATOR TO EXPANSION TANK
EXPANSION TANK / Valid for GD 		$135.25 1
- 174220
UNION (THREAD INCHES) 		$134.71 1
1 171772
COMPLETE WATER RADIATOR 		$7,128.50 (36.7% off) 1
2 168213
COMPLETE OIL RADIATOR 		$2,570.43 (36.2% off) 1
3 307674
RADIATOR MOUNTING BUSH
IN STOCK 		$7.58 2
4 157160
UNION (METRIC THREAD) 		$7.29 1
5 165134
HOOD FOR ELECTROFANS 		$242.19 (52.6% off) 1
6 160910
COMPLETE ELECTROFAN 		$659.32 2
7 10977824
SCREW
IN STOCK 		$1.70 8
8 127493
WASHER 		$0.06 (80% off) 8
9 12637824
WASHER
IN STOCK 		$0.06 (88% off) 8
10 157650
FASTENER BUSHING 		$13.91 (41.5% off) 2
11 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$4.98 4
12 127496
WASHER 		$0.06 (80% off) 4
13 133989
NUT 		$0.41 (59% off) 4
14 15201024
SCREW 		$0.18 1
15 12637824
WASHER
IN STOCK 		$0.06 (88% off) 2
16 11673111
NUT 		$0.23 1
17 231619
SCREW
IN STOCK 		$0.29 4
18 12648224
WASHER 		$0.23 4
19 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 4
20 14059290
FLANGED NUT M6
IN STOCK 		$1.32 4
21 179037
DELIVERY WATER RUBBER PIPE 		$228.22 (27.8% off) 2
22 296781
PIPE CLAMP 30-45MM
IN STOCK 		$7.77 2
23 296781
PIPE CLAMP 30-45MM
IN STOCK 		$7.77 2
24 171668
VENT PIPE FROM RADIATOR TO EXPANSION TANK
EXPANSION TANK / Not for GD 		$49.88 (4.2% off) 1
25 177995
CLAMP
IN STOCK 		$1.06 (50.7% off) 4
26 65206300
AIR CONVEYOR 		$912.92 (43.8% off) 1
27 62940900
Allen Head Screw M6 x 15
IN STOCK 		$1.32 (24.6% off) 9
28 14305234
SCREW
IN STOCK 		$0.21 1
29 127496
WASHER 		$0.06 (80% off) 1
30 171974
COMPLETE WATER CANISTER
Not for GD 		$1,195.89 1
31 374030103
TANK PLUG 		- 1 Enquire
32 13423171
ELASTIC COLLAR 		$0.05 1
33 156082
RUBBER PIPE 		$316.97 (27.5% off) 1
34 156083
FIXING CLIP 		$0.49 1
35 231625
SCREW
IN STOCK 		$0.57 1
36 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 3
37 812273
CABLE GROMMET 		$1.53 2
38 149707
SPACER 		$1.10 (37.1% off) 2
39 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
40 14059290
FLANGED NUT M6
IN STOCK 		$1.32 2
41 102947
VIBRATION DAMPER
IN STOCK 		$18.32 (6.1% off) 1
42 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
43 60659100
Caged Captive Nut 6mm
IN STOCK 		$0.92 2
44 14662995
SCREW WITH CAGE 		$1.68 1
45 194911
RUBBER PIPE FROM EXPANSION TANK TO ENGINE
TANK TO ENGINE 		$73.52 (53.6% off) 1
46 13000490
Screw Collar
IN STOCK 		$0.72 (62.1% off) 2
47 207763
RUBBER PIPE
TO EXPANSION TANK / Not for GD 		$103.95 1
48 166550
SCREW 		$8.88 8
49 63762800
UPPER GASKET 		$0.73 (75.7% off) 1
50 63882200
SIDE GASKET 		$0.54 1
51 13000490
Screw Collar
IN STOCK 		$0.72 (62.1% off) 2
52 169382
GASKET 		$0.96 2
53 168346
GASKET 		$0.67 2
54 164096
BLOWER 		$95.34 2
55 174538
CAP 		$10.35 (72.3% off) 1
56 174539
O.R. GASKET 		$10.99 1
57 153174
ELECTRIC FAN MOTOR 		$191.79 (62.6% off) 2
58 152920
R.H. AIR INLET 		$32.29 2
