Name: BLOW-BY
Rating: 4.3 (1 reviews)

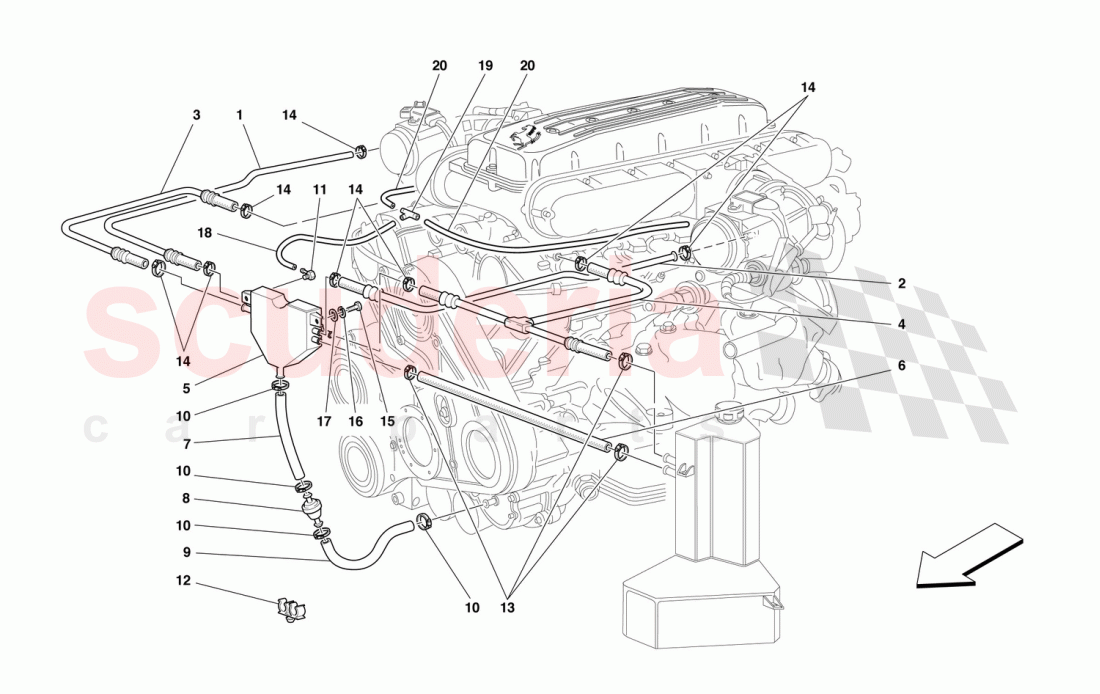

BLOW-BY of Ferrari Ferrari 550 Barchetta

View All

Ferrari 550 Barchetta - BLOW-BY

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	167934	PIPE FROM OIL VENT BODY TO RH SLEEVE	$87.62	To Order

Photo	Part No	Description	Price (each)	Stock
	167935	PIPE FROM OIL VENT BODY TO LH SLEEVE	$189.82	To Order

Photo	Part No	Description	Price (each)	Stock
	167936	PIPE FROM RH HEAD TO VENT BODY	$195.41	To Order

Photo	Part No	Description	Price (each)	Stock
	167937	PIPE FROM LH HEAD TO VENT BODY	$237.43	To Order

Photo	Part No	Description	Price (each)	Stock
	171660	ENGINE OIL VENT BODY	$287.08	To Order

Photo	Part No	Description	Price (each)	Stock
	178931	PIPE FROM VENT BODY TO OIL TANK	$38.78	To Order

Photo	Part No	Description	Price (each)	Stock
	115750	PIPE FROM OIL VENT BODY TO VALVE	$3.94	To Order

Photo	Part No	Description	Price (each)	Stock
	164548	ONE-WAY VALVE	$22.96	To Order

Photo	Part No	Description	Price (each)	Stock
	115228	PIPE FROM VALVE TO UNION	$3.79	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	128016	CONNECTOR	$10.53	To Order

Photo	Part No	Description	Price (each)	Stock
	145543	CLIP	$0.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	262111	SCREW CLAMP	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	897538	SCREW	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	124790	RUBBER PIPE	$6.96	To Order

Photo	Part No	Description	Price (each)	Stock
	121793	3-WAY UNION	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	124790	RUBBER PIPE	$6.96	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	167934	PIPE FROM OIL VENT BODY TO RH SLEEVE	167934 PIPE FROM OIL VENT BODY TO RH SLEEVE SLEEVE	$87.62	1
2	167935	PIPE FROM OIL VENT BODY TO LH SLEEVE	167935 PIPE FROM OIL VENT BODY TO LH SLEEVE SLEEVE	$189.82	1
3	167936	PIPE FROM RH HEAD TO VENT BODY	167936 PIPE FROM RH HEAD TO VENT BODY BODY	$195.41	1
4	167937	PIPE FROM LH HEAD TO VENT BODY	167937 PIPE FROM LH HEAD TO VENT BODY BODY	$237.43	1
5	171660	ENGINE OIL VENT BODY	171660 ENGINE OIL VENT BODY	$287.08	1
6	178931	PIPE FROM VENT BODY TO OIL TANK	178931 PIPE FROM VENT BODY TO OIL TANK TANK	$38.78	1
7	115750	PIPE FROM OIL VENT BODY TO VALVE	115750 PIPE FROM OIL VENT BODY TO VALVE TO VALVE	$3.94	1
8	164548	ONE-WAY VALVE	164548 ONE-WAY VALVE	$22.96 MSRP: ~~65.38~~ (64.9% off)	1
9	115228	PIPE FROM VALVE TO UNION	115228 PIPE FROM VALVE TO UNION	$3.79	1
10	13432070	HOSE COLLAR IN STOCK	13432070 HOSE COLLAR IN STOCK	$0.49 MSRP: ~~1.07~~ (54.2% off)	4
11	128016	CONNECTOR	128016 CONNECTOR	$10.53	1
12	145543	CLIP IN STOCK	145543 CLIP IN STOCK	$0.18 MSRP: ~~0.75~~ (76% off)	9
13	262111	SCREW CLAMP	262111 SCREW CLAMP	$1.39	3
14	13432070	HOSE COLLAR IN STOCK	13432070 HOSE COLLAR IN STOCK	$0.49 MSRP: ~~1.07~~ (54.2% off)	8
15	897538	SCREW	897538 SCREW	$1.53	2
16	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	2
17	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
18	124790	RUBBER PIPE	124790 RUBBER PIPE	$6.96	1
19	121793	3-WAY UNION	121793 3-WAY UNION	$0.60 MSRP: ~~2.45~~ (75.5% off)	1
20	124790	RUBBER PIPE	124790 RUBBER PIPE	$6.96	2

Blow-By

Ferrari 550 Barchetta

Ferrari 550 Barchetta - BLOW-BY

Add to Shopping Cart
