Timing System - Tappets

Ferrari 488 GTB

Find Your Part

Ferrari 488 GTB - TIMING SYSTEM - TAPPETS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
314857 EXHAUST VALVE $71.76 To Order
301303 EXHAUST VALVE $323.31 To Order
314856 INTAKE VALVE $17.62 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
295300 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT $528.90 To Order
Photo Part No Description Price (each) Stock
287551 LOWER EXHAUST VALVE SPRING CAP $2.60 To Order
287553 LOWER INTAKE VALVE SPRING CAP $2.69 To Order
Photo Part No Description Price (each) Stock
279099 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT $541.49 To Order
Photo Part No Description Price (each) Stock
296310 SPACER $21.40 To Order
Photo Part No Description Price (each) Stock
221473 VALVE STEM OIL SEAL $1.81 IN STOCK
Photo Part No Description Price (each) Stock
287554 UPPER VALVE SPRING CAP $4.19 To Order
Photo Part No Description Price (each) Stock
179763 VALVE SPRING SEMI-CONE $0.85 IN STOCK
Photo Part No Description Price (each) Stock
287708 SCREW M14 X 1.5 $12.15 IN STOCK
Photo Part No Description Price (each) Stock
240559 DIAMOND COATED WASHER $8.16 IN STOCK
Photo Part No Description Price (each) Stock
246965 O-RING $11.18 IN STOCK
Photo Part No Description Price (each) Stock
317840 RH INTAKE CAMSHAFT $714.01 To Order
Photo Part No Description Price (each) Stock
317842 RH EXHAUST CAMSHAFT $2,822.42 To Order
Photo Part No Description Price (each) Stock
317841 LH INTAKE CAMSHAFT $780.77 To Order
Photo Part No Description Price (each) Stock
317843 LH EXHAUST CAMSHAFT $2,822.42 To Order
View All

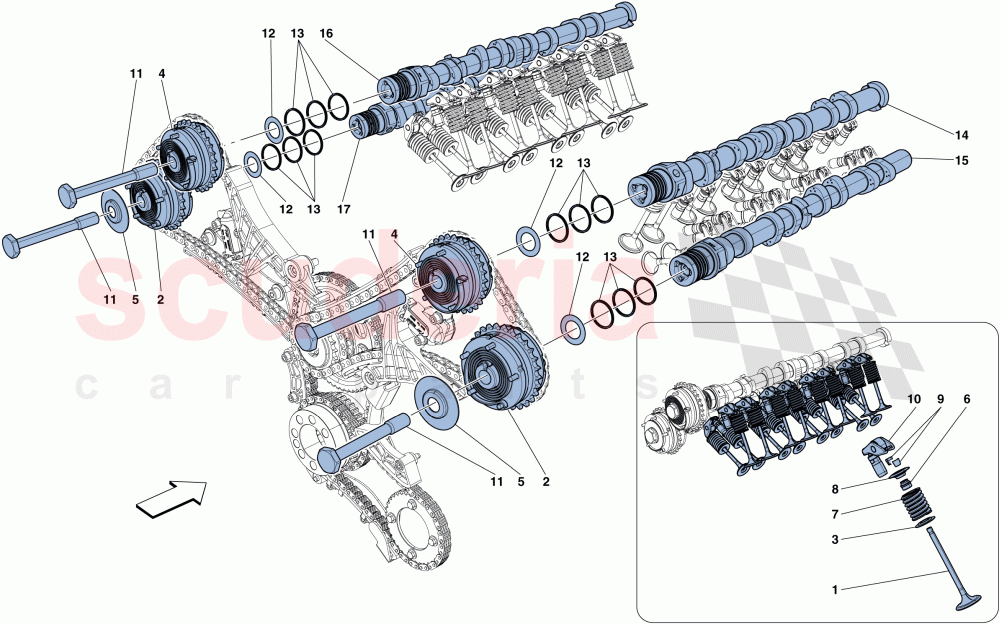

TIMING SYSTEM - TAPPETS of Ferrari Ferrari 488 GTB Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 314857
EXHAUST VALVE
Applicable from engine No. 355490 		$71.76 16
1 301303
EXHAUST VALVE
Applicable up to engine No. 355489 		$323.31 16
1 314856
INTAKE VALVE
Applicable from engine No. 355490 		$17.62 16
1 314856
INTAKE VALVE
Applicable up to engine No. 355489 		$17.62 16
2 295300
VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT 		$528.90 2
3 287551
LOWER EXHAUST VALVE SPRING CAP 		$2.60 16
3 287553
LOWER INTAKE VALVE SPRING CAP 		$2.69 16
4 279099
VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT 		$541.49 2
5 296310
SPACER 		$21.40 2
6 221473
VALVE STEM OIL SEAL
IN STOCK 		$1.81 (30.4% off) 32
8 287554
UPPER VALVE SPRING CAP 		$4.19 32
9 179763
VALVE SPRING SEMI-CONE
IN STOCK 		$0.85 (5.6% off) 64
11 287708
SCREW M14 X 1.5
IN STOCK 		$12.15 4
12 240559
DIAMOND COATED WASHER
IN STOCK 		$8.16 4
13 246965
O-RING
IN STOCK 		$11.18 12
14 317840
RH INTAKE CAMSHAFT 		$714.01 1
15 317842
RH EXHAUST CAMSHAFT 		$2,822.42 1
16 317841
LH INTAKE CAMSHAFT 		$780.77 1
17 317843
LH EXHAUST CAMSHAFT 		$2,822.42 1
