Ferrari 488 GTB - TIMING SYSTEM - DRIVE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
271856 MOBILE SHOE MOUNT $62.84 To Order
Photo Part No Description Price (each) Stock
257626 SHOE $87.97 To Order
Photo Part No Description Price (each) Stock
271880 CHAIN $130.55 To Order
Photo Part No Description Price (each) Stock
175303 BUSH $32.67 To Order
Photo Part No Description Price (each) Stock
307544 SHOE $69.13 To Order
Photo Part No Description Price (each) Stock
297696 TENSIONER $289.11 To Order
Photo Part No Description Price (each) Stock
311057 SHOE $67.87 To Order
Photo Part No Description Price (each) Stock
276463 COMPL. MOUNT $36.44 To Order
Photo Part No Description Price (each) Stock
272014 SHOE $62.84 IN STOCK
Photo Part No Description Price (each) Stock
311058 CHAIN $905.07 To Order
Photo Part No Description Price (each) Stock
245914 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
304689 CRANKSHAFT GEAR $389.67 To Order
Photo Part No Description Price (each) Stock
304687 DRIVE GEAR $477.66 To Order
Photo Part No Description Price (each) Stock
310416 PUMP DRIVE GEAR $251.39 To Order
Photo Part No Description Price (each) Stock
282396 SCREW $0.53 To Order
Photo Part No Description Price (each) Stock
282393 SCREW $0.67 To Order
Photo Part No Description Price (each) Stock
154191 GASKET $1.30 IN STOCK
Photo Part No Description Price (each) Stock
284898 SCREW $2.85 To Order
Photo Part No Description Price (each) Stock
267808 ROLLER BEARING CAGE $13.05 To Order
Photo Part No Description Price (each) Stock
304699 SHOULDER $33.93 To Order
Photo Part No Description Price (each) Stock
284898 SCREW $2.85 To Order
Photo Part No Description Price (each) Stock
288341 WASHER $2.59 To Order
Photo Part No Description Price (each) Stock
14306424 SCREW $0.23 IN STOCK
Photo Part No Description Price (each) Stock
284900 WASHER $0.15 To Order
Photo Part No Description Price (each) Stock
14302821 SCREW $0.18 To Order
Photo Part No Description Price (each) Stock
163759 WASHER $13.36 To Order
Photo Part No Description Price (each) Stock
282398 SCREW $0.45 To Order
Photo Part No Description Price (each) Stock
306440 GASKET $1.93 To Order
Photo Part No Description Price (each) Stock
284899 SCREW $3.52 To Order
Photo Part No Description Price (each) Stock
282397 SCREW $0.45 To Order
Photo Part No Description Price (each) Stock
282393 SCREW $0.67 To Order
View All

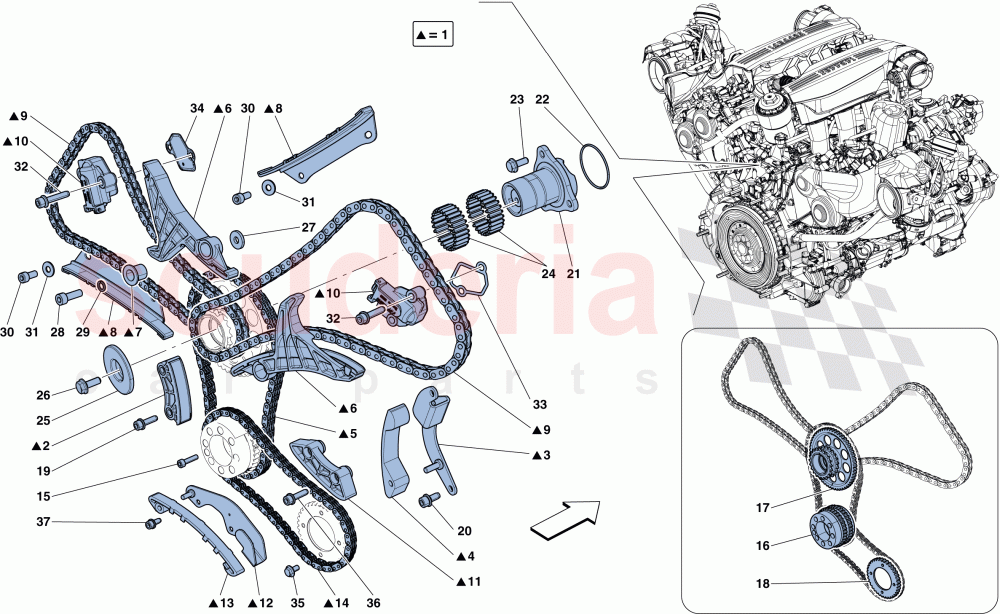

TIMING SYSTEM - DRIVE of Ferrari Ferrari 488 GTB Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
3 271856
MOBILE SHOE MOUNT 		$62.84 1
4 257626
SHOE 		$87.97 1
5 271880
CHAIN 		$130.55 1
7 175303
BUSH 		$32.67 2
8 307544
SHOE 		$69.13 2
10 297696
TENSIONER 		$289.11 2
11 311057
SHOE 		$67.87 1
12 276463
COMPL. MOUNT 		$36.44 1
13 272014
SHOE
IN STOCK 		$62.84 1
14 311058
CHAIN 		$905.07 1
15 245914
SCREW 		$0.35 1
16 304689
CRANKSHAFT GEAR 		$389.67 1
17 304687
DRIVE GEAR 		$477.66 1
18 310416
PUMP DRIVE GEAR 		$251.39 1
19 282396
SCREW 		$0.53 2
20 282393
SCREW
M6 X 16 		$0.67 2
22 154191
GASKET
IN STOCK 		$1.30 (48.4% off) 1
23 284898
SCREW 		$2.85 3
24 267808
ROLLER BEARING CAGE 		$13.05 2
25 304699
SHOULDER 		$33.93 1
26 284898
SCREW 		$2.85 1
27 288341
WASHER 		$2.59 2
28 14306424
SCREW
IN STOCK 		$0.23 (43.9% off) 2
29 284900
WASHER 		$0.15 2
30 14302821
SCREW 		$0.18 4
31 163759
WASHER 		$13.36 4
32 282398
SCREW 		$0.45 4
34 306440
GASKET
Also comes with engine gasket set 		$1.93 1
35 284899
SCREW 		$3.52 4
36 282397
SCREW 		$0.45 2
37 282393
SCREW
M6 X 16 		$0.67 2
