Ferrari 488 GTB - CRANKCASE

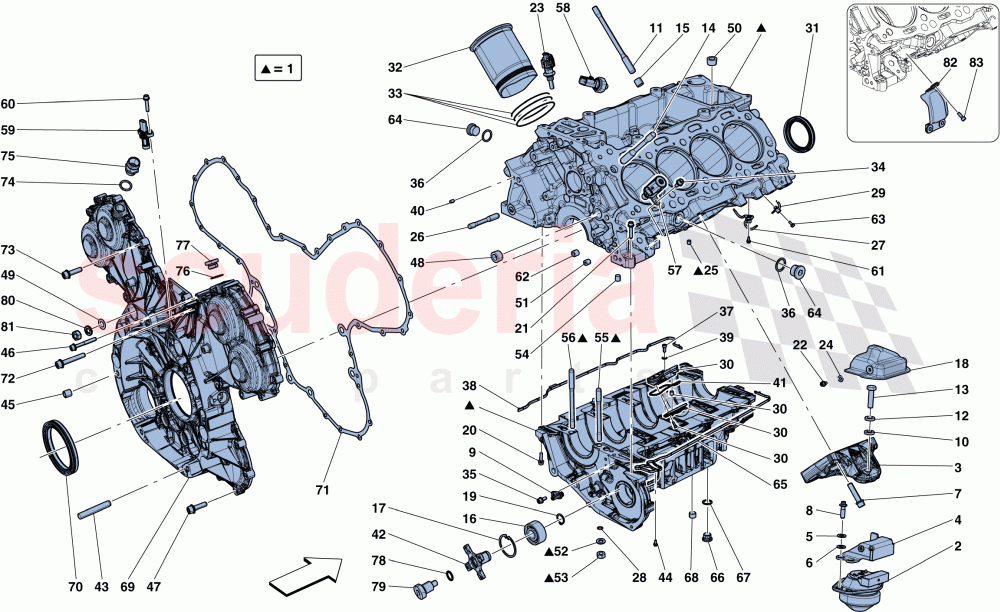

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	339292	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$4,337.72	To Order
	339292	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$4,337.72	To Order

Photo	Part No	Description	Price (each)	Stock
	312806	LH ENGINE MOUNTING	$396.50	IN STOCK
	312805	LH ENGINE MOUNTING	$396.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	324057	ENGINE STRUT	$196.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	278028	STAFFA LIMITATRICE ESCURSIONE TAMPONE SX.	$166.27	To Order
	278027	STAFFA LIMITATRICE ESCURSIONE TAMPONE DX.	$166.27	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	SPRING WASHER M10	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	290127	SCREW	$20.44	To Order

Photo	Part No	Description	Price (each)	Stock
	243841	SCREW	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	317217	CHAIN COOLING NOZZLE ASSEMBLY	$52.42	To Order

Photo	Part No	Description	Price (each)	Stock
	10738021	WASHER	$1.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	270464	STUD BOLT	$28.12	To Order

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	$0.14	To Order

Photo	Part No	Description	Price (each)	Stock
	11599534	SCREW	$1.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271564	STUD BOLT	$26.84	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	$2.82	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	247049	BEARING	$47.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11060276	SEEGER RING	$0.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	304792	SHIELD	$51.14	To Order

Photo	Part No	Description	Price (each)	Stock
	11066876	SEEGER RING	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$28.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	$0.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	312059	CENTERING DOWEL	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	278120	STUD BOLT	$23.00	To Order

Photo	Part No	Description	Price (each)	Stock
	298858	PISTON COOLING NOZZLE ASSEMBLY	$38.35	To Order

Photo	Part No	Description	Price (each)	Stock
	134705	GASKET	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	298859	PISTON COOLING NOZZLE ASSEMBLY	$26.84	To Order

Photo	Part No	Description	Price (each)	Stock
	312836	COMPL. VALVE HOLDER	$294.18	To Order

Photo	Part No	Description	Price (each)	Stock
	271598	GASKET CRANKCASE	$35.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271810	CYLINDER SLEEVE	$274.89	To Order

Photo	Part No	Description	Price (each)	Stock
	294153	GASKET	$2.98	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	339289	GASKET	$48.59	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	311001	CENTERING DOWEL	$2.73	To Order

Photo	Part No	Description	Price (each)	Stock
	103994	GASKET	$5.62	To Order

Photo	Part No	Description	Price (each)	Stock
	304697	DRIVE JOINT	$166.27	To Order

Photo	Part No	Description	Price (each)	Stock
	13546834	STUD BOLT	$1.45	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.57	IN STOCK
	231620	SCREW	$0.31	IN STOCK
	231624	SCREW	$0.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	$5.80	To Order

Photo	Part No	Description	Price (each)	Stock
	323886	WASHER WITH RUBBER LINING	$11.09	To Order
	281725	GASKET	$1.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	$5.80	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	$1.88	To Order

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER D.10.2-20 X 2	$0.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	$1.88	To Order

Photo	Part No	Description	Price (each)	Stock
	270465	STUD BOLT	$21.72	To Order

Photo	Part No	Description	Price (each)	Stock
	270466	STUD BOLT	$24.28	To Order

Photo	Part No	Description	Price (each)	Stock
	743032	OIL PRESSURE SOLENOID VALVE	$191.85	To Order

Photo	Part No	Description	Price (each)	Stock
	922805	ANGULAR SPEED SENSOR	$106.35	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	315493	SCREW	$1.02	To Order

Photo	Part No	Description	Price (each)	Stock
	291078	THREADED PLUG	$2.30	To Order

Photo	Part No	Description	Price (each)	Stock
	315493	SCREW	$1.02	To Order

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	$3.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	339287	GASKET	$26.84	To Order

Photo	Part No	Description	Price (each)	Stock
	306145	Thread Cap M18 x 1.5	$8.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	$3.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	330563	REAR TIMING COVER	$1,227.90	To Order
	330563	REAR TIMING COVER	$1,227.90	To Order
	316665	REAR TIMING COVER	$1,328.95	To Order

Photo	Part No	Description	Price (each)	Stock
	242269	REAR MAIN OIL SEAL	$46.90	To Order

Photo	Part No	Description	Price (each)	Stock
	323467	CRANKCASE GASKET	$211.46	IN STOCK
	313188	CRANKCASE GASKET	$601.16	To Order

Photo	Part No	Description	Price (each)	Stock
	285494	SCREW	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SCREW	$0.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10263160	GASKET	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	309101	CONNECTOR	$20.44	To Order

Photo	Part No	Description	Price (each)	Stock
	10263160	GASKET	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	280597	THREADED PLUG	$3.07	To Order

Photo	Part No	Description	Price (each)	Stock
	302618	GASKET	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	307936	PLUG	$20.44	To Order

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER D.10.2-20 X 2	$0.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	314461	SOLENOID VALVE HEAT SHIELD	$83.12	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.59	IN STOCK

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	339292	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	339292 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY Applicable from engine No. 338905	$4,337.72	1
1	339292	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	339292 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY Applicable up to engine No. 338904	$4,337.72	1
2	312806	LH ENGINE MOUNTING IN STOCK	312806 LH ENGINE MOUNTING IN STOCK	$396.50	1
2	312805	LH ENGINE MOUNTING IN STOCK	312805 LH ENGINE MOUNTING IN STOCK	$396.50	1
3	324057	ENGINE STRUT IN STOCK	324057 ENGINE STRUT IN STOCK	$196.74	2
4	278028	STAFFA LIMITATRICE ESCURSIONE TAMPONE SX.	278028 STAFFA LIMITATRICE ESCURSIONE TAMPONE SX.	$166.27	1
4	278027	STAFFA LIMITATRICE ESCURSIONE TAMPONE DX.	278027 STAFFA LIMITATRICE ESCURSIONE TAMPONE DX.	$166.27	1
5	127497	SPRING WASHER M10 IN STOCK	127497 SPRING WASHER M10 IN STOCK	$0.06 MSRP: ~~0.75~~ (92% off)	6
6	126648	WASHER D.10.5-21 X 2 IN STOCK	126648 WASHER D.10.5-21 X 2 IN STOCK	$1.68 MSRP: ~~1.75~~ (4% off)	6
7	290127	SCREW	290127 SCREW	$20.44	8
8	243841	SCREW IN STOCK	243841 SCREW IN STOCK	$1.45	6
9	317217	CHAIN COOLING NOZZLE ASSEMBLY	317217 CHAIN COOLING NOZZLE ASSEMBLY	$52.42	1
10	10738021	WASHER IN STOCK	10738021 WASHER IN STOCK	$1.11	2
11	270464	STUD BOLT	270464 STUD BOLT	$28.12	18
12	127498	WASHER	127498 WASHER	$0.14 MSRP: ~~0.60~~ (76.7% off)	2
13	11599534	SCREW IN STOCK	11599534 SCREW IN STOCK	$1.71	2
14	271564	STUD BOLT	271564 STUD BOLT	$26.84	2
15	185360	CENTERING DOWEL IN STOCK	185360 CENTERING DOWEL IN STOCK	$2.82	4
16	247049	BEARING IN STOCK	247049 BEARING IN STOCK	$47.05	1
17	11060276	SEEGER RING IN STOCK	11060276 SEEGER RING IN STOCK	$0.42 MSRP: ~~1.75~~ (76% off)	1
18	304792	SHIELD	304792 SHIELD	$51.14	2
19	11066876	SEEGER RING	11066876 SEEGER RING	$0.06 MSRP: ~~0.35~~ (82.9% off)	1
20	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	12
21	231620	SCREW IN STOCK	231620 SCREW M6 X 30 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	1
22	248334	SCREW IN STOCK	248334 SCREW M6 X 12 IN STOCK	$0.59	4
23	180137	TEMPERATURE SENSOR IN STOCK	180137 TEMPERATURE SENSOR IN STOCK	$28.77 MSRP: ~~32.99~~ (12.8% off)	1
24	14498801	WASHER IN STOCK	14498801 WASHER IN STOCK	$0.11 MSRP: ~~0.20~~ (45% off)	4
25	312059	CENTERING DOWEL	312059 CENTERING DOWEL	$1.11	10
26	278120	STUD BOLT	278120 STUD BOLT	$23.00	8
27	298858	PISTON COOLING NOZZLE ASSEMBLY	298858 PISTON COOLING NOZZLE ASSEMBLY	$38.35	4
28	134705	GASKET	134705 GASKET	$0.34 MSRP: ~~0.82~~ (58.5% off)	20
29	298859	PISTON COOLING NOZZLE ASSEMBLY	298859 PISTON COOLING NOZZLE ASSEMBLY	$26.84	8
30	312836	COMPL. VALVE HOLDER	312836 COMPL. VALVE HOLDER	$294.18	4
31	271598	GASKET CRANKCASE IN STOCK	271598 GASKET CRANKCASE IN STOCK	$35.67	1
32	271810	CYLINDER SLEEVE	271810 CYLINDER SLEEVE	$274.89	8
33	294153	GASKET	294153 GASKET Also comes with engine gasket set	$2.98	24
34	248334	SCREW IN STOCK	248334 SCREW M6 X 12 IN STOCK	$0.59	1
35	282393	SCREW	282393 SCREW M6 X 14	$0.68	1
36	10263460	COPPER GASKET D.28-22.3 X 1.5 IN STOCK	10263460 COPPER GASKET D.28-22.3 X 1.5 Also comes with engine gasket set IN STOCK	$0.35 MSRP: ~~1.00~~ (65% off)	2
37	13026924	SCREW	13026924 SCREW	$0.29	8
38	339289	GASKET	339289 GASKET Also comes with engine gasket set; Contact fgt-sathelpdesk@ferrari.com for relative installation instructions	$48.59	1
39	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	8
40	311001	CENTERING DOWEL	311001 CENTERING DOWEL	$2.73	2
41	103994	GASKET	103994 GASKET	$5.62	4
42	304697	DRIVE JOINT	304697 DRIVE JOINT	$166.27	1
43	13546834	STUD BOLT	13546834 STUD BOLT	$1.45	10
44	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.29	1
45	100052	CENTERING DOWEL	100052 CENTERING DOWEL	$2.25	2
46	231625	SCREW IN STOCK	231625 SCREW M6 X 40 IN STOCK	$0.57	1
46	231620	SCREW IN STOCK	231620 SCREW M6 X 30 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	2
46	231624	SCREW IN STOCK	231624 SCREW M6 X 45 IN STOCK	$0.42	6
47	231620	SCREW IN STOCK	231620 SCREW M6 X 30 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	15
48	282753	THREADED PLUG	282753 THREADED PLUG	$5.80	1
49	323886	WASHER WITH RUBBER LINING	323886 WASHER WITH RUBBER LINING Also comes with engine gasket set; Applicable from engine No. 297221	$11.09	2
49	281725	GASKET IN STOCK	281725 GASKET Also comes with engine gasket set; Applicable up to engine No. 297220 IN STOCK	$1.23	2
50	282753	THREADED PLUG	282753 THREADED PLUG	$5.80	1
51	282755	THREADED PLUG	282755 THREADED PLUG	$1.88	2
52	178348	WASHER D.10.2-20 X 2 IN STOCK	178348 WASHER D.10.2-20 X 2 IN STOCK	$0.74	20
53	133988	HEX NUT M10 X 1.25 X 8 IN STOCK	133988 HEX NUT M10 X 1.25 X 8 IN STOCK	$0.20 MSRP: ~~0.35~~ (42.9% off)	20
54	282755	THREADED PLUG	282755 THREADED PLUG	$1.88	2
55	270465	STUD BOLT	270465 STUD BOLT	$21.72	10
56	270466	STUD BOLT	270466 STUD BOLT	$24.28	10
57	743032	OIL PRESSURE SOLENOID VALVE	743032 OIL PRESSURE SOLENOID VALVE	$191.85	1
59	922805	ANGULAR SPEED SENSOR	922805 ANGULAR SPEED SENSOR	$106.35	1
60	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.29	1
61	315493	SCREW	315493 SCREW	$1.02	4
62	291078	THREADED PLUG	291078 THREADED PLUG	$2.30	2
63	315493	SCREW	315493 SCREW	$1.02	8
64	307477	THREADED PLUG IN STOCK	307477 THREADED PLUG IN STOCK	$3.35	2
65	339287	GASKET	339287 GASKET Also comes with engine gasket set; Contact fgt-sathelpdesk@ferrari.com for relative installation instructions	$26.84	1
66	306145	Thread Cap M18 x 1.5 IN STOCK	306145 Thread Cap M18 x 1.5 IN STOCK	$8.64	3
67	10259960	Copper Washer 18 - 24 x 1.5 IN STOCK	10259960 Copper Washer 18 - 24 x 1.5 Also comes with engine gasket set IN STOCK	$0.31 MSRP: ~~1.25~~ (75.2% off)	3
68	164400	THREADED PLUG IN STOCK	164400 THREADED PLUG IN STOCK	$3.33	1
69	330563	REAR TIMING COVER	330563 REAR TIMING COVER Applicable from engine No. 322609	$1,227.90	1
69	330563	REAR TIMING COVER	330563 REAR TIMING COVER Applicable from engine No. 297221 up to engine No. 322608	$1,227.90	1
69	316665	REAR TIMING COVER	316665 REAR TIMING COVER Applicable up to engine No. 297220	$1,328.95	1
70	242269	REAR MAIN OIL SEAL	242269 REAR MAIN OIL SEAL	$46.90	1
71	323467	CRANKCASE GASKET IN STOCK	323467 CRANKCASE GASKET Also comes with engine gasket set; Applicable from engine No. 297221 IN STOCK	$211.46	1
71	313188	CRANKCASE GASKET	313188 CRANKCASE GASKET Also comes with engine gasket set; Applicable up to engine No. 297220	$601.16	1
72	285494	SCREW	285494 SCREW M8 X 50	$0.94	5
73	231629	SCREW IN STOCK	231629 SCREW M8 X 30 IN STOCK	$0.62 MSRP: ~~0.95~~ (34.7% off)	5
74	10263160	GASKET	10263160 GASKET	$0.23 MSRP: ~~1.00~~ (77% off)	1
75	309101	CONNECTOR	309101 CONNECTOR	$20.44	1
76	10263160	GASKET	10263160 GASKET Applicable up to engine No. 322608	$0.23 MSRP: ~~1.00~~ (77% off)	1
77	280597	THREADED PLUG	280597 THREADED PLUG Applicable up to engine No. 322608	$3.07	1
78	302618	GASKET	302618 GASKET Also comes with engine gasket set	$1.11	1
79	307936	PLUG	307936 PLUG	$20.44	1
80	178348	WASHER D.10.2-20 X 2 IN STOCK	178348 WASHER D.10.2-20 X 2 IN STOCK	$0.74	8
81	133988	HEX NUT M10 X 1.25 X 8 IN STOCK	133988 HEX NUT M10 X 1.25 X 8 IN STOCK	$0.20 MSRP: ~~0.35~~ (42.9% off)	8
82	314461	SOLENOID VALVE HEAT SHIELD	314461 SOLENOID VALVE HEAT SHIELD	$83.12	1
83	248334	SCREW IN STOCK	248334 SCREW M6 X 16 IN STOCK	$0.59	3
