Ferrari 488 GTB - POWER STEERING PUMP AND RESERVOIR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
277566 POWER STEERING PUMP $1,048.16 To Order
Photo Part No Description Price (each) Stock
304121 FRONT MOUNT $78.79 To Order
Photo Part No Description Price (each) Stock
84317700 SCREW 8 X 30 $21.89 IN STOCK
Photo Part No Description Price (each) Stock
313375 PULLEY FOR POWER STEERING PUMP $343.19 To Order
Photo Part No Description Price (each) Stock
13028324 SCREW $3.73 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
324595 SOUNDPROOFING COVER $141.12 To Order
Photo Part No Description Price (each) Stock
231625 SCREW $0.57 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
986847 CONICAL WASHER $0.60 To Order
Photo Part No Description Price (each) Stock
294005 STUD BOLT $14.70 To Order
Photo Part No Description Price (each) Stock
312300 REAR MOUNT $62.27 To Order
Photo Part No Description Price (each) Stock
231629 SCREW $0.61 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
260393 BUSH $2.45 IN STOCK
Photo Part No Description Price (each) Stock
321103 POWER STEERING PUMP SHIELD $94.05 To Order
Photo Part No Description Price (each) Stock
315560 COMPL. POWER STEERING FLUID RESERVOIR $81.34 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
12647704 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
325786 COMPL. POWER STEERING FLUID RESERVOIR BRACKET $105.48 To Order
Photo Part No Description Price (each) Stock
11612826 SCREW $2.96 To Order
Photo Part No Description Price (each) Stock
315062 PIPE FROM TANK TO PUMP $177.94 To Order
Photo Part No Description Price (each) Stock
13126370 COLLAR $1.13 IN STOCK
Photo Part No Description Price (each) Stock
312281 BRACKET $6.73 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
315405 COMPL. POWER STEERING PIPE MOUNTING BRACKET $24.13 To Order
Photo Part No Description Price (each) Stock
323703 PIPE FROM PUMP TO DISCONNECTOR $279.64 To Order
Photo Part No Description Price (each) Stock
245041 HOSE $54.62 To Order
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.32 IN STOCK
Photo Part No Description Price (each) Stock
315061 PIPE FROM UNDERBODY TO RESERVOIR $190.65 To Order
Photo Part No Description Price (each) Stock
315226 BRACKET WITH SHEATH $3.56 To Order
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $0.64 To Order
Photo Part No Description Price (each) Stock
292123 CLIP $0.38 To Order
Photo Part No Description Price (each) Stock
13127070 COLLAR $1.84 IN STOCK
Photo Part No Description Price (each) Stock
118901 RUBBER PIPE $5.75 To Order
Photo Part No Description Price (each) Stock
204774 CLIP $0.49 To Order
Photo Part No Description Price (each) Stock
255515 BUSH $2.08 IN STOCK
Photo Part No Description Price (each) Stock
250318 SNAP CLIP $0.21 IN STOCK
Photo Part No Description Price (each) Stock
314695 POWER STEERING FLUID BREATHER PIPE $30.49 To Order
Photo Part No Description Price (each) Stock
10440890 BRACKET WITH SHEATH $0.48 To Order
Photo Part No Description Price (each) Stock
241986 COLLAR FOR HOSE UNION $0.97 IN STOCK
Photo Part No Description Price (each) Stock
314698 OIL BREATHER PIPE $4.69 To Order
Photo Part No Description Price (each) Stock
222606 BREATHER PIPE UNION $17.78 To Order
Photo Part No Description Price (each) Stock
314636 OIL BREATHER PIPE $6.73 To Order
Photo Part No Description Price (each) Stock
13126170 CLAMP $1.27 IN STOCK
Photo Part No Description Price (each) Stock
313811 RIGID DRAIN PIPE $90.23 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
303339 CLIP $0.29 To Order
Photo Part No Description Price (each) Stock
322525 POWER STEERING PUMP SHIELD BRACKET $10.41 To Order
Photo Part No Description Price (each) Stock
231627 SCREW $0.55 IN STOCK
Photo Part No Description Price (each) Stock
335915 BRACKET WITH SHEATH $12.06 To Order
Photo Part No Description Price (each) Stock
169455 L.H. PIPE VALVE TUBE $2.07 To Order
314698 OIL BREATHER PIPE $4.69 To Order
Photo Part No Description Price (each) Stock
314636 OIL BREATHER PIPE $6.73 To Order
View All

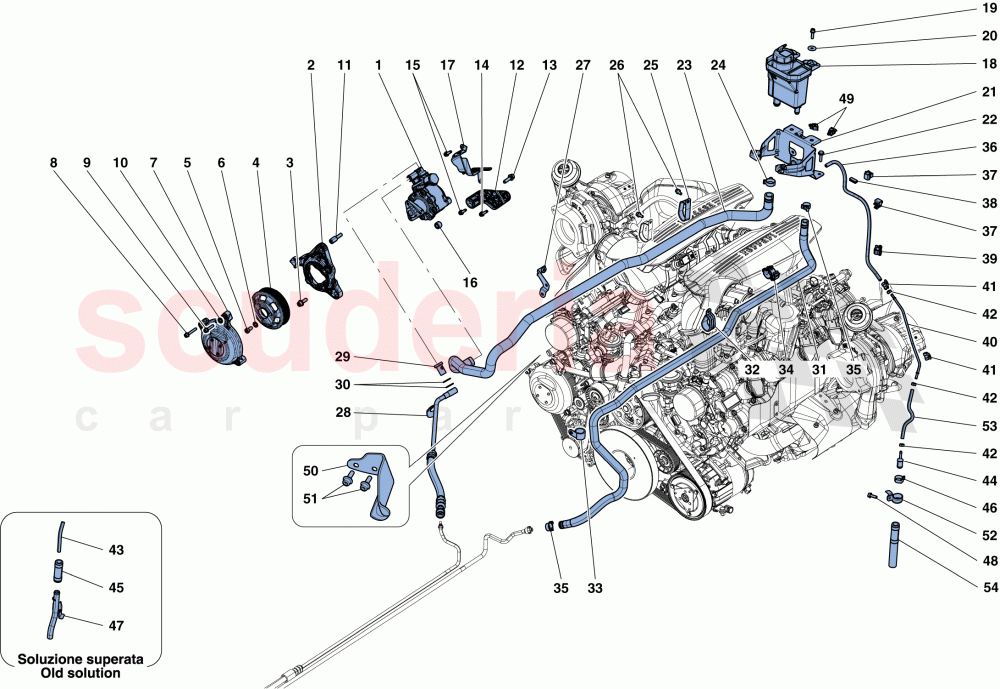

POWER STEERING PUMP AND RESERVOIR of Ferrari Ferrari 488 GTB Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 277566
POWER STEERING PUMP 		$1,048.16 (6.2% off) 1
2 304121
FRONT MOUNT 		$78.79 1
3 84317700
SCREW 8 X 30
M8 X 25
IN STOCK 		$21.89 3
4 313375
PULLEY FOR POWER STEERING PUMP 		$343.19 1
5 13028324
SCREW
M8 X 16 		$3.73 3
6 11193874
WASHER
IN STOCK 		$0.06 3
7 324595
SOUNDPROOFING COVER 		$141.12 1
8 231625
SCREW
M6 X 40
IN STOCK 		$0.57 2
9 231620
SCREW
M6 X 30
IN STOCK 		$0.31 (11.4% off) 1
10 986847
CONICAL WASHER 		$0.60 2
11 294005
STUD BOLT 		$14.70 2
12 312300
REAR MOUNT 		$62.27 1
13 231629
SCREW
M8 X 30
IN STOCK 		$0.61 (35.8% off) 1
14 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 2
15 248334
SCREW
M6 X 12
IN STOCK 		$0.58 3
16 260393
BUSH
IN STOCK 		$2.45 1
17 321103
POWER STEERING PUMP SHIELD 		$94.05 1
18 315560
COMPL. POWER STEERING FLUID RESERVOIR 		$81.34 1
19 231619
SCREW
M6 X 22
IN STOCK 		$0.29 2
20 12647704
WASHER
IN STOCK 		$0.08 2
21 325786
COMPL. POWER STEERING FLUID RESERVOIR BRACKET 		$105.48 1
22 11612826
SCREW
M6 X 25 		$2.96 2
23 315062
PIPE FROM TANK TO PUMP 		$177.94 1
24 13126370
COLLAR
IN STOCK 		$1.13 2
25 312281
BRACKET 		$6.73 2
26 248334
SCREW
M6 X 14
IN STOCK 		$0.58 5
27 315405
COMPL. POWER STEERING PIPE MOUNTING BRACKET 		$24.13 1
28 323703
PIPE FROM PUMP TO DISCONNECTOR 		$279.64 1
29 245041
HOSE 		$54.62 1
30 10261460
COPPER WASHER 16 X 24 X 1.5
Also comes with engine gasket set
IN STOCK 		$0.32 (68% off) 2
31 315061
PIPE FROM UNDERBODY TO RESERVOIR 		$190.65 1
32 315226
BRACKET WITH SHEATH 		$3.56 2
33 10441790
BRACKET WITH SHEATH 		$0.64 (81.4% off) 1
34 292123
CLIP 		$0.38 1
35 13127070
COLLAR
IN STOCK 		$1.84 2
36 118901
RUBBER PIPE 		$5.75 1
37 204774
CLIP
No longer supplied 		$0.49 2
38 255515
BUSH
IN STOCK 		$2.08 1
39 250318
SNAP CLIP
IN STOCK 		$0.21 1
40 314695
POWER STEERING FLUID BREATHER PIPE 		$30.49 1
41 10440890
BRACKET WITH SHEATH 		$0.48 2
42 241986
COLLAR FOR HOSE UNION
IN STOCK 		$0.97 3
43 314698
OIL BREATHER PIPE
Applicable up to Ass. No. 141836 		$4.69 1
44 222606
BREATHER PIPE UNION 		$17.78 1
45 314636
OIL BREATHER PIPE
Applicable up to Ass. No. 141836 		$6.73 1
46 13126170
CLAMP
IN STOCK 		$1.27 1
47 313811
RIGID DRAIN PIPE
Applicable up to Ass. No. 141836 		$90.23 1
48 231619
SCREW
M6 X 18
IN STOCK 		$0.29 1
48 231619
SCREW
M6 X 20; No longer supplied; Replaced by 231617
IN STOCK 		$0.29 1
49 303339
CLIP 		$0.29 2
50 322525
POWER STEERING PUMP SHIELD BRACKET 		$10.41 1
51 231627
SCREW
M8 X 16
IN STOCK 		$0.55 (21.4% off) 2
52 335915
BRACKET WITH SHEATH
Applicable from Ass. No. 141837 		$12.06 1
53 169455
L.H. PIPE VALVE TUBE
Applicable for GD; Applicable from Ass. No. 141837 		$2.07 1
53 314698
OIL BREATHER PIPE
Not for GD; Applicable from Ass. No. 141837 		$4.69 1
54 314636
OIL BREATHER PIPE
Applicable from Ass. No. 141837 		$6.73 1
