Ferrari 488 GTB - GEARBOX OIL LUBRICATION AND COOLING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
254644 O-RING $0.35 IN STOCK
Photo Part No Description Price (each) Stock
166656 O-RING $0.41 IN STOCK
Photo Part No Description Price (each) Stock
287096 FORK $84.51 To Order
Photo Part No Description Price (each) Stock
248471 SCREW $0.93 To Order
Photo Part No Description Price (each) Stock
309168 FORK $27.73 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
314654 OIL PIPE MOUNTING BRACKET $36.57 To Order
Photo Part No Description Price (each) Stock
14360524 SCREW $1.34 To Order
Photo Part No Description Price (each) Stock
127498 WASHER $0.14 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
243397 RETAINER BLOCK $17.65 To Order
Photo Part No Description Price (each) Stock
243399 BUSH $0.75 IN STOCK
Photo Part No Description Price (each) Stock
243398 PLATE $13.24 To Order
Photo Part No Description Price (each) Stock
231624 SCREW $0.41 IN STOCK
Photo Part No Description Price (each) Stock
315655 RH SINGLE OIL HEAT EXCHANGER HEAT SHIELD $102.17 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.81 IN STOCK
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
316549 WATER PIPE SHIELD BRACKET $45.40 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
14360024 SCREW $0.64 To Order
Photo Part No Description Price (each) Stock
12604574 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
322829 LH SINGLE OIL HEAT EXCHANGER FRONT HEAT SHIELD $201.81 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11568124 SCREW $0.81 IN STOCK
Photo Part No Description Price (each) Stock
318474 LH SINGLE OIL HEAT EXCHANGER REAR HEAT SHIELD $201.81 To Order
Photo Part No Description Price (each) Stock
323942 LH SINGLE OIL HEAT EXCHANGER SHIELD MOUNTING BRACKET $35.31 To Order
Photo Part No Description Price (each) Stock
248471 SCREW $0.93 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
318475 GEARBOX OIL PIPES SHIELD BRACKET $50.45 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
14360024 SCREW $0.64 To Order
Photo Part No Description Price (each) Stock
12604574 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
315656 REAR SINGLE OIL HEAT EXCHANGER HEAT SHIELD $140.05 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
11568124 SCREW $0.81 IN STOCK
Photo Part No Description Price (each) Stock
12648978 WASHER $0.47 IN STOCK
View All

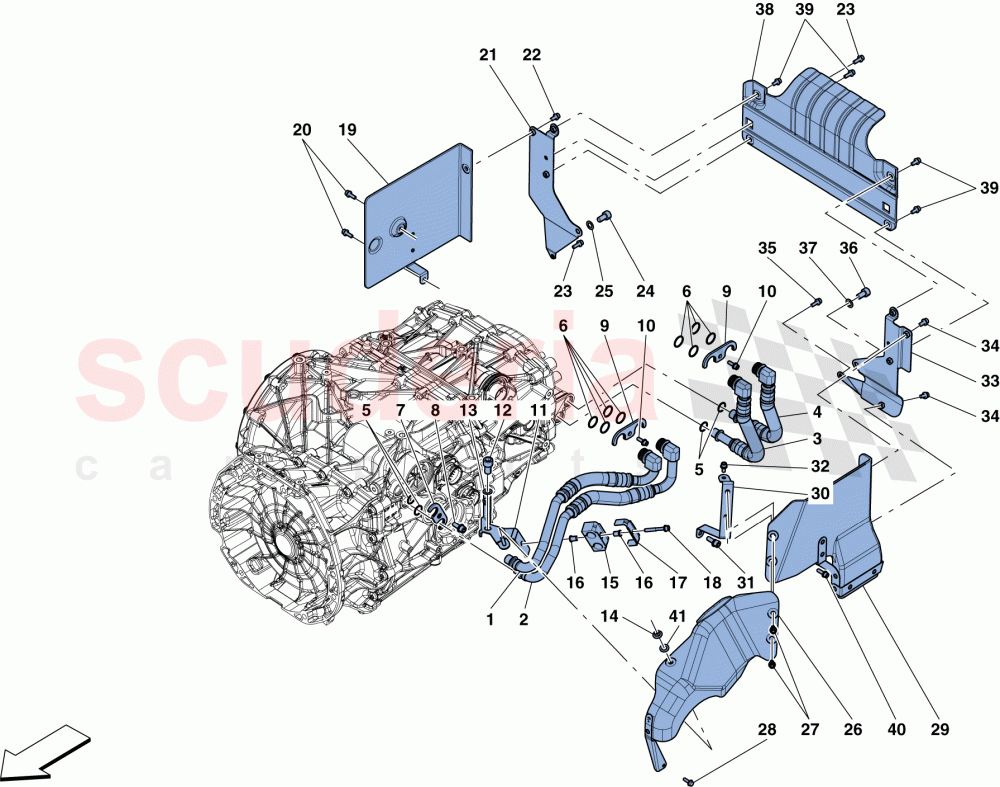

GEARBOX OIL LUBRICATION AND COOLING SYSTEM of Ferrari Ferrari 488 GTB Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
5 254644
O-RING
IN STOCK 		$0.35 (30% off) 4
6 166656
O-RING
IN STOCK 		$0.41 8
7 287096
FORK 		$84.51 1
8 248471
SCREW
M8 X 20 		$0.93 1
9 309168
FORK 		$27.73 2
10 231619
SCREW
M6 X 18
IN STOCK 		$0.29 2
11 314654
OIL PIPE MOUNTING BRACKET 		$36.57 1
12 14360524
SCREW 		$1.34 1
13 127498
WASHER 		$0.14 (76.7% off) 1
14 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
15 243397
RETAINER BLOCK 		$17.65 1
16 243399
BUSH
IN STOCK 		$0.75 2
17 243398
PLATE 		$13.24 1
18 231624
SCREW
M6 X 45
IN STOCK 		$0.41 1
19 315655
RH SINGLE OIL HEAT EXCHANGER HEAT SHIELD 		$102.17 1
20 11568124
SCREW
M5 X 20
IN STOCK 		$0.81 2
20 231619
SCREW
M6 X 18; No longer supplied; Replaced by 11568124
IN STOCK 		$0.29 2
21 316549
WATER PIPE SHIELD BRACKET 		$45.40 1
22 248334
SCREW
M6 X 14
IN STOCK 		$0.58 1
23 231619
SCREW
M6 X 18
IN STOCK 		$0.29 2
24 14360024
SCREW 		$0.64 (82.7% off) 1
25 12604574
WASHER 		$0.06 1
26 322829
LH SINGLE OIL HEAT EXCHANGER FRONT HEAT SHIELD 		$201.81 1
27 231619
SCREW
M6 X 18
IN STOCK 		$0.29 2
28 11568124
SCREW
M5 X 20
IN STOCK 		$0.81 1
29 318474
LH SINGLE OIL HEAT EXCHANGER REAR HEAT SHIELD 		$201.81 1
30 323942
LH SINGLE OIL HEAT EXCHANGER SHIELD MOUNTING BRACKET 		$35.31 1
31 248471
SCREW
M8 X 20 		$0.93 1
32 231619
SCREW
M6 X 18
IN STOCK 		$0.29 1
33 318475
GEARBOX OIL PIPES SHIELD BRACKET 		$50.45 1
34 248334
SCREW
M6 X 14
IN STOCK 		$0.58 2
35 231619
SCREW
M6 X 18
IN STOCK 		$0.29 2
36 14360024
SCREW 		$0.64 (82.7% off) 1
37 12604574
WASHER 		$0.06 1
38 315656
REAR SINGLE OIL HEAT EXCHANGER HEAT SHIELD 		$140.05 1
39 248334
SCREW
M6 X 16
IN STOCK 		$0.58 4
40 11568124
SCREW
M5 X 20
IN STOCK 		$0.81 1
41 12648978
WASHER
IN STOCK 		$0.47 1
