Ferrari 488 GTB - BRAKE SYSTEM

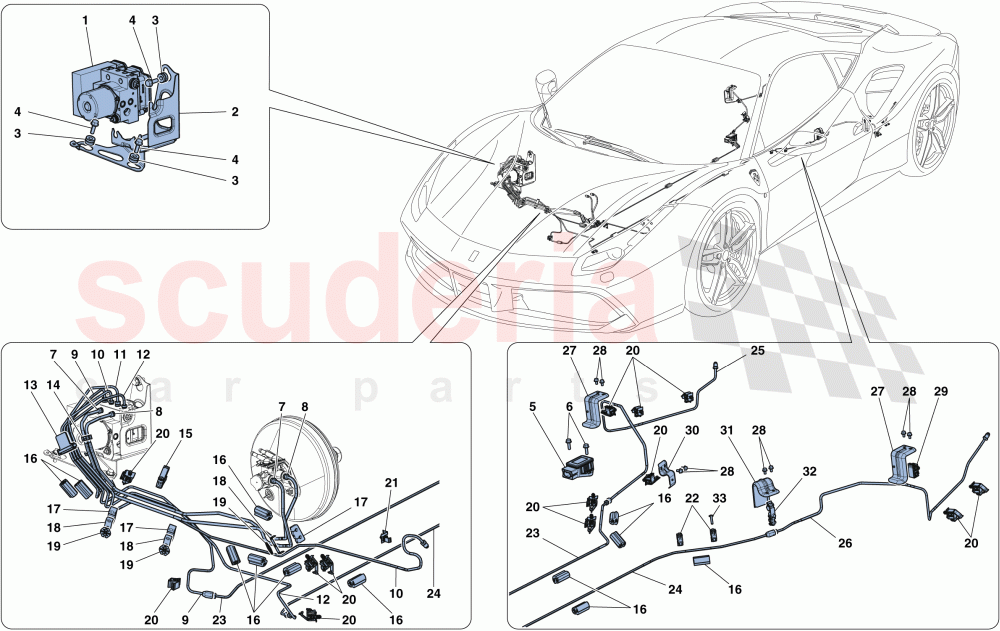

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	324856	HYDRAULIC UNIT	$4,008.42	To Order

Photo	Part No	Description	Price (each)	Stock
	316707	BRACKET	$105.53	To Order
	305932	BRACKET	$105.53	To Order

Photo	Part No	Description	Price (each)	Stock
	232869	BUSH	$38.14	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	317783	YAW SENSOR	$491.37	To Order
	307688	YAW SENSOR	$256.36	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	316780	FRONT PUMP BRAKE PIPE MC2	$83.92	To Order
	305343	FRONT PUMP BRAKE PIPE MC2	$78.83	To Order

Photo	Part No	Description	Price (each)	Stock
	316779	REAR PUMP BRAKE PIPE MC1	$83.92	To Order
	305339	REAR PUMP BRAKE PIPE MC1	$78.83	To Order

Photo	Part No	Description	Price (each)	Stock
	324973	REAR RH BRAKE PIPE	$68.66	To Order
	313590	REAR RH BRAKE PIPE	$62.30	To Order

Photo	Part No	Description	Price (each)	Stock
	316776	FRONT LH BRAKE PIPE	$64.84	To Order
	318984	FRONT LH BRAKE PIPE	$73.74	To Order

Photo	Part No	Description	Price (each)	Stock
	316775	FRONT RH BRAKE PIPE	$82.65	To Order
	313588	FRONT RH BRAKE PIPE	$64.84	To Order

Photo	Part No	Description	Price (each)	Stock
	325065	REAR LH BRAKE PIPE	$62.30	To Order
	318982	REAR LH BRAKE PIPE	$64.84	To Order

Photo	Part No	Description	Price (each)	Stock
	254195	CLIP	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	255286	CLIP	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	234286	CLIP	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	262737	RUBBER RETAINER	$5.97	To Order

Photo	Part No	Description	Price (each)	Stock
	278412	RETAINER BLOCK FOR 2 PIPES	$11.18	To Order

Photo	Part No	Description	Price (each)	Stock
	279844	RETAINER PLATE	$5.08	To Order

Photo	Part No	Description	Price (each)	Stock
	67315400	WASHER	$0.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	301063	CLIP	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	309527	CLIP	$1.87	To Order

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	310659	UNDERBODY REAR RH BRAKE PIPE	$58.48	To Order

Photo	Part No	Description	Price (each)	Stock
	316287	UNDERBODY REAR LH BRAKE PIPE	$58.48	To Order

Photo	Part No	Description	Price (each)	Stock
	315798	REAR SUBFRAME RH BRAKE PIPE	$90.27	To Order

Photo	Part No	Description	Price (each)	Stock
	315800	REAR SUBFRAME LH BRAKE PIPE	$90.27	To Order

Photo	Part No	Description	Price (each)	Stock
	317585	CLIP HEAT SHIELD	$43.22	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK
	16285211	SCREW	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	312163	CLIP	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	317589	CLIP HEAT SHIELD	$27.97	To Order

Photo	Part No	Description	Price (each)	Stock
	317588	CLIP HEAT SHIELD	$43.22	To Order

Photo	Part No	Description	Price (each)	Stock
	284622	CLIP	$1.61	To Order

Photo	Part No	Description	Price (each)	Stock
	218200	Screw M5 x 30	$1.58	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	324856	HYDRAULIC UNIT	324856 HYDRAULIC UNIT	$4,008.42	1
2	316707	BRACKET	316707 BRACKET Applicable for GD	$105.53	1
2	305932	BRACKET	305932 BRACKET Not for GD	$105.53	1
3	232869	BUSH	232869 BUSH	$38.14	3
4	13839224	SCREW	13839224 SCREW	$2.42	3
5	317783	YAW SENSOR	317783 YAW SENSOR Applicable after depletion of 206070	$491.37	1
5	307688	YAW SENSOR	307688 YAW SENSOR Applicable until depletion	$256.36	1
6	16286124	SCREW	16286124 SCREW M6 X 20	$0.35	2
7	316780	FRONT PUMP BRAKE PIPE MC2	316780 FRONT PUMP BRAKE PIPE MC2 Applicable for GD	$83.92	1
7	305343	FRONT PUMP BRAKE PIPE MC2	305343 FRONT PUMP BRAKE PIPE MC2 Not for GD	$78.83	1
8	316779	REAR PUMP BRAKE PIPE MC1	316779 REAR PUMP BRAKE PIPE MC1 Applicable for GD	$83.92	1
8	305339	REAR PUMP BRAKE PIPE MC1	305339 REAR PUMP BRAKE PIPE MC1 Not for GD	$78.83	1
9	324973	REAR RH BRAKE PIPE	324973 REAR RH BRAKE PIPE Applicable for GD	$68.66	1
9	313590	REAR RH BRAKE PIPE	313590 REAR RH BRAKE PIPE Not for GD	$62.30	1
10	316776	FRONT LH BRAKE PIPE	316776 FRONT LH BRAKE PIPE Applicable for GD	$64.84	1
10	318984	FRONT LH BRAKE PIPE	318984 FRONT LH BRAKE PIPE Not for GD	$73.74	1
11	316775	FRONT RH BRAKE PIPE	316775 FRONT RH BRAKE PIPE Applicable for GD	$82.65	1
11	313588	FRONT RH BRAKE PIPE	313588 FRONT RH BRAKE PIPE Not for GD	$64.84	1
12	325065	REAR LH BRAKE PIPE	325065 REAR LH BRAKE PIPE Applicable for GD	$62.30	1
12	318982	REAR LH BRAKE PIPE	318982 REAR LH BRAKE PIPE Not for GD	$64.84	1
13	254195	CLIP	254195 CLIP Not for GD	$1.35	1
14	255286	CLIP	255286 CLIP Not for GD	$0.81	1
15	234286	CLIP	234286 CLIP	$1.35	1
16	262737	RUBBER RETAINER	262737 RUBBER RETAINER	$5.97	14
17	278412	RETAINER BLOCK FOR 2 PIPES	278412 RETAINER BLOCK FOR 2 PIPES	$11.18	3
18	279844	RETAINER PLATE	279844 RETAINER PLATE	$5.08	3
19	67315400	WASHER IN STOCK	67315400 WASHER IN STOCK	$0.38	3
20	301063	CLIP	301063 CLIP	$0.75	13
21	309527	CLIP	309527 CLIP	$1.87	2
22	234285	CLIP IN STOCK	234285 CLIP IN STOCK	$0.61	2
23	310659	UNDERBODY REAR RH BRAKE PIPE	310659 UNDERBODY REAR RH BRAKE PIPE	$58.48	1
24	316287	UNDERBODY REAR LH BRAKE PIPE	316287 UNDERBODY REAR LH BRAKE PIPE	$58.48	1
25	315798	REAR SUBFRAME RH BRAKE PIPE	315798 REAR SUBFRAME RH BRAKE PIPE	$90.27	1
26	315800	REAR SUBFRAME LH BRAKE PIPE	315800 REAR SUBFRAME LH BRAKE PIPE	$90.27	1
27	317585	CLIP HEAT SHIELD	317585 CLIP HEAT SHIELD	$43.22	2
28	11566224	SCREW IN STOCK	11566224 SCREW M5 X 16 IN STOCK	$0.34	6
28	16285211	SCREW IN STOCK	16285211 SCREW M5 X 20; No longer supplied; Replaced by 256323 IN STOCK	$0.21	8
29	312163	CLIP	312163 CLIP	$0.94	1
30	317589	CLIP HEAT SHIELD	317589 CLIP HEAT SHIELD No longer supplied	$27.97	1
31	317588	CLIP HEAT SHIELD	317588 CLIP HEAT SHIELD	$43.22	1
32	284622	CLIP	284622 CLIP	$1.61	1
33	218200	Screw M5 x 30 IN STOCK	218200 Screw M5 x 30 M5 X 30 IN STOCK	$1.58	2
