Ferrari 488 GTB - FUEL SYSTEM PUMPS AND PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
316734 FUEL DELIVERY PIPE $395.40 To Order
Photo Part No Description Price (each) Stock
316737 COMPL. RH FUEL PIPE MOUNTING BRACKET $13.69 To Order
Photo Part No Description Price (each) Stock
316735 COMPL. LH FUEL PIPE MOUNTING BRACKET $13.69 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
320598 CLIP $1.69 To Order
Photo Part No Description Price (each) Stock
305832 COMPL. FUEL PUMP $1,497.21 To Order
Photo Part No Description Price (each) Stock
272086 FUEL PUMP $1,607.58 ARRIVING SOON
Photo Part No Description Price (each) Stock
282785 FUEL PUMP FILTER LH $994.56 ARRIVING SOON
Photo Part No Description Price (each) Stock
282784 FUEL PUMP FILTER RH $628.64 ARRIVING SOON
Photo Part No Description Price (each) Stock
320533 RH FUEL DELIVERY PIPE $71.86 To Order
Photo Part No Description Price (each) Stock
320534 LH FUEL DELIVERY PIPE $71.86 To Order
Photo Part No Description Price (each) Stock
275314 O-RING $5.99 IN STOCK
Photo Part No Description Price (each) Stock
238688 CONNECTOR $50.43 To Order
Photo Part No Description Price (each) Stock
311381 FUEL LEVEL SENSOR MOUNT $35.30 To Order
Photo Part No Description Price (each) Stock
305808 FUEL LEVEL SENSOR $1,760.53 To Order
Photo Part No Description Price (each) Stock
254311 CORNER ADAPTER $9.82 To Order
Photo Part No Description Price (each) Stock
237407 ANTI SPIT-BACK VALVE $32.77 To Order
Photo Part No Description Price (each) Stock
314783 RH HATCH COVER $18.90 To Order
Photo Part No Description Price (each) Stock
275998 FASTENER RING $70.61 To Order
Photo Part No Description Price (each) Stock
11001124 STUD BOLT $60.53 To Order
Photo Part No Description Price (each) Stock
237581 QUICK CLIP $0.46 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
781834 INSPECTION CAP $41.60 To Order
Photo Part No Description Price (each) Stock
14507187 PLUG $6.22 To Order
View All

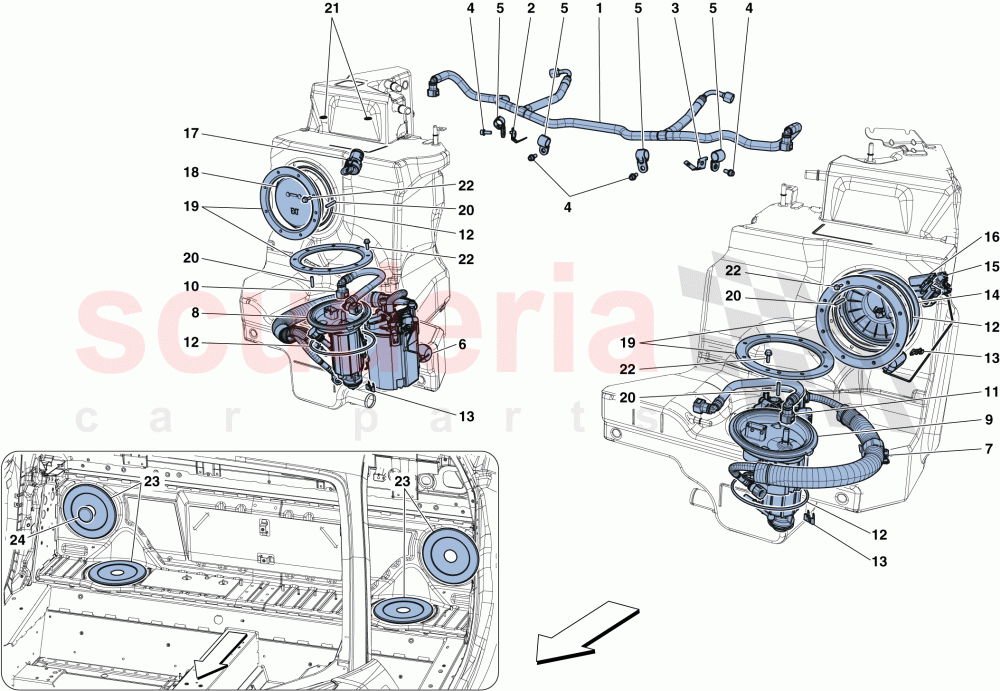

FUEL SYSTEM PUMPS AND PIPES of Ferrari Ferrari 488 GTB Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 316734
FUEL DELIVERY PIPE 		$395.40 1
2 316737
COMPL. RH FUEL PIPE MOUNTING BRACKET 		$13.69 1
3 316735
COMPL. LH FUEL PIPE MOUNTING BRACKET 		$13.69 1
4 248334
SCREW
M6 X 16
IN STOCK 		$0.58 4
5 320598
CLIP 		$1.69 4
6 305832
COMPL. FUEL PUMP 		$1,497.21 1
7 272086
FUEL PUMP
ARRIVING SOON 		$1,607.58 1
8 282785
FUEL PUMP FILTER LH
ARRIVING SOON 		$994.56 1
9 282784
FUEL PUMP FILTER RH
ARRIVING SOON 		$628.64 1
10 320533
RH FUEL DELIVERY PIPE 		$71.86 1
11 320534
LH FUEL DELIVERY PIPE 		$71.86 1
12 275314
O-RING
IN STOCK 		$5.99 (21.7% off) 4
13 238688
CONNECTOR 		$50.43 3
14 311381
FUEL LEVEL SENSOR MOUNT 		$35.30 1
15 305808
FUEL LEVEL SENSOR 		$1,760.53 1
16 254311
CORNER ADAPTER 		$9.82 1
17 237407
ANTI SPIT-BACK VALVE 		$32.77 1
18 314783
RH HATCH COVER 		$18.90 1
19 275998
FASTENER RING 		$70.61 4
20 11001124
STUD BOLT 		$60.53 4
21 237581
QUICK CLIP 		$0.46 2
22 86574700
SCREW
M5 X 16 		$0.61 32
23 781834
INSPECTION CAP 		$41.60 4
24 14507187
PLUG 		$6.22 1
