Complete Pedal Board Assembly

Ferrari 488 GTB

Find Your Part

Ferrari 488 GTB - COMPLETE PEDAL BOARD ASSEMBLY

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
256436 PEDAL BOARD MOUNT $489.88 To Order
Photo Part No Description Price (each) Stock
259123 F1 SWITCH BRACKET $51.56 To Order
Photo Part No Description Price (each) Stock
240931 SCREW $4.21 To Order
Photo Part No Description Price (each) Stock
240930 PIN $77.34 To Order
Photo Part No Description Price (each) Stock
147640 GASKET $6.06 To Order
Photo Part No Description Price (each) Stock
240929 RUBBER WASHER $9.46 To Order
Photo Part No Description Price (each) Stock
12700076 SEEGER RING FOR SHAFT $8.52 To Order
Photo Part No Description Price (each) Stock
228972 BRAKE PEDAL $734.81 To Order
256426 BRAKE PEDAL $966.88 To Order
Photo Part No Description Price (each) Stock
240987 DRILLED PLATE $169.54 IN STOCK
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 $0.97 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
11064176 SAFETY CLIP $2.50 To Order
Photo Part No Description Price (each) Stock
245181 RUBBER WASHER $6.88 To Order
Photo Part No Description Price (each) Stock
201957 PUSH-BUTTON SWITCH $42.75 IN STOCK
Photo Part No Description Price (each) Stock
245178 BRAKE SERVO LINKAGE YOKE $72.18 To Order
Photo Part No Description Price (each) Stock
245179 CAGE $17.19 To Order
Photo Part No Description Price (each) Stock
245180 PIN $76.04 To Order
Photo Part No Description Price (each) Stock
260639 BUSH $12.90 To Order
Photo Part No Description Price (each) Stock
16287524 SCREW $1.20 IN STOCK
Photo Part No Description Price (each) Stock
69855300 PRESS-FIT BUTTON $0.52 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
12646624 WASHER $0.22 IN STOCK
Photo Part No Description Price (each) Stock
243120 ACCELERATOR PEDAL PLATE $270.71 To Order
Photo Part No Description Price (each) Stock
243117 FLOOR HINGED ACCELERATOR PEDAL $296.49 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
View All

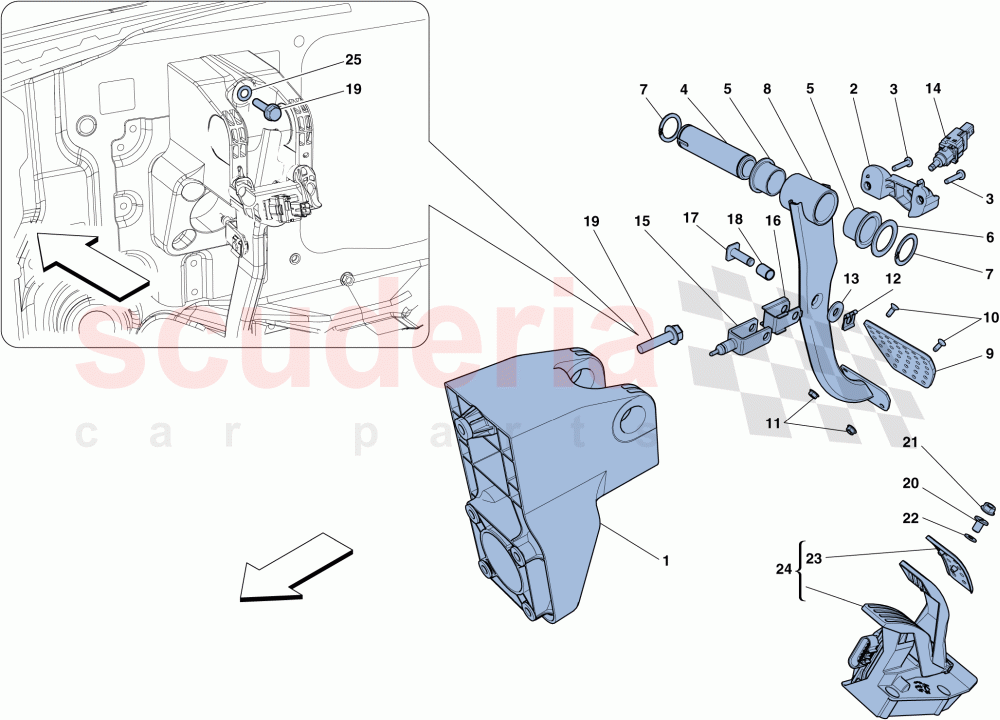

COMPLETE PEDAL BOARD ASSEMBLY of Ferrari Ferrari 488 GTB Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 256436
PEDAL BOARD MOUNT 		$489.88 1
2 259123
F1 SWITCH BRACKET 		$51.56 1
3 240931
SCREW 		$4.21 2
4 240930
PIN 		$77.34 1
5 147640
GASKET 		$6.06 (12.6% off) 1
6 240929
RUBBER WASHER 		$9.46 1
7 12700076
SEEGER RING FOR SHAFT 		$8.52 2
8 228972
BRAKE PEDAL
Applicable for GD 		$734.81 1
8 256426
BRAKE PEDAL
Not for GD 		$966.88 1
9 240987
DRILLED PLATE
IN STOCK 		$169.54 1
10 62797600
Allen Bolt Countersunk M6 x 20
IN STOCK 		$0.97 (33.1% off) 2
11 14059290
FLANGED NUT M6
ARRIVING SOON 		$1.33 2
12 11064176
SAFETY CLIP 		$2.50 1
13 245181
RUBBER WASHER 		$6.88 1
14 201957
PUSH-BUTTON SWITCH
IN STOCK 		$42.75 (28.5% off) 1
15 245178
BRAKE SERVO LINKAGE YOKE 		$72.18 1
16 245179
CAGE 		$17.19 1
17 245180
PIN 		$76.04 1
18 260639
BUSH
Not for GD 		$12.90 1
19 16287524
SCREW
IN STOCK 		$1.20 1
20 69855300
PRESS-FIT BUTTON
IN STOCK 		$0.52 3
21 14059290
FLANGED NUT M6
ARRIVING SOON 		$1.33 3
22 12646624
WASHER
IN STOCK 		$0.22 (24.1% off) 3
23 243120
ACCELERATOR PEDAL PLATE 		$270.71 1
24 243117
FLOOR HINGED ACCELERATOR PEDAL 		$296.49 (27.2% off) 1
25 12601374
WASHER
IN STOCK 		$0.02 (92% off) 1
