Ferrari 430 Scuderia - TIMING SYSTEM - DRIVE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
197879 VALVE TIMING SYSTEM $1,454.63 To Order
Photo Part No Description Price (each) Stock
186854 CRANKSHAFT GEAR $141.69 To Order
Photo Part No Description Price (each) Stock
175286 DRIVE CHAIN $42.91 To Order
Photo Part No Description Price (each) Stock
186184 TIMING CHAIN GUIDING SHOE $146.22 IN STOCK
Photo Part No Description Price (each) Stock
175303 BUSH $32.82 To Order
Photo Part No Description Price (each) Stock
14306424 SCREW $0.23 IN STOCK
Photo Part No Description Price (each) Stock
186185 Fixed Tension Guide - Timing Chain $57.27 IN STOCK
Photo Part No Description Price (each) Stock
86768100 SCREW $0.44 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
189564 PUMP DRIVE GEAR $454.56 To Order
Photo Part No Description Price (each) Stock
186186 FIXED SHOE $28.63 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
185724 SHOE MOUNTING $26.50 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
186159 CHAIN SUPPORT $30.00 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
14498801 WASHER $0.11 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
193616 VALVE TIMING CHAIN $126.97 IN STOCK
Photo Part No Description Price (each) Stock
175314 OIL PUMP DRIVE CHAIN $46.70 To Order
Photo Part No Description Price (each) Stock
189569 UPPER FIXED TENSION PLATE $36.17 To Order
Photo Part No Description Price (each) Stock
14082210 SCREW $2.51 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
185725 CHAIN TENSIONER SHOE $83.33 To Order
Photo Part No Description Price (each) Stock
196683 TIMING CHAIN TENSIONER $44.34 To Order
Photo Part No Description Price (each) Stock
194262 SHOULDER $39.18 To Order
Photo Part No Description Price (each) Stock
175282 ROLLER BEARING CAGE $9.87 To Order
Photo Part No Description Price (each) Stock
16043124 SCREW $0.17 IN STOCK
Photo Part No Description Price (each) Stock
227197 MOUNTING $197.69 To Order
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
14304124 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
104212 O-RING $0.65 IN STOCK
Photo Part No Description Price (each) Stock
197880 HYDRAULIC TENSIONER $143.20 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
190060 TENSIONER BUSHING $33.67 To Order
Photo Part No Description Price (each) Stock
190171 SPACER $6.47 IN STOCK
Photo Part No Description Price (each) Stock
192069 O-RING D.26 X 1.5 $0.50 IN STOCK
Photo Part No Description Price (each) Stock
189563 SCREW $16.60 To Order
Photo Part No Description Price (each) Stock
193565 DRIVE GEAR $202.01 To Order
Photo Part No Description Price (each) Stock
189779 DOWEL $2.39 To Order
View All

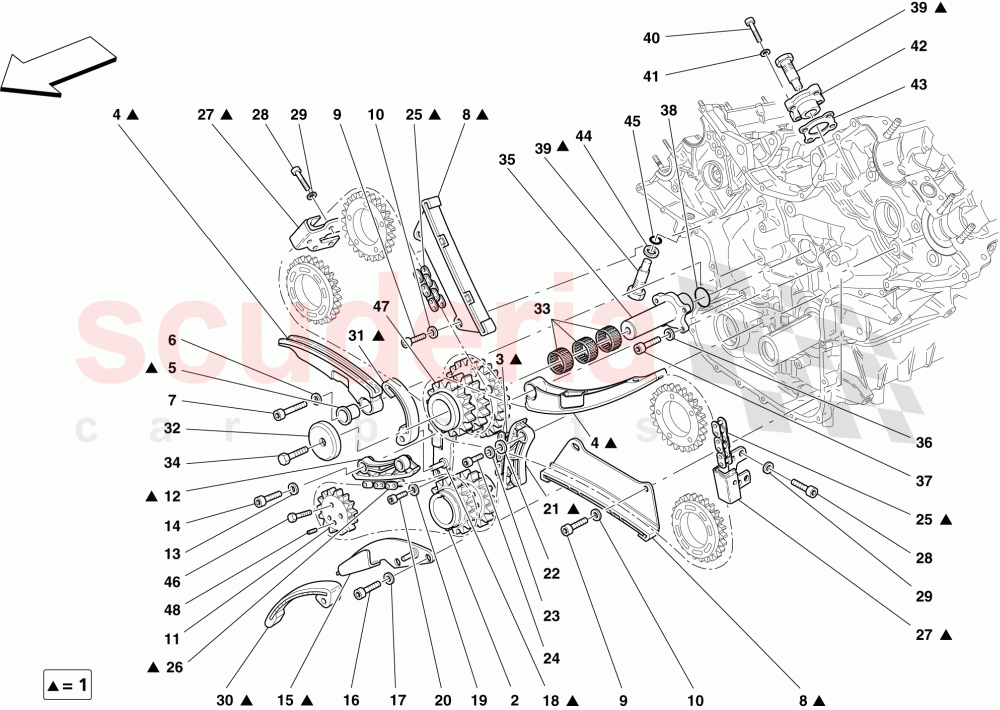

TIMING SYSTEM - DRIVE of Ferrari Ferrari 430 Scuderia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 197879
VALVE TIMING SYSTEM 		$1,454.63 1
2 186854
CRANKSHAFT GEAR 		$141.69 1
3 175286
DRIVE CHAIN 		$42.91 1
4 186184
TIMING CHAIN GUIDING SHOE
IN STOCK 		$146.22 2
5 175303
BUSH 		$32.82 2
7 14306424
SCREW
IN STOCK 		$0.23 (43.9% off) 2
8 186185
Fixed Tension Guide - Timing Chain
IN STOCK 		$57.27 2
9 86768100
SCREW 		$0.44 4
10 11193874
WASHER
IN STOCK 		$0.06 4
11 189564
PUMP DRIVE GEAR 		$454.56 1
12 186186
FIXED SHOE 		$28.63 1
13 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
14 231620
SCREW
M6 X 25
IN STOCK 		$0.30 (14.3% off) 2
15 185724
SHOE MOUNTING 		$26.50 1
16 248334
SCREW
IN STOCK 		$0.58 2
17 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
18 186159
CHAIN SUPPORT
IN STOCK 		$30.00 1
19 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
20 248334
SCREW
IN STOCK 		$0.58 2
22 14498801
WASHER
IN STOCK 		$0.11 (45% off) 2
23 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
24 231619
SCREW
IN STOCK 		$0.29 2
25 193616
VALVE TIMING CHAIN
IN STOCK 		$126.97 2
26 175314
OIL PUMP DRIVE CHAIN 		$46.70 1
27 189569
UPPER FIXED TENSION PLATE 		$36.17 2
28 14082210
SCREW 		$2.51 8
29 11197774
WASHER
IN STOCK 		$0.06 (80% off) 8
30 185725
CHAIN TENSIONER SHOE 		$83.33 (31.7% off) 1
31 196683
TIMING CHAIN TENSIONER 		$44.34 1
32 194262
SHOULDER 		$39.18 1
33 175282
ROLLER BEARING CAGE 		$9.87 (15.6% off) 3
34 16043124
SCREW
M8 X 14
IN STOCK 		$0.17 1
35 227197
MOUNTING 		$197.69 1
36 11181574
WASHER
IN STOCK 		$0.02 4
37 14304124
SCREW 		$0.14 (81.3% off) 4
38 104212
O-RING
IN STOCK 		$0.65 (35% off) 1
39 197880
HYDRAULIC TENSIONER 		$143.20 (24.8% off) 2
40 231619
SCREW
IN STOCK 		$0.29 4
41 11197774
WASHER
IN STOCK 		$0.06 (80% off) 4
42 190060
TENSIONER BUSHING 		$33.67 1
44 190171
SPACER
IN STOCK 		$6.47 1
45 192069
O-RING D.26 X 1.5
IN STOCK 		$0.50 (16.7% off) 1
46 189563
SCREW 		$16.60 3
47 193565
DRIVE GEAR 		$202.01 1
48 189779
DOWEL 		$2.39 1
