Fuel Tanks And Filler Neck -Applicable For Spider 16M-

Ferrari 430 Scuderia

Find Your Part

Ferrari 430 Scuderia - FUEL TANKS AND FILLER NECK -Applicable for Spider 16M-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
194346 RH FUEL TANK $1,566.18 To Order
Photo Part No Description Price (each) Stock
203516 PIPE UNION $150.30 To Order
Photo Part No Description Price (each) Stock
64686900 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
190469 TANK CAP $361.76 IN STOCK
Photo Part No Description Price (each) Stock
235256 GASKET $55.76 To Order
Photo Part No Description Price (each) Stock
232567 FUEL FILLER NECK CONNECTOR PIPE $404.01 To Order
Photo Part No Description Price (each) Stock
179474 TANK AIR BUBBLE CONNECTOR PIPE $265.12 IN STOCK
Photo Part No Description Price (each) Stock
11449470 COLLAR $2.53 To Order
Photo Part No Description Price (each) Stock
64872000 PIPE CONNECTOR $4.77 To Order
Photo Part No Description Price (each) Stock
65064500 GASKET $1.92 To Order
Photo Part No Description Price (each) Stock
104919 RING LOCK NUT $4.87 IN STOCK
Photo Part No Description Price (each) Stock
243914 VALVE WITH LH PIPE $454.52 To Order
Photo Part No Description Price (each) Stock
211283 RUBBER PIPE $55.53 To Order
Photo Part No Description Price (each) Stock
243915 VALVE WITH RH PIPE $164.12 To Order
Photo Part No Description Price (each) Stock
244884 RH VAPOUR SEPARATOR $151.49 To Order
Photo Part No Description Price (each) Stock
191079 LH VAPOUR SEPARATOR $134.14 To Order
Photo Part No Description Price (each) Stock
232649 CLIP $1.07 IN STOCK
Photo Part No Description Price (each) Stock
181024 SLEEVE $7.99 To Order
Photo Part No Description Price (each) Stock
196949 RING - FUEL TANK $27.38 IN STOCK
Photo Part No Description Price (each) Stock
186172 CLIP $0.46 IN STOCK
Photo Part No Description Price (each) Stock
224755 TANK CONNECTOR PIPE $665.62 To Order
Photo Part No Description Price (each) Stock
180968 CLIP $0.37 To Order
Photo Part No Description Price (each) Stock
180969 CLIP $0.50 To Order
Photo Part No Description Price (each) Stock
177437 RUBBER SHIM $12.14 To Order
Photo Part No Description Price (each) Stock
241179 RUBBER PIPE $265.12 To Order
Photo Part No Description Price (each) Stock
180957 SCREW COLLAR $0.79 To Order
Photo Part No Description Price (each) Stock
213294 TRAY-TO-3-WAY TUBE $39.12 To Order
Photo Part No Description Price (each) Stock
177553 CLAMP $0.43 To Order
Photo Part No Description Price (each) Stock
195439 THREE-WAY UNION $116.15 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.39 IN STOCK
Photo Part No Description Price (each) Stock
213295 3-WAY-TO-REAR TUBE $53.02 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 ARRIVING SOON
Photo Part No Description Price (each) Stock
180968 CLIP $0.37 To Order
Photo Part No Description Price (each) Stock
180969 CLIP $0.50 To Order
Photo Part No Description Price (each) Stock
237407 ANTI SPIT-BACK VALVE $32.81 To Order
181929 SHUT-OFF VALVE $271.32 To Order
Photo Part No Description Price (each) Stock
181930 CLIP $58.93 To Order
View All

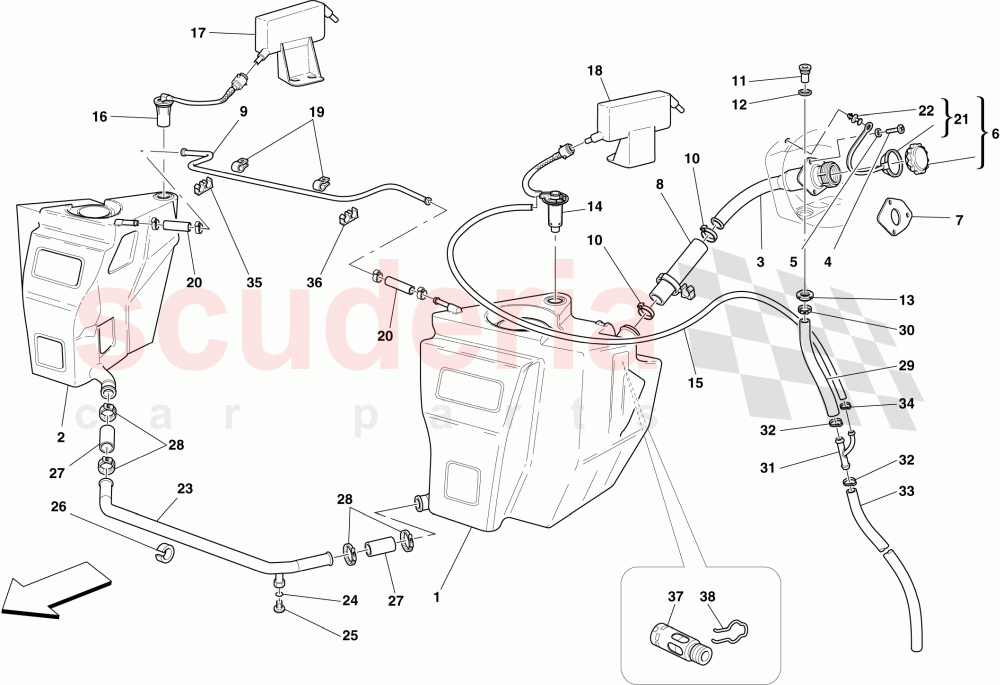

FUEL TANKS AND FILLER NECK -Applicable for Spider 16M- of Ferrari Ferrari 430 Scuderia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 194346
RH FUEL TANK 		$1,566.18 1
3 203516
PIPE UNION 		$150.30 1
4 64686900
SCREW
IN STOCK 		$0.29 (55.4% off) 3
5 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
6 190469
TANK CAP
IN STOCK 		$361.76 (10.1% off) 1
7 235256
GASKET 		$55.76 1
8 232567
FUEL FILLER NECK CONNECTOR PIPE 		$404.01 (28.4% off) 1
9 179474
TANK AIR BUBBLE CONNECTOR PIPE
IN STOCK 		$265.12 1
10 11449470
COLLAR 		$2.53 2
11 64872000
PIPE CONNECTOR 		$4.77 1
12 65064500
GASKET 		$1.92 1
13 104919
RING LOCK NUT
IN STOCK 		$4.87 1
14 243914
VALVE WITH LH PIPE 		$454.52 (29.9% off) 1
15 211283
RUBBER PIPE 		$55.53 1
16 243915
VALVE WITH RH PIPE 		$164.12 (26.5% off) 1
17 244884
RH VAPOUR SEPARATOR 		$151.49 1
18 191079
LH VAPOUR SEPARATOR 		$134.14 1
19 232649
CLIP
IN STOCK 		$1.07 2
20 181024
SLEEVE 		$7.99 (6.5% off) 2
21 196949
RING - FUEL TANK
IN STOCK 		$27.38 (27.9% off) 1
22 186172
CLIP
IN STOCK 		$0.46 (8% off) 1
23 224755
TANK CONNECTOR PIPE 		$665.62 1
24 180968
CLIP 		$0.37 1
25 180969
CLIP 		$0.50 1
26 177437
RUBBER SHIM 		$12.14 6
27 241179
RUBBER PIPE 		$265.12 (29.1% off) 2
28 180957
SCREW COLLAR 		$0.79 (24.8% off) 4
29 213294
TRAY-TO-3-WAY TUBE 		$39.12 1
30 177553
CLAMP 		$0.43 (65.6% off) 1
31 195439
THREE-WAY UNION 		$116.15 1
32 262111
JUBILEE CLAMP
IN STOCK 		$1.39 2
33 213295
3-WAY-TO-REAR TUBE 		$53.02 1
34 13432070
HOSE COLLAR
ARRIVING SOON 		$0.49 (54.2% off) 1
35 180968
CLIP 		$0.37 1
36 180969
CLIP 		$0.50 1
37 237407
ANTI SPIT-BACK VALVE
Applicable from Ass. No. 82485; Applicable after depletion of 181929 		$32.81 1
37 181929
SHUT-OFF VALVE
Applicable up to Ass. No. 82484; Applicable until depletion 		$271.32 1
38 181930
CLIP
Applicable up to Ass. No. 82484; Applicable until depletion 		$58.93 1
