Ferrari 430 Scuderia - LUBRICATION SYSTEM - TANK - HEAT EXCHANGER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
197150 HEAT EXCHANGER $5,702.63 To Order
Photo Part No Description Price (each) Stock
322664 GASKET HEAT EXCHANGER $50.99 ARRIVING SOON
Photo Part No Description Price (each) Stock
210388 CONNECTORS MOUNTING BRACKET $70.87 IN STOCK
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.20 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
231622 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
202251 BRACKET $98.20 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
10440990 BRACKET WITH SHEATH $1.27 To Order
Photo Part No Description Price (each) Stock
192327 CONNECTOR $4.82 To Order
Photo Part No Description Price (each) Stock
127497 SPRING WASHER M10 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
211844 VENT PIPE $22.65 To Order
Photo Part No Description Price (each) Stock
225937 OIL PIPE FROM ENGINE TO SEPARATOR $271.97 To Order
Photo Part No Description Price (each) Stock
236831 WATER-OIL SEPARATOR $1,628.85 To Order
236843 WATER-OIL SEPARATOR $1,178.59 To Order
Photo Part No Description Price (each) Stock
254573 TANK CAP $208.40 To Order
Photo Part No Description Price (each) Stock
211634 GASKET $56.93 IN STOCK
Photo Part No Description Price (each) Stock
176388 O-RING $2.20 IN STOCK
Photo Part No Description Price (each) Stock
13517124 STUD BOLT $16.88 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
236801 VENT PIPE $141.35 To Order
Photo Part No Description Price (each) Stock
236836 SOLENOID VALVE $287.42 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.39 IN STOCK
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.39 IN STOCK
Photo Part No Description Price (each) Stock
236846 VENT PIPE $11.78 To Order
Photo Part No Description Price (each) Stock
216068 RH VAPOUR INTAKE PIPE $287.08 To Order
216063 RH VAPOUR INTAKE PIPE $48.34 To Order
Photo Part No Description Price (each) Stock
216064 LH VAPOUR INTAKE PIPE $48.34 To Order
216069 LH VAPOUR INTAKE PIPE $287.08 To Order
Photo Part No Description Price (each) Stock
235904 VENT PIPE $14.97 To Order
Photo Part No Description Price (each) Stock
294255 CHECK VALVE $291.58 To Order
Photo Part No Description Price (each) Stock
13127070 COLLAR $1.83 IN STOCK
Photo Part No Description Price (each) Stock
195330 RUBBER PIPE $4.21 To Order
Photo Part No Description Price (each) Stock
258855 3-WAY CONNECTOR $40.11 IN STOCK
Photo Part No Description Price (each) Stock
159539 RUBBER PIPE $4.52 To Order
Photo Part No Description Price (each) Stock
210313 OIL PIPE MOUNTING BRACKET $64.53 To Order
239441 OIL PIPE MOUNTING BRACKET $13.43 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 ARRIVING SOON
View All

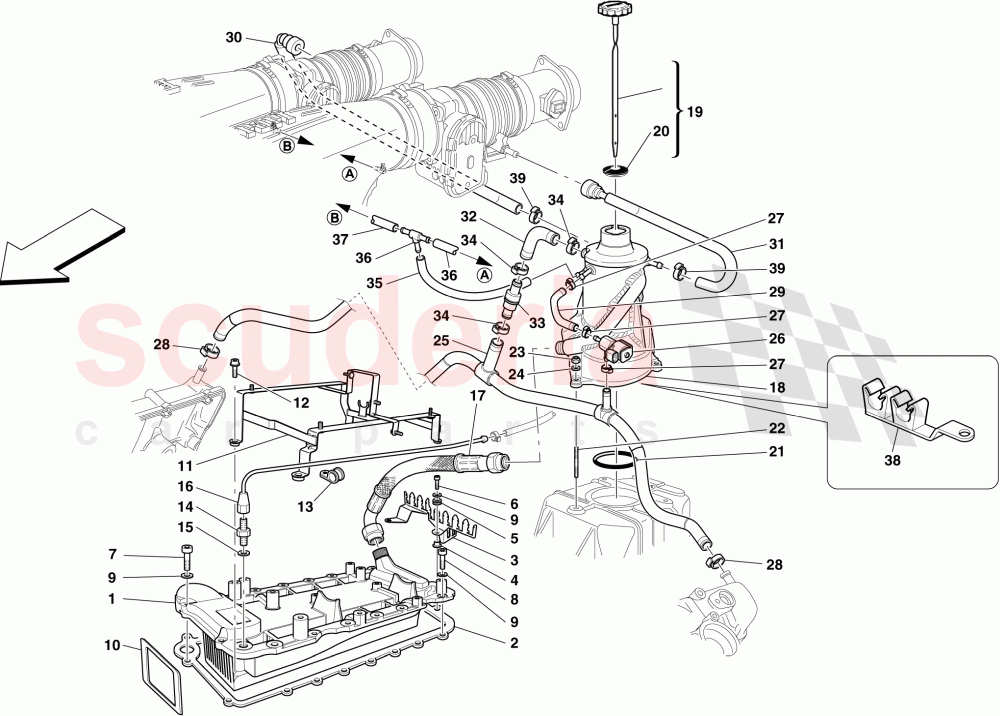

LUBRICATION SYSTEM - TANK - HEAT EXCHANGER of Ferrari Ferrari 430 Scuderia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 197150
HEAT EXCHANGER 		$5,702.63 1
2 322664
GASKET HEAT EXCHANGER
ARRIVING SOON 		$50.99 1
3 210388
CONNECTORS MOUNTING BRACKET
IN STOCK 		$70.87 1
4 149707
SPACER 		$1.10 (37.1% off) 2
5 177576
CABLE GROMMET
IN STOCK 		$2.20 2
6 231620
SCREW
IN STOCK 		$0.31 (11.4% off) 2
7 231620
SCREW
IN STOCK 		$0.31 (11.4% off) 2
8 231622
SCREW
IN STOCK 		$0.34 (32% off) 15
9 11197774
WASHER
IN STOCK 		$0.06 (80% off) 19
11 202251
BRACKET 		$98.20 1
12 248334
SCREW
IN STOCK 		$0.58 4
13 10440990
BRACKET WITH SHEATH 		$1.27 1
14 192327
CONNECTOR 		$4.82 1
15 127497
SPRING WASHER M10
IN STOCK 		$0.06 (92% off) 1
16 211844
VENT PIPE 		$22.65 1
17 225937
OIL PIPE FROM ENGINE TO SEPARATOR 		$271.97 1
18 236831
WATER-OIL SEPARATOR
Not for Taiwan; Not for USA, CDN 		$1,628.85 1
18 236843
WATER-OIL SEPARATOR
Applicable for Taiwan; Applicable for USA, CDN 		$1,178.59 1
19 254573
TANK CAP 		$208.40 (46.4% off) 1
20 211634
GASKET
IN STOCK 		$56.93 1
21 176388
O-RING
IN STOCK 		$2.20 (44.3% off) 1
22 13517124
STUD BOLT 		$16.88 3
23 147985
NUT
IN STOCK 		$0.14 (72% off) 3
24 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 3
25 236801
VENT PIPE 		$141.35 1
26 236836
SOLENOID VALVE 		$287.42 1
27 262111
JUBILEE CLAMP
IN STOCK 		$1.39 3
28 262111
JUBILEE CLAMP
IN STOCK 		$1.39 2
29 236846
VENT PIPE 		$11.78 1
30 216068
RH VAPOUR INTAKE PIPE
Applicable for USA, CDN 		$287.08 1
30 216063
RH VAPOUR INTAKE PIPE
Not for USA, CDN 		$48.34 1
31 216064
LH VAPOUR INTAKE PIPE
Not for USA, CDN 		$48.34 1
31 216069
LH VAPOUR INTAKE PIPE
Applicable for USA, CDN 		$287.08 1
32 235904
VENT PIPE 		$14.97 1
33 294255
CHECK VALVE 		$291.58 1
34 13127070
COLLAR
IN STOCK 		$1.83 3
35 195330
RUBBER PIPE 		$4.21 1
36 258855
3-WAY CONNECTOR
IN STOCK 		$40.11 1
37 159539
RUBBER PIPE 		$4.52 2
38 210313
OIL PIPE MOUNTING BRACKET
Applicable for Taiwan; Applicable for USA, CDN 		$64.53 1
38 239441
OIL PIPE MOUNTING BRACKET
Not for Taiwan; Not for USA, CDN 		$13.43 1
39 13432070
HOSE COLLAR
ARRIVING SOON 		$0.49 (54.2% off) 2
