Right Hand Cylinder Head

Ferrari 430 Scuderia

Find Your Part

Ferrari 430 Scuderia - RIGHT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
227612 RH HEAD COMPLETE WITH GUIDES $2,030.55 To Order
Photo Part No Description Price (each) Stock
221342 RH CYLINDER HEAD COVER $440.08 To Order
Photo Part No Description Price (each) Stock
198927 RH Head Cover Gasket $40.96 To Order
Photo Part No Description Price (each) Stock
229163 HEAT SHIELD $317.76 To Order
240635 HEAT SHIELD $212.45 To Order
Photo Part No Description Price (each) Stock
212466 STUD BOLT $6.25 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
321187 NUT Enquire To Order
Photo Part No Description Price (each) Stock
151117 WASHER $1.06 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
156834 ALLEN SCREW M6 X 30 $3.22 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
124342 THREADED CONNECTOR $6.21 IN STOCK
Photo Part No Description Price (each) Stock
282755 THREADED PLUG $1.87 To Order
Photo Part No Description Price (each) Stock
140135 THREADED INSERT $2.96 To Order
Photo Part No Description Price (each) Stock
127635 THREADED PLUG $2.88 To Order
Photo Part No Description Price (each) Stock
223982 SPARK PLUG TUBE SEAL $2.41 IN STOCK
Photo Part No Description Price (each) Stock
164400 THREADED PLUG $3.31 IN STOCK
Photo Part No Description Price (each) Stock
13541334 STUD BOLT $0.44 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
199760 THREADED PLUG $0.29 IN STOCK
Photo Part No Description Price (each) Stock
134233 O-RING $0.44 IN STOCK
Photo Part No Description Price (each) Stock
250646 Variable Valve Timing Adjuster Solenoid Valve $925.71 To Order
Photo Part No Description Price (each) Stock
220245 GASKET $0.14 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11087376 3-POINT CIRCLIP D.12 $0.15 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
235482 INTAKE CAMSHAFT SENSOR $317.76 To Order
235483 OUTPUT CAMSHAFT SENSOR $317.76 To Order
Photo Part No Description Price (each) Stock
184681 OIL PRESSURE REGULATOR VALVE $433.43 IN STOCK
Photo Part No Description Price (each) Stock
241406 OIL FILTER $14.16 IN STOCK
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.01 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
211641 STUD BOLT $0.98 IN STOCK
Photo Part No Description Price (each) Stock
220239 CAP $6.68 To Order
Photo Part No Description Price (each) Stock
231491 HEAT GUARD $59.17 To Order
View All

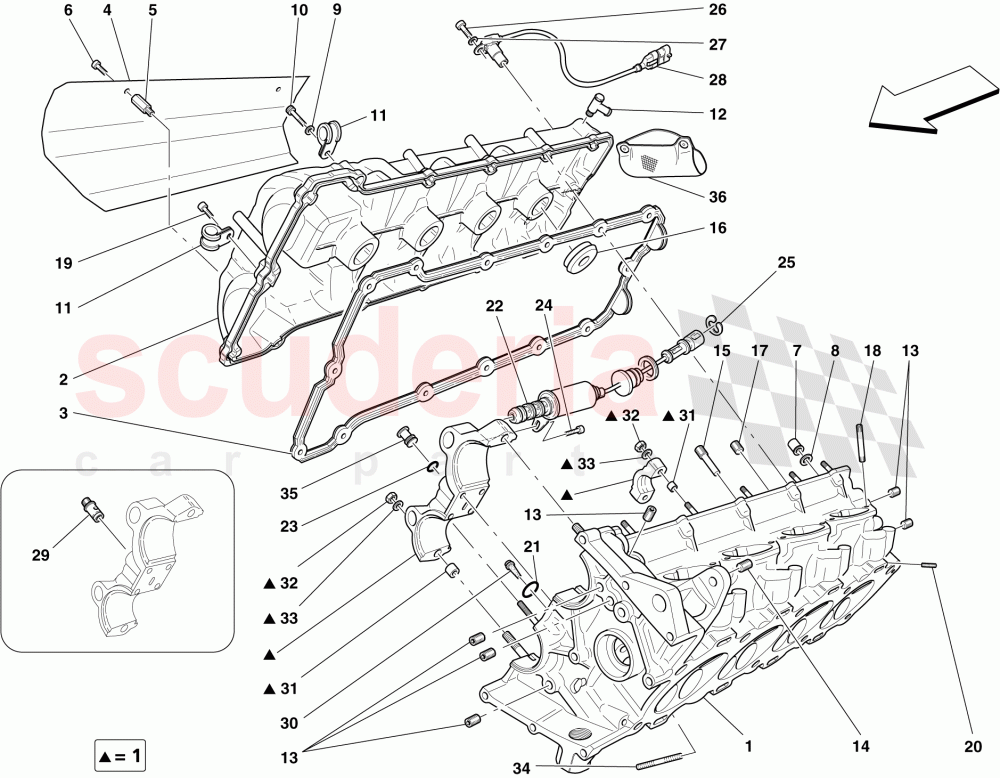

RIGHT HAND CYLINDER HEAD of Ferrari Ferrari 430 Scuderia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 227612
RH HEAD COMPLETE WITH GUIDES 		$2,030.55 1
2 221342
RH CYLINDER HEAD COVER 		$440.08 1
3 198927
RH Head Cover Gasket 		$40.96 (33.9% off) 1
4 229163
HEAT SHIELD
Applicable up to Ass. No. 73778 		$317.76 1
4 240635
HEAT SHIELD
Applicable from Ass. No. 73779 		$212.45 1
5 212466
STUD BOLT 		$6.25 1
6 248334
SCREW
IN STOCK 		$0.58 1
7 321187
NUT 		- 10 Enquire
8 151117
WASHER
IN STOCK 		$1.06 (7.8% off) 10
9 11197774
WASHER
IN STOCK 		$0.06 (80% off) 14
10 156834
ALLEN SCREW M6 X 30 		$3.22 14
11 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.54 (67.9% off) 2
12 124342
THREADED CONNECTOR
IN STOCK 		$6.21 1
13 282755
THREADED PLUG 		$1.87 6
14 140135
THREADED INSERT 		$2.96 1
15 127635
THREADED PLUG 		$2.88 (30.9% off) 4
16 223982
SPARK PLUG TUBE SEAL
IN STOCK 		$2.41 (39.3% off) 4
17 164400
THREADED PLUG
IN STOCK 		$3.31 1
18 13541334
STUD BOLT 		$0.44 8
19 248334
SCREW
IN STOCK 		$0.58 1
20 199760
THREADED PLUG
IN STOCK 		$0.29 4
21 134233
O-RING
IN STOCK 		$0.44 (70.7% off) 1
22 250646
Variable Valve Timing Adjuster Solenoid Valve 		$925.71 (32.5% off) 2
23 220245
GASKET
No longer supplied 		$0.14 (86% off) 1
24 231619
SCREW
IN STOCK 		$0.29 1
25 11087376
3-POINT CIRCLIP D.12
IN STOCK 		$0.15 (40% off) 1
26 231619
SCREW
IN STOCK 		$0.29 1
27 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
28 235482
INTAKE CAMSHAFT SENSOR 		$317.76 1
28 235483
OUTPUT CAMSHAFT SENSOR 		$317.76 1
29 184681
OIL PRESSURE REGULATOR VALVE
IN STOCK 		$433.43 1
30 241406
OIL FILTER
IN STOCK 		$14.16 1
31 102725
CENTERING DOWEL 		$1.01 (55.1% off) 22
32 14059290
FLANGED NUT M6
IN STOCK 		$1.32 22
33 11197774
WASHER
IN STOCK 		$0.06 (80% off) 22
34 211641
STUD BOLT
IN STOCK 		$0.98 (2% off) 8
35 220239
CAP
No longer supplied 		$6.68 1
36 231491
HEAT GUARD 		$59.17 1
