Outside Gearbox Controls

Ferrari 348 TS (1993)

Find Your Part

Ferrari 348 TS (1993) - OuTSide Gearbox Controls

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
139777 GEARBOX CONTROL BOX $85.59 To Order
Photo Part No Description Price (each) Stock
16043124 SCREW $0.17 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14499421 WASHER $0.20 IN STOCK
Photo Part No Description Price (each) Stock
139846 SCREW $0.26 To Order
Photo Part No Description Price (each) Stock
139847 NUT $0.05 To Order
Photo Part No Description Price (each) Stock
139784 PLATE $1.16 To Order
Photo Part No Description Price (each) Stock
139843 WASHER $0.11 To Order
Photo Part No Description Price (each) Stock
139851 SCREW $1.98 To Order
Photo Part No Description Price (each) Stock
139805 CONTROL LEVER $540.36 To Order
Photo Part No Description Price (each) Stock
103301 Knob for gearshift lever $103.33 To Order
Photo Part No Description Price (each) Stock
101619 SCREW $18.88 To Order
Photo Part No Description Price (each) Stock
148452 Speed selector $744.33 To Order
Photo Part No Description Price (each) Stock
108010 CHECKNUT $23.52 IN STOCK
Photo Part No Description Price (each) Stock
139786 REVERSE GEAR SPRING $2.17 To Order
Photo Part No Description Price (each) Stock
139785 MOUTH PIECE SPRING $2.18 To Order
Photo Part No Description Price (each) Stock
115980A SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.97 IN STOCK
Photo Part No Description Price (each) Stock
141410 SCREW $0.49 To Order
Photo Part No Description Price (each) Stock
141411 NUT $1.05 To Order
Photo Part No Description Price (each) Stock
62657100 EXPANDIBLE GASKET $1.72 To Order
Photo Part No Description Price (each) Stock
150298 GEARBOX CONTROL CABLES $503.50 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.52 To Order
Photo Part No Description Price (each) Stock
137476 CABLE SUPPORT $96.59 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.24 IN STOCK
Photo Part No Description Price (each) Stock
14059311 FLANGED NUT M8 X 1.25 $0.24 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
105550 CLAMP $0.90 To Order
Photo Part No Description Price (each) Stock
152645 CABLES LOWER SUPPORT $44.03 To Order
Photo Part No Description Price (each) Stock
13540924 STUD BOLT $33.72 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
139800 TRANSLATOR REACTION PIN $428.29 To Order
Photo Part No Description Price (each) Stock
141399 SCREW $101.18 To Order
Photo Part No Description Price (each) Stock
238108 WASHER D6.1 X 9.9 X 1.6 $0.44 IN STOCK
Photo Part No Description Price (each) Stock
10815787 CLAMP $0.14 IN STOCK
Photo Part No Description Price (each) Stock
139854 CLAMP $0.23 To Order
Photo Part No Description Price (each) Stock
139802 RUBBER BOOT $13.71 To Order
Photo Part No Description Price (each) Stock
139803 COVER PLATE $114.92 To Order
Photo Part No Description Price (each) Stock
140847 PROTECTION PLATE $107.31 To Order
Photo Part No Description Price (each) Stock
10977524 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
60659100 Caged Captive Nut 6mm $0.92 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
104339 SPACER $5.23 To Order
Photo Part No Description Price (each) Stock
15687909 SCREW $3.37 To Order
Photo Part No Description Price (each) Stock
60696300 CLIP $0.32 To Order
Photo Part No Description Price (each) Stock
141410 SCREW $0.49 To Order
Photo Part No Description Price (each) Stock
141411 NUT $1.05 To Order
Photo Part No Description Price (each) Stock
152533 BALL JOINT $38.45 To Order
Photo Part No Description Price (each) Stock
145498 DRIVING GEAR BELLOW $24.10 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.24 IN STOCK
View All

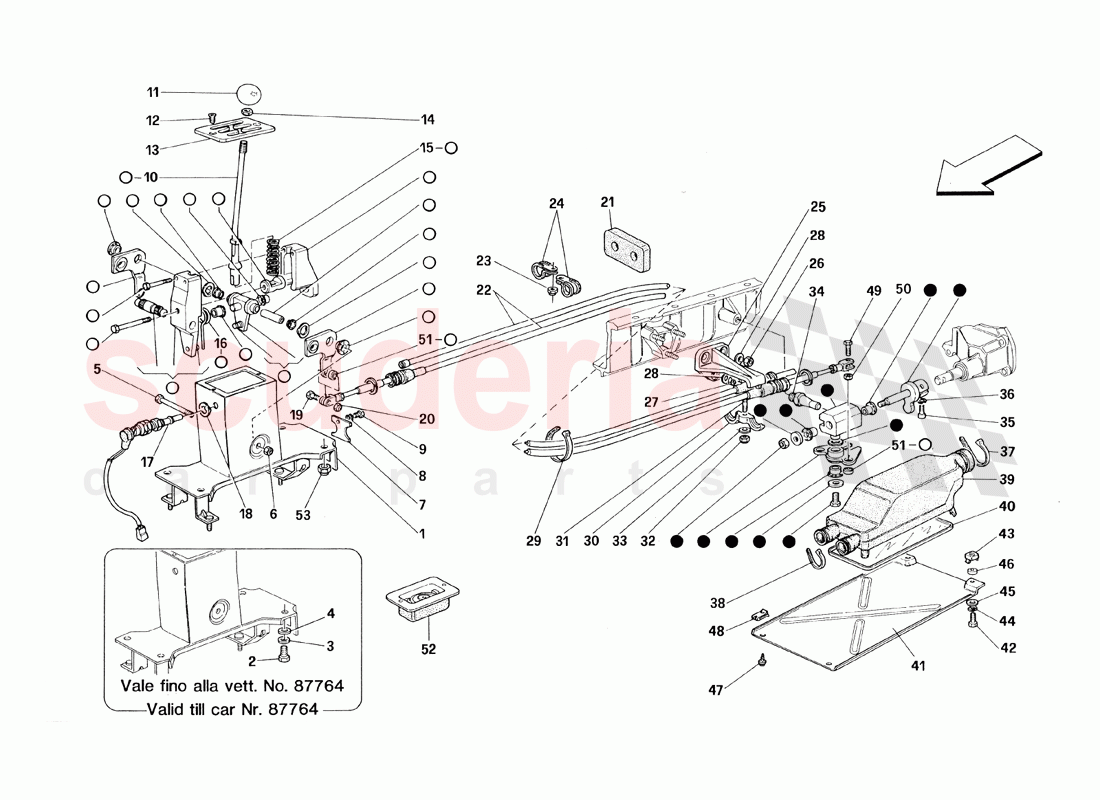

OuTSide Gearbox Controls of Ferrari Ferrari 348 TS (1993) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 144743
GEARBOX CONTROL ASSEMBLY 		$1,959.78 1
- 149570
INNER CONTROL DRIVING GEAR ASSEMBLY 		$1,279.15 1
-
With the assembly 149570 		- 1 Enquire
-
With the assembly 148077 		- 1 Enquire
- 148077
TRANSLATOR ASSEMBLY 		$954.52 1
1 139777
GEARBOX CONTROL BOX 		$85.59 1
2 16043124
SCREW
Valid till car Nr. 87764
IN STOCK 		$0.17 4
3 127496
WASHER
Valid till car Nr. 87764 		$0.06 (80% off) 4
4 14499421
WASHER
Valid till car Nr. 87764
IN STOCK 		$0.20 4
5 139846
SCREW 		$0.26 1
6 139847
NUT 		$0.05 1
7 139784
PLATE 		$1.16 1
8 139843
WASHER 		$0.11 1
9 139851
SCREW 		$1.98 1
10 139805
CONTROL LEVER 		$540.36 1
11 103301
Knob for gearshift lever 		$103.33 (73.4% off) 1
12 101619
SCREW 		$18.88 2
13 148452
Speed selector 		$744.33 1
14 108010
CHECKNUT
IN STOCK 		$23.52 (19.7% off) 1
15 139786
REVERSE GEAR SPRING 		$2.17 1
16 139785
MOUTH PIECE SPRING 		$2.18 1
17 115980A
SWITCH 		- 1 Enquire
18 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$4.97 1
19 141410
SCREW 		$0.49 (72% off) 2
20 141411
NUT 		$1.05 (47.5% off) 2
21 62657100
EXPANDIBLE GASKET 		$1.72 1
22 150298
GEARBOX CONTROL CABLES 		$503.50 2
23 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
24 10441590
BRACKET WITH SHEATH 		$0.52 2
25 137476
CABLE SUPPORT 		$96.59 1
26 104030
NUT
IN STOCK 		$0.24 (76% off) 2
27 14059311
FLANGED NUT M8 X 1.25
IN STOCK 		$0.24 (52% off) 1
28 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 3
29 105550
CLAMP 		$0.90 2
30 152645
CABLES LOWER SUPPORT 		$44.03 1
31 13540924
STUD BOLT
IN STOCK 		$33.72 1
32 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
33 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
34 139800
TRANSLATOR REACTION PIN 		$428.29 1
35 141399
SCREW 		$101.18 1
36 238108
WASHER D6.1 X 9.9 X 1.6
IN STOCK 		$0.44 (32.3% off) 1
37 10815787
CLAMP
IN STOCK 		$0.14 1
38 139854
CLAMP 		$0.23 2
39 139802
RUBBER BOOT 		$13.71 1
40 139803
COVER PLATE 		$114.92 1
41 140847
PROTECTION PLATE 		$107.31 1
42 10977524
SCREW
IN STOCK 		$0.14 2
43 60659100
Caged Captive Nut 6mm
IN STOCK 		$0.92 2
44 127494
WASHER
(minimum order quantity = 20)
IN STOCK 		$0.08 (88.2% off) 2
45 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
46 104339
SPACER 		$5.23 (22.5% off) 2
47 15687909
SCREW 		$3.37 2
48 60696300
CLIP 		$0.32 2
49 141410
SCREW 		$0.49 (72% off) 2
50 141411
NUT 		$1.05 (47.5% off) 2
51 152533
BALL JOINT 		$38.45 4
52 145498
DRIVING GEAR BELLOW 		$24.10 (77% off) 1
53 104030
NUT
Valid from car Nr. 87765
IN STOCK 		$0.24 (76% off) 4
