Ferrari 348 TS (1993) - Main Shaft Gears

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
Enquire To Order
Photo Part No Description Price (each) Stock
14601470 FLEXIBLE PIN $0.11 To Order
Photo Part No Description Price (each) Stock
Enquire To Order
Photo Part No Description Price (each) Stock
Enquire To Order
Photo Part No Description Price (each) Stock
Enquire To Order
Photo Part No Description Price (each) Stock
Enquire To Order
Photo Part No Description Price (each) Stock
Enquire To Order
Photo Part No Description Price (each) Stock
Enquire To Order
Photo Part No Description Price (each) Stock
168047 COMPLETE BEVEL SET $1,284.76 To Order
Photo Part No Description Price (each) Stock
106046 SYNCHRONIZER BODY $458.80 To Order
Photo Part No Description Price (each) Stock
150628 FLOATING RING FOR SYNCHRO. $326.29 To Order
Photo Part No Description Price (each) Stock
131801 SLEEVE FOR SYNCHRONIZER $199.09 To Order
Photo Part No Description Price (each) Stock
145244 Spring ring for insert $3.59 To Order
Photo Part No Description Price (each) Stock
126201 PAD FOR SYNCHRONIZER $4.66 To Order
Photo Part No Description Price (each) Stock
153002 RING NUT $211.82 To Order
Photo Part No Description Price (each) Stock
108656 ROLLER BEARING $599.54 To Order
Photo Part No Description Price (each) Stock
228055 ROLLER BEARING $152.49 To Order
Photo Part No Description Price (each) Stock
131425 SPACER mm. 2,5 $15.57 To Order
Photo Part No Description Price (each) Stock
104734 REVERSE IDLE GEAR ROLLER CAGE $9.44 To Order
Photo Part No Description Price (each) Stock
131798 REVERSE IDLE GEAR PIN $51.76 To Order
Photo Part No Description Price (each) Stock
10275550 THREADED PLUG $0.80 To Order
Photo Part No Description Price (each) Stock
65928500 THREADED PLUG $21.18 To Order
Photo Part No Description Price (each) Stock
14601470 FLEXIBLE PIN $0.11 To Order
Photo Part No Description Price (each) Stock
144617 SPACER RING $35.30 To Order
Photo Part No Description Price (each) Stock
144616 SPACER $101.10 To Order
Photo Part No Description Price (each) Stock
131335 BAG FOR BEARINGS $337.80 To Order
Photo Part No Description Price (each) Stock
131015 BEARING $416.85 To Order
Photo Part No Description Price (each) Stock
139828 BAG FOR BEARING $546.25 To Order
Photo Part No Description Price (each) Stock
131388 SPACER mm. 1,8 $80.50 To Order
131389 SPACER mm. 1,9 $32.52 To Order
131390 SPACER mm. 2,0 $70.21 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
131372 SPACER $17.43 To Order
Photo Part No Description Price (each) Stock
141048 SPACER mm. 2,15 $6.97 To Order
141044 SPACER mm. 1,95 $29.11 To Order
141046 SPACER mm. 2,05 $6.87 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
131016 BEARING $101.67 To Order
Photo Part No Description Price (each) Stock
105137 RING NUT $35.30 To Order
Photo Part No Description Price (each) Stock
138714 BEARING $692.97 To Order
Photo Part No Description Price (each) Stock
131358 ROLLER CAGE RACE $155.43 To Order
Photo Part No Description Price (each) Stock
109002 ROLLER BEARING CAGE $29.47 IN STOCK
Photo Part No Description Price (each) Stock
109002 ROLLER BEARING CAGE $29.47 IN STOCK
Photo Part No Description Price (each) Stock
150899 TRACK FOR 4th GEAR ROLLER CAGE $77.14 To Order
Photo Part No Description Price (each) Stock
150892 SPACER mm. 5.0 $89.43 To Order
154118 SPACER mm. 5.5 $27.60 To Order
153886 SPACER mm. 5.4 $26.99 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
155694 Front bearing $131.15 IN STOCK
Photo Part No Description Price (each) Stock
153000 RING NUT $13.26 To Order
Photo Part No Description Price (each) Stock
109724 O-RING $1.23 IN STOCK
Photo Part No Description Price (each) Stock
131357 TRACK FOR 4th GEAR ROLLER CAGE $86.49 To Order
Photo Part No Description Price (each) Stock
145232 SPACER $62.12 To Order
145234 SPACER $33.08 To Order
145235 SPACER $35.68 To Order
...and 3 more part variants. See table on right for more details.
View All

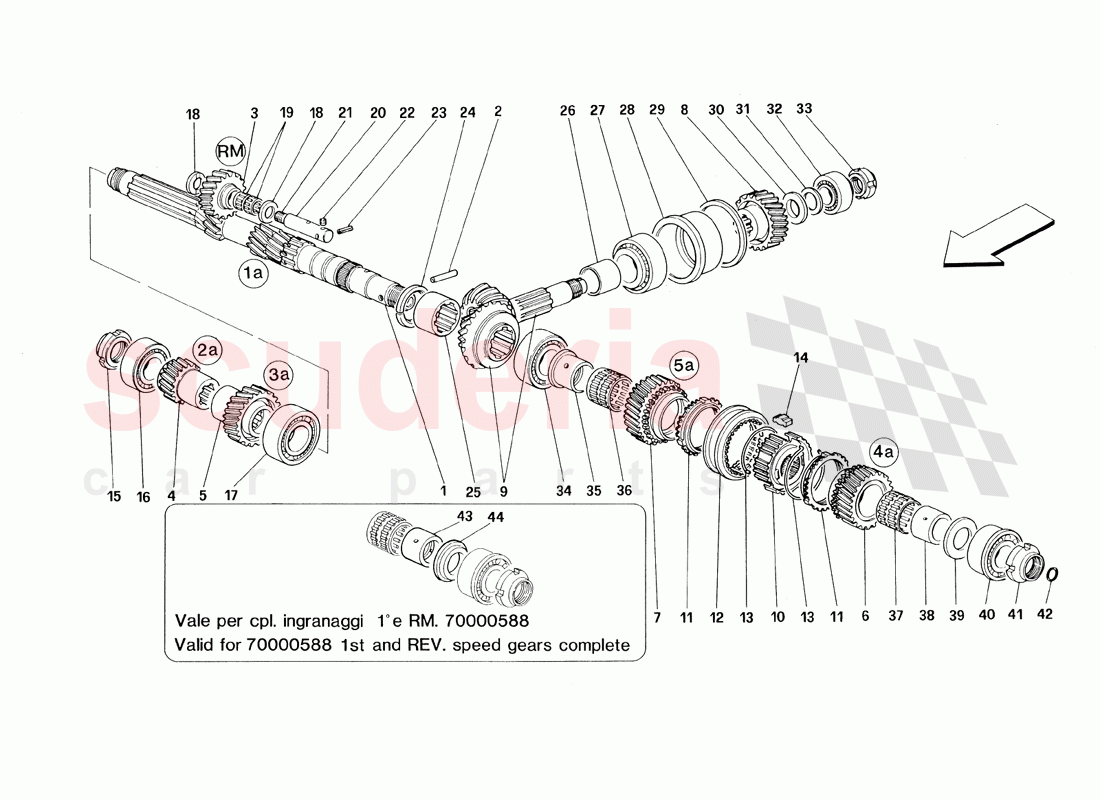

Main Shaft Gears of Ferrari Ferrari 348 TS (1993) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 70000847
GEAR TRANSMISSION TORQUE 		$1,524.20 1
- 70000848
GEAR TRANSMISSION TORQUE 		$1,547.60 1
- 70000783
PINION KIT FOR 1ST GEAR AND REV.
Valid for grooved roller race Pos. 43 and spacer Pos. 44 Valid till stock exhaustion 		$5,040.17 1
- 70000589
COMPL. PINION FOR 2nd GEAR (Z.40) 		$4,361.88 1
- 70000590
COMPL. PINION FOR 3rd GEAR (Z.35) 		$1,768.30 1
- 70000784
PINION FOR 4th GEAR (Z.35)
Valid for grooved roller races Pos. 43 and spacer Pos. 44 Valid till stock exhaustion 		$1,765.34 1
- 70000592
PINION FOR 5TH GEAR COMPL. (Z.31) 		$1,516.46 1
1
Not as spare part With the assembly 70000588 and 70000783 		- 1 Enquire
2 14601470
FLEXIBLE PIN 		$0.11 1
3
Not as spare part With the assembly 70000588 and 70000783 		- 1 Enquire
4
Not as spare part With the assembly 70000589 		- 1 Enquire
5
Not as spare part With the assembly 70000590 		- 1 Enquire
6
Not as spare part With the assembly 70000591 and 70000784 		- 1 Enquire
7
Not as spare part With the assembly 70000592 		- 1 Enquire
8
Not as spare part With the assembly 70000635, 70000798, 70000595,70000797 		- 1 Enquire
9 168047
COMPLETE BEVEL SET 		$1,284.76 1
10 106046
SYNCHRONIZER BODY 		$458.80 (67.1% off) 1
11 150628
FLOATING RING FOR SYNCHRO. 		$326.29 (55.3% off) 2
12 131801
SLEEVE FOR SYNCHRONIZER 		$199.09 (39.1% off) 1
13 145244
Spring ring for insert 		$3.59 2
14 126201
PAD FOR SYNCHRONIZER 		$4.66 (63.1% off) 3
15 153002
RING NUT 		$211.82 1
16 108656
ROLLER BEARING 		$599.54 1
17 228055
ROLLER BEARING 		$152.49 (18.5% off) 1
18 131425
SPACER mm. 2,5 		$15.57 2
19 104734
REVERSE IDLE GEAR ROLLER CAGE 		$9.44 (19.6% off) 2
20 131798
REVERSE IDLE GEAR PIN 		$51.76 1
21 10275550
THREADED PLUG 		$0.80 1
22 65928500
THREADED PLUG 		$21.18 (7.3% off) 1
23 14601470
FLEXIBLE PIN 		$0.11 1
24 144617
SPACER RING 		$35.30 (23.4% off) 1
25 144616
SPACER 		$101.10 (23.6% off) 1
26 131335
BAG FOR BEARINGS 		$337.80 (33.6% off) 1
27 131015
BEARING 		$416.85 (26.3% off) 1
28 139828
BAG FOR BEARING 		$546.25 1
29 131388
SPACER mm. 1,8
mm. 1,8 		$80.50 1
29 131389
SPACER mm. 1,9
mm. 1,9 		$32.52 1
29 131390
SPACER mm. 2,0
mm. 2,0 		$70.21 1
29 131392
SPACER mm. 2,2
mm. 2,2 		$34.24 1
29 131391
SPACER mm. 2,1
mm. 2,1 		$38.52 (4.2% off) 1
29 131393
SPACER mm. 2,3
mm. 2,3 		$37.21 1
30 131372
SPACER 		$17.43 1
31 141048
SPACER mm. 2,15
mm. 2,15 		$6.97 1
31 141044
SPACER mm. 1,95
mm. 1,95 		$29.11 1
31 141046
SPACER mm. 2,05
mm. 2,05 		$6.87 1
31 131378
SPACER mm. 2,2
mm. 2,2 		$16.61 1
31 131379
SPACER mm. 2,3
mm. 2,3 		$66.80 1
31 131377
SPACER mm. 2,1
mm. 2,1 		$19.02 1
31 131376
SPACER mm. 2,0
mm. 2,0 		$16.61 1
31 131374
SPACER mm. 1,8
mm. 1,8 		$16.61 (74.4% off) 1
31 131375
SPACER mm. 1,9
mm. 1,9 		$38.30 (32.2% off) 1
32 131016
BEARING 		$101.67 1
33 105137
RING NUT 		$35.30 (39.5% off) 1
34 138714
BEARING 		$692.97 1
35 131358
ROLLER CAGE RACE 		$155.43 1
36 109002
ROLLER BEARING CAGE
IN STOCK 		$29.47 1
37 109002
ROLLER BEARING CAGE
IN STOCK 		$29.47 1
38 150899
TRACK FOR 4th GEAR ROLLER CAGE
Ungrooved 		$77.14 1
39 150892
SPACER mm. 5.0
mm.5.0 Valid for ungrooved roller race Pos. 38 		$89.43 1
39 154118
SPACER mm. 5.5
mm. 5.5 Valid for ungrooved roller race Pos. 38 		$27.60 1
39 153886
SPACER mm. 5.4
Valid for ungrooved roller race Pos. 38 		$26.99 (8.5% off) 1
39 150902
SPACER mm. 5.1
mm. 5.1 Valid for ungrooved roller race Pos. 38 		$22.21 1
39 153885
SPACER mm. 5.3
mm. 5.3 Valid for ungrooved roller race Pos. 38 		$29.32 1
39 150896
SPACER mm. 5.2
mm. 5.2 Valid for ungrooved roller race Pos. 38 		$24.35 1
39 150895
SPACER mm. 4.9
mm. 4.9 Valid for ungrooved roller race Pos. 38 		$82.75 1
39 150893
SPACER mm. 4.7
mm. 4.7 		$192.19 1
39 150894
SPACER mm. 4.8 		$110.33 1
40 155694
Front bearing
IN STOCK 		$131.15 1
41 153000
RING NUT 		$13.26 (65.6% off) 1
42 109724
O-RING
IN STOCK 		$1.23 (38.5% off) 1
43 131357
TRACK FOR 4th GEAR ROLLER CAGE
With grooving 		$86.49 1
44 145232
SPACER
mm. 5.0 Valid for grooved roller race Pos. 43 		$62.12 1
44 145234
SPACER
mm. 4.8 -Valid for grooved roller race Pos. 43 		$33.08 1
44 145235
SPACER
mm. 4.9 Valid for grooved roller race Pos. 43 		$35.68 1
44 145236
SPACER
mm. 5.1 Valid for grooved roller race Pos. 43 		$35.67 1
44 145237
SPACER
mm. 5.2 Valid for grooved roller race pos.43 		$198.61 1
44 145233
SPACER
mm. 4.7 Valid for grooved roller race POS.43 		$32.78 1
