Name: Water Pump
Rating: 4.6 (1 reviews)

Water Pump of Ferrari Ferrari 348 TS (1993)

View All

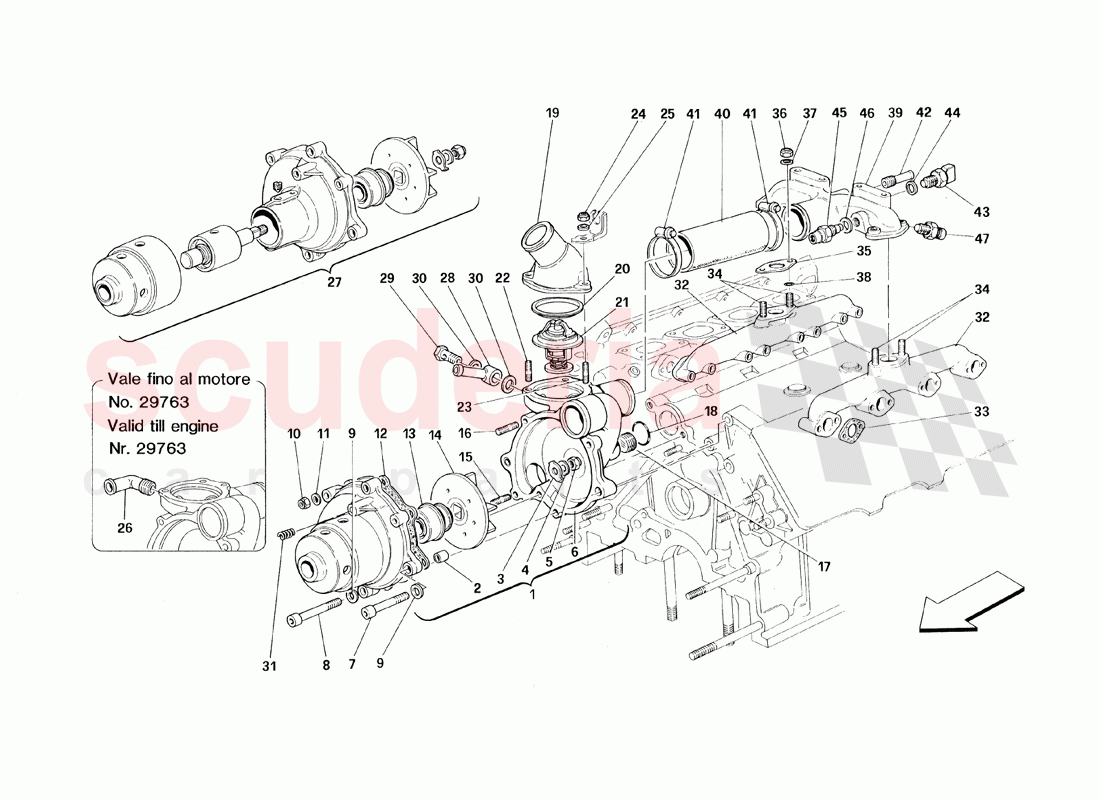

Ferrari 348 TS (1993) - Water Pump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	160473	COMPLETE WATER PUMP	$1,263.41	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	$2.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	139457	PLATE	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	10730321	WASHER	$0.49	To Order

Photo	Part No	Description	Price (each)	Stock
	100436	BLIND NUT	$10.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	156350	WATER PUMP BODY WITH STUDS	$737.98	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	$0.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14302221	SCREW	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14499370	Washer	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	132979	GASKET	$7.92	To Order

Photo	Part No	Description	Price (each)	Stock
	183759	Water Pump Seal	$34.13	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	160456	WATER PUMP IMPELLER	$122.39	To Order

Photo	Part No	Description	Price (each)	Stock
	13541124	STUD BOLT	$20.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13541324	STUD BOLT	$1.61	To Order

Photo	Part No	Description	Price (each)	Stock
	163528	THREADED PLUG	$3.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	101044	O-RING	$1.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	136570	THERMOSTATIC VALVE COVER	$92.61	To Order

Photo	Part No	Description	Price (each)	Stock
	105192	O-Ring for Thermostat	$19.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	165473A	THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541124	STUD BOLT	$20.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13541224	STUD BOLT	$134.82	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14499370	Washer	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	150919	UNION	$18.02	To Order

Photo	Part No	Description	Price (each)	Stock
	143275	FRONT PART COMPLETE WATER PUMP	$1,304.84	To Order

Photo	Part No	Description	Price (each)	Stock
	152416	UNION	$36.23	To Order

Photo	Part No	Description	Price (each)	Stock
	152417	UNION	$150.21	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13525470	THREADED INSERT	$0.51	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	138852	WATER MANIFOLD	$4,585.87	To Order

Photo	Part No	Description	Price (each)	Stock
	132980	GASKET	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	13516824	STUD BOLT	$0.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	132981	GASKET	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	986847	CONICAL WASHER	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	103039	Sealing ring	$0.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	138027	WATER OUTLET MANIFOLD CONNECTION DUCT	$119.06	To Order
	144246	WATER OUTLET MANIFOLD CONNECTION DUCT	$371.70	To Order

Photo	Part No	Description	Price (each)	Stock
	138981	RUBBER PIPE	$42.07	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	PIPE CLAMP 30-45MM	$7.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	106241	Fitting	$88.27	To Order

Photo	Part No	Description	Price (each)	Stock
	125769	Water Temperature Transmitter	$56.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	136304	THERMOMETRIC SWITCH	$18.84	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	104628	GEARBOX THERMISTOR	$101.66	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	160473	COMPLETE WATER PUMP	160473 COMPLETE WATER PUMP	$1,263.41	1
2	102704	ALIGNMENT DOWEL IN STOCK	102704 ALIGNMENT DOWEL IN STOCK	$2.71	2
3	139457	PLATE	139457 PLATE	$5.75 MSRP: ~~18.95~~ (69.7% off)	1
4	10730321	WASHER	10730321 WASHER	$0.49 MSRP: ~~1.00~~ (51% off)	1
5	100436	BLIND NUT IN STOCK	100436 BLIND NUT IN STOCK	$10.50 MSRP: ~~10.95~~ (4.1% off)	1
6	156350	WATER PUMP BODY WITH STUDS	156350 WATER PUMP BODY WITH STUDS	$737.98	1
7	14306924	SCREW IN STOCK	14306924 SCREW IN STOCK	$0.64	2
8	14302221	SCREW	14302221 SCREW	$0.37	2
9	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	4
10	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	4
11	14499370	Washer	14499370 Washer	$0.23	4
12	132979	GASKET	132979 GASKET	$7.92 MSRP: ~~10.50~~ (24.6% off)	1
13	183759	Water Pump Seal ARRIVING SOON	183759 Water Pump Seal ARRIVING SOON	$34.13 MSRP: ~~50.62~~ (32.6% off)	1
14	160456	WATER PUMP IMPELLER	160456 WATER PUMP IMPELLER	$122.39	1
15	13541124	STUD BOLT IN STOCK	13541124 STUD BOLT IN STOCK	$20.34	1
16	13541324	STUD BOLT	13541324 STUD BOLT	$1.61 MSRP: ~~1.85~~ (13% off)	3
17	163528	THREADED PLUG IN STOCK	163528 THREADED PLUG IN STOCK	$3.72 MSRP: ~~4.25~~ (12.5% off)	1
18	101044	O-RING IN STOCK	101044 O-RING IN STOCK	$1.52 MSRP: ~~3.70~~ (58.9% off)	1
19	136570	THERMOSTATIC VALVE COVER	136570 THERMOSTATIC VALVE COVER	$92.61	1
20	105192	O-Ring for Thermostat IN STOCK	105192 O-Ring for Thermostat IN STOCK	$19.71	1
21	165473A	THERMOSTAT	165473A THERMOSTAT	-	1	Enquire
22	13541124	STUD BOLT IN STOCK	13541124 STUD BOLT IN STOCK	$20.34	2
23	13541224	STUD BOLT	13541224 STUD BOLT	$134.82	1
24	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	3
25	14499370	Washer	14499370 Washer	$0.23	3
26	150919	UNION	150919 UNION Valid till engine Nr. 29763 Not as spare part now Replaced by 152416, 152417 and 10259960	$18.02	1
27	143275	FRONT PART COMPLETE WATER PUMP	143275 FRONT PART COMPLETE WATER PUMP use part number: 143275/A	$1,304.84	1
28	152416	UNION	152416 UNION Valid from engine Nr. 29764	$36.23	1
29	152417	UNION	152417 UNION Valid from engine Nr. 29764	$150.21	1
30	10259960	Copper Washer 18 - 24 x 1.5 IN STOCK	10259960 Copper Washer 18 - 24 x 1.5 Valid from engine Nr. 29764 IN STOCK	$0.31 MSRP: ~~1.25~~ (75.2% off)	2
31	13525470	THREADED INSERT IN STOCK	13525470 THREADED INSERT IN STOCK	$0.51 MSRP: ~~2.50~~ (79.6% off)	1
32	138852	WATER MANIFOLD	138852 WATER MANIFOLD	$4,585.87	2
33	132980	GASKET	132980 GASKET	$0.67 MSRP: ~~3.23~~ (79.3% off)	8
34	13516824	STUD BOLT IN STOCK	13516824 STUD BOLT IN STOCK	$0.44 MSRP: ~~1.25~~ (64.8% off)	4
35	132981	GASKET	132981 GASKET	$1.15 MSRP: ~~7.25~~ (84.1% off)	2
36	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.35	4
37	986847	CONICAL WASHER	986847 CONICAL WASHER	$0.60	4
38	103039	Sealing ring IN STOCK	103039 Sealing ring (minimum order quantity = 10) IN STOCK	$0.89 MSRP: ~~1.20~~ (25.8% off)	4
39	138027	WATER OUTLET MANIFOLD CONNECTION DUCT	138027 WATER OUTLET MANIFOLD CONNECTION DUCT Valid for M. 2.5	$119.06	1
39	144246	WATER OUTLET MANIFOLD CONNECTION DUCT	144246 WATER OUTLET MANIFOLD CONNECTION DUCT Valid for M. 2.7	$371.70	1
40	138981	RUBBER PIPE	138981 RUBBER PIPE	$42.07 MSRP: ~~76.98~~ (45.3% off)	1
41	296781	PIPE CLAMP 30-45MM IN STOCK	296781 PIPE CLAMP 30-45MM IN STOCK	$7.79	2
42	106241	Fitting	106241 Fitting	$88.27	1
43	125769	Water Temperature Transmitter IN STOCK	125769 Water Temperature Transmitter IN STOCK	$56.25	2
44	10298460	GASKET IN STOCK	10298460 GASKET IN STOCK	$0.14 MSRP: ~~1.25~~ (88.8% off)	2
45	136304	THERMOMETRIC SWITCH	136304 THERMOMETRIC SWITCH	$18.84 MSRP: ~~64.10~~ (70.6% off)	1
46	10298460	GASKET IN STOCK	10298460 GASKET IN STOCK	$0.14 MSRP: ~~1.25~~ (88.8% off)	1
47	104628	GEARBOX THERMISTOR	104628 GEARBOX THERMISTOR	$101.66 MSRP: ~~139.65~~ (27.2% off)	1
