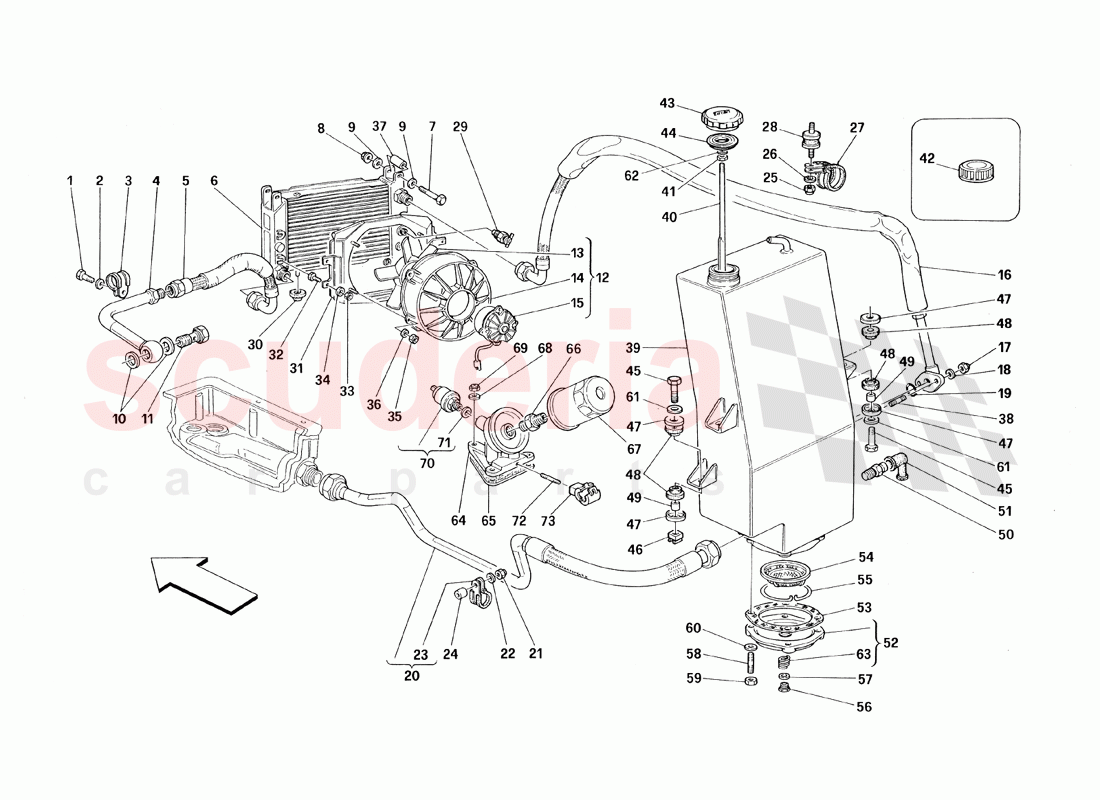

Ferrari 348 TS (1993) - Lubrication System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12644424	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	$4.82	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	142563	PIPE FROM ENGINE TO RADIATOR	$223.51	To Order

Photo	Part No	Description	Price (each)	Stock
	141820	HOSE FROM RESERVOIR TO RADIATOR	$501.16	To Order

Photo	Part No	Description	Price (each)	Stock
	154584	OIL RADIATOR	$1,058.11	To Order

Photo	Part No	Description	Price (each)	Stock
	10903834	SCREW	$6.17	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12644424	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	907923	DOWTY WASHER	$36.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	129809	UNION	$62.47	To Order

Photo	Part No	Description	Price (each)	Stock
	140808	COMPLETE ELECTROFAN	$349.06	To Order

Photo	Part No	Description	Price (each)	Stock
	143544	BLOWER	$36.10	To Order

Photo	Part No	Description	Price (each)	Stock
	143545	AIR CONVEYOR	$20.72	To Order

Photo	Part No	Description	Price (each)	Stock
	140808	COMPLETE ELECTROFAN	$349.06	To Order

Photo	Part No	Description	Price (each)	Stock
	141821	PIPE FROM RADIATOR TO TANK	$784.98	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER D.6.4 X 11.95 X 1.6	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	139934	O-RING	$0.82	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	141819	TANK/PUMP CONNECTION PIPE	$784.98	To Order

Photo	Part No	Description	Price (each)	Stock
	133989	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	141850	BRACKET	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	141849	SPACER	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER D.6.4 X 11.95 X 1.6	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	106195	BRACKET WITH SHEATH	$51.48	To Order

Photo	Part No	Description	Price (each)	Stock
	102947	VIBRATION DAMPER	$18.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	123277	Temperature switch	$117.09	To Order

Photo	Part No	Description	Price (each)	Stock
	137624	Vibration-damping buffer	$3.07	To Order

Photo	Part No	Description	Price (each)	Stock
	140809	HOOD FOR ELECTROFAN	$65.61	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER D.6.4 X 11.95 X 1.6	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER D.6.4 X 11.95 X 1.6	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	144814	SPACER PIPE	$0.87	To Order

Photo	Part No	Description	Price (each)	Stock
	13540924	STUD BOLT	$33.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	136428	OIL TANK	$1,824.93	To Order

Photo	Part No	Description	Price (each)	Stock
	139675	OIL LEVEL ROD	$28.14	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	145623	TANK PLUG	$256.92	To Order

Photo	Part No	Description	Price (each)	Stock
	145623	TANK PLUG	$256.92	To Order

Photo	Part No	Description	Price (each)	Stock
	180585	Oil Tank Cap Gasket	$89.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231629	SCREW	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	141530	NUT WITH CAGE	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	107979	STOP CAP	$10.12	To Order

Photo	Part No	Description	Price (each)	Stock
	107978	VIBRATION DAMPER	$12.64	To Order

Photo	Part No	Description	Price (each)	Stock
	107980	SHIM	$5.14	To Order

Photo	Part No	Description	Price (each)	Stock
	107576A	OIL THERMISTOR -Not for AUS-	Enquire	To Order
	148676	OIL THERMISTOR -Valid for AUS-	$31.02	To Order

Photo	Part No	Description	Price (each)	Stock
	107003	ELECTRIC TERMINAL COVER	$3.65	To Order

Photo	Part No	Description	Price (each)	Stock
	139627	COVER	$198.74	To Order

Photo	Part No	Description	Price (each)	Stock
	139631	GASKET	$2.72	To Order

Photo	Part No	Description	Price (each)	Stock
	122429	Oil Pickup Filter	$10.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	103944	Sealing ring	$115.18	To Order

Photo	Part No	Description	Price (each)	Stock
	10300771	Oil Outlet Plug	$15.85	To Order

Photo	Part No	Description	Price (each)	Stock
	10261460	COPPER WASHER 16 X 24 X 1.5	$0.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11500624	STUD BOLT	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	111352	THREADED INSERT	$102.13	To Order

Photo	Part No	Description	Price (each)	Stock
	138348	OIL FILTER BASE PLATE	$889.69	To Order

Photo	Part No	Description	Price (each)	Stock
	188052	Oil Filter Base Gasket	$8.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	124229	Union for filter	$32.50	To Order

Photo	Part No	Description	Price (each)	Stock
	197654	Oil Filter	$47.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	135940	Transmitter Oil Pressure	$164.80	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13539024	STUD BOLT	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	139637	BRACKET FOR CABLES FIXING	$13.92	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	10977524	SCREW IN STOCK	10977524 SCREW IN STOCK	$0.14	1
2	12644424	WASHER IN STOCK	12644424 WASHER IN STOCK	$0.06 MSRP: ~~0.40~~ (85% off)	1
3	291225	P clip Bracket With Sheath IN STOCK	291225 P clip Bracket With Sheath IN STOCK	$4.82	1
4	142563	PIPE FROM ENGINE TO RADIATOR	142563 PIPE FROM ENGINE TO RADIATOR	$223.51	1
5	141820	HOSE FROM RESERVOIR TO RADIATOR	141820 HOSE FROM RESERVOIR TO RADIATOR	$501.16	1
6	154584	OIL RADIATOR	154584 OIL RADIATOR	$1,058.11	1
7	10903834	SCREW	10903834 SCREW	$6.17	2
8	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	2
9	12644424	WASHER IN STOCK	12644424 WASHER IN STOCK	$0.06 MSRP: ~~0.40~~ (85% off)	4
10	907923	DOWTY WASHER IN STOCK	907923 DOWTY WASHER IN STOCK	$36.09	2
11	129809	UNION	129809 UNION	$62.47 MSRP: ~~185.41~~ (66.3% off)	1
12	140808	COMPLETE ELECTROFAN	140808 COMPLETE ELECTROFAN	$349.06	1
13	143544	BLOWER	143544 BLOWER	$36.10	1
14	143545	AIR CONVEYOR	143545 AIR CONVEYOR	$20.72	1
15	140808	COMPLETE ELECTROFAN	140808 COMPLETE ELECTROFAN	$349.06	1
16	141821	PIPE FROM RADIATOR TO TANK	141821 PIPE FROM RADIATOR TO TANK	$784.98	1
17	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	2
18	10519424	WASHER D.6.4 X 11.95 X 1.6 IN STOCK	10519424 WASHER D.6.4 X 11.95 X 1.6 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	2
19	139934	O-RING IN STOCK	139934 O-RING IN STOCK	$0.82 MSRP: ~~2.25~~ (63.6% off)	1
20	141819	TANK/PUMP CONNECTION PIPE	141819 TANK/PUMP CONNECTION PIPE	$784.98	1
21	133989	NUT	133989 NUT	$0.41 MSRP: ~~1.00~~ (59% off)	2
22	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	2
23	141850	BRACKET	141850 BRACKET	$1.01	2
24	141849	SPACER	141849 SPACER	$1.60	2
25	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	3
26	10519424	WASHER D.6.4 X 11.95 X 1.6 IN STOCK	10519424 WASHER D.6.4 X 11.95 X 1.6 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	3
27	106195	BRACKET WITH SHEATH	106195 BRACKET WITH SHEATH	$51.48	3
28	102947	VIBRATION DAMPER IN STOCK	102947 VIBRATION DAMPER IN STOCK	$18.29 MSRP: ~~19.52~~ (6.3% off)	1
29	123277	Temperature switch	123277 Temperature switch	$117.09 MSRP: ~~294.92~~ (60.3% off)	1
30	137624	Vibration-damping buffer	137624 Vibration-damping buffer	$3.07 MSRP: ~~5.61~~ (45.3% off)	2
31	140809	HOOD FOR ELECTROFAN	140809 HOOD FOR ELECTROFAN	$65.61	1
32	10902424	SCREW IN STOCK	10902424 SCREW IN STOCK	$0.14 MSRP: ~~0.70~~ (80% off)	4
33	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	4
34	10519424	WASHER D.6.4 X 11.95 X 1.6 IN STOCK	10519424 WASHER D.6.4 X 11.95 X 1.6 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	4
35	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	4
36	10519424	WASHER D.6.4 X 11.95 X 1.6 IN STOCK	10519424 WASHER D.6.4 X 11.95 X 1.6 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	4
37	144814	SPACER PIPE	144814 SPACER PIPE	$0.87	2
38	13540924	STUD BOLT IN STOCK	13540924 STUD BOLT IN STOCK	$33.75	2
39	136428	OIL TANK	136428 OIL TANK	$1,824.93	1
40	139675	OIL LEVEL ROD	139675 OIL LEVEL ROD	$28.14	1
41	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	1
42	145623	TANK PLUG	145623 TANK PLUG Not as spare part now Replaced by 145623	$256.92 MSRP: ~~358.36~~ (28.3% off)	1
43	145623	TANK PLUG	145623 TANK PLUG Valid after stock exhaustion of 139648	$256.92 MSRP: ~~358.36~~ (28.3% off)	1
44	180585	Oil Tank Cap Gasket IN STOCK	180585 Oil Tank Cap Gasket Valid for plug 145623 IN STOCK	$89.16 MSRP: ~~113.57~~ (21.5% off)	1
45	231629	SCREW IN STOCK	231629 SCREW IN STOCK	$0.61 MSRP: ~~0.95~~ (35.8% off)	3
46	141530	NUT WITH CAGE	141530 NUT WITH CAGE	$0.41 MSRP: ~~1.75~~ (76.6% off)	2
47	107979	STOP CAP	107979 STOP CAP	$10.12 MSRP: ~~11.98~~ (15.5% off)	6
48	107978	VIBRATION DAMPER	107978 VIBRATION DAMPER	$12.64	6
49	107980	SHIM	107980 SHIM	$5.14 MSRP: ~~6.25~~ (17.8% off)	3
50	107576A	OIL THERMISTOR -Not for AUS-	107576A OIL THERMISTOR -Not for AUS- NotforAUS	-	1	Enquire
50	148676	OIL THERMISTOR -Valid for AUS-	148676 OIL THERMISTOR -Valid for AUS- Valid for AUS	$31.02 MSRP: ~~55.88~~ (44.5% off)	1
51	107003	ELECTRIC TERMINAL COVER	107003 ELECTRIC TERMINAL COVER	$3.65 MSRP: ~~10.76~~ (66.1% off)	1
52	139627	COVER	139627 COVER	$198.74 MSRP: ~~459.50~~ (56.7% off)	1
53	139631	GASKET	139631 GASKET	$2.72 MSRP: ~~12.25~~ (77.8% off)	1
54	122429	Oil Pickup Filter IN STOCK	122429 Oil Pickup Filter IN STOCK	$10.92 MSRP: ~~14.20~~ (23.1% off)	1
55	103944	Sealing ring	103944 Sealing ring	$115.18	1
56	10300771	Oil Outlet Plug	10300771 Oil Outlet Plug	$15.85 MSRP: ~~50.57~~ (68.7% off)	1
57	10261460	COPPER WASHER 16 X 24 X 1.5 IN STOCK	10261460 COPPER WASHER 16 X 24 X 1.5 IN STOCK	$0.32 MSRP: ~~1.00~~ (68% off)	1
58	11500624	STUD BOLT	11500624 STUD BOLT	$0.50 MSRP: ~~1.00~~ (50% off)	4
59	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	4
60	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
61	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	3
62	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	1
63	111352	THREADED INSERT	111352 THREADED INSERT use part number: 111352/A	$102.13 MSRP: ~~136.85~~ (25.4% off)	1
64	138348	OIL FILTER BASE PLATE	138348 OIL FILTER BASE PLATE	$889.69	1
65	188052	Oil Filter Base Gasket IN STOCK	188052 Oil Filter Base Gasket IN STOCK	$8.59 MSRP: ~~11.70~~ (26.6% off)	1
66	124229	Union for filter	124229 Union for filter	$32.50	1
67	197654	Oil Filter IN STOCK	197654 Oil Filter IN STOCK	$47.08 MSRP: ~~47.59~~ (1.1% off)	1
68	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	3
69	104030	NUT IN STOCK	104030 NUT IN STOCK	$0.24 MSRP: ~~1.00~~ (76% off)	3
70	135940	Transmitter Oil Pressure ARRIVING SOON	135940 Transmitter Oil Pressure ARRIVING SOON	$164.80 MSRP: ~~216.84~~ (24% off)	1
71	10259960	Copper Washer 18 - 24 x 1.5 IN STOCK	10259960 Copper Washer 18 - 24 x 1.5 IN STOCK	$0.31 MSRP: ~~1.25~~ (75.2% off)	1
72	13539024	STUD BOLT	13539024 STUD BOLT	$1.34	1
73	139637	BRACKET FOR CABLES FIXING	139637 BRACKET FOR CABLES FIXING	$13.92	1
