Electrical System - Not For Usa

Ferrari 348 TS (1993)

Find Your Part

Ferrari 348 TS (1993) - Electrical System - Not for USA

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
134426 FRONT CABLES -Not for J- $542.06 To Order
139573 FRONT CABLES -Valid for J- $367.32 To Order
Photo Part No Description Price (each) Stock
140835 CABLE FOR FURTHER STOP LIGHT $64.30 To Order
Photo Part No Description Price (each) Stock
153142 CAR RADIO CABLES $211.06 To Order
Photo Part No Description Price (each) Stock
139367 CABLES FOR NUMBER PLATE LIGHTS $72.63 To Order
Photo Part No Description Price (each) Stock
134436 CABLES FOR ANTISKID DEVICES CONNECTION $878.47 To Order
142530 CABLES FOR ANTISKID DEVICES CONNECTION $425.89 To Order
Photo Part No Description Price (each) Stock
146916 DASHBOARD CONNECTION CABLES $1,159.83 To Order
146605 DASHBOARD CONNECTION CABLES $1,399.86 To Order
146155 DASHBOARD CONNECTION CABLES $1,264.14 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
138914 FRONT HEADLIGHT CONNECTION CABLES $55.60 To Order
Photo Part No Description Price (each) Stock
153784 L.H. DOOR CONNECTION CABLES $435.66 To Order
153783 L.H. DOOR CONNECTION CABLES $508.90 To Order
146740 LH DOOR CONNECTION CABLES $708.82 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
134431 RH DOOR CONNECTION CABLES $411.24 To Order
151100 RH DOOR CONNECTION CABLES Enquire To Order
146741 LH DOOR CONNECTION CABLES $548.12 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
134429 CABLES FOR TUNNEL-CONSOLE CONNECTION $325.15 To Order
139524 CABLES FOR TUNNEL CONSOLE CONNECTION $118.91 To Order
145772 CABLES FOR TUNNEL CONSOLE CONNECTION $141.22 To Order
Photo Part No Description Price (each) Stock
151561 REAR CABLES $1,038.50 To Order
151560 REAR CABLES $956.29 To Order
151558 REAR CABLES $842.35 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
134432 ROOF LIGHT CONNECTION CABLES $14.71 To Order
Photo Part No Description Price (each) Stock
151912 CONNECTION CABLES FOR ENGINE UTILITIES $508.90 To Order
142747 CONNECTION CABLES FOR MOTOR UTILITIES $491.28 To Order
151333 CONNECTION CABLES FOR MOTOR UTILITIES $338.93 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
134435 CABLES FOR LH MAIN BEARINGS CONNECTION $1,305.75 To Order
139491 CABLES FOR LH MAIN BEARINGS CONNECTION $594.58 To Order
143207 CABLES FOR LH SIDE ENGINE CONNECTION $735.10 To Order
...and 1 more part variants. See table on right for more details.
View All

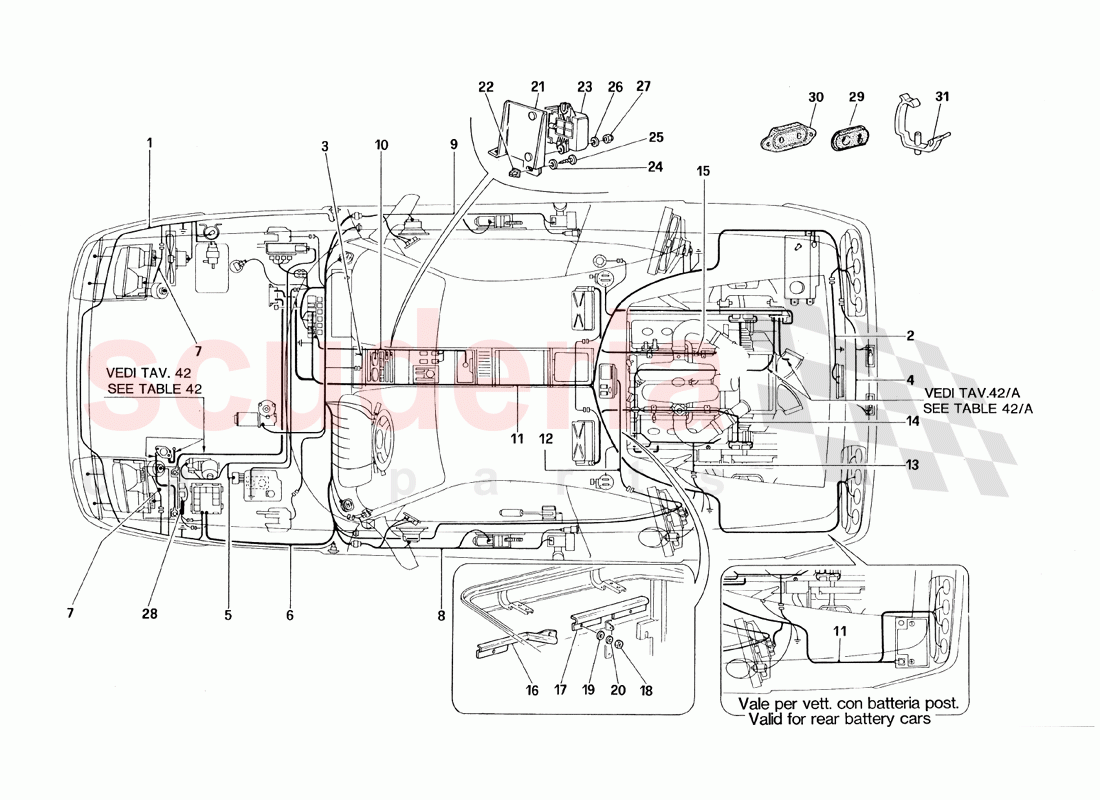

Electrical System - Not for USA of Ferrari Ferrari 348 TS (1993) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 134426
FRONT CABLES -Not for J-
Not for CDN and J 		$542.06 1
1 139573
FRONT CABLES -Valid for J-
Valid for CDN and J 		$367.32 1
2 140835
CABLE FOR FURTHER STOP LIGHT
Valid for CDN and AUS 		$64.30 1
3 153142
CAR RADIO CABLES 		$211.06 1
4 139367
CABLES FOR NUMBER PLATE LIGHTS 		$72.63 1
5 134436
CABLES FOR ANTISKID DEVICES CONNECTION
Not per GD 		$878.47 1
5 142530
CABLES FOR ANTISKID DEVICES CONNECTION
Valid per GD 		$425.89 1
6 146916
DASHBOARD CONNECTION CABLES
Valid for M. 2.7 Not for CDN, GD.SA andJ 		$1,159.83 1
6 146605
DASHBOARD CONNECTION CABLES
Valid for M. 2.7 Valid for CON 		$1,399.86 1
6 146155
DASHBOARD CONNECTION CABLES
Valid for SA and J 		$1,264.14 1
6 145760
DASHBOARD CONNECTION CABLES
Valid for M. 2.7 Valid for GD 		$1,693.68 1
6 140613
DASHBOARD CONNECTION CABLES
Valid for M. 2.5 Valid for GD 		$1,669.86 1
6 134427
DASHBOARD CONNECTION CABLES
Valid for M. 2.5 Not for GD, SA and J 		$2,240.52 1
7 138914
FRONT HEADLIGHT CONNECTION CABLES
Valid for CDN 		$55.60 2
8 153784
L.H. DOOR CONNECTION CABLES
Valid for GD Valid after stock exhaustion of 146741 Valid for bellows assembly 153703 See Table 118 Part. 23 		$435.66 1
8 153783
L.H. DOOR CONNECTION CABLES
Valid for M. 2.7 Not for GD Valid after stock exhaustion of 146740 -Valid for bellows assembly 153703 See Table 118 Part. 23 		$508.90 (10.3% off) 1
8 146740
LH DOOR CONNECTION CABLES
Valid for M. 2.7 Not for GD Valid till stock exhaustion Valid for bellows 138903 See Table 118 Part. 22 		$708.82 1
8 146741
LH DOOR CONNECTION CABLES
Valid for GD Valid till stock exhaustion Valid for bellows 138903 See Table 118 Part. 22 		$548.12 1
8 134430
LH DOOR CONNECTION CABLES
Valid for M. 2.5 Not for GD Valid for bellows 138903 See Table 11 8 Part. 22 		$414.92 1
9 134431
RH DOOR CONNECTION CABLES
Valid for M. 2.5 Not for GD Valid for bellows 138903 See Table 118 Part. 22 		$411.24 1
9 151100
RH DOOR CONNECTION CABLES
Valid for GD Valid till stock exhaustion Valid for bellows 138903 See Table 11 8 Part. 22 		- 1 Enquire
9 146741
LH DOOR CONNECTION CABLES
Valid for M. 2.7 Not for GD Valid till stock exhaustion Valid for bellows 138903 See Table 118 Part. 22 		$548.12 1
9 153784
L.H. DOOR CONNECTION CABLES
Valid for M. 2.7 Not for GD Validafterstock exhaustion of 146741 valid for bellows assembly 153703 see table118 part. 23 		$435.66 1
9 153785
R.H. DOOR CONNECTION CABLES
Valid for GD Valid after stock exhaustion of 1 51100 Valid for bellows assembly 153703 See Table 118 Part. 23 		$363.05 1
10 134429
CABLES FOR TUNNEL-CONSOLE CONNECTION
Valid for M. 2.5 		$325.15 1
10 139524
CABLES FOR TUNNEL CONSOLE CONNECTION
Valid for M. 2.7 Not for AUS 		$118.91 1
10 145772
CABLES FOR TUNNEL CONSOLE CONNECTION
Valid for AUS 		$141.22 1
11 151561
REAR CABLES
Valid for SA and J Valid for front battery cars 		$1,038.50 1
11 151560
REAR CABLES
Valid for CDN Valid for front battery cars 		$956.29 1
11 151558
REAR CABLES
Valid for AUS Valid for front battery cars 		$842.35 1
11 151332
REAR CABLES
Valid for Wl. 2.7 Not for CDN, AUS, SA and J Valid for front battery cars 		$935.63 1
11 146606
REAR CABLES
Valid for CDN Valid for rear battery cars 		- 1 Enquire
11 146917
REAR CABLES
Valid for M. 2.7 Not for CDN, AUS, SA and J Valid for rear battery cars 		$1,454.60 1
11 146156
REAR CABLES
Valid for SA and J Valid for rear battery cars 		$702.35 1
11 134428
REAR CABLES
Valid for Wl. 2.5 		$644.14 1
11 145761
REAR CABLES
Valid for AUS Valid for rear battery cars 		$871.54 1
12 134432
ROOF LIGHT CONNECTION CABLES 		$14.71 1
13 151912
CONNECTION CABLES FOR ENGINE UTILITIES
Valid for Wl. 2.7 Valid for front battery cars Valid from engine Nr. 30738 		$508.90 1
13 142747
CONNECTION CABLES FOR MOTOR UTILITIES
Valid for M. 2.7 Valid for rear battery cars 		$491.28 1
13 151333
CONNECTION CABLES FOR MOTOR UTILITIES
Valid for M. 2.7 Valid for front battery cars Valid till engine Nr. 30737 		$338.93 1
13 134433
CONNECTION CABLES FOR MOTOR UTILITIES
Valid for Wl. 2.5 		$173.42 1
14 134435
CABLES FOR LH MAIN BEARINGS CONNECTION
Valid for M. 2.5 Not for catalyzed cars 		$1,305.75 1
14 139491
CABLES FOR LH MAIN BEARINGS CONNECTION
Valid for M. 2.5 Valid for catalyzed cars 		$594.58 1
14 143207
CABLES FOR LH SIDE ENGINE CONNECTION
Valid for Wl. 2.7 Not for SA and ZA 		$735.10 1
14 146608
CABLES FOR LH. MAIN BEARINGS CONNECTION
Valid for Wl. 2.7 Valid for SA Valid for ZA till car Nr. 90965 		$666.94 1
