Central Part Structures

Ferrari 348 TS (1993)

Find Your Part

Ferrari 348 TS (1993) - Central Part Structures

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
63336300 COMPLETE FLOOR $16,044.17 To Order
63313100 COMPLETE FLOOR $927.65 To Order
63336500 COMPLETE FLOOR $924.86 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
62091800 MOVING FRAME FIXING CROSS MEMBER $490.02 To Order
Photo Part No Description Price (each) Stock
62807400 REINFORCEMENT L.H. BRACKET $12.29 To Order
62642900 REINFORCEMENT R.H. BRACKET $9.50 To Order
Photo Part No Description Price (each) Stock
63573400 COMPLETE REAR FRAMEWORK $895.26 To Order
63573200 COMPLETE REAR FRAMEWORK $886.61 To Order
63572700 COMPLETE REAR FRAMEWORK $1,171.81 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
62055300 BRACKET $31.65 To Order
Photo Part No Description Price (each) Stock
62077400 EXTERNAL COVERING FOR LH SIDE MEMBER $593.52 To Order
62077300 EXTERNAL COVERING FOR RH SIDE MEMBER $478.80 To Order
Photo Part No Description Price (each) Stock
62088600 COMPLETE FRAMEWORK FOR LH DOOR $467.40 To Order
62088500 COMPLETE FRAMEWORK FOR RH DOOR $467.40 To Order
Photo Part No Description Price (each) Stock
62069000 INTERNAL PLATE FOR LH SIDE MEMBER $27.12 To Order
62068900 INTERNAL PLATE FOR RH SIDE MEMBER $27.12 To Order
63310800 INTERNAL PLATE FOR RH SIDE MEMBER $43.62 To Order
Photo Part No Description Price (each) Stock
62913400 LH BRACKET $20.57 To Order
62990400 RH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
62164100 L.H. PLATE WITH REINFORCEMENT $45.22 To Order
62164000 R.H. PLATE WITH REINFORCEMENT $45.22 To Order
Photo Part No Description Price (each) Stock
14506987 CAP $4.55 To Order
Photo Part No Description Price (each) Stock
14506587 PLUG $0.20 IN STOCK
Photo Part No Description Price (each) Stock
952336 BLANKING PLUG $4.96 IN STOCK
62446300 D. 30 PLUG $11.45 To Order
Photo Part No Description Price (each) Stock
14507987 PLUG $1.72 IN STOCK
Photo Part No Description Price (each) Stock
62080200 L.H. PILLAR BOX-TYPE $73.86 To Order
62080100 R.H. PILLAR BOX-TYPE $65.65 To Order
View All

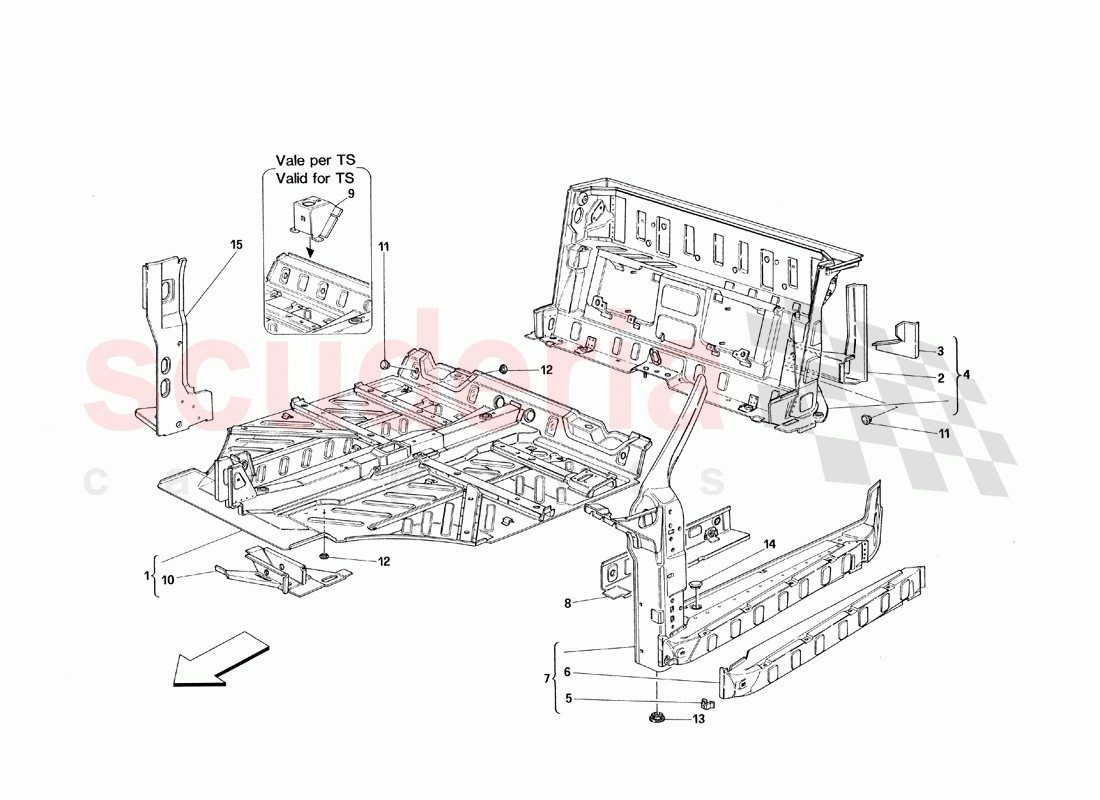

Central Part Structures of Ferrari Ferrari 348 TS (1993) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 63336300
COMPLETE FLOOR
Not for GD Valid from car Nr. 94910 TS and Nr. 94269 USA TS 		$16,044.17 1
1 63313100
COMPLETE FLOOR
Valid for GD Valid till car Nr. 94909 TS 		$927.65 1
1 63336500
COMPLETE FLOOR
Valid for GD Valid from car Nr. 94910 TS 		$924.86 1
1 70000607
COMPLETE FLOOR
Not for GD Valid till car Nr. 94909 TS and Nr. 94268 USA TS 		$1,056.92 1
2 62091800
MOVING FRAME FIXING CROSS MEMBER
Without brackets 3 		$490.02 1
3 62807400
REINFORCEMENT L.H. BRACKET 		$12.29 1
3 62642900
REINFORCEMENT R.H. BRACKET 		$9.50 1
4 63573400
COMPLETE REAR FRAMEWORK
valid for USA Valid for TS valid from car nr. 94263 		$895.26 1
4 63573200
COMPLETE REAR FRAMEWORK
Valid for GD Valid for TS Valid from car Nr. 94910 		$886.61 1
4 63572700
COMPLETE REAR FRAMEWORK
Valid for catalyzed cars Valid for SA Not for USA and GD Valid for TS Valid from car Nr. 94910 		$1,171.81 1
4 63231400
COMPLETE REAR FRAMEWORK
Valid for GD Valid for TB Valid till car Nr. 94909 TS 		$941.05 1
4 63572700
COMPLETE REAR FRAMEWORK
Valid for catalyzed cars Valid for SA Not for USA and GD Valid for TB Valid till car Nr. 94909 TS 		$1,171.81 1
4 62889300
COMPLETE REAR FRAMEWORK
Valid for USA Valid for TB Valid till car Nr. 94268 TS 		$1,809.73 1
4 62171700
COMPLETE REAR FRAMEWORK
Valid for M.Y. 89 GD 		$707.54 1
4 62091600
COMPLETE REAR FRAMEWORK
Valid for M.Y. 89 Not for catalyzed cars Not for GD and SA 		$1,479.80 1
5 62055300
BRACKET 		$31.65 2
6 62077400
EXTERNAL COVERING FOR LH SIDE MEMBER 		$593.52 1
6 62077300
EXTERNAL COVERING FOR RH SIDE MEMBER 		$478.80 1
7 62088600
COMPLETE FRAMEWORK FOR LH DOOR 		$467.40 1
7 62088500
COMPLETE FRAMEWORK FOR RH DOOR 		$467.40 1
8 62069000
INTERNAL PLATE FOR LH SIDE MEMBER 		$27.12 1
8 62068900
INTERNAL PLATE FOR RH SIDE MEMBER
Valid for USA till car Ass. Nr. 6500 		$27.12 1
8 63310800
INTERNAL PLATE FOR RH SIDE MEMBER
Valid for USA Valid from car Ass. Nr. 6501 		$43.62 1
9 62913400
LH BRACKET
Valid for TS Valid till car Nr. 94909 TS and Nr. 94268 USA TS 		$20.57 1
9 62990400
RH BRACKET
Valid for TS Valid till car Nr. 94909 TS and Nr. 94268 USA TS 		- 1 Enquire
10 62164100
L.H. PLATE WITH REINFORCEMENT 		$45.22 1
10 62164000
R.H. PLATE WITH REINFORCEMENT 		$45.22 1
11 14506987
CAP 		$4.55 (19% off) 10
12 14506587
PLUG
IN STOCK 		$0.20 (66.7% off) 1
13 952336
BLANKING PLUG
IN STOCK 		$4.96 4
13 62446300
D. 30 PLUG 		$11.45 (29.8% off) 4
14 14507987
PLUG
IN STOCK 		$1.72 (29.8% off) 2
15 62080200
L.H. PILLAR BOX-TYPE 		$73.86 1
15 62080100
R.H. PILLAR BOX-TYPE 		$65.65 1
