Roof - Outer Trims

Ferrari 348 TS (1993)

Find Your Part

Ferrari 348 TS (1993) - Roof - Outer Trims

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
62181100 TAIL WINDSHIELD TRIM $120.25 To Order
62183900 TAIL WINDSHIELD TRIM $210.51 To Order
Photo Part No Description Price (each) Stock
62059900 RH OUTER TRIM FOR WINDSHIELD VERTICAL ROD $260.70 To Order
Photo Part No Description Price (each) Stock
62083700 R.H. REAR VERTICAL ROD $534.04 To Order
Photo Part No Description Price (each) Stock
62062000 ROOF UPHOLSTERY $382.37 To Order
63234900 ROOF UPHOLSTERY $2,237.69 To Order
Photo Part No Description Price (each) Stock
63236200 ROOF UPHOLSTERY $364.33 To Order
62110700 ROOF UPHOLSTERY $382.37 To Order
Photo Part No Description Price (each) Stock
62062100 R.H. FIN TRIM $122.52 To Order
Photo Part No Description Price (each) Stock
62062200 L.H. FIN TRIM $122.52 To Order
Photo Part No Description Price (each) Stock
62083800 L.H. REAR VERTICAL ROD $60.71 To Order
Photo Part No Description Price (each) Stock
62060000 LH OUTER TRIM FOR WINDSHIELD VERTICAL ROD $69.82 To Order
Photo Part No Description Price (each) Stock
62080400 L.H. INNER VERTICAL ROD $508.62 To Order
62080300 R.H. INNER VERTICAL ROD $96.65 To Order
Photo Part No Description Price (each) Stock
62110800 WINDSHIELD UPPER CROSSPIECE TRIM $713.50 To Order
Photo Part No Description Price (each) Stock
63238700 THICKNESS -Valid for GTS- $4.62 To Order
Photo Part No Description Price (each) Stock
62219400 HANDLE -Valid for GTS- $863.07 To Order
Photo Part No Description Price (each) Stock
14303282 SCREW -Valid for GTS- $0.90 To Order
Photo Part No Description Price (each) Stock
62981500 L.H. COVER -Grey- $188.83 To Order
630199 L.H. COVER -Made of leather- Enquire To Order
62982100 L.H. COVER -Red- $155.63 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
63634500 PIN -Valid for GTS- $82.64 To Order
Photo Part No Description Price (each) Stock
63635603 COMPLETE SUN ROOF $3,934.79 To Order
636357 COMPLETE SUN ROOF Enquire To Order
636356 COMPLETE SUN ROOF Enquire To Order
Photo Part No Description Price (each) Stock
63528600 LH. TROUGH $205.04 To Order
63528500 RH TROUGH $205.04 To Order
Photo Part No Description Price (each) Stock
62890500 L.H. ANGLE PIECE -Valid for GTS- $51.49 To Order
62890000 R.H. ANGLE PIECE -Valid for GTS- $51.49 To Order
Photo Part No Description Price (each) Stock
63506400 L.H. GASKET -Valid for GTS- $133.70 To Order
63506300 R.H. GASKET -Valid for GTS- $133.70 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
63635100 ROOF LOCKING FRONT STRIKER $22.86 To Order
Photo Part No Description Price (each) Stock
62113200 THICKNESS -Valid for GTS- $0.77 To Order
Photo Part No Description Price (each) Stock
143764 RADIO ANTENNA $25.90 To Order
Photo Part No Description Price (each) Stock
63635200 SPACER -Valid for GTS- $46.36 To Order
Photo Part No Description Price (each) Stock
12642777 WASHER -Valid for GTS- $0.35 To Order
Photo Part No Description Price (each) Stock

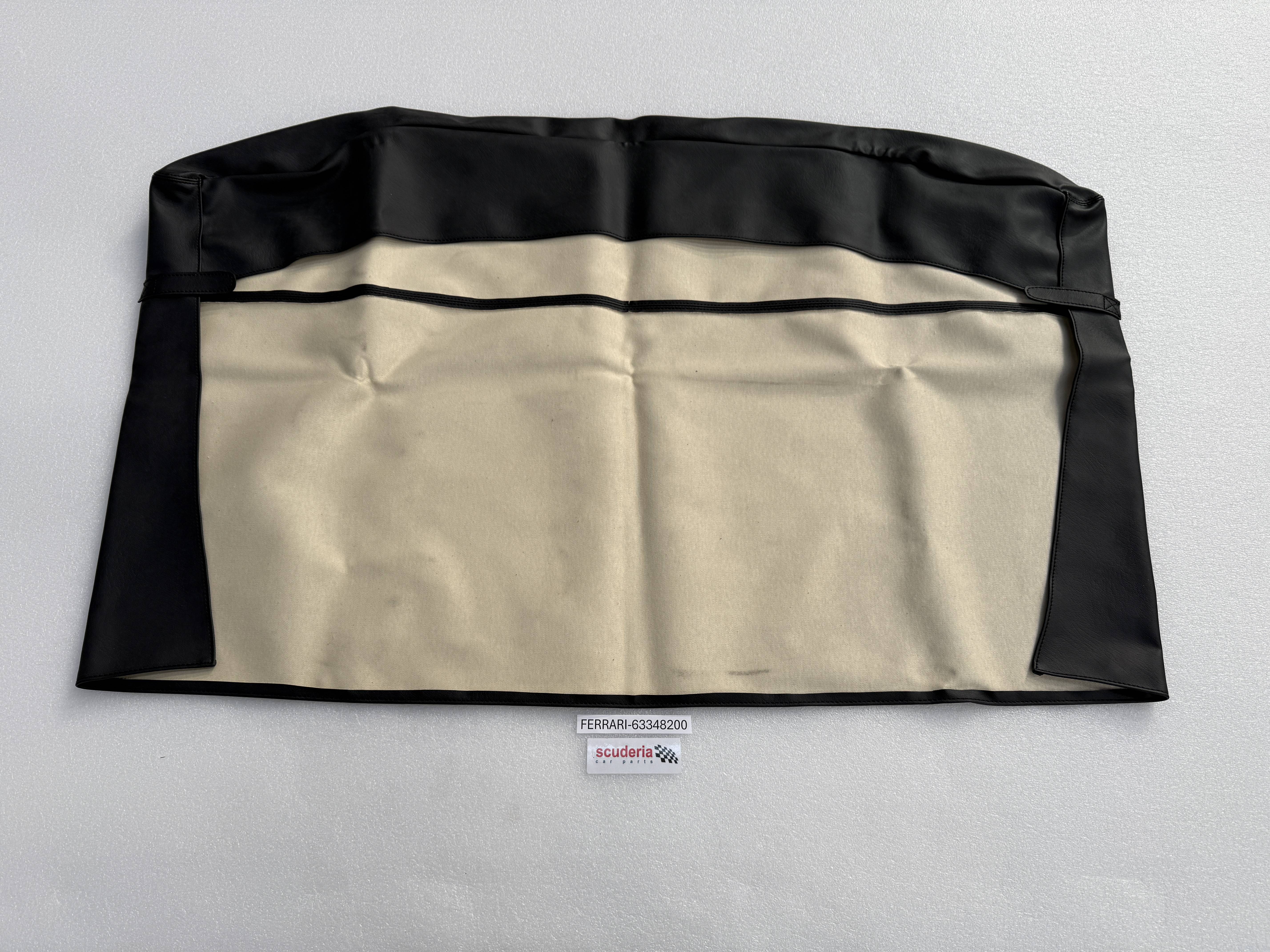

63348200 COMPLETE ROOF OVERLAP $1,107.01 IN STOCK
Photo Part No Description Price (each) Stock
63336200 ROOF COVER CONTAINING ENVELOPE $481.20 To Order
Photo Part No Description Price (each) Stock
15914977 SCREW -Valid for GTS- $0.81 To Order
Photo Part No Description Price (each) Stock
63932300 THICKNESS mm. 3 -Valid for GTS- $4.06 IN STOCK
60399003 THICKNESS mm. 1 -Valid for GTS- $5.75 To Order
Photo Part No Description Price (each) Stock
62089400 L.H. BRACKET $9.98 To Order
62821500 R.H. BRACKET $15.67 To Order
View All

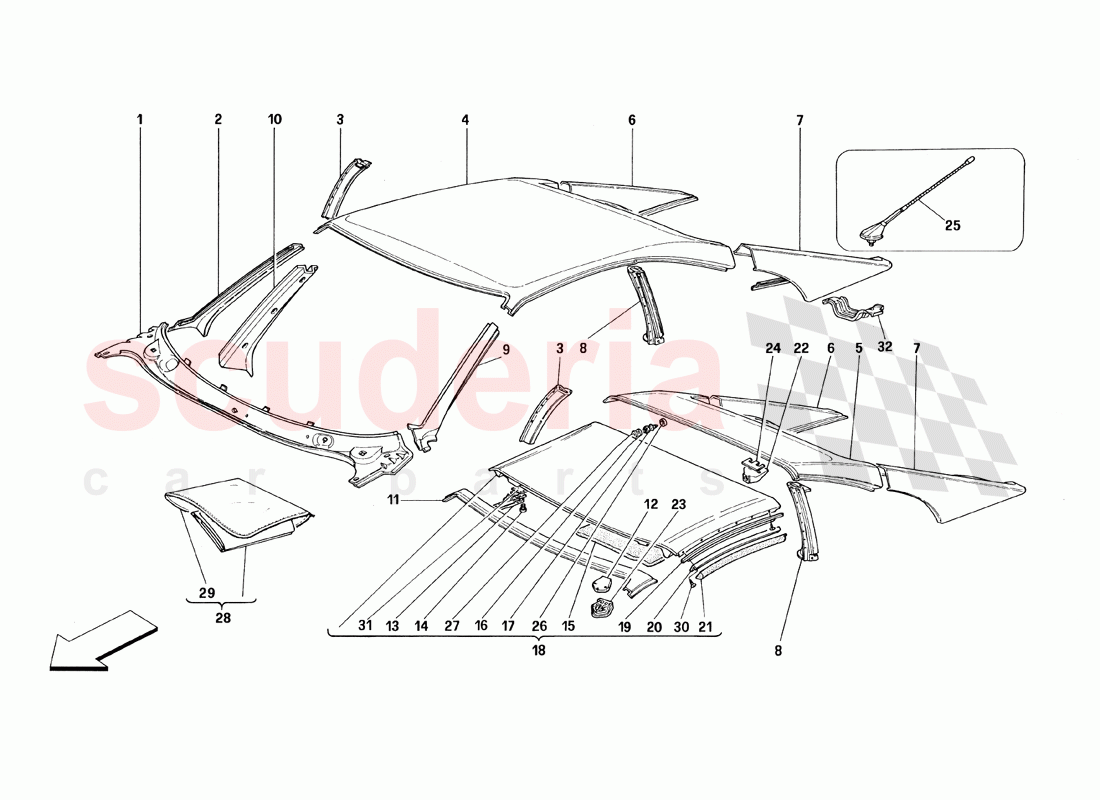

Roof - Outer Trims of Ferrari Ferrari 348 TS (1993) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 62181100
TAIL WINDSHIELD TRIM
Not for GD 		$120.25 1
1 62183900
TAIL WINDSHIELD TRIM
Valid for GD 		$210.51 1
2 62059900
RH OUTER TRIM FOR WINDSHIELD VERTICAL ROD 		$260.70 1
3 62083700
R.H. REAR VERTICAL ROD 		$534.04 1
4 62062000
ROOF UPHOLSTERY
Valid for TB With antenna hole 		$382.37 1
4 63234900
ROOF UPHOLSTERY
Valid for TB Without antenna hole 		$2,237.69 1
5 63236200
ROOF UPHOLSTERY
Valid for TS Without antenna hole 		$364.33 1
5 62110700
ROOF UPHOLSTERY
Valid for TS With antenna hole 		$382.37 1
6 62062100
R.H. FIN TRIM 		$122.52 1
7 62062200
L.H. FIN TRIM 		$122.52 1
8 62083800
L.H. REAR VERTICAL ROD 		$60.71 1
9 62060000
LH OUTER TRIM FOR WINDSHIELD VERTICAL ROD 		$69.82 1
10 62080400
L.H. INNER VERTICAL ROD 		$508.62 1
10 62080300
R.H. INNER VERTICAL ROD 		$96.65 1
11 62110800
WINDSHIELD UPPER CROSSPIECE TRIM 		$713.50 1
12 63238700
THICKNESS -Valid for GTS-
Valid for TS Possible fitting 		$4.62 2
13 62219400
HANDLE -Valid for GTS-
Valid for TS 		$863.07 2
14 14303282
SCREW -Valid for GTS-
Valid for TS 		$0.90 8
15 62981500
L.H. COVER -Grey-
Grey Made of cloth ValidforTS 		$188.83 1
15 630199
L.H. COVER -Made of leather-
Made of leather valid for TS 		- 1 Enquire
15 62982100
L.H. COVER -Red-
Red Made of cloth ValidforTS 		$155.63 1
15 62982300
L.H. COVER -Blue-
Blue Made of cloth Valid for TS 		$171.18 1
15 62981900
L.H. COVER -Beige-
Beige Made of cloth Valid for TS 		$161.92 1
15 62982200
R.H. COVER -Blue-
Blue Made of cloth Valid for TS 		$171.18 1
15 62981800
R.H. COVER -Beige-
Beige Made of cloth Valid for TS 		$161.92 1
15 62982000
R.H. COVER -Red-
Red Made of cloth ValidforTS 		$155.63 1
15 62981400
R.H. COVER -Grey-
Grey Made of cloth Valid for TS 		$188.83 1
15 630198
R.H. COVER -Made of leather-
Made of leather Valid for TS 		- 1 Enquire
16 12601374
WASHER D.8.40-15 X 0.8
valid for TS
IN STOCK 		$0.02 (92% off) 2
17 63634500
PIN -Valid for GTS-
Valid for TS See Variation Introduction Card No. 140 		$82.64 2
18 63635603
COMPLETE SUN ROOF
Valid for TS Covering made of cloth grey colour 		$3,934.79 1
18 636357
COMPLETE SUN ROOF
Valid for TS Covering made of leather 		- 1 Enquire
18 636356
COMPLETE SUN ROOF
Valid for TS Covering made of cloth 		- 1 Enquire
19 63528600
LH. TROUGH
Valid for TS Valid till stock exhaustion 		$205.04 1
19 63528500
RH TROUGH
Valid for TS Valid till stock exhaustion 		$205.04 1
20 62890500
L.H. ANGLE PIECE -Valid for GTS-
Valid for TS 		$51.49 1
20 62890000
R.H. ANGLE PIECE -Valid for GTS-
Valid for TS 		$51.49 1
21 63506400
L.H. GASKET -Valid for GTS-
Valid for TS 		$133.70 (30.2% off) 1
21 63506300
R.H. GASKET -Valid for GTS-
Valid for TS 		$133.70 (68.6% off) 1
22 10902424
SCREW
Valid for TS See Variation Introduction Card No.
IN STOCK 		$0.14 (80% off) 2
23 63635100
ROOF LOCKING FRONT STRIKER 		$22.86 2
24 62113200
THICKNESS -Valid for GTS-
Valid for TS Possible fitting 		$0.77 2
25 143764
RADIO ANTENNA 		$25.90 1
26 63635200
SPACER -Valid for GTS-
Valid for TS See Variation Introduction Card No. 140 		$46.36 2
27 12642777
WASHER -Valid for GTS-
Valid for TS Possible fitting See Variation Introduction Card No. 140 		$0.35 4
28 63348200
COMPLETE ROOF OVERLAP
Valid for TS
IN STOCK 		$1,107.01 1
29 63336200
ROOF COVER CONTAINING ENVELOPE
Valid for TS see relevant table for codes of parts covered in leather or moquette and for tha complete series of floor carpets and moquette upholstery 		$481.20 1
30 15914977
SCREW -Valid for GTS- 		$0.81 (61.4% off) 12
31 63932300
THICKNESS mm. 3 -Valid for GTS-
mm. 1 Valid for TS Possible fitting
IN STOCK 		$4.06 2
31 60399003
THICKNESS mm. 1 -Valid for GTS-
Valid for TS 		$5.75 2
32 62089400
L.H. BRACKET 		$9.98 1
32 62821500
R.H. BRACKET
mm. 3 Valid for TS Possible fitting 		$15.67 1
