Front Part Structures

Ferrari 348 TS (1993)

Find Your Part

Ferrari 348 TS (1993) - Front Part Structures

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
62166000 BRACKET FOR CONTROL UNIT FIXING $181.64 To Order
Photo Part No Description Price (each) Stock
62068300 LH BRACKET FOR FRONT HOOD LOCK $40.86 To Order
62068200 RH BRACKET FOR FRONT HOOD LOCK $40.86 To Order
Photo Part No Description Price (each) Stock
63540800 TRUNK BOTTOM $902.05 To Order
63589300 TRUNK BOTTOM -Not for GD- $424.20 To Order
63589300 TRUNK BOTTOM -Not for GD- $424.20 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
63537200 L.H. LIGHT AROUND FRAMEWORK $537.97 To Order
64299200 R.H. LIGHT AROUND FRAMEWORK $537.97 To Order
Photo Part No Description Price (each) Stock
63597700 REINFORCEMENT FOR FRONT LH SIDE STRUCTURE $170.37 To Order
63597600 REINFORCEMENT FOR FRONT RH SIDE STRUCTURE $209.91 To Order
Photo Part No Description Price (each) Stock
62096300 FRONT REINFORCEMENT FOR LH SIDE STRUCTURE $51.65 To Order
63343800 FRONT REINFORCEMENT FOR LH SIDE STRUCTURE $47.97 To Order
62096200 FRONT REINFORCEMENT FOR RH SIDE STRUCTURE $15.00 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
63315600 COMPLETE FRONT FRAMEWORK $380.52 To Order
64312800 COMPLETE FRONT FRAMEWORK $1,018.39 To Order
Photo Part No Description Price (each) Stock
70000611 UPPER CROSS MEMBER FOR FRONT FRAMEWORK $676.92 To Order
Photo Part No Description Price (each) Stock
63505200 LH FRONT LATERAL STRUCTURE ASSEMBLY Enquire To Order
63618400 LH FRONT LATERAL STRUCTURE ASSEMBLY $1,149.15 To Order
63640200 LH FRONT LATERAL STRUCTURE ASSEMBLY $2,218.72 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
62083100 L.H. LOWER SPRAG $332.95 To Order
62083000 R.H. LOWER SPRAG $332.95 To Order
Photo Part No Description Price (each) Stock
63541100 L.H. UPPER SPRAG $183.75 To Order
63347700 LH. UPPER SPRAG Enquire To Order
63510300 L.H. UPPER SPRAG $117.63 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
63510100 SPRAGS L.H. LATERAL WALL $390.41 To Order
62182100 SPRAGS R.H. LATERAL WALL $257.99 To Order
Photo Part No Description Price (each) Stock
65290900 RH FENDER SUPPORT WALL $704.75 To Order
64899400 R.H. FENDER SUPPORT WALL $502.23 To Order
Photo Part No Description Price (each) Stock
65335000 L.H. FRONT WHEELHOUSE $201.72 To Order
65354800 L.H. FRONT WHEELHOUSE $1,224.82 To Order
62986500 LH. FRONT WHEELHOUSE $143.54 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
62165400 WINDSHIELD WASHER BAG FIXING BRACKET $12.71 To Order
Photo Part No Description Price (each) Stock
62165600 DEHYDRATOR FILTER FIXING BRACKET $12.36 To Order
Photo Part No Description Price (each) Stock
62678500 PLUG FOR HOLE $5.43 IN STOCK
Photo Part No Description Price (each) Stock
62921200 PLUG $38.03 To Order
Photo Part No Description Price (each) Stock
62121200 BUMPER FIXING BRACKET $7.72 To Order
Photo Part No Description Price (each) Stock
63013000 R.H. PLUG $2.86 IN STOCK
Photo Part No Description Price (each) Stock
63512800 GASKET $3.07 To Order
Photo Part No Description Price (each) Stock
63381800 PLATE FOR BATTERY SUPPORT $77.45 To Order
Photo Part No Description Price (each) Stock
63512300 BRACKET FOR BATTERY CUT OUT SWITCH $41.16 To Order
View All

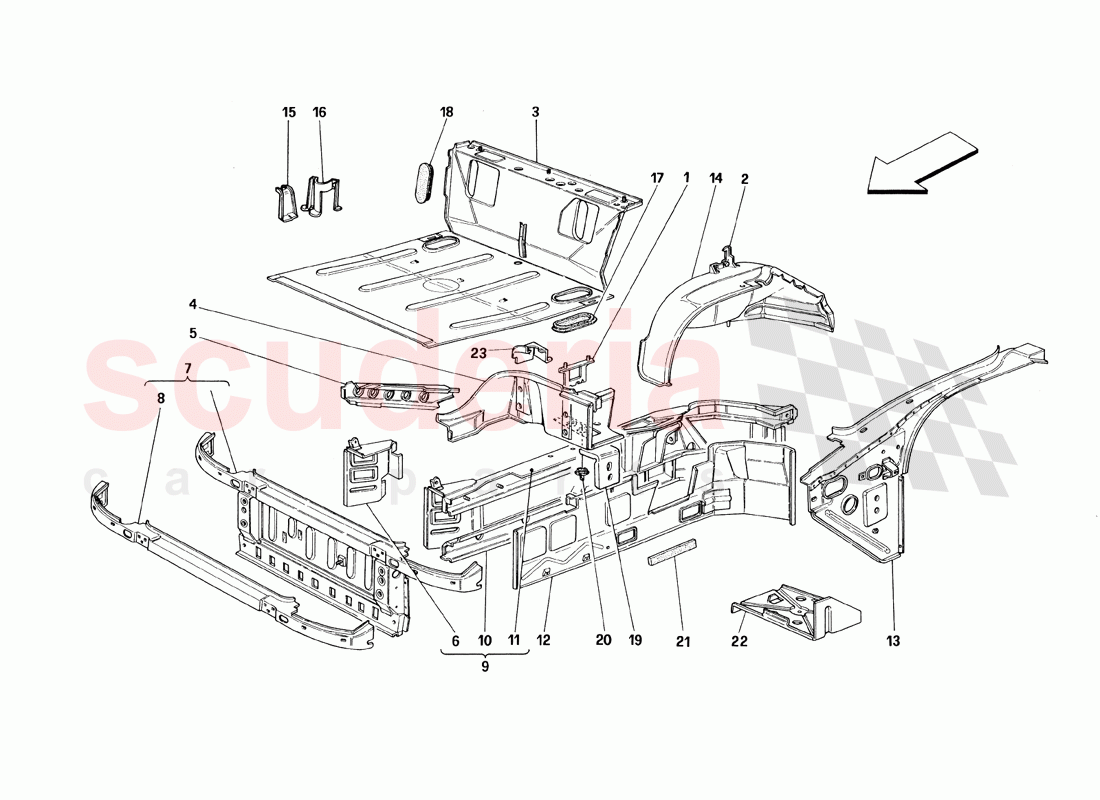

Front Part Structures of Ferrari Ferrari 348 TS (1993) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 63343900
R.H FRONT LATERAL STRUCTURE ASSEMBLY
Valid for CDN Valid till car Nr. 95080 TB,Nr. 94925 TS 		- 1 Enquire
- 63640300
R.H FRONT LATERAL STRUCTURE ASSEMBLY
Valid foi CDN Valid from car Nr. 95081 TB,Nr. 94926 TS 		$1,333.92 1
- 63640100
R.H FRONT LATERAL STRUCTURE ASSEMBLY
Valid for GD 		$1,141.91 1
- 63618300
RH FRONT LATERAL STRUCTURE ASSEMBLY
Not for CDN and GD Valid till stock exhaustion 		$1,149.15 1
1 62166000
BRACKET FOR CONTROL UNIT FIXING 		$181.64 1
2 62068300
LH BRACKET FOR FRONT HOOD LOCK 		$40.86 1
2 62068200
RH BRACKET FOR FRONT HOOD LOCK 		$40.86 1
3 63540800
TRUNK BOTTOM
Valid for GD Valid till stock exhaustion 		$902.05 1
3 63589300
TRUNK BOTTOM -Not for GD-
Not for GD Valid till stock exhaustion 		$424.20 (26.4% off) 1
3 63589300
TRUNK BOTTOM -Not for GD- 		$424.20 (26.4% off) 1
3 63589300
TRUNK BOTTOM -Not for GD-
Not for GD Valid from car Nr. 95081 TB,Nr. 94926 TS and Nr. 94269 USA TS 		$424.20 (26.4% off) 1
3 63589900
TRUNK BOTTOM -Valid for GD-
Valid for GD Valid from car Nr. 95081 TB and Nr. 94926 TS 		$902.05 1
4 63537200
L.H. LIGHT AROUND FRAMEWORK
Completed with bracket 1 		$537.97 1
4 64299200
R.H. LIGHT AROUND FRAMEWORK
Completed with brackets 15 and 16 		$537.97 1
5 63597700
REINFORCEMENT FOR FRONT LH SIDE STRUCTURE 		$170.37 1
5 63597600
REINFORCEMENT FOR FRONT RH SIDE STRUCTURE 		$209.91 1
6 62096300
FRONT REINFORCEMENT FOR LH SIDE STRUCTURE
Not for CON 		$51.65 1
6 63343800
FRONT REINFORCEMENT FOR LH SIDE STRUCTURE
Valid for CON 		$47.97 1
6 62096200
FRONT REINFORCEMENT FOR RH SIDE STRUCTURE
Not for CON 		$15.00 1
6 63343700
FRONT REINFORCEMENT FOR RH SIDE STRUCTURE
Valid for CON 		$47.97 1
7 63315600
COMPLETE FRONT FRAMEWORK
Valid for CON 		$380.52 1
7 64312800
COMPLETE FRONT FRAMEWORK
Not for CON 		$1,018.39 1
8 70000611
UPPER CROSS MEMBER FOR FRONT FRAMEWORK 		$676.92 1
9 63505200
LH FRONT LATERAL STRUCTURE ASSEMBLY
Valid for CDN Valid till car Nr. 95080 TB,Nr. 94925 TS 		- 1 Enquire
9 63618400
LH FRONT LATERAL STRUCTURE ASSEMBLY
Not for CDN and GD Valid till stock exhaustion 		$1,149.15 1
9 63640200
LH FRONT LATERAL STRUCTURE ASSEMBLY
Valid for GD 		$2,218.72 1
9 63640400
LH FRONT LATERAL STRUCTURE ASSEMBLY
Valid for CDN Valid from car Nr. 95081 TB,Nr. 94926 TS 		- 1 Enquire
10 62083100
L.H. LOWER SPRAG
Without reinforcements 		$332.95 1
10 62083000
R.H. LOWER SPRAG
Without reinforcements 		$332.95 1
11 63541100
L.H. UPPER SPRAG
Valid for CDN Valid for front battery cars 		$183.75 1
11 63347700
LH. UPPER SPRAG
Valid for CDN Valid for rear battery cars 		- 1 Enquire
11 63510300
L.H. UPPER SPRAG
Not for CDN 		$117.63 1
11 62175200
R.H. UPPER SPRAG
Not for CDD 		$176.29 1
11 63347600
R.H. UPPER SPRAG
Valid for CDN 		- 1 Enquire
12 63510100
SPRAGS L.H. LATERAL WALL 		$390.41 1
12 62182100
SPRAGS R.H. LATERAL WALL 		$257.99 1
13 65290900
RH FENDER SUPPORT WALL 		$704.75 1
13 64899400
R.H. FENDER SUPPORT WALL 		$502.23 1
14 65335000
L.H. FRONT WHEELHOUSE
Not for GD valid till car nr. 95080 TB Nr. 94925 TS and Nr. 94268 USA TS 		$201.72 1
14 65354800
L.H. FRONT WHEELHOUSE
Valid for GD Valid from car Nr. 95081 TB and Nr. 94926 TS 		$1,224.82 1
14 62986500
LH. FRONT WHEELHOUSE
Valid for GD Valid till car Nr. 95080 TB and Nr. 94925 TS 		$143.54 1
14 65335000
L.H. FRONT WHEELHOUSE
Not for GD Valid from car Nr. 95081 TB,Nr. 94926 TS and Nr. 94269 USA TS 		$201.72 1
14 63590100
R.H. FRONT WHEELHOUSE
Valid for GD Valid from car Nr. 95081 TB and Nr. 94926 TS 		$194.91 1
14 63589700
R.H. FRONT WHEELHOUSE
Not for GD Valid from car Nr. 95081 TB,Nr. 94926 TS and Nr. 94269 USA TS 		$282.53 1
14 62986400
RH FRONT WHEELHOUSE
Valid for GD Valid till car Nr. 95080 TB and Nr. 94925 TS 		$139.36 1
14 63589700
R.H. FRONT WHEELHOUSE
Not for GD Valid till car Nr. 95080 TB,Nr. 94925 TS and Nr. 94268 USATS 		$282.53 1
15 62165400
WINDSHIELD WASHER BAG FIXING BRACKET 		$12.71 (10.3% off) 1
16 62165600
DEHYDRATOR FILTER FIXING BRACKET 		$12.36 1
17 62678500
PLUG FOR HOLE
IN STOCK 		$5.43 (36.1% off) 2
18 62921200
PLUG 		$38.03 2
19 62121200
BUMPER FIXING BRACKET 		$7.72 2
20 63013000
R.H. PLUG
IN STOCK 		$2.86 2
21 63512800
GASKET
valid for front battery cars 		$3.07 1
22 63381800
PLATE FOR BATTERY SUPPORT
valid for front battery cars 		$77.45 1
23 63512300
BRACKET FOR BATTERY CUT OUT SWITCH
valid for front battery cars 		$41.16 1
