Name: Air Conditioning Compressor
Rating: 5.0 (1 reviews)

View All

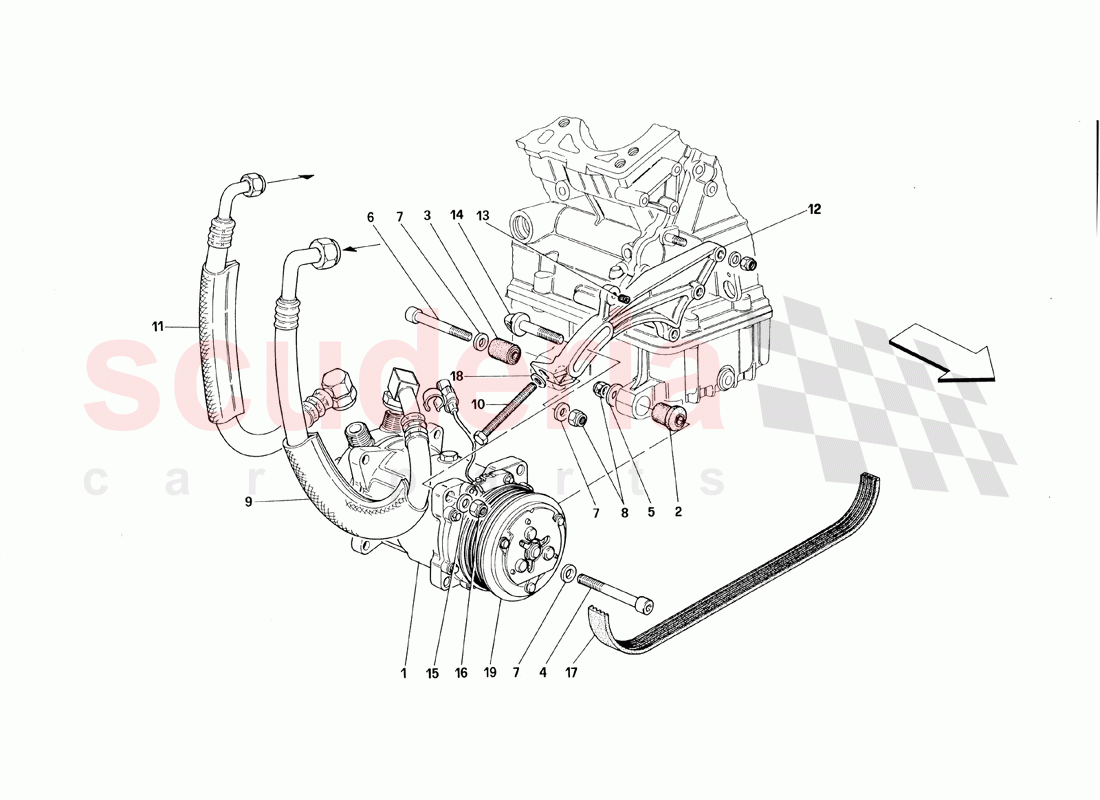

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	157355	COMPRESSOR (SANDEN SD7)	$1,478.73	To Order

Photo	Part No	Description	Price (each)	Stock
	137768	ESTENDBLOCK	$74.43	To Order

Photo	Part No	Description	Price (each)	Stock
	135108	ESTENDBLOCK	$12.91	To Order

Photo	Part No	Description	Price (each)	Stock
	101632	SCREW	$45.43	To Order

Photo	Part No	Description	Price (each)	Stock
	12626224	WASHER	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14308121	SCREW	$3.12	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62642800	RETURN TUBE	$593.30	To Order

Photo	Part No	Description	Price (each)	Stock
	125668	SCREW	$0.93	To Order

Photo	Part No	Description	Price (each)	Stock
	62642300	DELIVERY TUBE	$593.30	To Order

Photo	Part No	Description	Price (each)	Stock
	147639	BRACKET	$857.48	To Order

Photo	Part No	Description	Price (each)	Stock
	13525470	THREADED INSERT	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	139352	THREADED PIN	$76.82	To Order

Photo	Part No	Description	Price (each)	Stock
	128944	WASHER	$2.72	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	199819	COMPRESSOR CONTROL BELT	$26.46	To Order

Photo	Part No	Description	Price (each)	Stock
	14496501	WASHER	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	138331	ELECTRO MAGNETIC JOINT	$716.91	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	157355	COMPRESSOR (SANDEN SD7)	157355 COMPRESSOR (SANDEN SD7)	$1,478.73	1
2	137768	ESTENDBLOCK	137768 ESTENDBLOCK	$74.43	1
3	135108	ESTENDBLOCK	135108 ESTENDBLOCK	$12.91 MSRP: ~~25.06~~ (48.5% off)	1
4	101632	SCREW	101632 SCREW	$45.43 MSRP: ~~47.34~~ (4% off)	1
5	12626224	WASHER IN STOCK	12626224 WASHER IN STOCK	$0.20	1
6	14308121	SCREW	14308121 SCREW	$3.12	1
7	13578324	WASHER IN STOCK	13578324 WASHER IN STOCK	$0.21	5
8	102742	Nyloc Nut M10 x 1.25 x 10mm IN STOCK	102742 Nyloc Nut M10 x 1.25 x 10mm IN STOCK	$0.43 MSRP: ~~3.25~~ (86.8% off)	2
9	62642800	RETURN TUBE	62642800 RETURN TUBE	$593.30	1
10	125668	SCREW	125668 SCREW	$0.93 MSRP: ~~2.31~~ (59.7% off)	1
11	62642300	DELIVERY TUBE	62642300 DELIVERY TUBE	$593.30	1
12	147639	BRACKET	147639 BRACKET	$857.48	1
13	13525470	THREADED INSERT IN STOCK	13525470 THREADED INSERT IN STOCK	$0.50 MSRP: ~~2.50~~ (80% off)	1
14	139352	THREADED PIN	139352 THREADED PIN	$76.82	1
15	128944	WASHER	128944 WASHER	$2.72	1
16	102742	Nyloc Nut M10 x 1.25 x 10mm IN STOCK	102742 Nyloc Nut M10 x 1.25 x 10mm IN STOCK	$0.43 MSRP: ~~3.25~~ (86.8% off)	1
17	199819	COMPRESSOR CONTROL BELT	199819 COMPRESSOR CONTROL BELT On Exhaustion use 199819 (1mm Shorter)	$26.46 MSRP: ~~45.00~~ (41.2% off)	1
18	14496501	WASHER	14496501 WASHER	$0.15	1
19	138331	ELECTRO MAGNETIC JOINT	138331 ELECTRO MAGNETIC JOINT	$716.91	1

Air Conditioning Compressor

Ferrari 348 TB (1993)
