Fuel Pump and Pipes of Ferrari Ferrari 348 TB (1993)

View All

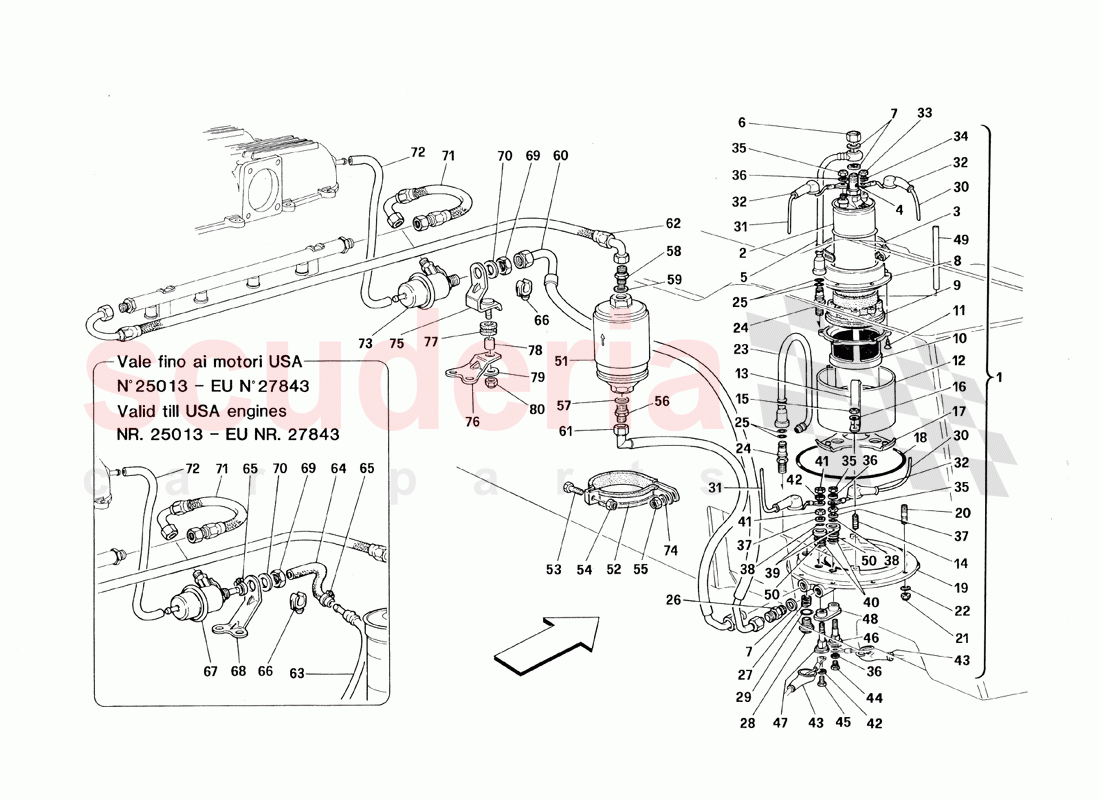

Ferrari 348 TB (1993) - Fuel Pump and Pipes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	155699	COMPLETE FUEL PUMP	$1,859.13	To Order

Photo	Part No	Description	Price (each)	Stock
	155592	FUEL PUMP	$720.80	IN STOCK

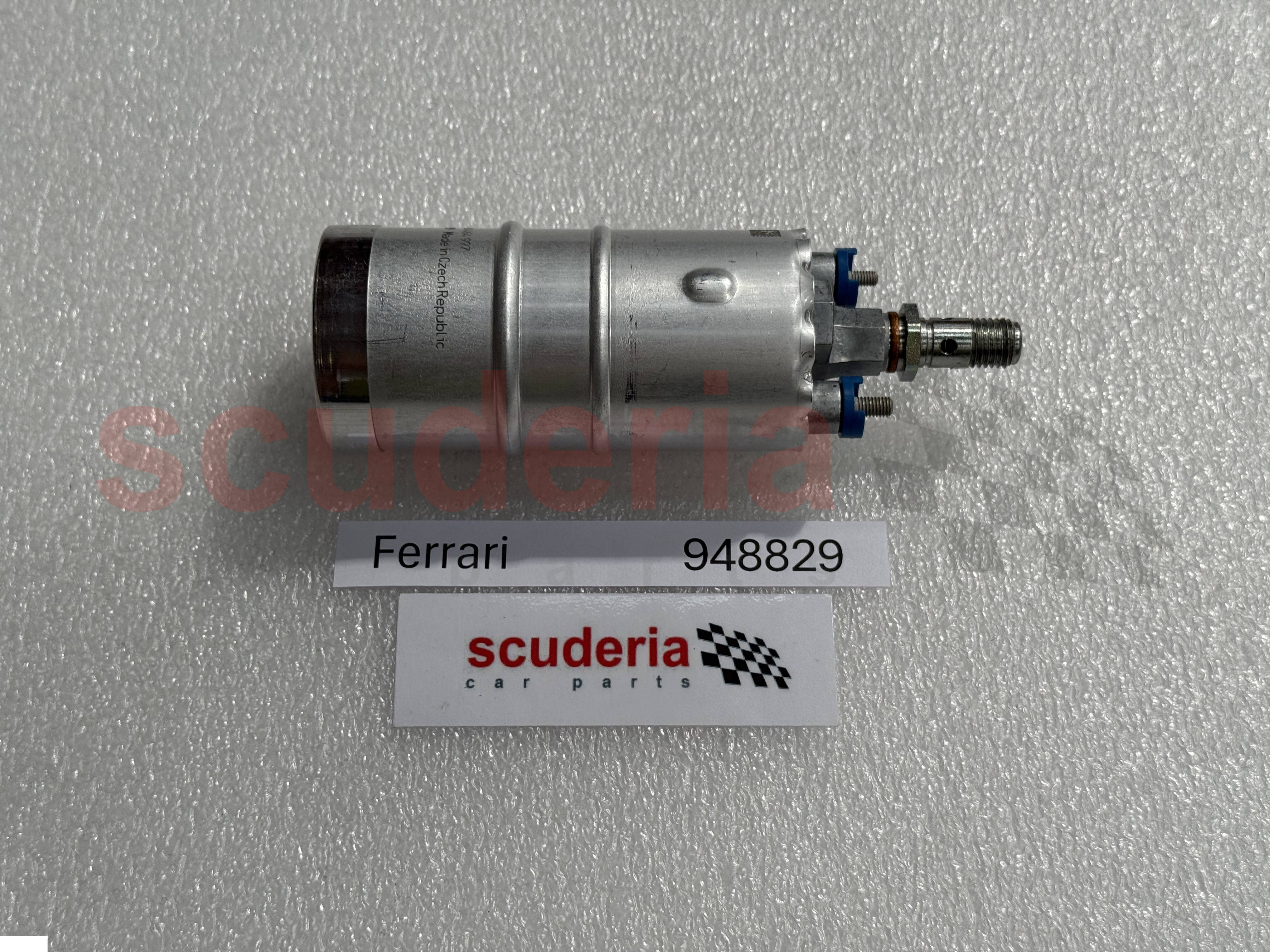

	948829	Fuel Pump	$325.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13000790	SCREW COLLAR	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	120098	Not return valve	$166.65	To Order

Photo	Part No	Description	Price (each)	Stock
	133967	FUEL PIPE	$128.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10183217	PLUG FOR UNION	$77.75	To Order

Photo	Part No	Description	Price (each)	Stock
	11270160	COPPER WASHER	$1.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	168880	FUEL FILTER COVER	$26.91	To Order

Photo	Part No	Description	Price (each)	Stock
	144232	FUEL PUMP MOUNT GASKET	$60.59	IN STOCK
	126809	GASKET	$139.58	To Order

Photo	Part No	Description	Price (each)	Stock
	780250	FUEL FILTER	$115.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15671101	SCREW	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	126806	Chamber	$46.43	To Order

Photo	Part No	Description	Price (each)	Stock
	137577	BRACKET	$38.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11000924	Stud bolt	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	13677911	NUT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	10730021	WASHER	$0.09	To Order

Photo	Part No	Description	Price (each)	Stock
	126807	Anti Vibration Pad	$35.54	To Order

Photo	Part No	Description	Price (each)	Stock
	138453	O-RING FUEL PUMP	$46.51	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	139454	FUEL PUMP COVER	$582.13	To Order

Photo	Part No	Description	Price (each)	Stock
	11500224	STUD BOLT	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	19575491	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133968	FUEL FLOWING BACK PIPE	$95.44	To Order

Photo	Part No	Description	Price (each)	Stock
	133950	UNION	$55.29	To Order

Photo	Part No	Description	Price (each)	Stock
	133956	O-RING	$0.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127756	UNION	$8.78	To Order

Photo	Part No	Description	Price (each)	Stock
	103388	THREADED INSERT	$13.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	134713	PLUG	$13.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	134233	O-RING	$0.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	139519	POSITIVE CABLE	$60.94	To Order

Photo	Part No	Description	Price (each)	Stock
	146660	NEGATIVE CABLE	$190.34	To Order

Photo	Part No	Description	Price (each)	Stock
	130146	TERMINAL BOOT	$8.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	899480	NUT	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	10615274	WASHER	$0.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$6.35	To Order

Photo	Part No	Description	Price (each)	Stock
	149951	WASHER	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER D.6.4 X 11.95 X 1.6	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	134701	O-RING	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	134672	BUSHING	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	134705	GASKET	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	137612	BOOT	$4.58	To Order

Photo	Part No	Description	Price (each)	Stock
	10856821	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11635721	SCREW	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	137611	MASS PIN	$49.51	To Order

Photo	Part No	Description	Price (each)	Stock
	137610	MASS PIN	$39.38	To Order

Photo	Part No	Description	Price (each)	Stock
	137613	OUTER FLANGE	$0.87	To Order

Photo	Part No	Description	Price (each)	Stock
	139205	VENT PIPE	$40.08	To Order

Photo	Part No	Description	Price (each)	Stock
	14456880	O.R. GASKET	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	186922	Fuel Filter	$103.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	126352	BRACKET	$8.65	To Order
	152885	BRACKET WITH SHEATH	$8.43	To Order
	186922	Fuel Filter	$103.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16104411	Selflocking nut	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	109889	UNION	$4.15	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	109797	UNION	$30.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11270160	COPPER WASHER	$1.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	147291	FUEL TUBE FROM PRESSURE ADJUSTER TO LH PUMP	$140.98	To Order
	147290	FUEL TUBE FROM PRESSURE ADJUSTER TO RH PUMP	$351.53	To Order

Photo	Part No	Description	Price (each)	Stock
	141746	FUEL PIPE FROM PUMP TO LH FILTER	$366.08	To Order
	141724	FUEL PIPE FROM PUMP TO RH FILTER	$185.67	To Order

Photo	Part No	Description	Price (each)	Stock
	143787	FUEL PIPE FROM LH FILTER TO LH FLUTE	$545.43	To Order
	143786	FUEL PIPE FROM RH FILTER TO RH FLUTE	$647.21	To Order

Photo	Part No	Description	Price (each)	Stock
	141718	FUEL PIPE FROM PRESSURE ADJUSTER TO LH PUMP	$103.72	To Order
	141751	FUEL PIPE FROM PRESSURE ADJUSTER TO RH PUMP	$105.78	To Order

Photo	Part No	Description	Price (each)	Stock
	139932	SLEEVE	$19.10	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14574287	CLIP	$7.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	137960	PRESSURE REGULATOR	$201.53	To Order

Photo	Part No	Description	Price (each)	Stock
	139428	LH BRACKET	$4.61	To Order
	139427	RH BRACKET	$8.62	To Order

Photo	Part No	Description	Price (each)	Stock
	101413	NUT	$30.30	To Order

Photo	Part No	Description	Price (each)	Stock
	12601774A	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149812	FUEL PIPE	$418.77	To Order

Photo	Part No	Description	Price (each)	Stock
	277569	COMPL. BREATHER PIPE	$58.36	To Order

Photo	Part No	Description	Price (each)	Stock
	147281	PRESSURE REGULATOR	$360.39	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER 10 X 18 X 2.5	$4.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	148126	L.H. UPPER BRACKET	$22.57	To Order
	148125	R.H. UPPER BRACKET	$22.57	To Order

Photo	Part No	Description	Price (each)	Stock
	148124	LOWER BRACKET	$55.05	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	103550	Spacer bush -Only for	$1.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	106744	WASHER	$8.13	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	155699	COMPLETE FUEL PUMP	155699 COMPLETE FUEL PUMP	$1,859.13 MSRP: ~~2,464.25~~ (24.6% off)	2
2	155592	FUEL PUMP IN STOCK	155592 FUEL PUMP Valid for complete pump 155699 IN STOCK	$720.80	2
2	948829	Fuel Pump IN STOCK	948829 Fuel Pump Valid for complete pump 146662 IN STOCK	$325.20	2
3	13000790	SCREW COLLAR IN STOCK	13000790 SCREW COLLAR IN STOCK	$0.70 MSRP: ~~2.25~~ (68.9% off)	2
4	120098	Not return valve	120098 Not return valve	$166.65	2
5	133967	FUEL PIPE IN STOCK	133967 FUEL PIPE IN STOCK	$128.50	2
6	10183217	PLUG FOR UNION	10183217 PLUG FOR UNION	$77.75	2
7	11270160	COPPER WASHER IN STOCK	11270160 COPPER WASHER IN STOCK	$1.48	8
8	168880	FUEL FILTER COVER	168880 FUEL FILTER COVER	$26.91	2
9	144232	FUEL PUMP MOUNT GASKET IN STOCK	144232 FUEL PUMP MOUNT GASKET Valid for pump 0 53 IN STOCK	$60.59	2
9	126809	GASKET	126809 GASKET Valid for pump 0 60	$139.58 MSRP: ~~213.86~~ (34.7% off)	2
10	780250	FUEL FILTER IN STOCK	780250 FUEL FILTER IN STOCK	$115.38	2
11	15671101	SCREW	15671101 SCREW	$1.53	12
12	126806	Chamber	126806 Chamber	$46.43 MSRP: ~~89.91~~ (48.4% off)	2
13	137577	BRACKET	137577 BRACKET	$38.06	4
14	11000924	Stud bolt	11000924 Stud bolt	$1.35	4
15	13677911	NUT	13677911 NUT	$0.26	4
16	10730021	WASHER	10730021 WASHER	$0.09	4
17	126807	Anti Vibration Pad	126807 Anti Vibration Pad	$35.54	2
18	138453	O-RING FUEL PUMP IN STOCK	138453 O-RING FUEL PUMP IN STOCK	$46.51	2
19	139454	FUEL PUMP COVER	139454 FUEL PUMP COVER	$582.13	2
20	11500224	STUD BOLT	11500224 STUD BOLT	$0.35	16
21	19575491	NUT	19575491 NUT	-	16	Enquire
22	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	16
23	133968	FUEL FLOWING BACK PIPE	133968 FUEL FLOWING BACK PIPE	$95.44	2
24	133950	UNION	133950 UNION	$55.29	4
25	133956	O-RING IN STOCK	133956 O-RING IN STOCK	$0.93 MSRP: ~~1.35~~ (31.1% off)	8
26	127756	UNION	127756 UNION	$8.78	4
27	103388	THREADED INSERT IN STOCK	103388 THREADED INSERT IN STOCK	$13.48 MSRP: ~~21.61~~ (37.6% off)	2
28	134713	PLUG IN STOCK	134713 PLUG IN STOCK	$13.48 MSRP: ~~18.50~~ (27.1% off)	2
29	134233	O-RING IN STOCK	134233 O-RING IN STOCK	$0.44 MSRP: ~~1.50~~ (70.7% off)	2
30	139519	POSITIVE CABLE	139519 POSITIVE CABLE	$60.94	2
31	146660	NEGATIVE CABLE	146660 NEGATIVE CABLE	$190.34	2
32	130146	TERMINAL BOOT IN STOCK	130146 TERMINAL BOOT IN STOCK	$8.62 MSRP: ~~12.62~~ (31.7% off)	8
33	899480	NUT	899480 NUT	$0.37	2
34	10615274	WASHER IN STOCK	10615274 WASHER IN STOCK	$0.09 MSRP: ~~5.70~~ (98.4% off)	2
35	15896470	NUT	15896470 NUT (minimum order quantity = 20)	$6.35	6
36	149951	WASHER IN STOCK	149951 WASHER IN STOCK	$0.29	6
37	10519424	WASHER D.6.4 X 11.95 X 1.6 IN STOCK	10519424 WASHER D.6.4 X 11.95 X 1.6 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	4
38	134701	O-RING IN STOCK	134701 O-RING IN STOCK	$0.35 MSRP: ~~0.50~~ (30% off)	4
39	134672	BUSHING	134672 BUSHING	$0.61	4
40	134705	GASKET	134705 GASKET	$0.34 MSRP: ~~0.82~~ (58.5% off)	4
41	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	4
42	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	4
43	137612	BOOT	137612 BOOT	$4.58	4
44	10856821	SCREW	10856821 SCREW	$0.06	2
45	11635721	SCREW	11635721 SCREW	$0.35	2
46	137611	MASS PIN	137611 MASS PIN	$49.51	2
47	137610	MASS PIN	137610 MASS PIN	$39.38	2
48	137613	OUTER FLANGE	137613 OUTER FLANGE	$0.87	2
49	139205	VENT PIPE	139205 VENT PIPE	$40.08 MSRP: ~~70.00~~ (42.7% off)	2
50	14456880	O.R. GASKET	14456880 O.R. GASKET	$0.23 MSRP: ~~1.62~~ (85.8% off)	2
51	186922	Fuel Filter IN STOCK	186922 Fuel Filter Valid till car Ass. Nr. 10927 IN STOCK	$103.84	2
52	126352	BRACKET	126352 BRACKET Valid till car Ass. Nr. 10927	$8.65 MSRP: ~~10.00~~ (13.5% off)	2
52	152885	BRACKET WITH SHEATH	152885 BRACKET WITH SHEATH Valid from car Ass. Nr. 10928	$8.43 MSRP: ~~21.50~~ (60.8% off)	2
52	186922	Fuel Filter IN STOCK	186922 Fuel Filter Valid from car Ass. Nr. 10928 IN STOCK	$103.84	2
53	10902424	SCREW IN STOCK	10902424 SCREW IN STOCK	$0.14 MSRP: ~~0.70~~ (80% off)	2
54	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	2
55	16104411	Selflocking nut IN STOCK	16104411 Selflocking nut IN STOCK	$0.20 MSRP: ~~0.92~~ (78.3% off)	2
56	109889	UNION	109889 UNION	$4.15 MSRP: ~~13.34~~ (68.9% off)	2
57	10280060	WASHER COPPER D14. 20 X 1.5 IN STOCK	10280060 WASHER COPPER D14. 20 X 1.5 IN STOCK	$0.20 MSRP: ~~1.00~~ (80% off)	2
58	109797	UNION IN STOCK	109797 UNION IN STOCK	$30.46 MSRP: ~~58.06~~ (47.5% off)	2
59	11270160	COPPER WASHER IN STOCK	11270160 COPPER WASHER IN STOCK	$1.48	2
60	147291	FUEL TUBE FROM PRESSURE ADJUSTER TO LH PUMP	147291 FUEL TUBE FROM PRESSURE ADJUSTER TO LH PUMP	$140.98	1
60	147290	FUEL TUBE FROM PRESSURE ADJUSTER TO RH PUMP	147290 FUEL TUBE FROM PRESSURE ADJUSTER TO RH PUMP	$351.53	1
61	141746	FUEL PIPE FROM PUMP TO LH FILTER	141746 FUEL PIPE FROM PUMP TO LH FILTER	$366.08	1
61	141724	FUEL PIPE FROM PUMP TO RH FILTER	141724 FUEL PIPE FROM PUMP TO RH FILTER	$185.67	1
62	143787	FUEL PIPE FROM LH FILTER TO LH FLUTE	143787 FUEL PIPE FROM LH FILTER TO LH FLUTE	$545.43	1
62	143786	FUEL PIPE FROM RH FILTER TO RH FLUTE	143786 FUEL PIPE FROM RH FILTER TO RH FLUTE	$647.21	1
63	141718	FUEL PIPE FROM PRESSURE ADJUSTER TO LH PUMP	141718 FUEL PIPE FROM PRESSURE ADJUSTER TO LH PUMP	$103.72	1
63	141751	FUEL PIPE FROM PRESSURE ADJUSTER TO RH PUMP	141751 FUEL PIPE FROM PRESSURE ADJUSTER TO RH PUMP	$105.78	1
64	139932	SLEEVE	139932 SLEEVE	$19.10	2
65	13432070	HOSE COLLAR IN STOCK	13432070 HOSE COLLAR IN STOCK	$0.49 MSRP: ~~1.07~~ (54.2% off)	4
66	14574287	CLIP IN STOCK	14574287 CLIP IN STOCK	$7.27 MSRP: ~~9.50~~ (23.5% off)	2
67	137960	PRESSURE REGULATOR	137960 PRESSURE REGULATOR	$201.53 MSRP: ~~400.41~~ (49.7% off)	2
68	139428	LH BRACKET	139428 LH BRACKET	$4.61	1
68	139427	RH BRACKET	139427 RH BRACKET	$8.62	1
69	101413	NUT	101413 NUT	$30.30 MSRP: ~~52.99~~ (42.8% off)	2
70	12601774A	WASHER	12601774A WASHER	-	2	Enquire
71	149812	FUEL PIPE	149812 FUEL PIPE	$418.77	2
72	277569	COMPL. BREATHER PIPE	277569 COMPL. BREATHER PIPE	$58.36	2
73	147281	PRESSURE REGULATOR	147281 PRESSURE REGULATOR	$360.39 MSRP: ~~647.00~~ (44.3% off)	2
74	84653800	WASHER 10 X 18 X 2.5 IN STOCK	84653800 WASHER 10 X 18 X 2.5 IN STOCK	$4.99	2
75	148126	L.H. UPPER BRACKET	148126 L.H. UPPER BRACKET	$22.57	1
75	148125	R.H. UPPER BRACKET	148125 R.H. UPPER BRACKET	$22.57	1
76	148124	LOWER BRACKET	148124 LOWER BRACKET	$55.05	2
77	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.53	2
78	103550	Spacer bush -Only for IN STOCK	103550 Spacer bush -Only for IN STOCK	$1.73 MSRP: ~~3.25~~ (46.8% off)	2
79	106744	WASHER	106744 WASHER	$8.13 MSRP: ~~8.89~~ (8.5% off)	2
80	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	2
