Timing - Controls of Ferrari Ferrari 348 TB (1993)

View All

Ferrari 348 TB (1993) - Timing - Controls

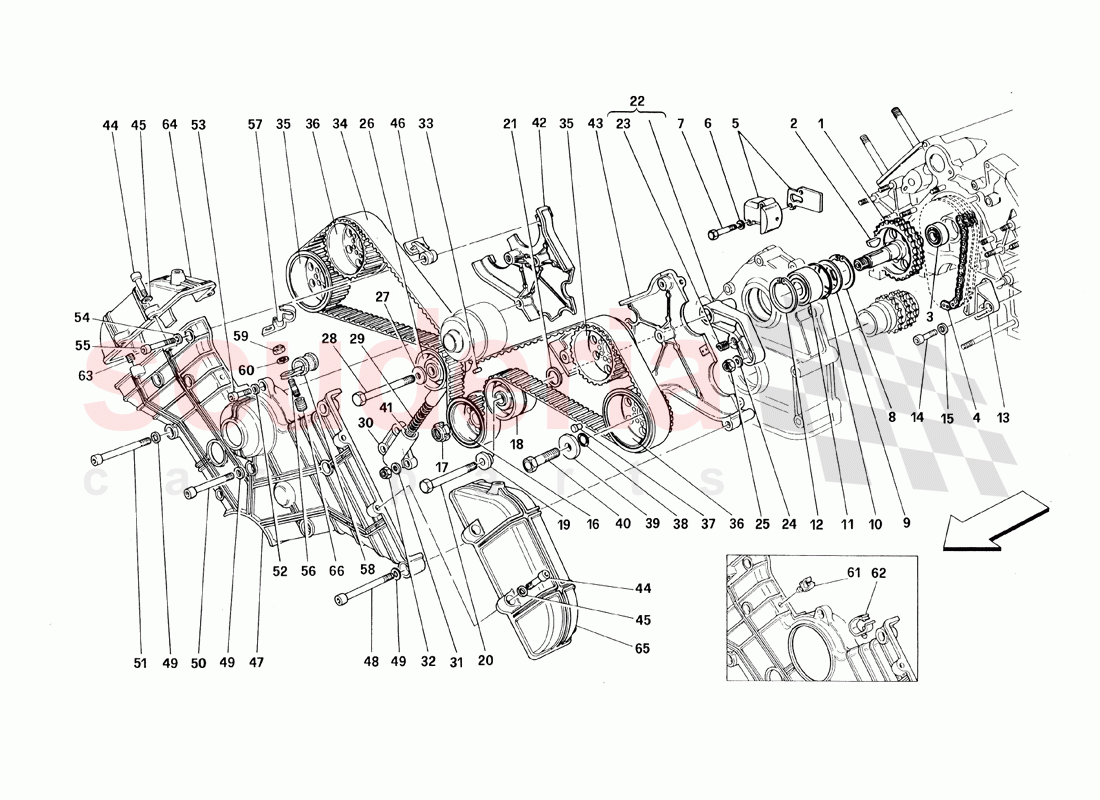

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	144489	DRIVEN GEAR	$103.18	To Order
	132808	DRIVEN GEAR	$101.17	To Order

Photo	Part No	Description	Price (each)	Stock
	10206320	DISC TAB	$1.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	185343	BEARING	$8.96	To Order
	171177	BALL RACE BEARING	$17.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	132968	TIMING CONTROL CHAIN	$295.76	To Order

Photo	Part No	Description	Price (each)	Stock
	147338	CHAIN TIGHTENER	$110.92	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15212724	SCREW	$1.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11060576	SNAP RING	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	133377	Conic Washer 45-51.5 x 0.35	$14.85	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	136140	O-RING D.50.52 X 1	$1.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	170787	ROLER BEARING	$115.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11060576	SNAP RING	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	143782	GUIDE SHOE	$77.17	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	132909	DRIVING GEAR	$799.24	To Order
	144488	DRIVING GEAR	$451.21	To Order

Photo	Part No	Description	Price (each)	Stock
	104919	RING LOCK NUT	$4.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	145807	L.H. PULLEY	$553.06	To Order

Photo	Part No	Description	Price (each)	Stock
	133385	BUSHING	$27.25	To Order

Photo	Part No	Description	Price (each)	Stock
	134663	SCREW	$0.87	To Order

Photo	Part No	Description	Price (each)	Stock
	137481	WASHER	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	147132	BRACKET	$242.13	To Order
	147132	BRACKET	$242.13	To Order

Photo	Part No	Description	Price (each)	Stock
	13525770	THREADED INSERT	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16104411	Selflocking nut	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	149791	R.H. PULLEY	$616.44	To Order

Photo	Part No	Description	Price (each)	Stock
	12626224	WASHER	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	134665	SCREW	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	148356	SPRING	$134.47	To Order

Photo	Part No	Description	Price (each)	Stock
	137632	BRACKET	$166.64	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10486110	PIN	$7.87	To Order

Photo	Part No	Description	Price (each)	Stock
	132843	TIMING BELT	$57.17	To Order

Photo	Part No	Description	Price (each)	Stock
	136229	DRIVEN GEAR	$381.30	To Order

Photo	Part No	Description	Price (each)	Stock
	136230	DRIVEN GEAR	$334.89	To Order

Photo	Part No	Description	Price (each)	Stock
	106203	CENTERING DOWEL	$6.73	To Order

Photo	Part No	Description	Price (each)	Stock
	114808	O-Ring	$4.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	117274	WASHER	$3.35	To Order

Photo	Part No	Description	Price (each)	Stock
	146540	SCREW	$4.62	To Order

Photo	Part No	Description	Price (each)	Stock
	12638601	WASHER	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	134217	R.H. REAR SHIELD	$210.91	To Order
	133820	RH REAR SHIELD	$221.47	To Order

Photo	Part No	Description	Price (each)	Stock
	133821	LH REAR SHIELD	$133.12	To Order
	134218	L.H. REAR SHIELD	$210.91	To Order

Photo	Part No	Description	Price (each)	Stock
	14305321	SCREW	$0.09	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133824	GUIDE SHOE	$188.25	To Order

Photo	Part No	Description	Price (each)	Stock
	134216	FRONT SHIELD	$337.58	To Order
	143118	FRONT SHIELD	$238.40	To Order

Photo	Part No	Description	Price (each)	Stock
	14359521	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14308921	L.H. SEAT REAR FIXING SCREW	$0.46	To Order

Photo	Part No	Description	Price (each)	Stock
	14309024	SCREW	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14305321	SCREW	$0.09	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14305821	SCREW	$0.14	To Order

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	143119	FIXING CLIP	$0.46	To Order

Photo	Part No	Description	Price (each)	Stock
	10442190	BRACKET WITH SHEATH	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	139964	CLIP	$0.09	To Order

Photo	Part No	Description	Price (each)	Stock
	61681500	Spring	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	13525570	THREADED INSERT	$2.09	To Order

Photo	Part No	Description	Price (each)	Stock
	133822	RH SHIELD CAP	$52.28	To Order
	134219	R.H. SHIELD CAP	$112.39	To Order

Photo	Part No	Description	Price (each)	Stock
	134220	L.H. SHIELD CAP	$150.62	To Order
	133823	LH. SHIELD CAP	$48.33	To Order

Photo	Part No	Description	Price (each)	Stock
	120711	THREADED BUSHING	$14.85	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	144489	DRIVEN GEAR	144489 DRIVEN GEAR Valid from engine Nr. 24720	$103.18	1
1	132808	DRIVEN GEAR	132808 DRIVEN GEAR Valid till engine Nr. 24719	$101.17 MSRP: ~~1,701.00~~ (94.1% off)	1
2	10206320	DISC TAB IN STOCK	10206320 DISC TAB IN STOCK	$1.44 MSRP: ~~1.50~~ (4% off)	1
3	185343	BEARING	185343 BEARING Valid till engine Nr. 2471 9	$8.96 MSRP: ~~18.86~~ (52.5% off)	1
3	171177	BALL RACE BEARING IN STOCK	171177 BALL RACE BEARING Valid from engine Nr. 24720 IN STOCK	$17.80	1
4	132968	TIMING CONTROL CHAIN	132968 TIMING CONTROL CHAIN	$295.76 MSRP: ~~357.00~~ (17.2% off)	1
5	147338	CHAIN TIGHTENER	147338 CHAIN TIGHTENER	$110.92	1
6	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
7	15212724	SCREW IN STOCK	15212724 SCREW IN STOCK	$1.35	2
8	11060576	SNAP RING	11060576 SNAP RING	$0.99 MSRP: ~~2.50~~ (60.4% off)	1
9	133377	Conic Washer 45-51.5 x 0.35 IN STOCK	133377 Conic Washer 45-51.5 x 0.35 IN STOCK	$14.85	1
10	136140	O-RING D.50.52 X 1 IN STOCK	136140 O-RING D.50.52 X 1 IN STOCK	$1.22 MSRP: ~~1.50~~ (18.7% off)	1
11	170787	ROLER BEARING IN STOCK	170787 ROLER BEARING IN STOCK	$115.28	1
12	11060576	SNAP RING	11060576 SNAP RING	$0.99 MSRP: ~~2.50~~ (60.4% off)	1
13	143782	GUIDE SHOE	143782 GUIDE SHOE	$77.17 MSRP: ~~131.32~~ (41.2% off)	1
14	248334	SCREW IN STOCK	248334 SCREW IN STOCK	$0.58	2
15	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
16	132909	DRIVING GEAR	132909 DRIVING GEAR Valid till engine Nr. 24719-	$799.24	1
16	144488	DRIVING GEAR	144488 DRIVING GEAR Valid from engine Nr. 24720	$451.21	1
17	104919	RING LOCK NUT IN STOCK	104919 RING LOCK NUT IN STOCK	$4.89	1
18	145807	L.H. PULLEY	145807 L.H. PULLEY	$553.06	1
19	133385	BUSHING	133385 BUSHING	$27.25	1
20	134663	SCREW	134663 SCREW	$0.87	1
21	137481	WASHER	137481 WASHER	$1.01 MSRP: ~~4.60~~ (78% off)	1
22	147132	BRACKET	147132 BRACKET Valid till stock exhaustion of 137473	$242.13	1
22	147132	BRACKET	147132 BRACKET	$242.13	1
23	13525770	THREADED INSERT	13525770 THREADED INSERT	$2.61 MSRP: ~~3.67~~ (28.9% off)	1
24	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	2
25	16104411	Selflocking nut IN STOCK	16104411 Selflocking nut IN STOCK	$0.20 MSRP: ~~0.92~~ (78.3% off)	2
26	149791	R.H. PULLEY	149791 R.H. PULLEY	$616.44	1
27	12626224	WASHER IN STOCK	12626224 WASHER IN STOCK	$0.20	1
28	134665	SCREW	134665 SCREW	$0.55	1
29	148356	SPRING	148356 SPRING	$134.47 MSRP: ~~417.48~~ (67.8% off)	1
30	137632	BRACKET	137632 BRACKET	$166.64	1
31	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	3
32	104030	NUT IN STOCK	104030 NUT IN STOCK	$0.24 MSRP: ~~1.00~~ (76% off)	3
33	10486110	PIN	10486110 PIN	$7.87 MSRP: ~~24.80~~ (68.3% off)	1
34	132843	TIMING BELT	132843 TIMING BELT	$57.17 MSRP: ~~99.50~~ (42.5% off)	1
35	136229	DRIVEN GEAR	136229 DRIVEN GEAR	$381.30	2
36	136230	DRIVEN GEAR	136230 DRIVEN GEAR	$334.89 MSRP: ~~700.83~~ (52.2% off)	2
37	106203	CENTERING DOWEL	106203 CENTERING DOWEL	$6.73 MSRP: ~~10.50~~ (35.9% off)	4
38	114808	O-Ring IN STOCK	114808 O-Ring (minimum order quantity = 10) IN STOCK	$4.10 MSRP: ~~4.75~~ (13.7% off)	4
39	117274	WASHER	117274 WASHER	$3.35	4
40	146540	SCREW	146540 SCREW	$4.62 MSRP: ~~11.50~~ (59.8% off)	4
41	12638601	WASHER	12638601 WASHER	$0.55 MSRP: ~~1.00~~ (45% off)	1
42	134217	R.H. REAR SHIELD	134217 R.H. REAR SHIELD Black plastic	$210.91 MSRP: ~~685.91~~ (69.3% off)	1
42	133820	RH REAR SHIELD	133820 RH REAR SHIELD Aluminium	$221.47	1
43	133821	LH REAR SHIELD	133821 LH REAR SHIELD Aluminium	$133.12	1
43	134218	L.H. REAR SHIELD	134218 L.H. REAR SHIELD Black plastic	$210.91 MSRP: ~~696.47~~ (69.7% off)	1
44	14305321	SCREW	14305321 SCREW	$0.09 MSRP: ~~0.75~~ (88% off)	8
45	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	8
46	133824	GUIDE SHOE	133824 GUIDE SHOE	$188.25 MSRP: ~~282.24~~ (33.3% off)	2
47	134216	FRONT SHIELD	134216 FRONT SHIELD Black plastic Alternative use 134216/A	$337.58 MSRP: ~~595.00~~ (43.3% off)	1
47	143118	FRONT SHIELD	143118 FRONT SHIELD Aluminium	$238.40	1
48	14359521	SCREW	14359521 SCREW	$0.76 MSRP: ~~3.90~~ (80.5% off)	3
49	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	8
50	14308921	L.H. SEAT REAR FIXING SCREW	14308921 L.H. SEAT REAR FIXING SCREW	$0.46	2
51	14309024	SCREW	14309024 SCREW	$1.27	3
52	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	1
53	14305321	SCREW	14305321 SCREW	$0.09 MSRP: ~~0.75~~ (88% off)	1
54	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
55	14305821	SCREW	14305821 SCREW	$0.14 MSRP: ~~1.25~~ (88.8% off)	2
56	11500524	STUD BOLT	11500524 STUD BOLT Valid for plastic shield	$0.34 MSRP: ~~1.00~~ (66% off)	2
57	143119	FIXING CLIP	143119 FIXING CLIP Valid for M. 2.5 Valid for plastic shield	$0.46	2
58	10442190	BRACKET WITH SHEATH IN STOCK	10442190 BRACKET WITH SHEATH Valid for M. 2.7 Valid for plastic shield IN STOCK	$0.67 MSRP: ~~2.25~~ (70.2% off)	2
59	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 Valid for plastic shield IN STOCK	$1.32	2
60	11197774	WASHER IN STOCK	11197774 WASHER Valid for plastic shield IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
61	139964	CLIP	139964 CLIP Valid for aluminium shield	$0.09	1
62	61681500	Spring	61681500 Spring Valid for aluminium shield	$0.29 MSRP: ~~1.10~~ (73.6% off)	1
63	13525570	THREADED INSERT	13525570 THREADED INSERT Valid for aluminium shield	$2.09	8
64	133822	RH SHIELD CAP	133822 RH SHIELD CAP Aluminium	$52.28	1
64	134219	R.H. SHIELD CAP	134219 R.H. SHIELD CAP Black plastic	$112.39 MSRP: ~~314.55~~ (64.3% off)	1
65	134220	L.H. SHIELD CAP	134220 L.H. SHIELD CAP Black plastic	$150.62 MSRP: ~~395.55~~ (61.9% off)	1
65	133823	LH. SHIELD CAP	133823 LH. SHIELD CAP Aluminium	$48.33	1
66	120711	THREADED BUSHING	120711 THREADED BUSHING Valid for front shield 143118	$14.85	2
