Lubrication - Pumps and Oil Sumps of Ferrari Ferrari 348 TB (1993)

View All

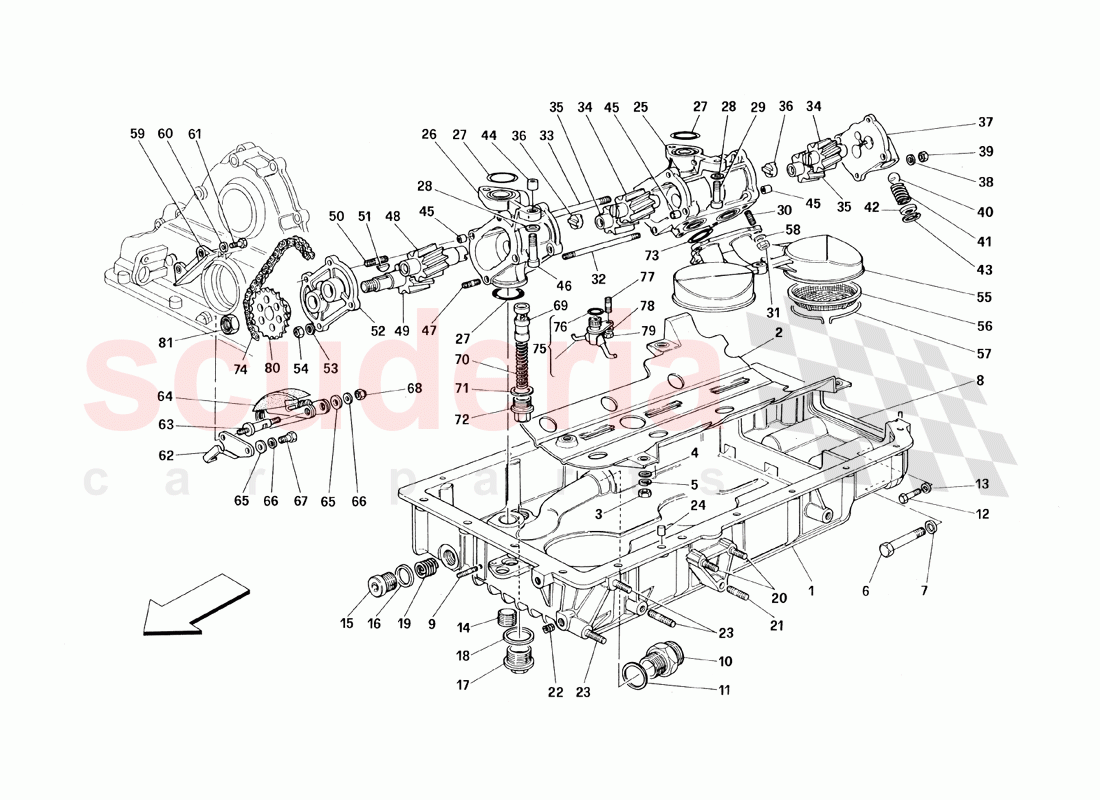

Ferrari 348 TB (1993) - Lubrication - Pumps and Oil Sumps

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
			Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149318	ANTI-SHAKING OIL PANEL	$15.70	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	FLANGED NUT M8 X 1.25	$0.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER 10 X 18 X 2.5	$4.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11288021	SCREW	$0.46	To Order

Photo	Part No	Description	Price (each)	Stock
	11190579	WASHER	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	117036	Sealing ring	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	11001224	Stud bolt	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	138149	THREADED CONNECTOR	$56.00	To Order

Photo	Part No	Description	Price (each)	Stock
	898271	GASKET	$34.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	163528	THREADED PLUG	$3.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	$3.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261860	GASKET	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133284	Threaded Plug	$108.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	898271	GASKET	$34.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	223577	THREADED INSERT M22 X 1.5 X 9MM	$5.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12354524	Stud Securing Exhaust	$27.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13543124	STUD BOLT	$5.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13525770	THREADED INSERT	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	12354524	Stud Securing Exhaust	$27.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	$1.01	To Order
	185129	RECOVERY PUMP BODY WITH STUD BOLTS	$900.23	To Order

Photo	Part No	Description	Price (each)	Stock
	149530	DELIVERY PUMP BODY WITH STUD BOLTS	$989.60	To Order
	143479	DELIVERY PUMP BODY WITH STUD BOLTS	$615.11	To Order
			Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
			Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133939	O.R. GASKET	$0.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	986847	CONICAL WASHER	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	$0.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13540824	STUD BOLT	$0.20	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133842	STUD	$1.25	To Order

Photo	Part No	Description	Price (each)	Stock
	133843	STUD	$1.45	To Order

Photo	Part No	Description	Price (each)	Stock
	132458	DRIVING GEAR	$189.88	To Order

Photo	Part No	Description	Price (each)	Stock
	132460	DRIVEN GEAR	$556.13	To Order

Photo	Part No	Description	Price (each)	Stock
	109309	JOINT	$16.47	To Order

Photo	Part No	Description	Price (each)	Stock
	132436	RECOVERY PUMP COVER	$125.63	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	134041	NUT	$0.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	121306	BALL	$3.17	To Order

Photo	Part No	Description	Price (each)	Stock
	109980	SPRING FOR BALL	$14.54	To Order

Photo	Part No	Description	Price (each)	Stock
	196077	SPACER	$15.72	To Order

Photo	Part No	Description	Price (each)	Stock
	11057876	SEEGER RING	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	$2.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SCREW	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13540824	STUD BOLT	$0.20	To Order

Photo	Part No	Description	Price (each)	Stock
	181862	DRIVEN GEAR	$512.68	To Order

Photo	Part No	Description	Price (each)	Stock
	132454	DRIVING GEAR	$664.65	To Order

Photo	Part No	Description	Price (each)	Stock
	13541024	STUD BOLT	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	10205820	Feather key	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	132434	FRONT COVER	$87.79	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	134041	NUT	$0.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	143797	RECOVERY PUMP FLOATER	$181.64	To Order

Photo	Part No	Description	Price (each)	Stock
	122429	Oil Pickup Filter	$10.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	103944	Sealing ring	$115.37	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	136039	FIXED TENSION	$68.11	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	155833	STOP SMALL PLATE	$43.89	To Order

Photo	Part No	Description	Price (each)	Stock
	134263	STUD	$84.88	To Order

Photo	Part No	Description	Price (each)	Stock
	185577	CHAIN TIGHTENER	$317.88	To Order

Photo	Part No	Description	Price (each)	Stock
	12646604	WASHER	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW M6 X 16	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	131837	NUT	$5.84	To Order

Photo	Part No	Description	Price (each)	Stock
	129324	REGISTER	$257.07	To Order

Photo	Part No	Description	Price (each)	Stock
	137614	SPRING	$54.48	To Order

Photo	Part No	Description	Price (each)	Stock
	10257460	GASKET	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	129322	PRESSURE VALVE CAP	$4.83	To Order

Photo	Part No	Description	Price (each)	Stock
	133938	O-RING	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133089	OIL PUMP CONTROL CHAIN	$39.28	To Order

Photo	Part No	Description	Price (each)	Stock
	137607	MULTIPLE UNION	$133.06	To Order

Photo	Part No	Description	Price (each)	Stock
	137192	O-RING	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11000821	STUD	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	11199279	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$6.35	To Order

Photo	Part No	Description	Price (each)	Stock
	132462	DRIVEN GEAR	$49.54	To Order

Photo	Part No	Description	Price (each)	Stock
	132876	NUT -As an alternative-	$32.60	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	143277	COMPLETE OIL SUMP	143277 COMPLETE OIL SUMP	$651.70	1
1	-		Not as spare part With complete oil sump	-	1	Enquire
2	149318	ANTI-SHAKING OIL PANEL	149318 ANTI-SHAKING OIL PANEL	$15.70 MSRP: ~~26.06~~ (39.8% off)	1
3	14059311	FLANGED NUT M8 X 1.25 IN STOCK	14059311 FLANGED NUT M8 X 1.25 IN STOCK	$0.24 MSRP: ~~0.50~~ (52% off)	4
4	84653800	WASHER 10 X 18 X 2.5 IN STOCK	84653800 WASHER 10 X 18 X 2.5 IN STOCK	$4.98	4
5	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	4
6	11288021	SCREW	11288021 SCREW	$0.46 MSRP: ~~2.25~~ (79.6% off)	2
7	11190579	WASHER	11190579 WASHER	$0.52	2
8	117036	Sealing ring	117036 Sealing ring Valid for rear crankase cover 138257 Tab. 1	$0.78 MSRP: ~~10.00~~ (92.2% off)	1
9	11001224	Stud bolt	11001224 Stud bolt	$0.78	1
10	138149	THREADED CONNECTOR	138149 THREADED CONNECTOR	$56.00 MSRP: ~~70.30~~ (20.3% off)	1
11	898271	GASKET IN STOCK	898271 GASKET IN STOCK	$34.05	1
12	231620	SCREW IN STOCK	231620 SCREW IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	2
13	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	2
14	163528	THREADED PLUG IN STOCK	163528 THREADED PLUG IN STOCK	$3.72 MSRP: ~~4.25~~ (12.5% off)	1
15	307477	THREADED PLUG IN STOCK	307477 THREADED PLUG IN STOCK	$3.32	1
16	10261860	GASKET IN STOCK	10261860 GASKET IN STOCK	$0.43 MSRP: ~~1.00~~ (57% off)	1
17	133284	Threaded Plug IN STOCK	133284 Threaded Plug IN STOCK	$108.06	1
18	898271	GASKET IN STOCK	898271 GASKET IN STOCK	$34.05	1
19	223577	THREADED INSERT M22 X 1.5 X 9MM IN STOCK	223577 THREADED INSERT M22 X 1.5 X 9MM IN STOCK	$5.15	1
20	12354524	Stud Securing Exhaust IN STOCK	12354524 Stud Securing Exhaust IN STOCK	$27.89 MSRP: ~~31.50~~ (11.5% off)	2
21	13543124	STUD BOLT IN STOCK	13543124 STUD BOLT IN STOCK	$5.99	1
22	13525770	THREADED INSERT	13525770 THREADED INSERT	$2.61 MSRP: ~~3.67~~ (28.9% off)	2
23	12354524	Stud Securing Exhaust IN STOCK	12354524 Stud Securing Exhaust IN STOCK	$27.89 MSRP: ~~31.50~~ (11.5% off)	3
24	102725	CENTERING DOWEL	102725 CENTERING DOWEL	$1.01 MSRP: ~~2.25~~ (55.1% off)	2
24	185129	RECOVERY PUMP BODY WITH STUD BOLTS	185129 RECOVERY PUMP BODY WITH STUD BOLTS	$900.23	1
25	149530	DELIVERY PUMP BODY WITH STUD BOLTS	149530 DELIVERY PUMP BODY WITH STUD BOLTS Valid from engine Nr. 24720	$989.60	1
25	143479	DELIVERY PUMP BODY WITH STUD BOLTS	143479 DELIVERY PUMP BODY WITH STUD BOLTS Valid till engine Nr. 24719	$615.11	1
25	-		Not as spare part With the assembly 143276	-	1	Enquire
26	-		Not as spare part With the assembly 143479 and 149530	-	1	Enquire
27	133939	O.R. GASKET IN STOCK	133939 O.R. GASKET IN STOCK	$0.95 MSRP: ~~2.10~~ (54.8% off)	3
28	986847	CONICAL WASHER	986847 CONICAL WASHER	$0.60	4
29	14306424	SCREW IN STOCK	14306424 SCREW IN STOCK	$0.23 MSRP: ~~0.41~~ (43.9% off)	3
30	13540824	STUD BOLT	13540824 STUD BOLT	$0.20	4
31	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	4
32	133842	STUD	133842 STUD	$1.25	2
33	133843	STUD	133843 STUD	$1.45	2
34	132458	DRIVING GEAR	132458 DRIVING GEAR	$189.88	2
35	132460	DRIVEN GEAR	132460 DRIVEN GEAR	$556.13	2
36	109309	JOINT	109309 JOINT	$16.47 MSRP: ~~82.94~~ (80.1% off)	2
37	132436	RECOVERY PUMP COVER	132436 RECOVERY PUMP COVER	$125.63	1
38	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
39	134041	NUT IN STOCK	134041 NUT IN STOCK	$0.81	4
40	121306	BALL	121306 BALL	$3.17	1
41	109980	SPRING FOR BALL	109980 SPRING FOR BALL	$14.54	1
42	196077	SPACER	196077 SPACER	$15.72	1
43	11057876	SEEGER RING	11057876 SEEGER RING	$0.06 MSRP: ~~0.50~~ (88% off)	1
44	102704	ALIGNMENT DOWEL IN STOCK	102704 ALIGNMENT DOWEL IN STOCK	$2.71	1
45	102725	CENTERING DOWEL	102725 CENTERING DOWEL	$1.01 MSRP: ~~2.25~~ (55.1% off)	5
46	231629	SCREW IN STOCK	231629 SCREW IN STOCK	$0.61 MSRP: ~~0.95~~ (35.8% off)	1
47	13540824	STUD BOLT	13540824 STUD BOLT	$0.20	2
48	181862	DRIVEN GEAR	181862 DRIVEN GEAR	$512.68 MSRP: ~~747.61~~ (31.4% off)	1
49	132454	DRIVING GEAR	132454 DRIVING GEAR	$664.65	1
50	13541024	STUD BOLT	13541024 STUD BOLT	$0.29 MSRP: ~~0.60~~ (51.7% off)	2
51	10205820	Feather key	10205820 Feather key	$1.35 MSRP: ~~4.60~~ (70.7% off)	1
52	132434	FRONT COVER	132434 FRONT COVER	$87.79	1
53	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
54	134041	NUT IN STOCK	134041 NUT IN STOCK	$0.81	4
55	143797	RECOVERY PUMP FLOATER	143797 RECOVERY PUMP FLOATER Valid till engine Nr. 26715 Valid till stock exhaustion	$181.64	1
56	122429	Oil Pickup Filter IN STOCK	122429 Oil Pickup Filter Valid from engine Nr. 26716 Valid for pump floater 143797 IN STOCK	$10.93 MSRP: ~~14.20~~ (23% off)	2
57	103944	Sealing ring	103944 Sealing ring Valid from engine Nr. 26716 Valid tor pump floater 143797	$115.37	2
58	11197774	WASHER IN STOCK	11197774 WASHER Valid from engine Nr. 26716 Valid for pump floater 143797 IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
59	136039	FIXED TENSION	136039 FIXED TENSION	$68.11 MSRP: ~~108.08~~ (37% off)	1
60	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
61	10902424	SCREW IN STOCK	10902424 SCREW IN STOCK	$0.14 MSRP: ~~0.70~~ (80% off)	2
62	155833	STOP SMALL PLATE	155833 STOP SMALL PLATE	$43.89	1
63	134263	STUD	134263 STUD	$84.88	1
64	185577	CHAIN TIGHTENER	185577 CHAIN TIGHTENER	$317.88 MSRP: ~~433.72~~ (26.7% off)	1
65	12646604	WASHER IN STOCK	12646604 WASHER IN STOCK	$0.21 MSRP: ~~0.30~~ (30% off)	2
66	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
67	10902224	SCREW M6 X 16 IN STOCK	10902224 SCREW M6 X 16 IN STOCK	$0.06 MSRP: ~~0.45~~ (86.7% off)	1
68	131837	NUT	131837 NUT	$5.84 MSRP: ~~10.25~~ (43% off)	1
69	129324	REGISTER	129324 REGISTER	$257.07	1
70	137614	SPRING	137614 SPRING	$54.48 MSRP: ~~62.29~~ (12.5% off)	1
71	10257460	GASKET	10257460 GASKET	$0.23 MSRP: ~~1.25~~ (81.6% off)	1
72	129322	PRESSURE VALVE CAP	129322 PRESSURE VALVE CAP	$4.83	1
73	133938	O-RING IN STOCK	133938 O-RING IN STOCK	$0.52 MSRP: ~~1.20~~ (56.7% off)	2
74	133089	OIL PUMP CONTROL CHAIN	133089 OIL PUMP CONTROL CHAIN	$39.28 MSRP: ~~70.01~~ (43.9% off)	1
75	137607	MULTIPLE UNION	137607 MULTIPLE UNION	$133.06	4
76	137192	O-RING IN STOCK	137192 O-RING IN STOCK	$0.34 MSRP: ~~0.50~~ (32% off)	4
77	11000821	STUD	11000821 STUD	$0.23 MSRP: ~~0.60~~ (61.7% off)	4
78	11199279	WASHER	11199279 WASHER	$0.11	4
79	15896470	NUT	15896470 NUT (minimum order quantity = 20)	$6.35	4
80	132462	DRIVEN GEAR	132462 DRIVEN GEAR	$49.54 MSRP: ~~95.58~~ (48.2% off)	1
81	132876	NUT -As an alternative-	132876 NUT -As an alternative-	$32.60	1
