Centre Control Armrest (Page 2)

Aston Martin Vanquish (2012+)

Find Your Part

Aston Martin Vanquish (2012+) - Centre Control Armrest (Page 2)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DD33519F22AB Centre Console Main Carrier Enquire To Order
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head $0.93 IN STOCK
Photo Part No Description Price (each) Stock
707145 SCREW M5 x 12 PAN HD $0.60 To Order
Photo Part No Description Price (each) Stock
702847 SCREW-M6x25 PAN INT LOB 8 $1.29 IN STOCK
Photo Part No Description Price (each) Stock
703085 Screw M6x12 PC TI8 $0.76 IN STOCK
Photo Part No Description Price (each) Stock
W714509S442 Screw, M4 x 30 Enquire To Order
Photo Part No Description Price (each) Stock
703170 SCREW 4x8 PAN T/H CHROME FREE $2.02 IN STOCK
Photo Part No Description Price (each) Stock
703164 M6 LOCKNUT FLANGE NY LON CHROM FREE $0.44 To Order
Photo Part No Description Price (each) Stock
701448 Spring Nut, U Type, 4.2 x 2.1 $1.10 IN STOCK
Photo Part No Description Price (each) Stock
CD3367445ABW Panel Assembly, Console Lower, RHS $1,446.97 To Order
Photo Part No Description Price (each) Stock
CD3367446AAW Panel Assembly, Console Lower, LHS Enquire To Order
Photo Part No Description Price (each) Stock
DD332943752AB Support Bracket, Front Carpet, RH $131.35 To Order
Photo Part No Description Price (each) Stock
DD332943751AB Support Bracket, Front Carpet, LH $131.35 To Order
Photo Part No Description Price (each) Stock
HY53E804349AA M6 X 14 SCREW HEX HD $0.66 IN STOCK
Photo Part No Description Price (each) Stock
707262 NUT & WSHER M5 $12.19 To Order
Photo Part No Description Price (each) Stock
DD33045R19AAW Trim Panel, Front Auxiliary Socket Enquire To Order
Photo Part No Description Price (each) Stock
DD3311648ACW Mat Assembly, Front Stowage $456.97 To Order
Photo Part No Description Price (each) Stock
DD33281B04ABW Panel Assembly, Front Side Stowage Brace, RH $469.01 To Order
Photo Part No Description Price (each) Stock
DD33281B05ABW Panel Assembly, Front Side Stowage Brace, LH $469.01 To Order
Photo Part No Description Price (each) Stock
707617 Screw, M4 Self Tapping $0.38 To Order
Photo Part No Description Price (each) Stock
CD33F04704AB Mat, Front Console Stowage $154.60 To Order
Photo Part No Description Price (each) Stock
DD33044G38ABW Cup Holder Assembly, Front $1,127.22 To Order
Photo Part No Description Price (each) Stock
DD3368172AA Spring Clip $3.16 IN STOCK
Photo Part No Description Price (each) Stock
707137 SCREW-M4 x 12 PAN HD $0.65 To Order
View All

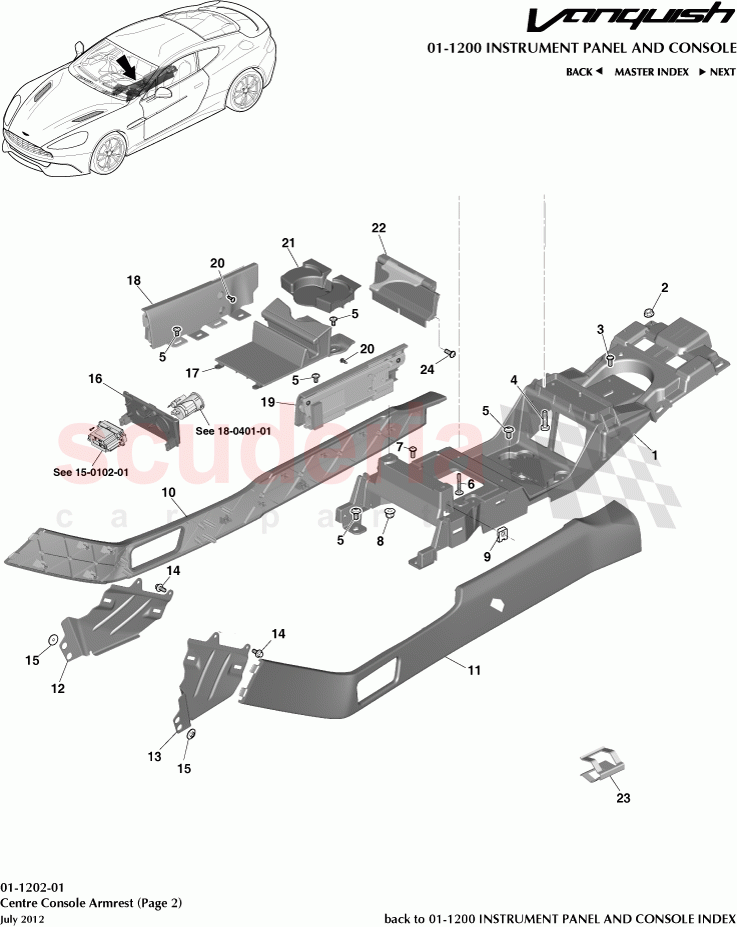

Centre Control Armrest (Page 2) of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CD3367446ABW
Panel Assembly, Console Lower, LHS
Non-Height Adjustable Seat. Includes Item 23 		$1,446.97 1
- DD33044G38BBW
Cup Holder Assembly, Front
Jewellery Pack 		$1,489.29 1
1 DD33519F22AB
Centre Console Main Carrier 		- 1 Enquire
2 702944
Nut, M6, Hex Flanged Head
IN STOCK 		$0.93 4
3 707145
SCREW M5 x 12 PAN HD 		$0.60 2
4 702847
SCREW-M6x25 PAN INT LOB 8
IN STOCK 		$1.29 5
5 703085
Screw M6x12 PC TI8
IN STOCK 		$0.76 14
6 W714509S442
Screw, M4 x 30 		- 2 Enquire
7 703170
SCREW 4x8 PAN T/H CHROME FREE
IN STOCK 		$2.02 2
8 703164
M6 LOCKNUT FLANGE NY LON CHROM FREE 		$0.44 2
9 701448
Spring Nut, U Type, 4.2 x 2.1
IN STOCK 		$1.10 2
10 CD3367445ABW
Panel Assembly, Console Lower, RHS
Includes Item 23 		$1,446.97 1
11 CD3367446AAW
Panel Assembly, Console Lower, LHS
Height Adjustable Seat. Includes Item 23 		- 1 Enquire
12 DD332943752AB
Support Bracket, Front Carpet, RH 		$131.35 1
13 DD332943751AB
Support Bracket, Front Carpet, LH 		$131.35 1
14 HY53E804349AA
M6 X 14 SCREW HEX HD
IN STOCK 		$0.66 4
15 707262
NUT & WSHER M5 		$12.19 4
16 DD33045R19AAW
Trim Panel, Front Auxiliary Socket
Includes Item 23 		- 1 Enquire
17 DD3311648ACW
Mat Assembly, Front Stowage 		$456.97 1
18 DD33281B04ABW
Panel Assembly, Front Side Stowage Brace, RH 		$469.01 1
19 DD33281B05ABW
Panel Assembly, Front Side Stowage Brace, LH 		$469.01 1
20 707617
Screw, M4 Self Tapping 		$0.38 4
21 CD33F04704AB
Mat, Front Console Stowage 		$154.60 1
22 DD33044G38ABW
Cup Holder Assembly, Front 		$1,127.22 1
23 DD3368172AA
Spring Clip
IN STOCK 		$3.16 24
24 707137
SCREW-M4 x 12 PAN HD 		$0.65 2
