Front Lightweight Seat Assembly

Aston Martin Vanquish (2012+)

Find Your Part

Aston Martin Vanquish (2012+) - Front Lightweight Seat Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ED3360008AAW Front Seat Assembly Complete, Trimmed, RH $10,226.36 To Order
Photo Part No Description Price (each) Stock
ED3364572AAW Cover Assembly, Seat Outer $3,260.53 To Order
Photo Part No Description Price (each) Stock
ED3360136AAW Squab Assembly, Trimmed Enquire To Order
Photo Part No Description Price (each) Stock
ED3360050AAW Cushion Assembly, Trimmed Enquire To Order
Photo Part No Description Price (each) Stock
4G437410116 Track Assembly, Front Lightweight Seat $4,028.09 To Order
Photo Part No Description Price (each) Stock
706423 SCREW-M8 x 25 HF PI $1.48 IN STOCK
Photo Part No Description Price (each) Stock
8D33617B94AD Bracket Assembly, Front Seat Adaptor $499.75 To Order
Photo Part No Description Price (each) Stock
W500624S303 Bolt, M8 x 25, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
701342PK NUT M8 HEX P/T PLAS8 PACK OF 5 $12.01 To Order
Photo Part No Description Price (each) Stock
W505593S307 Screw, M8 x 20, Pan Head Enquire To Order
Photo Part No Description Price (each) Stock
703266 Screw M6 x 10 Pan Head Torx $0.80 IN STOCK
Photo Part No Description Price (each) Stock
4G43613K22BD Buckle Assembly, Front Seatbelt $266.77 To Order
Photo Part No Description Price (each) Stock
92059 SEAT ECU $953.96 To Order
Photo Part No Description Price (each) Stock
701581PK FIRTREE-FLAT HEAD (PACK OF 20) $10.64 IN STOCK
Photo Part No Description Price (each) Stock
8D3360302BB Clip, Fir Tree, Flat Head $0.77 To Order
View All

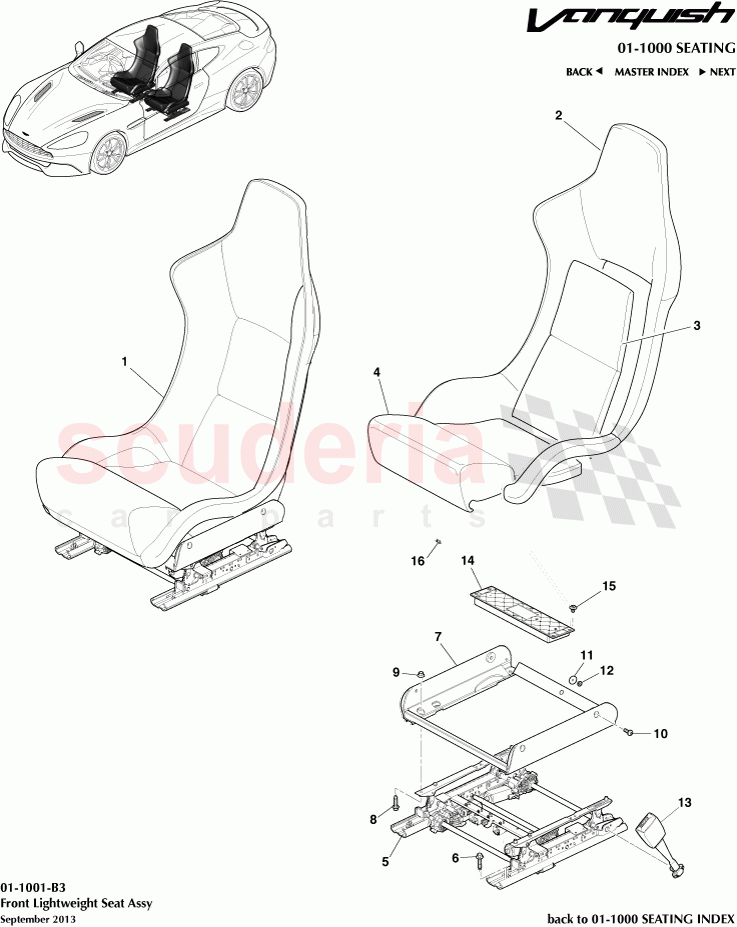

Front Lightweight Seat Assembly of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- ED3360009AAW
Front Seat Assembly Complete, Trimmed, LH 		$10,226.36 1
- CG43600C14AA
Front Seat and Track Assembly, Not Trimmed 		$9,692.81 2
- 7784981PK
Tape, Anti Rattle Rear Quarter Wheel
Pack of 10 		$29.53 A/R
1 ED3360008AAW
Front Seat Assembly Complete, Trimmed, RH 		$10,226.36 1
2 ED3364572AAW
Cover Assembly, Seat Outer 		$3,260.53 2
3 ED3360136AAW
Squab Assembly, Trimmed
Includes Foam 		- 2 Enquire
4 ED3360050AAW
Cushion Assembly, Trimmed
Includes Foam 		- 2 Enquire
5 4G437410116
Track Assembly, Front Lightweight Seat 		$4,028.09 2
6 706423
SCREW-M8 x 25 HF PI
IN STOCK 		$1.48 8
7 8D33617B94AD
Bracket Assembly, Front Seat Adaptor 		$499.75 2
8 W500624S303
Bolt, M8 x 25, Hex Flange Head 		- 8 Enquire
9 701342PK
NUT M8 HEX P/T PLAS8 PACK OF 5
Pack of 5 		$12.01 8
10 W505593S307
Screw, M8 x 20, Pan Head 		- 4 Enquire
12 703266
Screw M6 x 10 Pan Head Torx
IN STOCK 		$0.80 2
13 4G43613K22BD
Buckle Assembly, Front Seatbelt
Includes Fixings 		$266.77 2
14 92059
SEAT ECU 		$953.96 2
15 701581PK
FIRTREE-FLAT HEAD (PACK OF 20)
IN STOCK 		$10.64 8
16 8D3360302BB
Clip, Fir Tree, Flat Head 		$0.77 8
