Front Seat Assembly

Aston Martin Vanquish (2012+)

Find Your Part

Aston Martin Vanquish (2012+) - Front Seat Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CD3360008ABW Front Seat Assembly Complete, Trimmed, RH $23,646.72 To Order
Photo Part No Description Price (each) Stock
CD3360136AEW ASY FRT ST SQB RH $6,276.54 To Order
Photo Part No Description Price (each) Stock
CD3360050AAW Cushion Assy, Front Seat Trimmed $5,116.32 To Order
Photo Part No Description Price (each) Stock
CD337410142 FRT ST SQB FRM-TRMD $5,680.25 To Order
Photo Part No Description Price (each) Stock
CD33110002BA Panel, Seat Back Extension Side, Inboard, RH $6.64 To Order
Photo Part No Description Price (each) Stock
CD33110002AB Panel, Seat Back Extension Side, Outboard, RH $24.36 To Order
Photo Part No Description Price (each) Stock
703027 SCREW M4x10 PAN HD TORX S/TAP $0.23 To Order
Photo Part No Description Price (each) Stock
CD33M2D455AA Vac Form, Seat Airbag, RH $30.17 To Order
Photo Part No Description Price (each) Stock
CD33644B20AA Panel, Seat Back Finisher, Outer $181.77 To Order
Photo Part No Description Price (each) Stock
W502670S442 Screw, 4.2 x 16, Self Tapping $0.33 To Order
Photo Part No Description Price (each) Stock
701448 Spring Nut, U Type, 4.2 x 2.1 $1.10 IN STOCK
Photo Part No Description Price (each) Stock
CD33600E68AAW Panel, Seat Back Finisher, Inner $779.92 To Order
Photo Part No Description Price (each) Stock
AD434D9513BA FRONT SEAT SQUAB FOAM CLIMATE $1,029.00 To Order
Photo Part No Description Price (each) Stock
AD43600B70AC Cooling Assy, Squab $442.10 To Order
Photo Part No Description Price (each) Stock
CD3364572ABW Cover Assembly, Front Seat Squab, RH $3,543.88 To Order
Photo Part No Description Price (each) Stock
CD339515BC Foam, Cushion $108.86 To Order
Photo Part No Description Price (each) Stock
CD3314D698AB Cooling Assy, Cushion $190.96 To Order
Photo Part No Description Price (each) Stock
CD3362900ABW Cover Assy, Front Seat Cushion $4,144.02 To Order
Photo Part No Description Price (each) Stock
AD43L60344AC FRONT SEAT CUSHION FRAME HEIGHT ADJ $3,668.90 To Order
Photo Part No Description Price (each) Stock
706423 SCREW-M8 x 25 HF PI $1.47 IN STOCK
Photo Part No Description Price (each) Stock
AD4361538AA BLT FRT ST BK TO CSH M12 x 1.25 x 16.5 BO $5.46 To Order
Photo Part No Description Price (each) Stock
92059 SEAT ECU $946.14 To Order
Photo Part No Description Price (each) Stock
701581PK FIRTREE-FLAT HEAD (PACK OF 20) $10.55 IN STOCK
Photo Part No Description Price (each) Stock
7G4314B426AB Sensor, seat track position $43.10 To Order
Photo Part No Description Price (each) Stock
AD4314C288AA Sensor, passenger belt reminder $41.14 To Order
Photo Part No Description Price (each) Stock
AD43629B03AB FRONT SEAT RUN END CAP 6-WAY $8.00 To Order
Photo Part No Description Price (each) Stock
4G43RTC222AA Fixing, Fir Tree, 12mm $0.19 To Order
Photo Part No Description Price (each) Stock
AD43629B01AB Run end cap, 2 way $17.08 To Order
Photo Part No Description Price (each) Stock
4G4316C694ABPK Washer Nylon M6 (Pack of 10) $9.78 IN STOCK
Photo Part No Description Price (each) Stock
4G43RTC222AA Fixing, Fir Tree, 12mm $0.19 To Order
Photo Part No Description Price (each) Stock
CD337410025 Clip, Metal, Seat Cover Retaining $0.08 To Order
View All

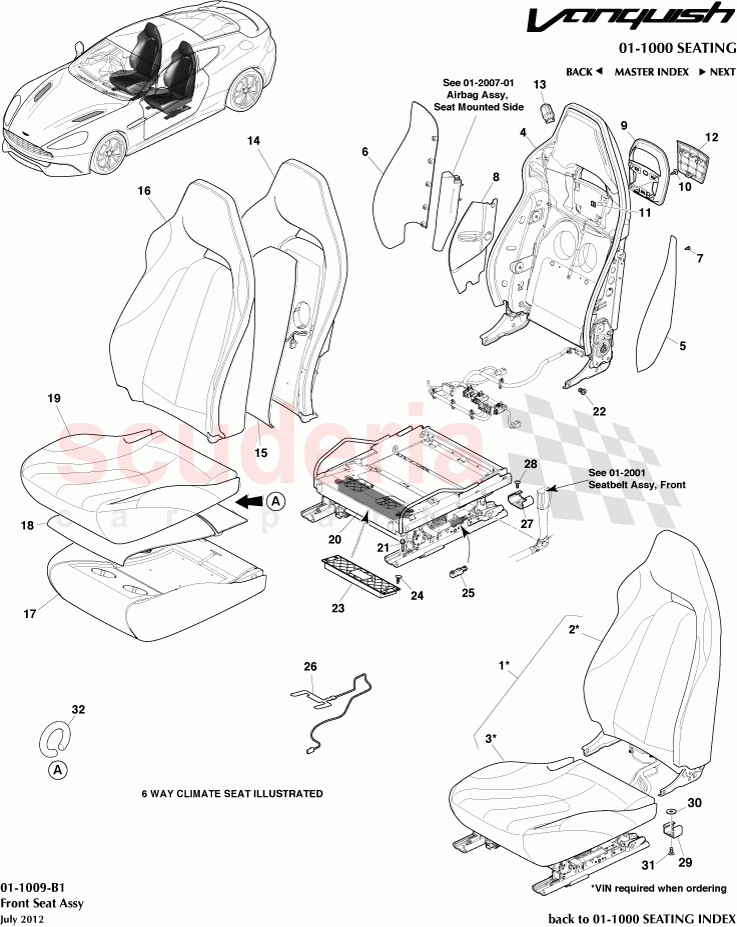

Front Seat Assembly of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CD3360009ABW
Front Seat Assembly Complete, Trimmed, LH 		$23,646.72 1
- CD3360137ADW
Squab Assembly, Front Seat Trimmed, LH 		$6,276.54 1
- CD337410141
FRT ST SQB FRM-TRMD
Includes Seat Back Leather 		$5,268.01 1
- CD33110003BA
Panel, Seat Back Extension Side, Inboard, LH 		$95.90 1
- CD33110003AB
Panel, Seat Back Extension Side, Outboard, LH 		$95.90 1
- CD33M2D456BA
Vac Form, Seat Airbag, LH 		- 1 Enquire
- CD33644B20BB
Panel, Seat Back Finisher, Outer
Dark Chrome 		- 2 Enquire
- ED33044H12AAW
Panel, Seat Back Finisher, Outer
Leather Wrapped 		- 2 Enquire
- CD33605W00AC
ST REL STRAP
Black, woven 		$39.68 2
- DD33062A00CB
SEAT TILT SWITCH
Dark Chrome 		$147.84 2
- AD434D9513AA
Foam, Squab
Non Cooled 		$94.98 2
- AD4314D696AB
Heating Element, Squab 		$88.15 2
- CD3364573ABW
Cover Assembly, Front Seat Squab, LH
Does Not Include Seat Back Leather 		$3,543.88 1
- CD339515AB
Foam, Cushion
Non Cooled 		$102.96 2
- CD33600B68AB
Heating Element, Cushion 		$323.52 2
- CD33V604K40AB
Frame, Front Seat Cushion
Non-Height Adjustable with ISOfix 		$2,675.30 2
1 CD3360008ABW
Front Seat Assembly Complete, Trimmed, RH 		$23,646.72 1
2 CD3360136AEW
ASY FRT ST SQB RH 		$6,276.54 1
3 CD3360050AAW
Cushion Assy, Front Seat Trimmed 		$5,116.32 2
4 CD337410142
FRT ST SQB FRM-TRMD
Includes Seat Back Leather 		$5,680.25 1
5 CD33110002BA
Panel, Seat Back Extension Side, Inboard, RH 		$6.64 1
6 CD33110002AB
Panel, Seat Back Extension Side, Outboard, RH 		$24.36 1
7 703027
SCREW M4x10 PAN HD TORX S/TAP 		$0.23 10
8 CD33M2D455AA
Vac Form, Seat Airbag, RH 		$30.17 1
9 CD33644B20AA
Panel, Seat Back Finisher, Outer
Satin Chrome 		$181.77 2
10 W502670S442
Screw, 4.2 x 16, Self Tapping 		$0.33 8
11 701448
Spring Nut, U Type, 4.2 x 2.1
IN STOCK 		$1.10 8
12 CD33600E68AAW
Panel, Seat Back Finisher, Inner 		$779.92 2
13 AD33062A00BB
SEAT TILT SWITCH
Satin Chrome 		$384.12 2
14 AD434D9513BA
FRONT SEAT SQUAB FOAM CLIMATE
Cooled 		$1,029.00 2
15 AD43600B70AC
Cooling Assy, Squab 		$442.10 2
16 CD3364572ABW
Cover Assembly, Front Seat Squab, RH
Does Not Include Seat Back Leather 		$3,543.88 1
17 CD339515BC
Foam, Cushion
Cooled 		$108.86 2
18 CD3314D698AB
Cooling Assy, Cushion 		$190.96 2
19 CD3362900ABW
Cover Assy, Front Seat Cushion 		$4,144.02 2
20 AD43L60344AC
FRONT SEAT CUSHION FRAME HEIGHT ADJ
Height Adjustable 		$3,668.90 2
21 706423
SCREW-M8 x 25 HF PI
IN STOCK 		$1.47 8
22 AD4361538AA
BLT FRT ST BK TO CSH M12 x 1.25 x 16.5 BO 		$5.46 4
23 92059
SEAT ECU 		$946.14 2
24 701581PK
FIRTREE-FLAT HEAD (PACK OF 20)
IN STOCK 		$10.55 8
25 7G4314B426AB
Sensor, seat track position 		$43.10 2
26 AD4314C288AA
Sensor, passenger belt reminder 		$41.14 1
27 AD43629B03AB
FRONT SEAT RUN END CAP 6-WAY 		$8.00 4
28 4G43RTC222AA
Fixing, Fir Tree, 12mm 		$0.19 4
29 AD43629B01AB
Run end cap, 2 way 		$17.08 2
30 4G4316C694ABPK
Washer Nylon M6 (Pack of 10)
Fed, LH Seat Only
IN STOCK 		$9.78 2
31 4G43RTC222AA
Fixing, Fir Tree, 12mm
Fed, LH Seat Only 		$0.19 4
32 CD337410025
Clip, Metal, Seat Cover Retaining 		$0.08 A/R
