Aston Martin Vanquish (2012+) - NVH Pads, VOLANTE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G33102B00BE INS ENG HSG SND RHD $139.83 To Order
Photo Part No Description Price (each) Stock
DD33015A22AG DSH INR LH RHD $78.21 To Order
Photo Part No Description Price (each) Stock
DD33002K06AD DSH INR RH RHD $90.58 To Order
Photo Part No Description Price (each) Stock
DD3328110AB NVH Foam Pad Assembly, Fender Lower $42.92 To Order
Photo Part No Description Price (each) Stock
DD3328112AA NVH Foam Pad, Fender Upper $51.92 To Order
Photo Part No Description Price (each) Stock
8G4304564AA NVH, Autobox Clutch Pedal $0.85 To Order
Photo Part No Description Price (each) Stock
DD3354752AC Baffle, Floor, LH $56.87 To Order
Photo Part No Description Price (each) Stock
DD3354751AD BAFFLE FLOOR RH $44.20 To Order
Photo Part No Description Price (each) Stock
6G33114B33AB Insulation Assembly, Front Floor Pan, LH $5.37 To Order
Photo Part No Description Price (each) Stock
6G33114B32AB Insulation Assembly, Front Floor Pan, RH $5.37 To Order
Photo Part No Description Price (each) Stock
6G33114A43AB Insulation Assembly, Front Floor Pan, LH $5.37 To Order
Photo Part No Description Price (each) Stock
6G33114A42AB Insulation Assembly, Front Floor Pan, RH $5.37 To Order
Photo Part No Description Price (each) Stock
4G43114B26AH Insulation, Tunnel $99.05 To Order
Photo Part No Description Price (each) Stock
DD3311446AC NVH, Interior Front Tunnel Enquire To Order
Photo Part No Description Price (each) Stock
4G437Z309AC Insulation, Transmission Case Cover $74.61 To Order
Photo Part No Description Price (each) Stock
ED335416AA Cover, Rear Tunnel Enquire To Order
Photo Part No Description Price (each) Stock
DD3300152AB Insulation, Plenum, Engine Bay Side Enquire To Order
Photo Part No Description Price (each) Stock
AD4368066CA NVH DASH FOAM UNDER Enquire To Order
Photo Part No Description Price (each) Stock
4G4302293AB Insulation, Sound, Cowl Side Panel Lower, LH $13.13 To Order
Photo Part No Description Price (each) Stock
4G4302292AB Insulation, Sound, Cowl Side Panel Lower, RH $13.13 To Order
Photo Part No Description Price (each) Stock
8G4348181AB Foam Pad, Under IP, LH $20.25 To Order
Photo Part No Description Price (each) Stock
8G4348182AB Foam Pad, Under IP, RH $20.25 To Order
Photo Part No Description Price (each) Stock
CG4302139AA Baffle, cowl, top in end $14.74 To Order
Photo Part No Description Price (each) Stock
CG43310A59AA Insulation, Body Side Front Upper, LH $14.17 To Order
Photo Part No Description Price (each) Stock
CG43310A60AA Insulation, Body Side Front Upper, RH $14.17 To Order
Photo Part No Description Price (each) Stock
ED33L27747AA NVH, Rear Quarter Panel, Cabin, LH Enquire To Order
Photo Part No Description Price (each) Stock
ED33L27746AA NVH, Rear Quarter Panel, Cabin, RH $131.51 To Order
Photo Part No Description Price (each) Stock
CG43D1161AC Insulation, Rear Quarter Trim, LH $11.98 To Order
Photo Part No Description Price (each) Stock
CG43D1160AC Insulation, rear quarter trim, RH $9.61 To Order
Photo Part No Description Price (each) Stock
ED33L31181AA NVH, Rear Bulkhead, LH Enquire To Order
Photo Part No Description Price (each) Stock
ED33L31180AA NVH, Rear Bulkhead, RH $15.37 To Order
Photo Part No Description Price (each) Stock
ED3324562AA Pad, Centre Body Pillar $8.65 To Order
Photo Part No Description Price (each) Stock
ED33C27746AA NVH, Rear Quarter Panel $9.47 To Order
Photo Part No Description Price (each) Stock
ED33L31K66AA NVH, Rear Bulkhead Centre Enquire To Order
Photo Part No Description Price (each) Stock
ED33403C20AA Insulation, Back Panel Outer Enquire To Order
Photo Part No Description Price (each) Stock
ED3324538AA Insulation Foam, Tonneau Corner Casting Void Enquire To Order
Photo Part No Description Price (each) Stock
DD33454A13AB INS L/C INR WHL LH $17.04 To Order
Photo Part No Description Price (each) Stock
ED337411A30AC Insulation, Luggage Compartment Floor $26.98 To Order
Photo Part No Description Price (each) Stock
ED3331314AB Insulation, Quarter Panel Rear Enquire To Order
Photo Part No Description Price (each) Stock
702212 Snapsac, 6.8mm, Push-on, Plastic $0.52 To Order
Photo Part No Description Price (each) Stock
6G3334983AB Clip, Edge, NVH Retainer $0.85 To Order
Photo Part No Description Price (each) Stock
CG43C311K70AA NVH, Hood Hydraulic Pump $2.92 To Order
Photo Part No Description Price (each) Stock
DG4368066BA NVH DASH FOAM UNDER $7.24 To Order
View All

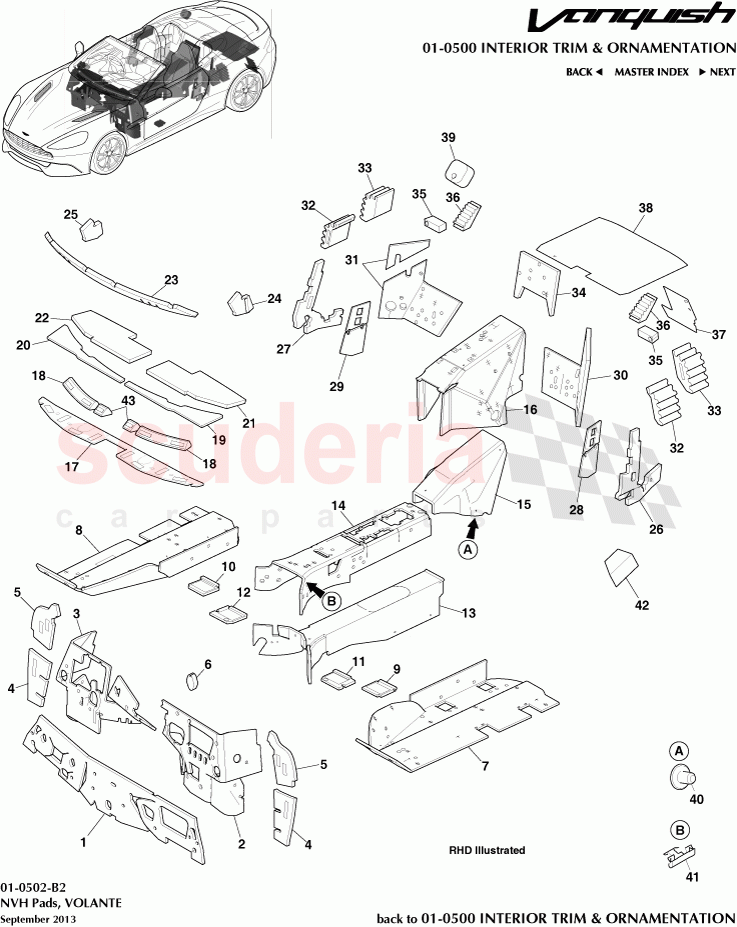

NVH Pads, VOLANTE of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 6G33102B00AE
INS ENG HSG SND LHD
LHD 		$146.84 1
- DD33015A23AD
DSH INR LH LHD
LHD 		$91.01 1
- DD33002K05AF
DASH INR RH LHD
LHD 		$69.01 1
1 6G33102B00BE
INS ENG HSG SND RHD
RHD 		$139.83 1
2 DD33015A22AG
DSH INR LH RHD
RHD 		$78.21 1
3 DD33002K06AD
DSH INR RH RHD
RHD 		$90.58 1
4 DD3328110AB
NVH Foam Pad Assembly, Fender Lower 		$42.92 2
5 DD3328112AA
NVH Foam Pad, Fender Upper 		$51.92 2
6 8G4304564AA
NVH, Autobox Clutch Pedal 		$0.85 1
7 DD3354752AC
Baffle, Floor, LH 		$56.87 1
8 DD3354751AD
BAFFLE FLOOR RH 		$44.20 1
9 6G33114B33AB
Insulation Assembly, Front Floor Pan, LH 		$5.37 1
10 6G33114B32AB
Insulation Assembly, Front Floor Pan, RH 		$5.37 1
11 6G33114A43AB
Insulation Assembly, Front Floor Pan, LH 		$5.37 1
12 6G33114A42AB
Insulation Assembly, Front Floor Pan, RH 		$5.37 1
13 4G43114B26AH
Insulation, Tunnel 		$99.05 1
14 DD3311446AC
NVH, Interior Front Tunnel 		- 1 Enquire
15 4G437Z309AC
Insulation, Transmission Case Cover 		$74.61 1
16 ED335416AA
Cover, Rear Tunnel 		- 1 Enquire
17 DD3300152AB
Insulation, Plenum, Engine Bay Side 		- 1 Enquire
18 AD4368066CA
NVH DASH FOAM UNDER
2x Only When Pedestrian Impact System Fitted 		- 3 Enquire
19 4G4302293AB
Insulation, Sound, Cowl Side Panel Lower, LH 		$13.13 1
20 4G4302292AB
Insulation, Sound, Cowl Side Panel Lower, RH 		$13.13 1
21 8G4348181AB
Foam Pad, Under IP, LH 		$20.25 1
22 8G4348182AB
Foam Pad, Under IP, RH 		$20.25 1
23 CG4302139AA
Baffle, cowl, top in end 		$14.74 1
24 CG43310A59AA
Insulation, Body Side Front Upper, LH 		$14.17 1
25 CG43310A60AA
Insulation, Body Side Front Upper, RH 		$14.17 1
26 ED33L27747AA
NVH, Rear Quarter Panel, Cabin, LH 		- 1 Enquire
27 ED33L27746AA
NVH, Rear Quarter Panel, Cabin, RH 		$131.51 1
28 CG43D1161AC
Insulation, Rear Quarter Trim, LH 		$11.98 1
29 CG43D1160AC
Insulation, rear quarter trim, RH 		$9.61 1
30 ED33L31181AA
NVH, Rear Bulkhead, LH 		- 1 Enquire
31 ED33L31180AA
NVH, Rear Bulkhead, RH 		$15.37 1
32 ED3324562AA
Pad, Centre Body Pillar 		$8.65 2
33 ED33C27746AA
NVH, Rear Quarter Panel 		$9.47 2
34 ED33L31K66AA
NVH, Rear Bulkhead Centre 		- 1 Enquire
35 ED33403C20AA
Insulation, Back Panel Outer 		- 2 Enquire
36 ED3324538AA
Insulation Foam, Tonneau Corner Casting Void 		- 2 Enquire
37 DD33454A13AB
INS L/C INR WHL LH 		$17.04 1
38 ED337411A30AC
Insulation, Luggage Compartment Floor 		$26.98 1
39 ED3331314AB
Insulation, Quarter Panel Rear 		- 1 Enquire
40 702212
Snapsac, 6.8mm, Push-on, Plastic 		$0.52 A/R
41 6G3334983AB
Clip, Edge, NVH Retainer 		$0.85 3
42 CG43C311K70AA
NVH, Hood Hydraulic Pump 		$2.92 3
43 DG4368066BA
NVH DASH FOAM UNDER
When Pedestrian Impact System Fitted 		$7.24 2
