Aston Martin V12 Zagato - Hood Latching System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G436411062 Lever, Bonnet Release $172.87 To Order
Photo Part No Description Price (each) Stock
4G4316C730AB Bracket, Hood Release Handle Mounting $13.98 To Order
Photo Part No Description Price (each) Stock
701580PK Rivet Dome Head (Pack of 20) $10.10 IN STOCK
Photo Part No Description Price (each) Stock
701553 Screw, M6 x 16, Pan Head $0.19 IN STOCK
Photo Part No Description Price (each) Stock
6G3316B768AE Latch Hood Secondary $335.77 To Order
Photo Part No Description Price (each) Stock
4G4316C774AB Sleeve, Hood Latch Release $1.38 To Order
Photo Part No Description Price (each) Stock
702514 SCREW M6 x 14 PAN HEAD $1.49 IN STOCK
Photo Part No Description Price (each) Stock
AG336410613 LATCH HOOD RH $23.78 IN STOCK
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) $19.28 IN STOCK
Photo Part No Description Price (each) Stock
6G436410121 STRIKER ASSEMBLY- BONNET $139.98 To Order
Photo Part No Description Price (each) Stock
4G4316C656AF CABLE ASSEMBLY HOOD LATCH $54.81 IN STOCK
Photo Part No Description Price (each) Stock
6G3316C774AA Sleeve, Hood Latch Secondary Striker $45.93 To Order
Photo Part No Description Price (each) Stock
8G438979AA WASHER M5 x 20 x 1.5 THK ST/STEEL BLK $0.36 IN STOCK
Photo Part No Description Price (each) Stock
6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) $4.20 IN STOCK
Photo Part No Description Price (each) Stock
6G3316A788AC Pin, Hood Striker $29.09 To Order
Photo Part No Description Price (each) Stock
702515 CLIP CABLE $0.52 IN STOCK
Photo Part No Description Price (each) Stock
6G3316E648AA Edge protector $7.40 To Order
Photo Part No Description Price (each) Stock
4G436510059PK Firtree Clip, for pad wear lead (Pack of 100) $61.85 IN STOCK
View All

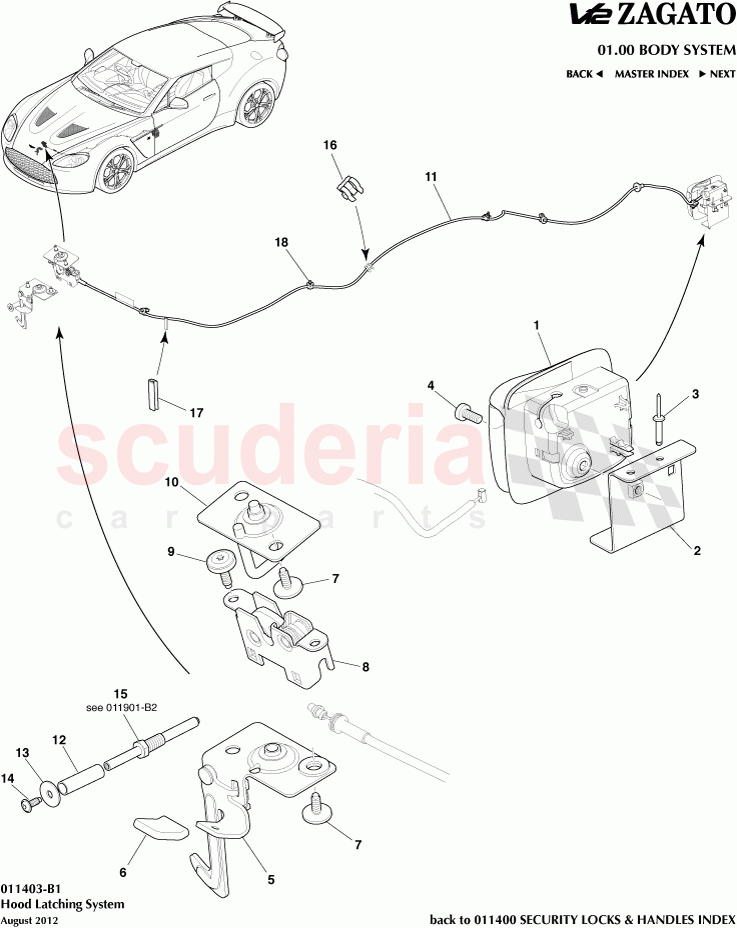

Hood Latching System of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9G436411062
Lever, Bonnet Release 		$172.87 1
2 4G4316C730AB
Bracket, Hood Release Handle Mounting 		$13.98 1
3 701580PK
Rivet Dome Head (Pack of 20)
Pack of 20
IN STOCK 		$10.10 3
4 701553
Screw, M6 x 16, Pan Head
IN STOCK 		$0.19 1
5 6G3316B768AE
Latch Hood Secondary 		$335.77 1
6 4G4316C774AB
Sleeve, Hood Latch Release 		$1.38 1
7 702514
SCREW M6 x 14 PAN HEAD
IN STOCK 		$1.49 4
8 AG336410613
LATCH HOOD RH
IN STOCK 		$23.78 1
9 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
Pack of 20
IN STOCK 		$19.28 2
10 6G436410121
STRIKER ASSEMBLY- BONNET 		$139.98 1
11 4G4316C656AF
CABLE ASSEMBLY HOOD LATCH
IN STOCK 		$54.81 1
12 6G3316C774AA
Sleeve, Hood Latch Secondary Striker 		$45.93 1
13 8G438979AA
WASHER M5 x 20 x 1.5 THK ST/STEEL BLK
IN STOCK 		$0.36 1
14 6G3351756AAPK
Screw M5 x 13 Pan Head Pack (10)
Pack of 10
IN STOCK 		$4.20 1
15 6G3316A788AC
Pin, Hood Striker 		$29.09 1
16 702515
CLIP CABLE
IN STOCK 		$0.52 1
17 6G3316E648AA
Edge protector 		$7.40 1
18 4G436510059PK
Firtree Clip, for pad wear lead (Pack of 100)
Pack of 100
IN STOCK 		$61.85 4
