Aston Martin V12 Zagato - Body Dash and Cowl

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G43C03014BR Frame Assembly, Windshield, RHD Enquire To Order
Photo Part No Description Price (each) Stock
GOGG33F02526AA REINF FRT BDY PLR $296.06 To Order
Photo Part No Description Price (each) Stock
GOAG33F02527AA Pillar, Front Body Reinforcement, LH $84.22 To Order
Photo Part No Description Price (each) Stock
CY8302538BA Reinforcement Assembly, A Post, RH $1,326.21 To Order
Photo Part No Description Price (each) Stock
CY8302539BA Reinforcement Assembly, A Post, LH $1,326.21 To Order
Photo Part No Description Price (each) Stock
6G332010442 Support Assembly, Front Fender, RH $597.57 To Order
Photo Part No Description Price (each) Stock
6G332010443 ASEMBLY FRONT FENDER SUPPORT LLH $597.57 To Order
Photo Part No Description Price (each) Stock
6G33C18178AB Bracket, Gas Damper Mounting $6.93 To Order
Photo Part No Description Price (each) Stock
GODG4317F790BA Nutplate, Shotgun, M10 $45.15 To Order
Photo Part No Description Price (each) Stock
P0AD235048AA Bracket, Cross Member, RH $81.33 To Order
Photo Part No Description Price (each) Stock
P0AD235049AA Bracket, Cross Member, LH $81.33 To Order
Photo Part No Description Price (each) Stock
AD235D066AA CROSS MEMBER FRONT UPPER $179.98 To Order
Photo Part No Description Price (each) Stock
AG3310414AA MEMBER FRONT CS AT DH $83.00 To Order
Photo Part No Description Price (each) Stock
AD2316430AA Casting, Front Side Member to Front Cross Member, RH $423.14 To Order
Photo Part No Description Price (each) Stock
AD2316431AA Casting, Front Side Member to Front Cross Member, LH $423.14 To Order
Photo Part No Description Price (each) Stock
DG43F01760BA Panel, Dash Upper, RH, RHD Enquire To Order
Photo Part No Description Price (each) Stock
DG43F01761BA Panel, Dash Upper, LH, RHD Enquire To Order
Photo Part No Description Price (each) Stock
BG33F01612AA Panel, Dash Side, RH $747.45 To Order
Photo Part No Description Price (each) Stock
BG33F01613AA Panel, Dash Side, LH $747.45 To Order
Photo Part No Description Price (each) Stock
6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head $0.33 To Order
Photo Part No Description Price (each) Stock
6G3315110AB Nutplate M8, ??post hinge, lower, RH $11.96 To Order
Photo Part No Description Price (each) Stock
6G3315111AB Nutplate M8, ??post hinge, lower, LH $7.82 To Order
Photo Part No Description Price (each) Stock
6G3371490AA Nutplate, A Post Hinge, Upper, RH $8.68 To Order
Photo Part No Description Price (each) Stock
6G3394545AA Nutplate, A Post Hinge, Upper, LH $8.53 To Order
Photo Part No Description Price (each) Stock
GOAG33F02660AB Pillar, Front Body Lower Front, RH $161.19 To Order
Photo Part No Description Price (each) Stock
GOAG33F02661AB Pillar, Front Body Lower Front, LH $149.01 To Order
Photo Part No Description Price (each) Stock
GOAG33F02662AB Extrusion, Front Body Pillar Lower, RH $104.31 To Order
Photo Part No Description Price (each) Stock
GOAG33F02663AB Extrusion, Front Body Pillar Lower, LH $83.46 To Order
Photo Part No Description Price (each) Stock
6G33486226AA Nutplate, M8, IP beam $8.68 To Order
Photo Part No Description Price (each) Stock
6G3368676AC Rivet Structural 6.5 x 14, Blind $1.11 To Order
View All

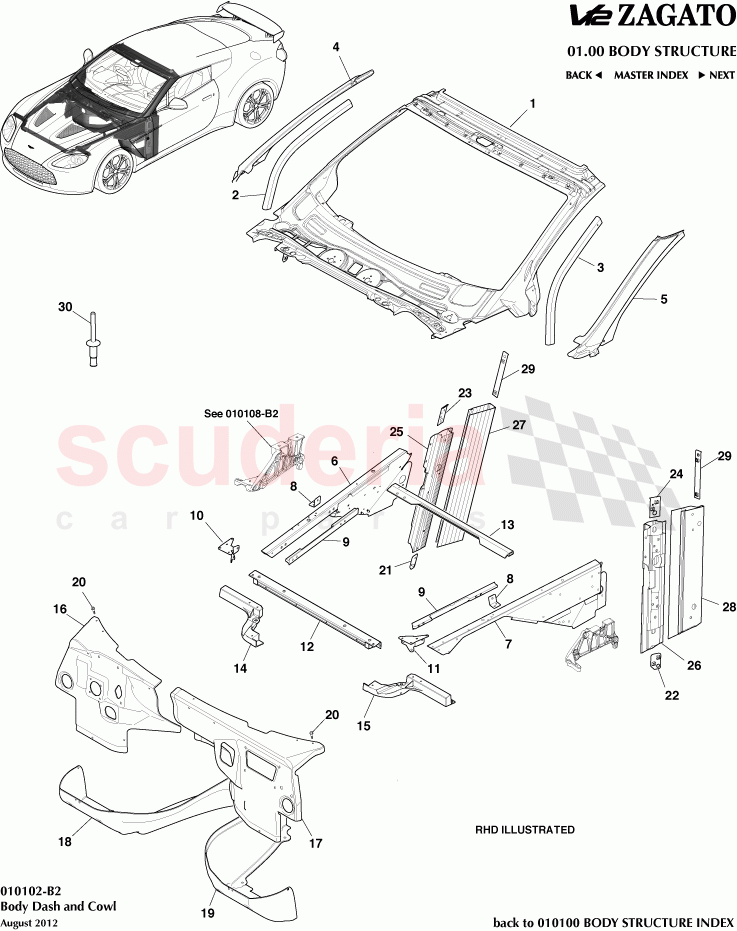

Body Dash and Cowl of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- EG33C03014AB
FR ASY W/SHIELD
Structural Cat. A Only 		$2,434.12 1
- DG43F01760AA
Panel, Dash Upper, RH, LHD
Structural Cat. A Only 		- 1 Enquire
- DG43F01761AB
Panel, Dash Upper, LH, LHD
Structural Cat. A Only 		- 1 Enquire
1 4G43C03014BR
Frame Assembly, Windshield, RHD
Structural Cat. A Only 		- 1 Enquire
2 GOGG33F02526AA
REINF FRT BDY PLR
Structural Cat. A Only 		$296.06 1
3 GOAG33F02527AA
Pillar, Front Body Reinforcement, LH
Structural Cat. A Only 		$84.22 1
4 CY8302538BA
Reinforcement Assembly, A Post, RH
Structural Cat. A Only 		$1,326.21 1
5 CY8302539BA
Reinforcement Assembly, A Post, LH
Structural Cat. A Only 		$1,326.21 1
6 6G332010442
Support Assembly, Front Fender, RH
Structural Cat. A Only 		$597.57 1
7 6G332010443
ASEMBLY FRONT FENDER SUPPORT LLH
Structural Cat. A Only 		$597.57 1
8 6G33C18178AB
Bracket, Gas Damper Mounting
Structural Cat. A Only 		$6.93 2
9 GODG4317F790BA
Nutplate, Shotgun, M10
Structural Cat. A Only 		$45.15 2
10 P0AD235048AA
Bracket, Cross Member, RH
Structural Cat. A Only 		$81.33 1
11 P0AD235049AA
Bracket, Cross Member, LH
Structural Cat. A Only 		$81.33 1
12 AD235D066AA
CROSS MEMBER FRONT UPPER
Structural Cat. A Only 		$179.98 1
13 AG3310414AA
MEMBER FRONT CS AT DH
Structural Cat. A Only 		$83.00 1
14 AD2316430AA
Casting, Front Side Member to Front Cross Member, RH
Structural Cat. A Only 		$423.14 1
15 AD2316431AA
Casting, Front Side Member to Front Cross Member, LH
Structural Cat. A Only 		$423.14 1
16 DG43F01760BA
Panel, Dash Upper, RH, RHD
Structural Cat. A Only 		- 1 Enquire
17 DG43F01761BA
Panel, Dash Upper, LH, RHD
Structural Cat. A Only 		- 1 Enquire
18 BG33F01612AA
Panel, Dash Side, RH
Structural Cat. A Only 		$747.45 1
19 BG33F01613AA
Panel, Dash Side, LH
Structural Cat. A Only 		$747.45 1
20 6G33375732AB
Screw, 5.5 x 19, Self Drill, Hex Flange head
Structural Cat. A Only 		$0.33 2
21 6G3315110AB
Nutplate M8, ??post hinge, lower, RH
Structural Cat. A Only 		$11.96 1
22 6G3315111AB
Nutplate M8, ??post hinge, lower, LH
Structural Cat. A Only 		$7.82 1
23 6G3371490AA
Nutplate, A Post Hinge, Upper, RH
Structural Cat. A Only 		$8.68 1
24 6G3394545AA
Nutplate, A Post Hinge, Upper, LH
Structural Cat. A Only 		$8.53 1
25 GOAG33F02660AB
Pillar, Front Body Lower Front, RH
Structural Cat. A Only 		$161.19 1
26 GOAG33F02661AB
Pillar, Front Body Lower Front, LH
Structural Cat. A Only 		$149.01 1
27 GOAG33F02662AB
Extrusion, Front Body Pillar Lower, RH
Structural Cat. A Only 		$104.31 1
28 GOAG33F02663AB
Extrusion, Front Body Pillar Lower, LH
Structural Cat. A Only 		$83.46 1
29 6G33486226AA
Nutplate, M8, IP beam
Structural Cat. A Only 		$8.68 2
30 6G3368676AC
Rivet Structural 6.5 x 14, Blind 		$1.11 A/R
