Name: Body Sound Insulation, LHD
Rating: 4.7 (1 reviews)

Body Sound Insulation, LHD of Aston Martin Aston Martin V12 Zagato

View All

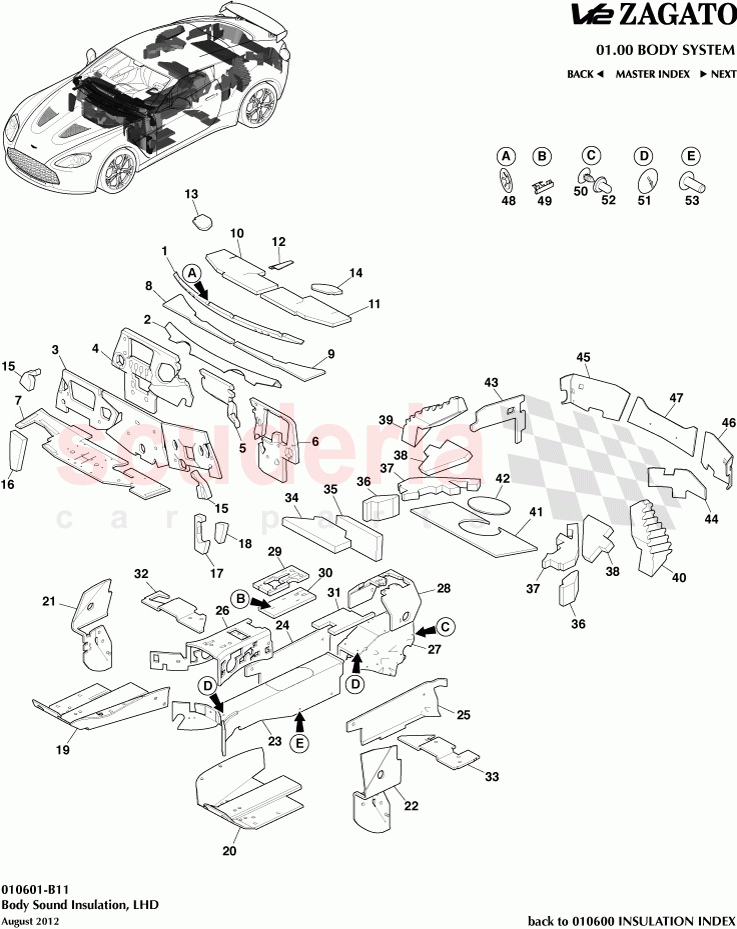

Aston Martin V12 Zagato - Body Sound Insulation, LHD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CG4302139AA	Baffle, cowl, top in end	$15.66	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368066AC	NVH DASH FOAM UNDER SIDE CAVITY ASSY	$46.18	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33102B00AE	INS ENG HSG SND LHD	$156.03	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43002K05AA	BAFFLE BODY FRONT PANEL LHD RH	$86.79	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43021A59AA	Baffle, Body Front Panel, Centre	$37.81	To Order

Photo	Part No	Description	Price (each)	Stock
	DD33015A23AD	DSH INR LH LHD	$96.70	To Order

Photo	Part No	Description	Price (each)	Stock
	HG3300152AA	INS BDY TO FR LHD	$143.20	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302292AB	Insulation, Sound, Cowl Side Panel Lower, RH	$13.95	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302293AB	Insulation, Sound, Cowl Side Panel Lower, LH	$13.95	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4348182AB	Foam Pad, Under IP, RH	$21.51	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4348181AB	Foam Pad, Under IP, LH	$21.51	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43047B22AA	Insulation, I/ panel radio speaker opening, centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43046B72AA	Insulation, I/ panel radio speaker opening, RH	$2.21	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43046B73AA	Insulation, I/ pnl radio speaker opening, LH	$2.21	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3328112AA	NVH Foam Pad Assy, Fender Upper	$21.78	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3328110AA	NVH Foam Pad Assy, Fender Lower, RH	$21.78	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3328111AA	NVH Foam Pad Assy, Fender Lower, LH	$21.78	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3328121AA	NVH Foam Pad Assy, Fender Centre, LH	$15.44	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4354571AF	Baffle, Floor, RH	$24.85	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4354572AE	Baffle, Floor, LH	$24.85	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43310A58AB	Insulation, Body Side Front, RH	$55.39	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43310A57AC	Insulation, Body Side Front, LH	$55.39	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43114B26AH	Insulation, Tunnel	$105.26	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3324926AB	PAD TUNNEL SIDE RIGHT HAND	$27.03	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3324927AB	PAD TUNNEL SIDE LEFT HAND	$27.01	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4311446AB	Insulation, Sound, Floor Pan Gear Shift Cover	$39.17	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337Z309AD	Insulation, transmission case cover	$104.92	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335416AD	NVH TUNNEL REAR INNER COMPARTMENT FLEECE	$21.98	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33218060AB	NVH GEAR SHIFTER UPPER ASSEMBLY	$11.34	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33218061AB	NVH GEAR SHIFTER LOWER ASSEMBLY	$18.16	To Order

Photo	Part No	Description	Price (each)	Stock
	9G3313082AA	NVH, Tunnel Top Arm Rest	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3311204AB	NVH, Rear Floor Pan, RH	$5.73	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3311205AB	NVH, Rear Floor Pan, LH	$17.61	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3313032AB	NVH, Battery Compartment, Top	$20.73	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33199229AB	NVH, Battery Compartment, Rear	$15.51	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3331338AA	Pad, Rear Wheel	$13.95	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3324562AA	Pad, Centre Body Pillar	$17.32	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3331181AB	Insulation, rear quarter NVH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C27746AC	Insulation Rear Quarter Panel, RH	$39.41	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C27747AC	Insulation Rear Quarter Panel, LH	$39.41	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C56157AB	Fleece, Fuel Tank Top	$27.82	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33405A32AA	NVH, Fuel Tank Door Cover Assembly	$13.77	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3350106AA	LUGGAGE COMPARTMENT SIDE FLEECE RH	$25.74	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3350107AA	Fleece, Luggage Compartment, LH	$25.74	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33F46402AB	Fleece, Rear Side, RH	$25.44	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33N46402AB	Fleece, Rear Side, LH	$12.26	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33A46402AB	Fleece, Luggage Compartment, Rear Centre	$6.36	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33WE600041AB	WASHER STAR LOCK	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3334983AB	Clip, Edge, NVH Retainer	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	697648	Fastener, Fir Tree	$0.84	To Order

Photo	Part No	Description	Price (each)	Stock
	697564	Retainer, Push On	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	702212	Snapsac, 6.8mm, Push-on, Plastic	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433678AAAA	Fir Tree, Push On, 5mm Stud	$0.40	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	CG4302139AA	Baffle, cowl, top in end	CG4302139AA Baffle, cowl, top in end	$15.66	1
2	6G3368066AC	NVH DASH FOAM UNDER SIDE CAVITY ASSY	6G3368066AC NVH DASH FOAM UNDER SIDE CAVITY ASSY	$46.18	1
3	6G33102B00AE	INS ENG HSG SND LHD	6G33102B00AE INS ENG HSG SND LHD	$156.03	1
4	8G43002K05AA	BAFFLE BODY FRONT PANEL LHD RH	8G43002K05AA BAFFLE BODY FRONT PANEL LHD RH	$86.79	1
5	8G43021A59AA	Baffle, Body Front Panel, Centre	8G43021A59AA Baffle, Body Front Panel, Centre	$37.81	1
6	DD33015A23AD	DSH INR LH LHD	DD33015A23AD DSH INR LH LHD	$96.70	1
7	HG3300152AA	INS BDY TO FR LHD	HG3300152AA INS BDY TO FR LHD	$143.20	1
8	4G4302292AB	Insulation, Sound, Cowl Side Panel Lower, RH	4G4302292AB Insulation, Sound, Cowl Side Panel Lower, RH	$13.95	1
9	4G4302293AB	Insulation, Sound, Cowl Side Panel Lower, LH	4G4302293AB Insulation, Sound, Cowl Side Panel Lower, LH	$13.95	1
10	8G4348182AB	Foam Pad, Under IP, RH	8G4348182AB Foam Pad, Under IP, RH	$21.51	1
11	8G4348181AB	Foam Pad, Under IP, LH	8G4348181AB Foam Pad, Under IP, LH	$21.51	1
12	9G43047B22AA	Insulation, I/ panel radio speaker opening, centre	9G43047B22AA Insulation, I/ panel radio speaker opening, centre	-	1	Enquire
13	9G43046B72AA	Insulation, I/ panel radio speaker opening, RH	9G43046B72AA Insulation, I/ panel radio speaker opening, RH	$2.21	1
14	9G43046B73AA	Insulation, I/ pnl radio speaker opening, LH	9G43046B73AA Insulation, I/ pnl radio speaker opening, LH	$2.21	1
15	6G3328112AA	NVH Foam Pad Assy, Fender Upper	6G3328112AA NVH Foam Pad Assy, Fender Upper	$21.78	2
16	6G3328110AA	NVH Foam Pad Assy, Fender Lower, RH	6G3328110AA NVH Foam Pad Assy, Fender Lower, RH	$21.78	1
17	6G3328111AA	NVH Foam Pad Assy, Fender Lower, LH	6G3328111AA NVH Foam Pad Assy, Fender Lower, LH	$21.78	1
18	6G3328121AA	NVH Foam Pad Assy, Fender Centre, LH	6G3328121AA NVH Foam Pad Assy, Fender Centre, LH	$15.44	1
19	4G4354571AF	Baffle, Floor, RH	4G4354571AF Baffle, Floor, RH	$24.85	1
20	4G4354572AE	Baffle, Floor, LH	4G4354572AE Baffle, Floor, LH	$24.85	1
21	8G43310A58AB	Insulation, Body Side Front, RH	8G43310A58AB Insulation, Body Side Front, RH	$55.39	1
22	8G43310A57AC	Insulation, Body Side Front, LH	8G43310A57AC Insulation, Body Side Front, LH	$55.39	1
23	4G43114B26AH	Insulation, Tunnel	4G43114B26AH Insulation, Tunnel	$105.26	1
24	8G3324926AB	PAD TUNNEL SIDE RIGHT HAND	8G3324926AB PAD TUNNEL SIDE RIGHT HAND	$27.03	1
25	8G3324927AB	PAD TUNNEL SIDE LEFT HAND	8G3324927AB PAD TUNNEL SIDE LEFT HAND	$27.01	1
26	8G4311446AB	Insulation, Sound, Floor Pan Gear Shift Cover	8G4311446AB Insulation, Sound, Floor Pan Gear Shift Cover	$39.17	1
27	6G337Z309AD	Insulation, transmission case cover	6G337Z309AD Insulation, transmission case cover	$104.92	1
28	6G335416AD	NVH TUNNEL REAR INNER COMPARTMENT FLEECE	6G335416AD NVH TUNNEL REAR INNER COMPARTMENT FLEECE	$21.98	1
29	6G33218060AB	NVH GEAR SHIFTER UPPER ASSEMBLY	6G33218060AB NVH GEAR SHIFTER UPPER ASSEMBLY	$11.34	1
30	6G33218061AB	NVH GEAR SHIFTER LOWER ASSEMBLY	6G33218061AB NVH GEAR SHIFTER LOWER ASSEMBLY	$18.16	1
31	9G3313082AA	NVH, Tunnel Top Arm Rest	9G3313082AA NVH, Tunnel Top Arm Rest	-	1	Enquire
32	8G3311204AB	NVH, Rear Floor Pan, RH	8G3311204AB NVH, Rear Floor Pan, RH	$5.73	1
33	6G3311205AB	NVH, Rear Floor Pan, LH	6G3311205AB NVH, Rear Floor Pan, LH	$17.61	1
34	6G3313032AB	NVH, Battery Compartment, Top	6G3313032AB NVH, Battery Compartment, Top	$20.73	1
35	6G33199229AB	NVH, Battery Compartment, Rear	6G33199229AB NVH, Battery Compartment, Rear	$15.51	1
36	6G3331338AA	Pad, Rear Wheel	6G3331338AA Pad, Rear Wheel	$13.95	2
37	6G3324562AA	Pad, Centre Body Pillar	6G3324562AA Pad, Centre Body Pillar	$17.32	2
38	6G3331181AB	Insulation, rear quarter NVH	6G3331181AB Insulation, rear quarter NVH	-	2	Enquire
39	6G33C27746AC	Insulation Rear Quarter Panel, RH	6G33C27746AC Insulation Rear Quarter Panel, RH	$39.41	1
40	6G33C27747AC	Insulation Rear Quarter Panel, LH	6G33C27747AC Insulation Rear Quarter Panel, LH	$39.41	1
41	6G33C56157AB	Fleece, Fuel Tank Top	6G33C56157AB Fleece, Fuel Tank Top	$27.82	1
42	6G33405A32AA	NVH, Fuel Tank Door Cover Assembly	6G33405A32AA NVH, Fuel Tank Door Cover Assembly	$13.77	1
43	6G3350106AA	LUGGAGE COMPARTMENT SIDE FLEECE RH	6G3350106AA LUGGAGE COMPARTMENT SIDE FLEECE RH	$25.74	1
44	6G3350107AA	Fleece, Luggage Compartment, LH	6G3350107AA Fleece, Luggage Compartment, LH	$25.74	1
45	6G33F46402AB	Fleece, Rear Side, RH	6G33F46402AB Fleece, Rear Side, RH	$25.44	1
46	6G33N46402AB	Fleece, Rear Side, LH	6G33N46402AB Fleece, Rear Side, LH	$12.26	1
47	6G33A46402AB	Fleece, Luggage Compartment, Rear Centre	6G33A46402AB Fleece, Luggage Compartment, Rear Centre	$6.36	1
48	6G33WE600041AB	WASHER STAR LOCK	6G33WE600041AB WASHER STAR LOCK	$1.26	2
49	6G3334983AB	Clip, Edge, NVH Retainer	6G3334983AB Clip, Edge, NVH Retainer	$0.91	3
50	697648	Fastener, Fir Tree	697648 Fastener, Fir Tree	$0.84	8
51	697564	Retainer, Push On	697564 Retainer, Push On	$0.10	8
52	702212	Snapsac, 6.8mm, Push-on, Plastic	702212 Snapsac, 6.8mm, Push-on, Plastic	$0.55	8
53	4G433678AAAA	Fir Tree, Push On, 5mm Stud IN STOCK	4G433678AAAA Fir Tree, Push On, 5mm Stud IN STOCK	$0.40	4

Body Sound Insulation, Lhd

Aston Martin V12 Zagato

Aston Martin V12 Zagato - Body Sound Insulation, LHD

Add to Shopping Cart
