Aston Martin V12 Zagato - Underbody Rear

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AG33C103B44AA Member, rear, centre section, upper Enquire To Order
Photo Part No Description Price (each) Stock
AG33C10786AA Cross Member, Rear Floor, Front Enquire To Order
Photo Part No Description Price (each) Stock
CG3310798AA Reinforced front floor, centre section rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
DG3310799AA Reinforcement, Front Floor, Cross Rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
7G33111B22AA Reinforcement, Front Floor Pan to Side Member Rear, RH $73.02 To Order
Photo Part No Description Price (each) Stock
7G33111B23AA Reinforcement, Front Floor Pan to Side Member Rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
AG33109A68AB MBR FRT FLR CS RR RH $214.51 To Order
Photo Part No Description Price (each) Stock
GOBG33109A69BA MBR FRT FLR CS RR LH $132.45 To Order
Photo Part No Description Price (each) Stock
6G33347863AC Nutplate, Rear Subframe Front, M14 $19.18 To Order
Photo Part No Description Price (each) Stock
6G3327924AG Panel, Rear Quarter, Inner, RH Enquire To Order
Photo Part No Description Price (each) Stock
AD2327925AA Panel, Rear Quarter, Inner, LH $58.18 To Order
Photo Part No Description Price (each) Stock
GOAG33C101K92AAT Member, Floor Side Upper Rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
GOAG33C101K93AAT Member, Floor Side Upper Rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
GOAG3310470AA Member, Floor Side Inner Rear, RH $51.97 To Order
Photo Part No Description Price (each) Stock
GOAG3310471AA Member, Floor Side Inner Rear, LH $51.97 To Order
Photo Part No Description Price (each) Stock
GOAG3310504AA Member, Extrusion, Floor Side Lower Rear, RH $73.27 To Order
Photo Part No Description Price (each) Stock
BG3310505AB Member, Extrusion, Floor Side Lower Rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
AG3324312AA Pillar, Centre Body, RH $250.47 To Order
Photo Part No Description Price (each) Stock
AG3324313AA Pillar, Centre Body, LH $250.47 To Order
Photo Part No Description Price (each) Stock
6G33C393126ABT Nutplate, M8, B Post Enquire To Order
Photo Part No Description Price (each) Stock
P06G3324576AB Panel, Centre Body Pillar, RH $346.96 To Order
Photo Part No Description Price (each) Stock
P06G3324577AB Panel, Centre Body Pillar, LH $346.96 To Order
Photo Part No Description Price (each) Stock
GO6G33C243A60BAT Reinforcement, Centre Body, Upper Outer Pillar Centre, RH Enquire To Order
Photo Part No Description Price (each) Stock
GO6G33C243A61BAT Reinforcement, Centre Body, Upper Outer Pillar Centre, LH Enquire To Order
Photo Part No Description Price (each) Stock
BG33C24314BB PLR CTR BDY OTR RR R Enquire To Order
Photo Part No Description Price (each) Stock
BG33C24315BB PLR CTR BDY OTR RR L Enquire To Order
Photo Part No Description Price (each) Stock
GOAG33C24326AA Pillar, Centre Body Inner, Rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
GOAG33C24327AA Pillar, Centre Body Inner, Rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
GOAG3324320AA Reinforcement, Centre Body Pillar $20.86 To Order
Photo Part No Description Price (each) Stock
AG3310762AA Support, Battery Tray $49.79 To Order
Photo Part No Description Price (each) Stock
6G33602A66AA Plate, Front Seat Belt Attachment $9.25 To Order
Photo Part No Description Price (each) Stock
6G3368676AC Rivet Structural 6.5 x 14, Blind $1.11 To Order
View All

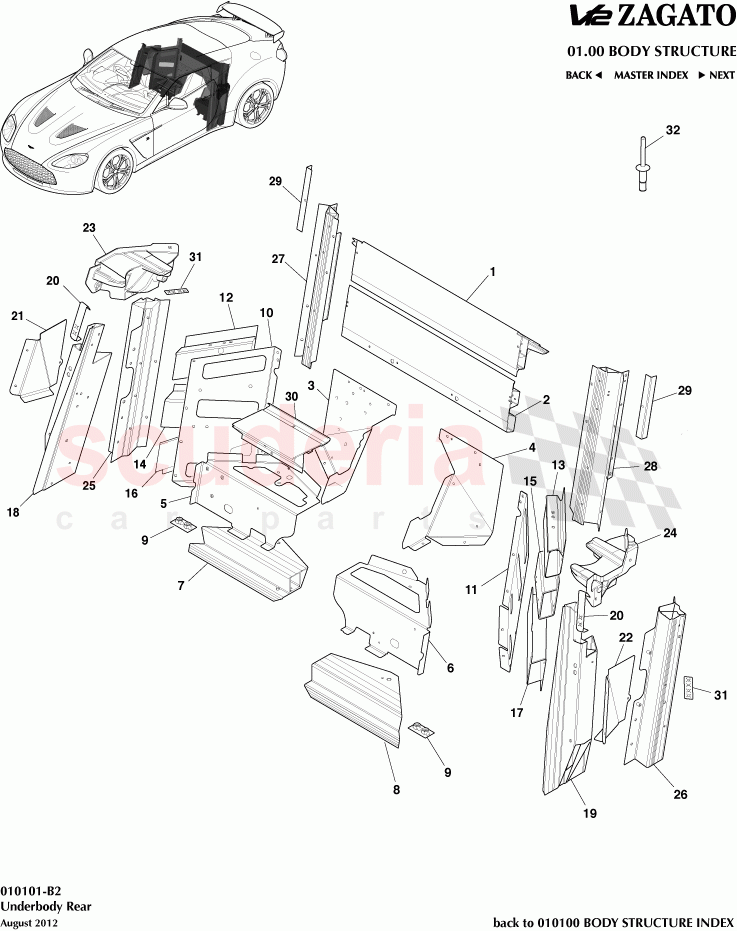

Underbody Rear of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AG33C103B44AA
Member, rear, centre section, upper
Structural Cat. A Only 		- 1 Enquire
2 AG33C10786AA
Cross Member, Rear Floor, Front
Structural Cat. A Only 		- 1 Enquire
3 CG3310798AA
Reinforced front floor, centre section rear, RH
Structural Cat. A Only 		- 1 Enquire
4 DG3310799AA
Reinforcement, Front Floor, Cross Rear, LH
Structural Cat. A Only 		- 1 Enquire
5 7G33111B22AA
Reinforcement, Front Floor Pan to Side Member Rear, RH
Structural Cat. A Only 		$73.02 1
6 7G33111B23AA
Reinforcement, Front Floor Pan to Side Member Rear, LH
Structural Cat. A Only 		- 1 Enquire
7 AG33109A68AB
MBR FRT FLR CS RR RH
Structural Cat. A Only 		$214.51 1
8 GOBG33109A69BA
MBR FRT FLR CS RR LH
Structural Cat. A Only 		$132.45 1
9 6G33347863AC
Nutplate, Rear Subframe Front, M14
Structural Cat. A Only 		$19.18 2
10 6G3327924AG
Panel, Rear Quarter, Inner, RH
Structural Cat. A Only 		- 1 Enquire
11 AD2327925AA
Panel, Rear Quarter, Inner, LH
Structural Cat. A Only 		$58.18 1
12 GOAG33C101K92AAT
Member, Floor Side Upper Rear, RH
Structural Cat. A Only 		- 1 Enquire
13 GOAG33C101K93AAT
Member, Floor Side Upper Rear, LH
Structural Cat. A Only 		- 1 Enquire
14 GOAG3310470AA
Member, Floor Side Inner Rear, RH
Structural Cat. A Only 		$51.97 1
15 GOAG3310471AA
Member, Floor Side Inner Rear, LH
Structural Cat. A Only 		$51.97 1
16 GOAG3310504AA
Member, Extrusion, Floor Side Lower Rear, RH
Structural Cat. A Only 		$73.27 1
17 BG3310505AB
Member, Extrusion, Floor Side Lower Rear, LH
Structural Cat. A Only 		- 1 Enquire
18 AG3324312AA
Pillar, Centre Body, RH
Structural Cat. A Only 		$250.47 1
19 AG3324313AA
Pillar, Centre Body, LH
Structural Cat. A Only 		$250.47 1
20 6G33C393126ABT
Nutplate, M8, B Post
Structural Cat. A Only 		- 2 Enquire
21 P06G3324576AB
Panel, Centre Body Pillar, RH
Structural Cat. A Only 		$346.96 1
22 P06G3324577AB
Panel, Centre Body Pillar, LH
Structural Cat. A Only 		$346.96 1
23 GO6G33C243A60BAT
Reinforcement, Centre Body, Upper Outer Pillar Centre, RH
Structural Cat. A Only 		- 1 Enquire
24 GO6G33C243A61BAT
Reinforcement, Centre Body, Upper Outer Pillar Centre, LH
Structural Cat. A Only 		- 1 Enquire
25 BG33C24314BB
PLR CTR BDY OTR RR R
Structural Cat. A Only 		- 1 Enquire
26 BG33C24315BB
PLR CTR BDY OTR RR L
Structural Cat. A Only 		- 1 Enquire
27 GOAG33C24326AA
Pillar, Centre Body Inner, Rear, RH
Structural Cat. A Only 		- 1 Enquire
28 GOAG33C24327AA
Pillar, Centre Body Inner, Rear, LH
Structural Cat. A Only 		- 1 Enquire
29 GOAG3324320AA
Reinforcement, Centre Body Pillar
Structural Cat. A Only 		$20.86 2
30 AG3310762AA
Support, Battery Tray
Structural Cat. A Only 		$49.79 1
31 6G33602A66AA
Plate, Front Seat Belt Attachment
Structural Cat. A Only 		$9.25 2
32 6G3368676AC
Rivet Structural 6.5 x 14, Blind 		$1.11 A/R
