Leaf Screen Assembly

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Leaf Screen Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CD33292670BD LEAFSCREEN ASY RHD $336.44 IN STOCK
Photo Part No Description Price (each) Stock
703085 Screw M6x12 PC TI8 $0.80 IN STOCK
Photo Part No Description Price (each) Stock
DG43219005AA Screw, 4.2 x 16 $1.48 To Order
Photo Part No Description Price (each) Stock
CD3311027AA Blanking Plug $1.73 To Order
Photo Part No Description Price (each) Stock
DG4311028AA Blanking Plug $1.11 To Order
Photo Part No Description Price (each) Stock
DG433810AA Drain Tube, Leaf Screen, Driver $52.49 To Order
Photo Part No Description Price (each) Stock
DG433811AA Drain Tube, Leaf Screen, Passenger $19.85 To Order
Photo Part No Description Price (each) Stock
6G3314A169AB Cable Tie $5.00 To Order
View All

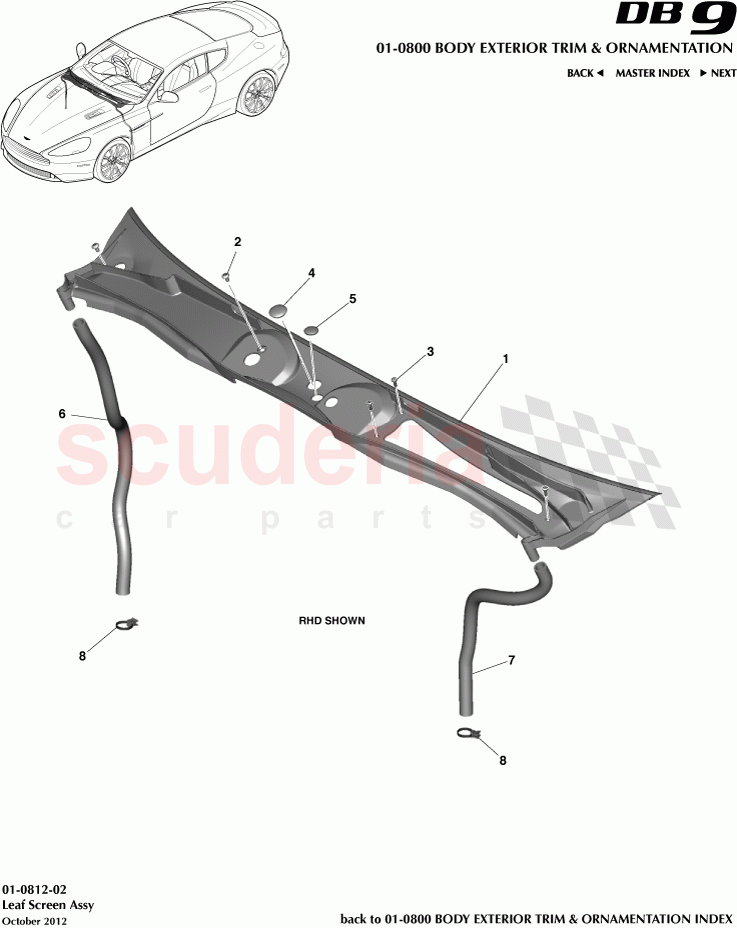

Leaf Screen Assembly of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CD33292670AD
LEAFSCREEN ASY LHD 		$455.55 1
1 CD33292670BD
LEAFSCREEN ASY RHD
IN STOCK 		$336.44 1
2 703085
Screw M6x12 PC TI8
IN STOCK 		$0.80 2
3 DG43219005AA
Screw, 4.2 x 16 		$1.48 3
4 CD3311027AA
Blanking Plug 		$1.73 1
5 DG4311028AA
Blanking Plug 		$1.11 1
6 DG433810AA
Drain Tube, Leaf Screen, Driver 		$52.49 1
7 DG433811AA
Drain Tube, Leaf Screen, Passenger 		$19.85 1
8 6G3314A169AB
Cable Tie 		$5.00 2
