Upper Exterior And Roof Finishers, Coupe

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Upper Exterior and Roof Finishers, COUPE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G43519A37CF ROOF FINISHER SIDE $1,719.20 To Order
Photo Part No Description Price (each) Stock
4G43519A36CF ROOF FINISHER SIDE $1,823.85 To Order
Photo Part No Description Price (each) Stock
4G4331300ABW Cover, Body Pillar, Alcantara $92.17 To Order
Photo Part No Description Price (each) Stock
701656 RETAINER $8.47 IN STOCK
Photo Part No Description Price (each) Stock
7G43143002AA GROMMET NUT 4.2 $0.73 To Order
Photo Part No Description Price (each) Stock
8G434999AA Washer, Load Spreading $0.49 To Order
Photo Part No Description Price (each) Stock
703104 Screw 4.8x1.59x19 04.8 Chrome Free Self Taping $0.57 IN STOCK
Photo Part No Description Price (each) Stock
6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) $4.19 IN STOCK
Photo Part No Description Price (each) Stock
4G43F20562BA Weatherstrip, Front Door Outer, RH $701.35 To Order
Photo Part No Description Price (each) Stock
4G43F20563BA Weatherstrip, Front Door Outer, LH $701.35 To Order
Photo Part No Description Price (each) Stock
4G43C02564BD Retainer Assy, Front Body W/Strip Cover Primary, RH $28.64 IN STOCK
Photo Part No Description Price (each) Stock
4G43C02565BD Retainer Assy, Front Body W/Strip Cover Primary, LH $31.33 To Order
Photo Part No Description Price (each) Stock
4G43C02564AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH $53.16 To Order
Photo Part No Description Price (each) Stock
4G43C02565AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH $42.58 To Order
Photo Part No Description Price (each) Stock
707135 SCREW 4.2 X 13 SELF TAPPING $0.09 IN STOCK
Photo Part No Description Price (each) Stock
702217 Screw, M5 x 2.5 x 20, Internal Hex Dome Head $0.35 IN STOCK
Photo Part No Description Price (each) Stock
4G43C47775BA ADHESIVE FOAM STRIP ROOF EDGE LOWER $3.92 To Order
Photo Part No Description Price (each) Stock
CG43280K62AB Side Strake, Fender, RH $1,406.05 To Order
Photo Part No Description Price (each) Stock
CG43280K63AB Side Strake, Fender, LH $1,406.05 To Order
Photo Part No Description Price (each) Stock
CG43018K28AC Side Strake, Door, RH $193.21 To Order
Photo Part No Description Price (each) Stock
CG43018K29AC Side Strake, Door, LH $193.21 IN STOCK
Photo Part No Description Price (each) Stock
CG430937AC Retainer, Door Side Strake $28.12 IN STOCK
Photo Part No Description Price (each) Stock
AD43E620011AB M5 HEX OPEN RIVNUT $0.55 To Order
Photo Part No Description Price (each) Stock
6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) $4.19 IN STOCK
Photo Part No Description Price (each) Stock
CG43280B83BD MESH SIDE STRAKE RH $136.73 To Order
Photo Part No Description Price (each) Stock
CG43280B84BD MESH SIDE STRAKE LH $54.08 To Order
Photo Part No Description Price (each) Stock
707147 NUT-M5 HEX FLG GRD 8 $0.40 To Order
Photo Part No Description Price (each) Stock
697517PK WASHER-M6 LGE OD BLK PACK OF 20 $20.95 To Order
Photo Part No Description Price (each) Stock
AD4316C692AA Louvre, Hood, RH $1,240.68 To Order
Photo Part No Description Price (each) Stock
AD4316C693AA Louvre, Hood, LH $1,240.68 To Order
Photo Part No Description Price (each) Stock
704771 NUT M4 HEX FLANGE $0.47 IN STOCK
Photo Part No Description Price (each) Stock
704771 NUT M4 HEX FLANGE $0.47 IN STOCK
Photo Part No Description Price (each) Stock
CG4316C690AB Vent Surround, Hood, Titanium Silver, RH $225.93 To Order
Photo Part No Description Price (each) Stock
CG4316C691AB Vent Surround, Hood, Titanium Silver, LH $225.93 To Order
Photo Part No Description Price (each) Stock
CG4316C692BB Mesh, Hood, Titanium Silver, RH $118.81 To Order
Photo Part No Description Price (each) Stock
CG4316C693BB Mesh, Hood, Titanium Silver, LH $118.81 To Order
Photo Part No Description Price (each) Stock
CG4316C694AC Carrier, Vent, RH $19.49 To Order
Photo Part No Description Price (each) Stock
CG4316C695AC Carrier, Vent, LH $19.49 To Order
Photo Part No Description Price (each) Stock
704771 NUT M4 HEX FLANGE $0.47 IN STOCK
Photo Part No Description Price (each) Stock
703165 NUT M5 HEX FLG PLAS CHROME FREE $0.19 IN STOCK
Photo Part No Description Price (each) Stock
707515 SCREW M5 X 16 PAN HEAD BLACK $3.61 To Order
View All

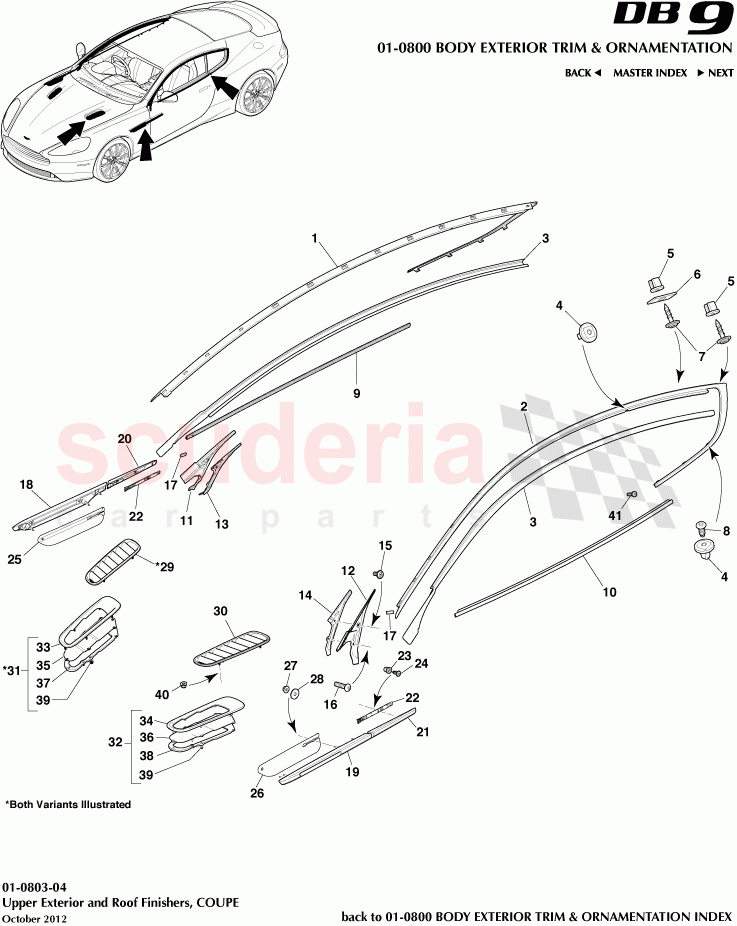

Upper Exterior and Roof Finishers, COUPE of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CG43280B83CA
Mesh, Side Strake, Magnum Silver, RH
14.5MY 		$178.34 1
- CG43280B83AC
Mesh, Side Strake, Black, RH
14.5MY 		$148.66 1
- CG43280B84CA
Mesh, Side Strake, Magnum Silver, LH
14.5MY 		$178.34 1
- CG43280B84AC
Mesh, Side Strake, Black, LH
14.5MY 		$148.66 1
- CG4316C692DC
Vent Assy, Hood, RH
Titanium 		- 1 Enquire
- CG4316C693DC
Vent Assy, Hood, LH
Titanium 		- 1 Enquire
- CG4316C692AB
Mesh, Hood, Black, RH 		$118.81 1
- CG4316C693AB
Mesh, Hood, Black, LH 		$118.81 1
1 4G43519A37CF
ROOF FINISHER SIDE 		$1,719.20 1
2 4G43519A36CF
ROOF FINISHER SIDE 		$1,823.85 1
3 4G4331300ABW
Cover, Body Pillar, Alcantara 		$92.17 2
4 701656
RETAINER
10 Per Pack
IN STOCK 		$8.47 10
5 7G43143002AA
GROMMET NUT 4.2 		$0.73 26
6 8G434999AA
Washer, Load Spreading 		$0.49 16
7 703104
Screw 4.8x1.59x19 04.8 Chrome Free Self Taping
IN STOCK 		$0.57 34
8 6G3351756AAPK
Screw M5 x 13 Pan Head Pack (10)
10 Per Pack
IN STOCK 		$4.19 8
9 4G43F20562BA
Weatherstrip, Front Door Outer, RH 		$701.35 1
10 4G43F20563BA
Weatherstrip, Front Door Outer, LH 		$701.35 1
11 4G43C02564BD
Retainer Assy, Front Body W/Strip Cover Primary, RH
IN STOCK 		$28.64 1
12 4G43C02565BD
Retainer Assy, Front Body W/Strip Cover Primary, LH 		$31.33 1
13 4G43C02564AC
RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH 		$53.16 1
14 4G43C02565AC
RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH 		$42.58 1
15 707135
SCREW 4.2 X 13 SELF TAPPING
IN STOCK 		$0.09 2
16 702217
Screw, M5 x 2.5 x 20, Internal Hex Dome Head
IN STOCK 		$0.35 2
17 4G43C47775BA
ADHESIVE FOAM STRIP ROOF EDGE LOWER 		$3.92 2
18 CG43280K62AB
Side Strake, Fender, RH 		$1,406.05 1
19 CG43280K63AB
Side Strake, Fender, LH 		$1,406.05 1
20 CG43018K28AC
Side Strake, Door, RH 		$193.21 1
21 CG43018K29AC
Side Strake, Door, LH
IN STOCK 		$193.21 1
22 CG430937AC
Retainer, Door Side Strake
IN STOCK 		$28.12 2
23 AD43E620011AB
M5 HEX OPEN RIVNUT 		$0.55 6
24 6G3351756AAPK
Screw M5 x 13 Pan Head Pack (10)
10 Per Pack
IN STOCK 		$4.19 6
25 CG43280B83BD
MESH SIDE STRAKE RH 		$136.73 1
26 CG43280B84BD
MESH SIDE STRAKE LH 		$54.08 1
27 707147
NUT-M5 HEX FLG GRD 8 		$0.40 8
28 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
20 Per Pack 		$20.95 2
29 AD4316C692AA
Louvre, Hood, RH
Chrome 		$1,240.68 1
30 AD4316C693AA
Louvre, Hood, LH
Chrome 		$1,240.68 1
31 704771
NUT M4 HEX FLANGE
Black
IN STOCK 		$0.47 1
32 704771
NUT M4 HEX FLANGE
Black
IN STOCK 		$0.47 1
33 CG4316C690AB
Vent Surround, Hood, Titanium Silver, RH 		$225.93 1
34 CG4316C691AB
Vent Surround, Hood, Titanium Silver, LH 		$225.93 1
35 CG4316C692BB
Mesh, Hood, Titanium Silver, RH 		$118.81 2
36 CG4316C693BB
Mesh, Hood, Titanium Silver, LH 		$118.81 1
37 CG4316C694AC
Carrier, Vent, RH 		$19.49 1
38 CG4316C695AC
Carrier, Vent, LH 		$19.49 1
39 704771
NUT M4 HEX FLANGE
IN STOCK 		$0.47 8
40 703165
NUT M5 HEX FLG PLAS CHROME FREE
Hood Louvre Fixtures Only
IN STOCK 		$0.19 8
41 707515
SCREW M5 X 16 PAN HEAD BLACK 		$3.61 2
