Aston Martin DB9 (2013-2016) - Body Dash and Cowl, VOLANTE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DG43L03014AD Frame Assembly, Windshield Enquire To Order
Photo Part No Description Price (each) Stock
GOGG33F02526AA REINF FRT BDY PLR $313.02 To Order
Photo Part No Description Price (each) Stock
GOAG33F02527AA Pillar, Front Body Reinforcement, LH $89.04 To Order
Photo Part No Description Price (each) Stock
4G43L03444AB Reinf Windshield Header $62.98 To Order
Photo Part No Description Price (each) Stock
4G43111C61AE Panel, Dummy Floor Front, RHD $423.70 To Order
Photo Part No Description Price (each) Stock
701553 Screw, M6 x 16, Pan Head $0.20 IN STOCK
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE $0.55 IN STOCK
Photo Part No Description Price (each) Stock
4G43111B48AB Panel, Dummy Floor Cover, Front $46.03 To Order
Photo Part No Description Price (each) Stock
DG4316430AA Reinforcement, Hood Striker Plate, RH $56.04 To Order
Photo Part No Description Price (each) Stock
DG4316431AA Reinforcement, Hood Striker Plate, LH $45.56 To Order
Photo Part No Description Price (each) Stock
6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni $0.64 To Order
Photo Part No Description Price (each) Stock
6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni $1.81 To Order
Photo Part No Description Price (each) Stock
8G43199901AA Nutplate, M6 Headlamp Bracket $5.77 To Order
Photo Part No Description Price (each) Stock
6G3337949AA DIA 4.8 X 13.9 BLIND RIVET $0.12 To Order
Photo Part No Description Price (each) Stock
DD4316185AC Extrusion, Front Wing LH $305.91 To Order
Photo Part No Description Price (each) Stock
DD4316184AC Extrusion, Front Wing RH $291.37 To Order
Photo Part No Description Price (each) Stock
GODG4317F790BA Nutplate, Shotgun, M10 $47.74 To Order
Photo Part No Description Price (each) Stock
DG4318178BA Bracket, Gas Damper Mounting $33.08 To Order
Photo Part No Description Price (each) Stock
DG4316A681AA Reinforcement, Hood Hinge on Body, RH $62.98 To Order
Photo Part No Description Price (each) Stock
DG4316A682AA Reinforcement, Hood Hinge on Body, LH $62.98 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.20 IN STOCK
Photo Part No Description Price (each) Stock
GODG43F02660AB Pillar, Front Body, Lower Front, RH $252.10 To Order
Photo Part No Description Price (each) Stock
GODG43F02661AB Pillar, Front Body, Lower Front, LH $252.10 To Order
Photo Part No Description Price (each) Stock
6G3371490AA Nutplate, A Post Hinge, Upper, RH $9.17 To Order
Photo Part No Description Price (each) Stock
6G3315110AB Nutplate M8, ??post hinge, lower, RH $12.64 To Order
Photo Part No Description Price (each) Stock
6G3394545AA Nutplate, A Post Hinge, Upper, LH $9.02 To Order
Photo Part No Description Price (each) Stock
6G3315111AB Nutplate M8, ??post hinge, lower, LH $8.27 To Order
Photo Part No Description Price (each) Stock
GODG43F02662AC Extrusion, Front Body Pillar Lower, RH $141.81 To Order
Photo Part No Description Price (each) Stock
GODG43F02663AC Extrusion, Front Body Pillar Lower, LH $157.56 To Order
Photo Part No Description Price (each) Stock
6G33486226AA Nutplate, M8, IP beam $9.17 To Order
Photo Part No Description Price (each) Stock
GODG43F292650AC Plenum, Lower $299.37 To Order
Photo Part No Description Price (each) Stock
GODG4319414AA Adaptor, Plenum Lower, RH $22.05 To Order
Photo Part No Description Price (each) Stock
GODG4319415AA Adaptor, Plenum Lower, LH $22.05 To Order
Photo Part No Description Price (each) Stock
GODD4371023AE Cowl, Reinforcement Casting Enquire To Order
Photo Part No Description Price (each) Stock
6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head $0.35 To Order
Photo Part No Description Price (each) Stock
6G3368676AC Rivet Structural 6.5 x 14, Blind $1.17 To Order
Photo Part No Description Price (each) Stock
7G43C2437AAW CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE $140.37 To Order
View All

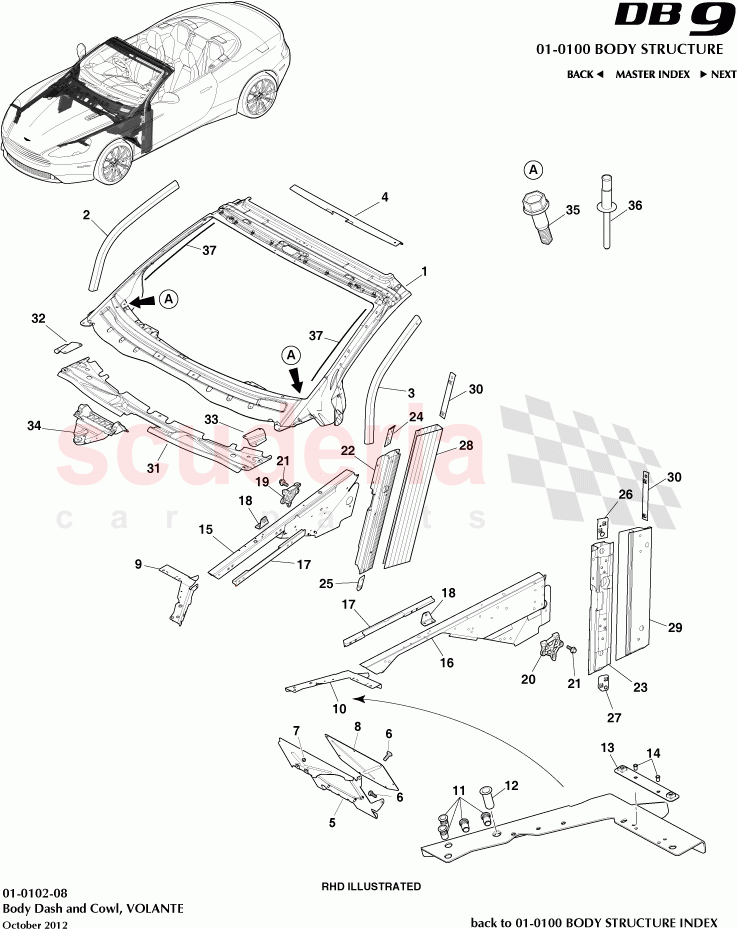

Body Dash and Cowl, VOLANTE of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- EG43L03014AC
Frame Assembly, Windshield
From 14 MY. Structural. Cat A Only 		- 1 Enquire
- 9G43111C60GF
Panel, Dummy Floor Front, LHD
Structural. Cat A Only 		$423.72 1
1 DG43L03014AD
Frame Assembly, Windshield
Up to 14MY. Structural. Cat A Only 		- 1 Enquire
2 GOGG33F02526AA
REINF FRT BDY PLR
Structural. Cat A Only 		$313.02 1
3 GOAG33F02527AA
Pillar, Front Body Reinforcement, LH
Structural. Cat A Only 		$89.04 1
4 4G43L03444AB
Reinf Windshield Header
Structural. Cat A Only 		$62.98 1
5 4G43111C61AE
Panel, Dummy Floor Front, RHD
Structural. Cat A Only 		$423.70 1
6 701553
Screw, M6 x 16, Pan Head
IN STOCK 		$0.20 12
7 703169
NUT - M6 HEX FLANGE CHROME FREE
IN STOCK 		$0.55 2
8 4G43111B48AB
Panel, Dummy Floor Cover, Front
Structural. Cat A Only 		$46.03 1
9 DG4316430AA
Reinforcement, Hood Striker Plate, RH
Structural. Cat A Only 		$56.04 1
10 DG4316431AA
Reinforcement, Hood Striker Plate, LH
Structural. Cat A Only 		$45.56 1
11 6G3356316AA
RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni
4 per Striker Plate 		$0.64 8
12 6G3346768AA
RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni
2 per Striker Plate 		$1.81 4
13 8G43199901AA
Nutplate, M6 Headlamp Bracket
Structural. Cat A Only 		$5.77 2
14 6G3337949AA
DIA 4.8 X 13.9 BLIND RIVET
2 per Nutplate 		$0.12 4
15 DD4316185AC
Extrusion, Front Wing LH
Structural. Cat A Only 		$305.91 1
16 DD4316184AC
Extrusion, Front Wing RH
Structural. Cat A Only 		$291.37 1
17 GODG4317F790BA
Nutplate, Shotgun, M10
Structural. Cat A Only 		$47.74 2
18 DG4318178BA
Bracket, Gas Damper Mounting
Structural. Cat A Only 		$33.08 2
19 DG4316A681AA
Reinforcement, Hood Hinge on Body, RH
Structural. Cat A Only 		$62.98 1
20 DG4316A682AA
Reinforcement, Hood Hinge on Body, LH
Structural. Cat A Only 		$62.98 1
21 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.20 6
22 GODG43F02660AB
Pillar, Front Body, Lower Front, RH
Structural. Cat A Only 		$252.10 1
23 GODG43F02661AB
Pillar, Front Body, Lower Front, LH
Structural. Cat A Only 		$252.10 1
24 6G3371490AA
Nutplate, A Post Hinge, Upper, RH
Structural. Cat A Only 		$9.17 1
25 6G3315110AB
Nutplate M8, ??post hinge, lower, RH
Structural. Cat A Only 		$12.64 1
26 6G3394545AA
Nutplate, A Post Hinge, Upper, LH
Structural. Cat A Only 		$9.02 1
27 6G3315111AB
Nutplate M8, ??post hinge, lower, LH
Structural. Cat A Only 		$8.27 1
28 GODG43F02662AC
Extrusion, Front Body Pillar Lower, RH
Structural. Cat A Only 		$141.81 1
29 GODG43F02663AC
Extrusion, Front Body Pillar Lower, LH
Structural. Cat A Only 		$157.56 1
30 6G33486226AA
Nutplate, M8, IP beam
Structural. Cat A Only 		$9.17 2
31 GODG43F292650AC
Plenum, Lower
Structural. Cat A Only 		$299.37 1
32 GODG4319414AA
Adaptor, Plenum Lower, RH
Structural. Cat A Only 		$22.05 1
33 GODG4319415AA
Adaptor, Plenum Lower, LH
Structural. Cat A Only 		$22.05 1
34 GODD4371023AE
Cowl, Reinforcement Casting
Structural. Cat A Only 		- 1 Enquire
35 6G33375732AB
Screw, 5.5 x 19, Self Drill, Hex Flange head 		$0.35 2
36 6G3368676AC
Rivet Structural 6.5 x 14, Blind 		$1.17 A/R
37 7G43C2437AAW
CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE 		$140.37 2
