Body Ancillary Parts, Volante (Page 1)

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Body Ancillary Parts, VOLANTE (Page 1)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G4311262BA Reinforcement Assembly, Floor Pan Front $665.29 To Order
Photo Part No Description Price (each) Stock
703268 Screw and Washer, M8 x 21 $15.47 IN STOCK
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) $19.27 IN STOCK
Photo Part No Description Price (each) Stock
GODG43111K36AC Tunnel Reinforcement, Front $148.91 To Order
Photo Part No Description Price (each) Stock
703120 Screw M8-1.25-90 Hex Socket Head Shoulder $5.42 IN STOCK
Photo Part No Description Price (each) Stock
GODG431660AA Spacer, Tunnel Reinforcement, Front $26.67 To Order
Photo Part No Description Price (each) Stock
CD33106160AA Stud, M6, Threaded $19.59 To Order
Photo Part No Description Price (each) Stock
4G43111K37AE Tunnel Reinforcement, Centre $78.48 To Order
Photo Part No Description Price (each) Stock
FD33L17C857AB SHIELD-RR BMPR OPG $2,568.14 To Order
Photo Part No Description Price (each) Stock
700229 Bolt, M8 x 35, Hex Flange Head $0.38 To Order
Photo Part No Description Price (each) Stock
702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) $21.51 IN STOCK
Photo Part No Description Price (each) Stock
DG435340AA Bracket, ECU Mounting, RH $328.62 To Order
Photo Part No Description Price (each) Stock
DG435341AA Bracket, ECU Mounting, LH $205.31 To Order
Photo Part No Description Price (each) Stock
703194 BOLT M8x45 HEX FLNG CHROME FREE $1.46 To Order
Photo Part No Description Price (each) Stock
DD43V17N800BA Crash Can, Bumper Front $1,986.82 To Order
Photo Part No Description Price (each) Stock
704495 Screw, M8 x 35, Hex Flange Head $11.22 IN STOCK
Photo Part No Description Price (each) Stock
DG4313068AC PNL HD/LP MTNG RH $271.77 To Order
Photo Part No Description Price (each) Stock
DG4313069AC PNL HD/LP MNTG LH $271.77 To Order
Photo Part No Description Price (each) Stock
4G436367912AD NUT PLT ASY FRT CRSH $11.55 To Order
Photo Part No Description Price (each) Stock
DG43043B19AA Tube, Passenger Air Bag Initiator, RH $41.73 To Order
Photo Part No Description Price (each) Stock
DG43043B20AA Tube, Passenger Air Bag Initiator, LH $41.73 To Order
Photo Part No Description Price (each) Stock
GOED33108A86AB BRKT FRT CS BRA RH $159.46 To Order
Photo Part No Description Price (each) Stock
GOED33108A87AD Bracket, Front Cross Brace, LH Enquire To Order
Photo Part No Description Price (each) Stock
DD43108A75CA Cross Brace, Front $759.30 To Order
Photo Part No Description Price (each) Stock
702209 Bolt, M10 x 25, Torque Drive $1.25 IN STOCK
Photo Part No Description Price (each) Stock
DG4300512AA Screw (Taptite), M10 x 40 Hex Flange Head $4.42 IN STOCK
Photo Part No Description Price (each) Stock
DG43F27A06AA Plate, Mounting $57.77 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
Photo Part No Description Price (each) Stock
1R12640101AA Ball Stud $5.28 IN STOCK
Photo Part No Description Price (each) Stock
DG4318178BA Bracket, Gas Damper Mounting $31.27 To Order
Photo Part No Description Price (each) Stock
701567 Screw, M6 x 16 $1.93 IN STOCK
Photo Part No Description Price (each) Stock
8G43199901AA Nutplate, M6 Headlamp Bracket $5.45 To Order
Photo Part No Description Price (each) Stock
9G4328114AA Baffle, Quarter Panel At Wheel, Housing Upper, RH $38.62 To Order
Photo Part No Description Price (each) Stock
DG4316A681AA Reinforcement, Hood Hinge on Body, RH $59.52 To Order
Photo Part No Description Price (each) Stock
DG4316A682AA Reinforcement, Hood Hinge on Body, LH $59.52 To Order
View All

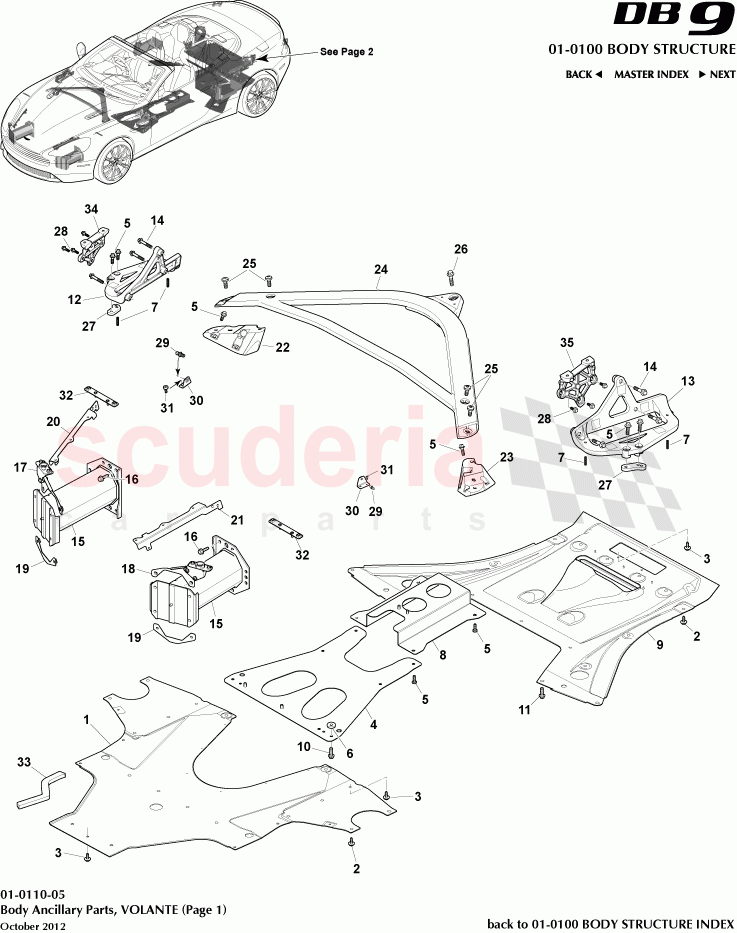

Body Ancillary Parts, VOLANTE (Page 1) of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9G4328115AA
Baffle, Quarter Panel At Wheel, Housing Upper, LH 		$38.62 1
1 9G4311262BA
Reinforcement Assembly, Floor Pan Front 		$665.29 1
2 703268
Screw and Washer, M8 x 21
IN STOCK 		$15.47 31
3 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
20 Per Pack
IN STOCK 		$19.27 5
4 GODG43111K36AC
Tunnel Reinforcement, Front 		$148.91 1
5 703120
Screw M8-1.25-90 Hex Socket Head Shoulder
IN STOCK 		$5.42 20
6 GODG431660AA
Spacer, Tunnel Reinforcement, Front 		$26.67 2
7 CD33106160AA
Stud, M6, Threaded 		$19.59 4
8 4G43111K37AE
Tunnel Reinforcement, Centre 		$78.48 1
9 FD33L17C857AB
SHIELD-RR BMPR OPG 		$2,568.14 1
10 700229
Bolt, M8 x 35, Hex Flange Head 		$0.38 2
11 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)
IN STOCK 		$21.51 2
12 DG435340AA
Bracket, ECU Mounting, RH 		$328.62 1
13 DG435341AA
Bracket, ECU Mounting, LH 		$205.31 1
14 703194
BOLT M8x45 HEX FLNG CHROME FREE 		$1.46 12
15 DD43V17N800BA
Crash Can, Bumper Front
Structural Cat. A Only 		$1,986.82 2
16 704495
Screw, M8 x 35, Hex Flange Head
6 per crash can
IN STOCK 		$11.22 12
17 DG4313068AC
PNL HD/LP MTNG RH 		$271.77 1
18 DG4313069AC
PNL HD/LP MNTG LH 		$271.77 1
19 4G436367912AD
NUT PLT ASY FRT CRSH 		$11.55 2
20 DG43043B19AA
Tube, Passenger Air Bag Initiator, RH 		$41.73 1
21 DG43043B20AA
Tube, Passenger Air Bag Initiator, LH 		$41.73 1
22 GOED33108A86AB
BRKT FRT CS BRA RH 		$159.46 1
23 GOED33108A87AD
Bracket, Front Cross Brace, LH 		- 1 Enquire
24 DD43108A75CA
Cross Brace, Front 		$759.30 1
25 702209
Bolt, M10 x 25, Torque Drive
IN STOCK 		$1.25 4
26 DG4300512AA
Screw (Taptite), M10 x 40 Hex Flange Head
IN STOCK 		$4.42 1
27 DG43F27A06AA
Plate, Mounting 		$57.77 2
28 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.19 6
29 1R12640101AA
Ball Stud
IN STOCK 		$5.28 2
30 DG4318178BA
Bracket, Gas Damper Mounting 		$31.27 2
31 701567
Screw, M6 x 16
IN STOCK 		$1.93 4
32 8G43199901AA
Nutplate, M6 Headlamp Bracket 		$5.45 2
33 9G4328114AA
Baffle, Quarter Panel At Wheel, Housing Upper, RH 		$38.62 1
34 DG4316A681AA
Reinforcement, Hood Hinge on Body, RH 		$59.52 1
35 DG4316A682AA
Reinforcement, Hood Hinge on Body, LH 		$59.52 1
